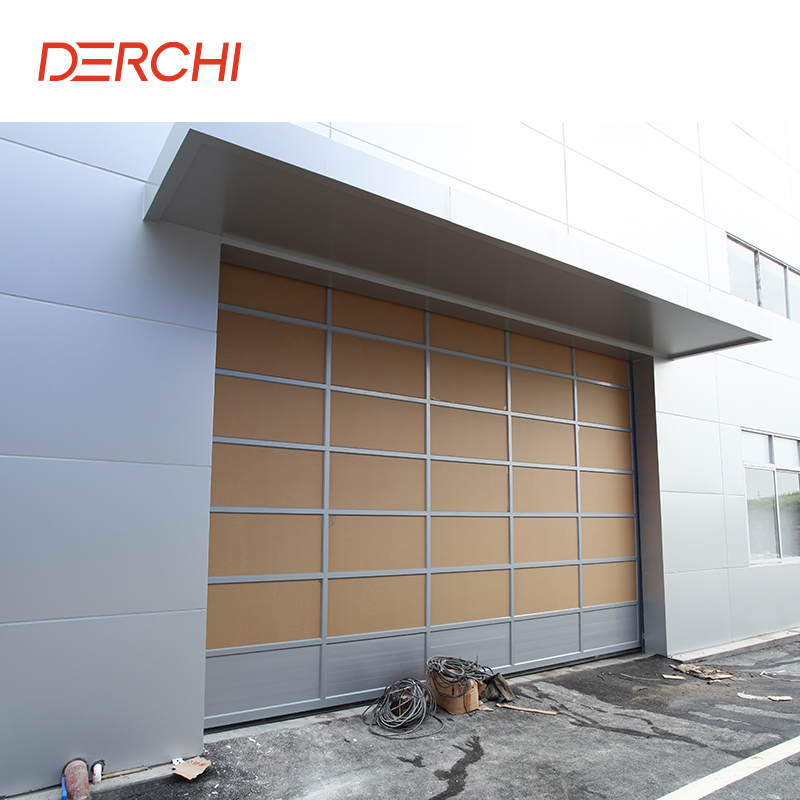

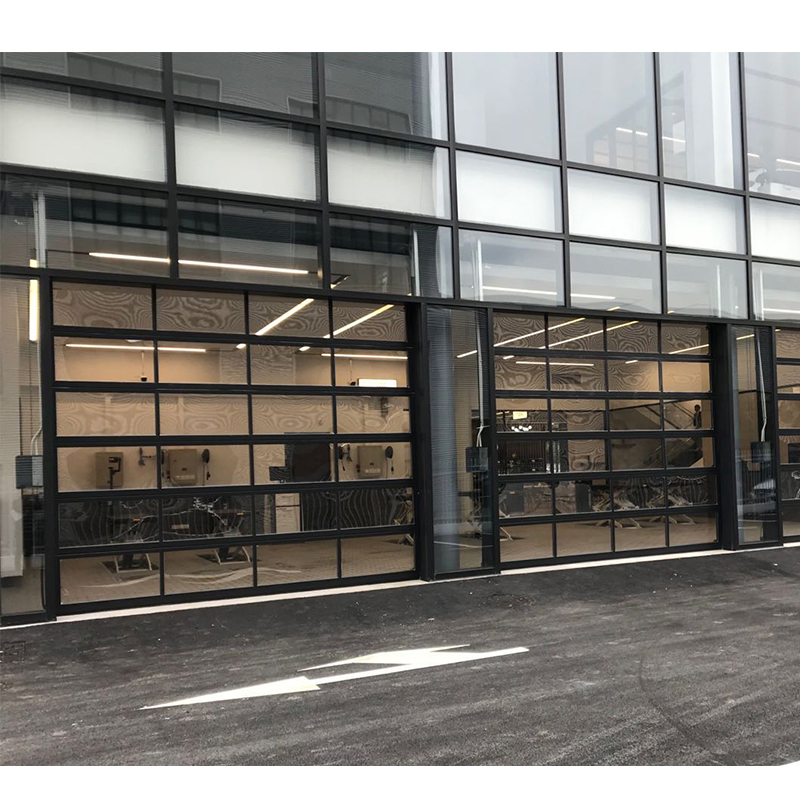

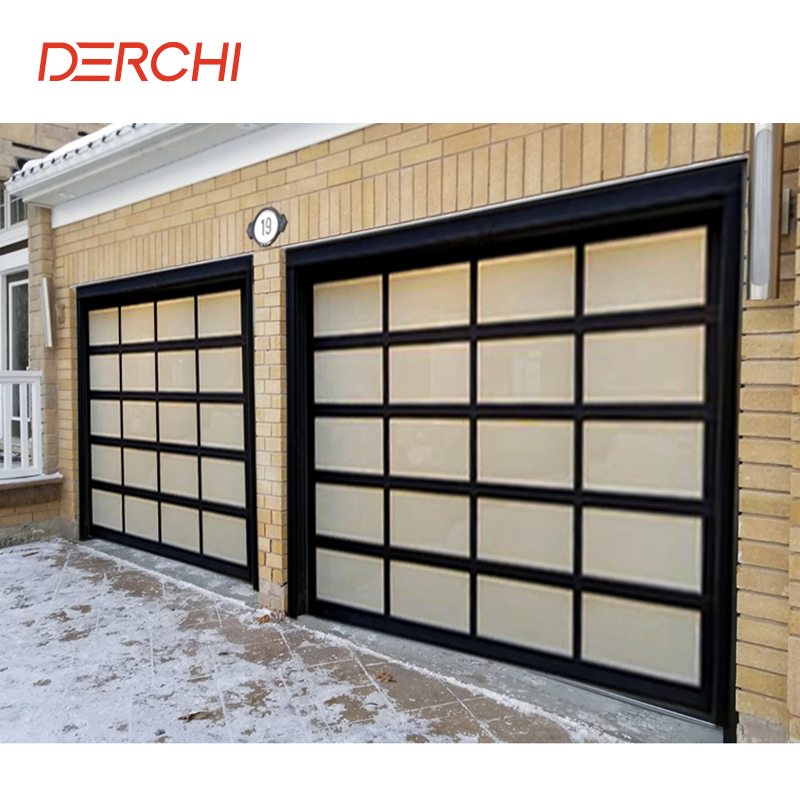

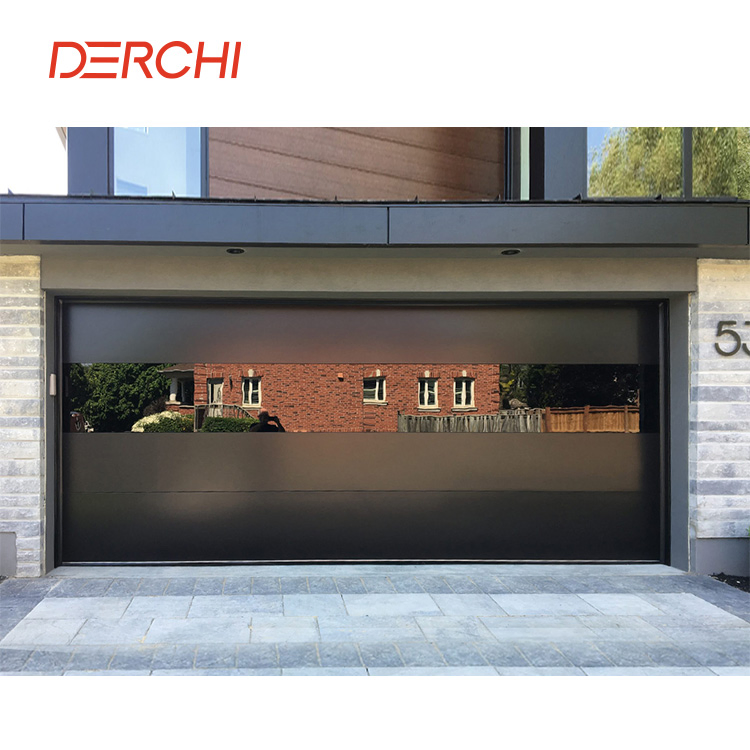

Aluminum Glass Garage Door 9*8' or 8X7' or 16*8' Full View Tempered Glass Garage Doors

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Info.
Model NO.
Garage Door
Material
Aluminum Alloy
Thickness
50mm
Opening Style
Rolling
Opening Type
With Remote Control
Surface Finishing
Finished
Profile Thickness
2.0 mm Aluminium
Glass
Double Tempered Glass
Glass Thickness
5+27A+5 mm
Surface Treatment
Powder Coated / PVDF
Certificate
CE As2047 Nfrc
Capacity
30000 Square Meter/Month
🖼️ Product Showcase
Garage Door View 1

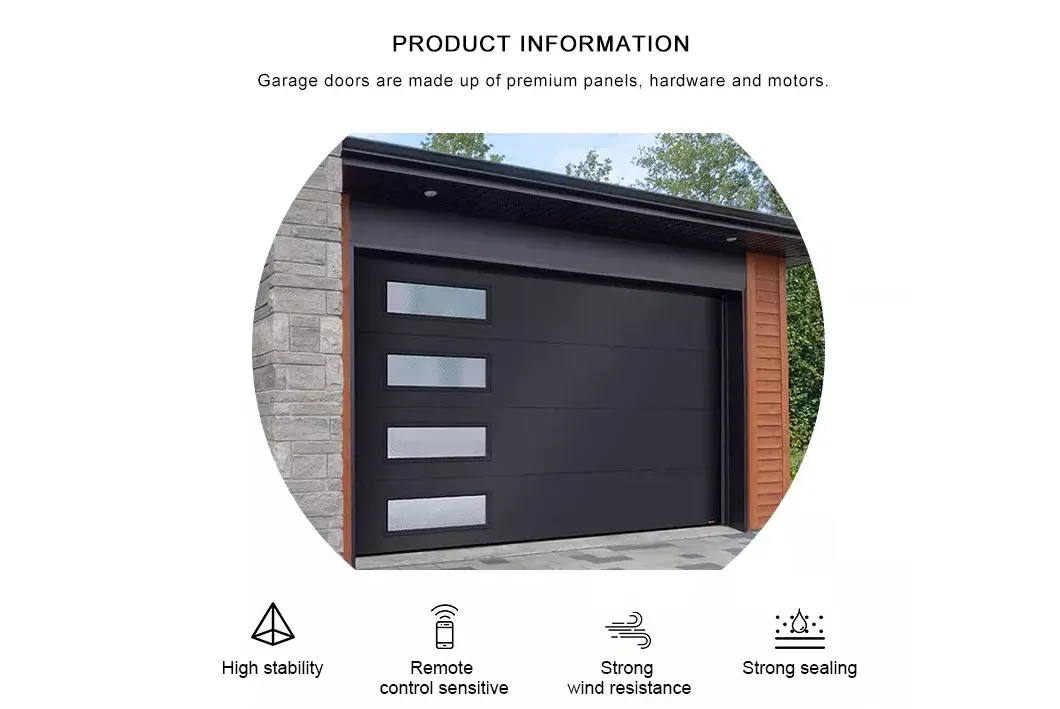

Garage Door View 2
Garage Door View 3

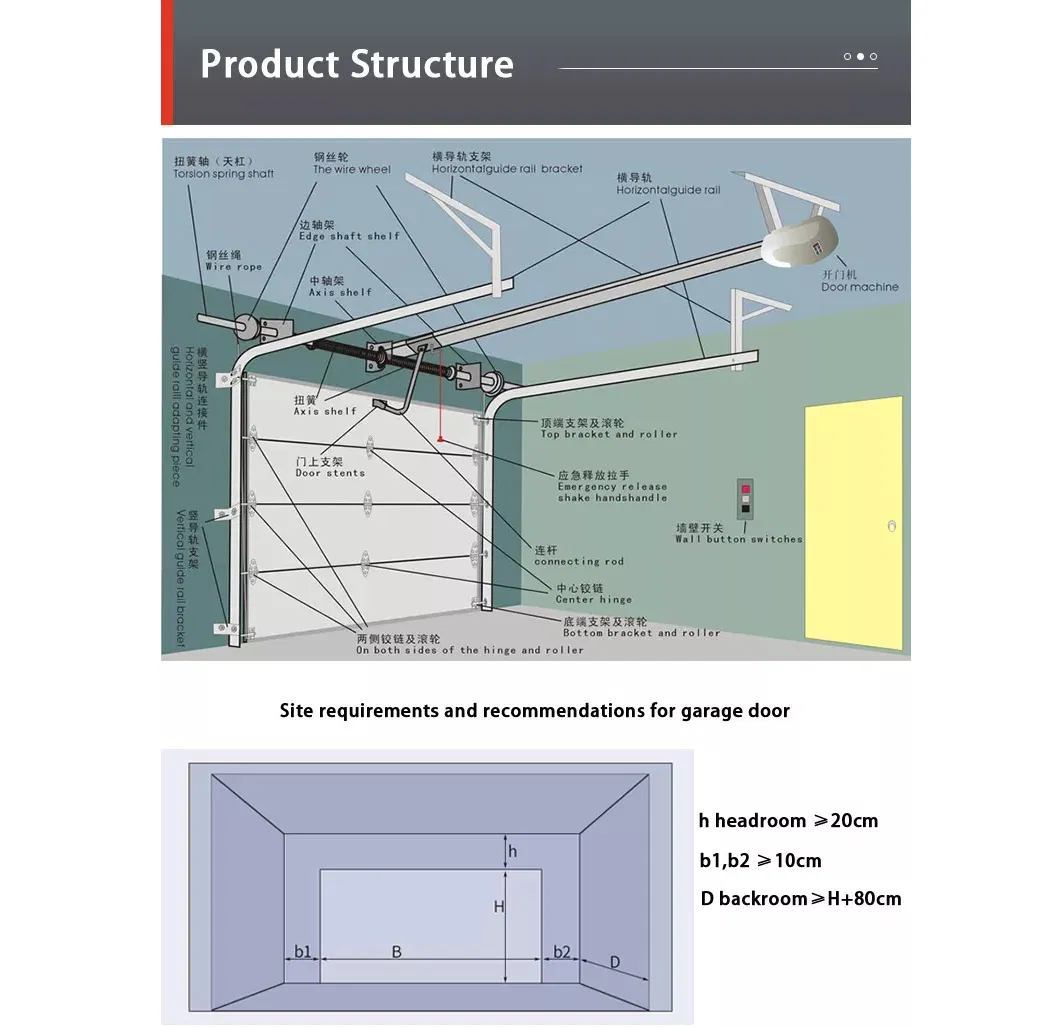

Garage Door View 4
🛠️ Technical Specifications
Feature Details
SeriesAluminum Glass Garage Door
Open TypeSectional roll up and sliding
Profile Thickness2.5mm aluminum profile thickness
Control ModelRemote Control (Standard), Manual

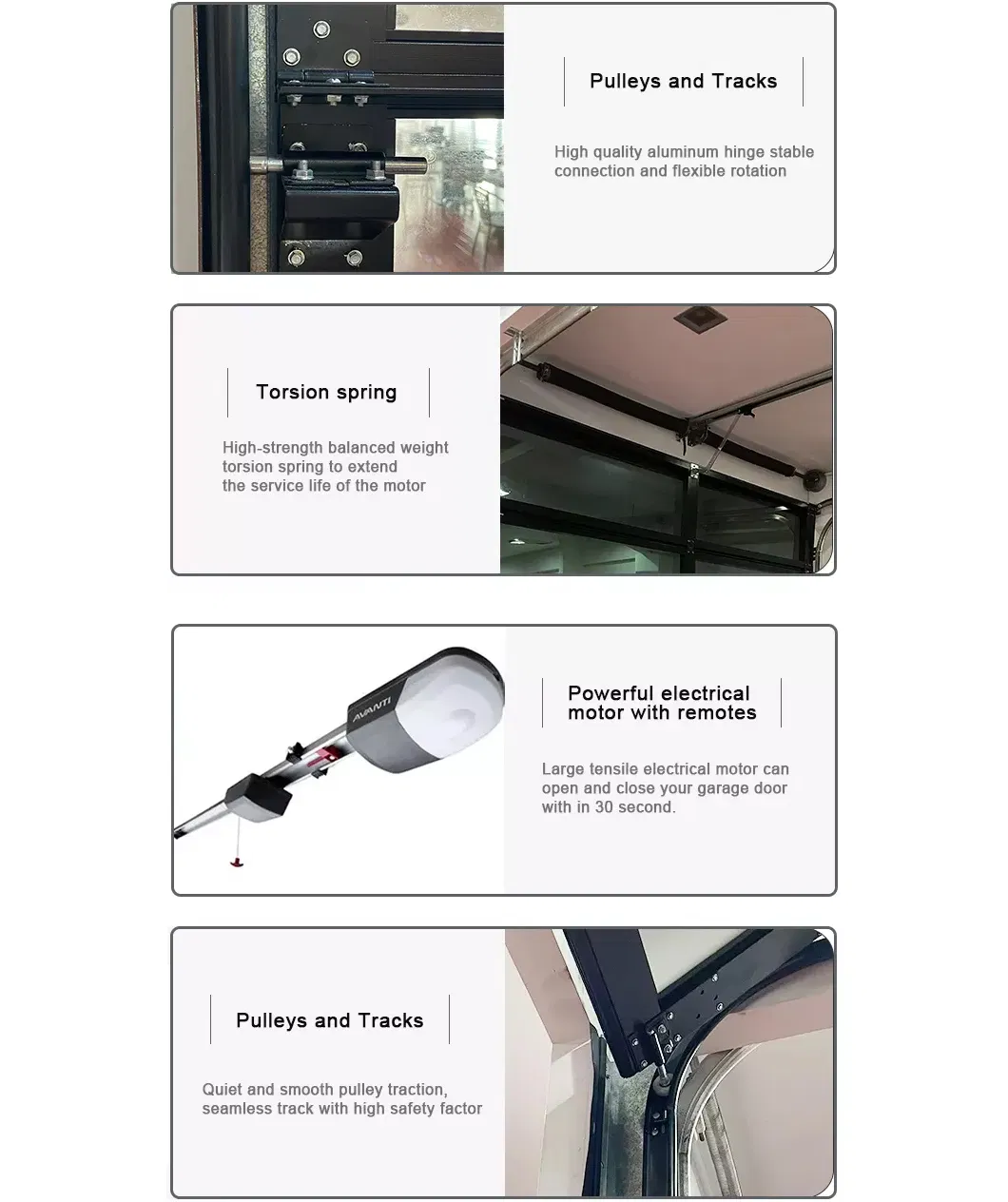

Opener800N/1000N/1200N/1500N/1800N (Based on doorway's size)
Glass5mm tempered glass; Clear glass; Frosted Glass (Standard)
HardwareHigh quality galvanized steel hardware (Full set)
Hinges2.5mm plate galvanized steel
RollersStandard (2" or 3"), Heavy Duty (2" or 3")
TrackGalvanized Steel/Aluminum/Stainless Steel
PackageProtection foam with heat contracted plastic film / wooden packing

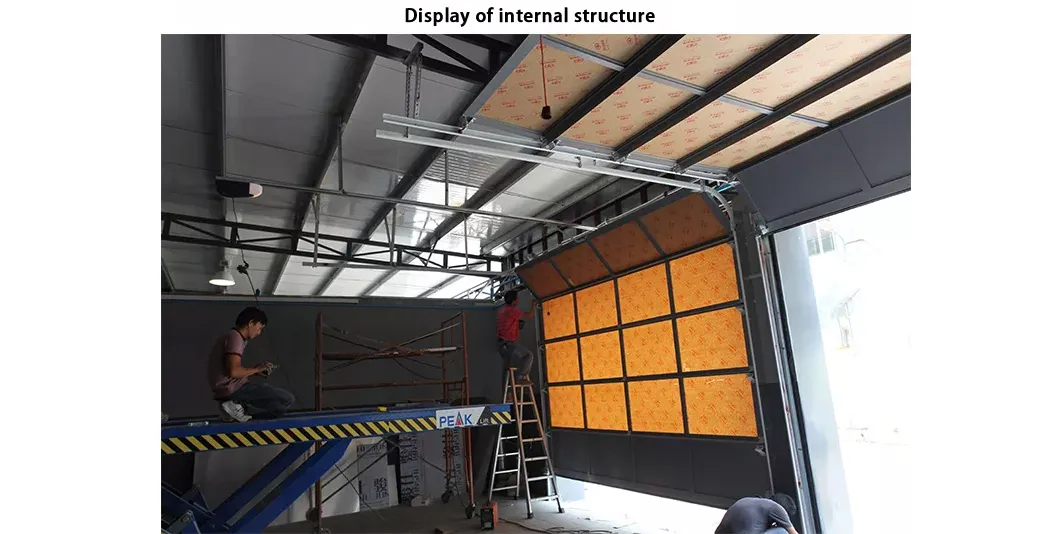

Detail 1
Detail 2

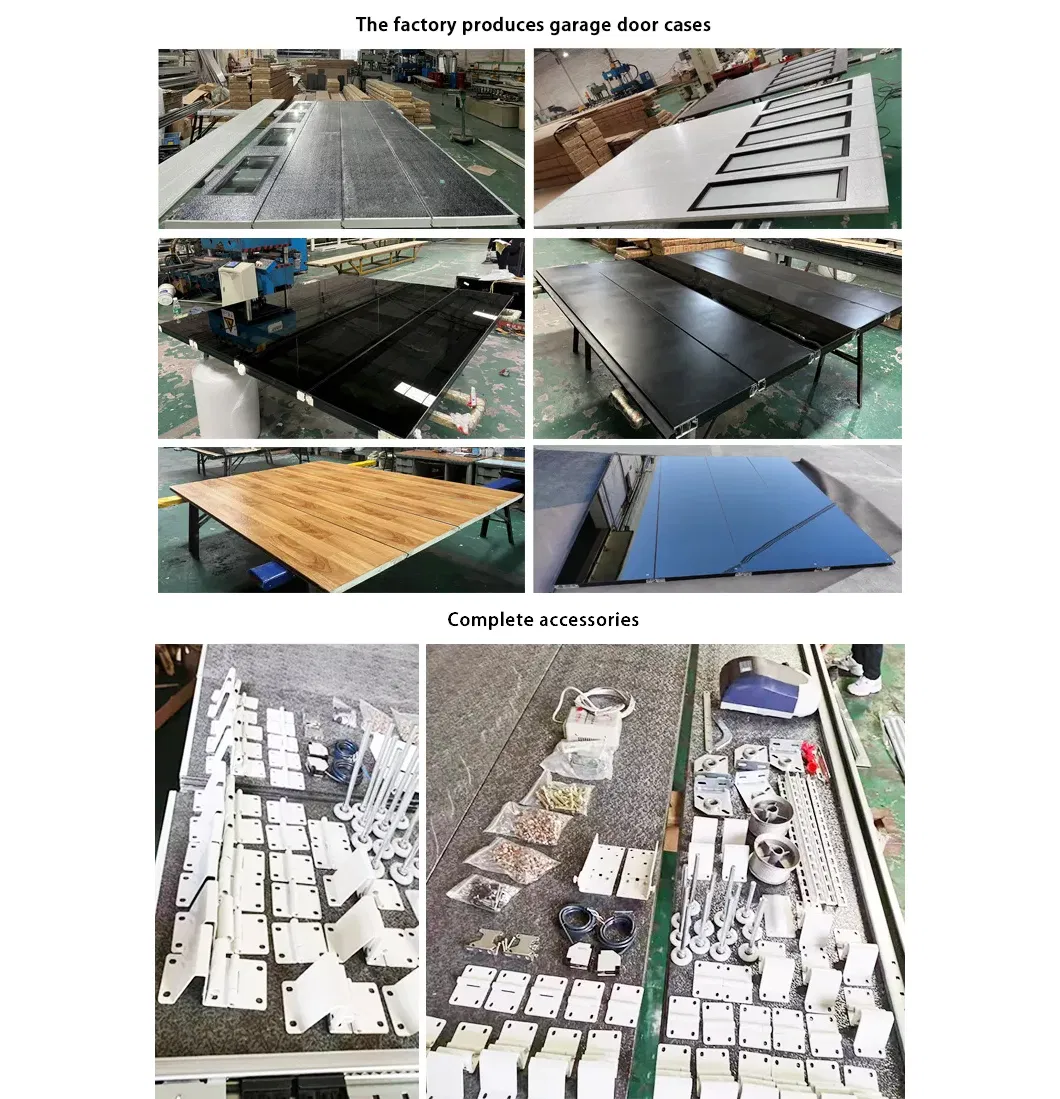

Detail 3

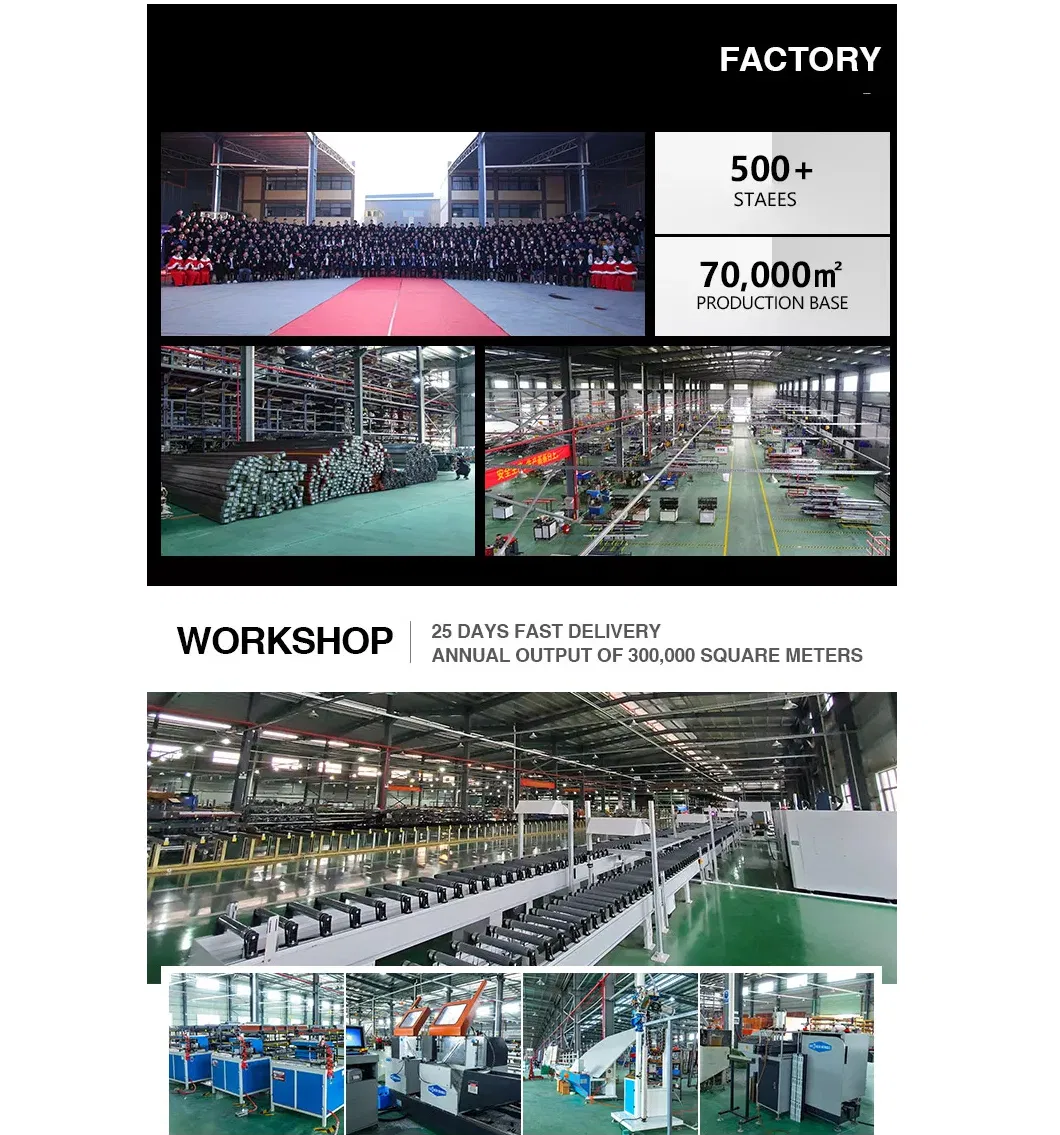

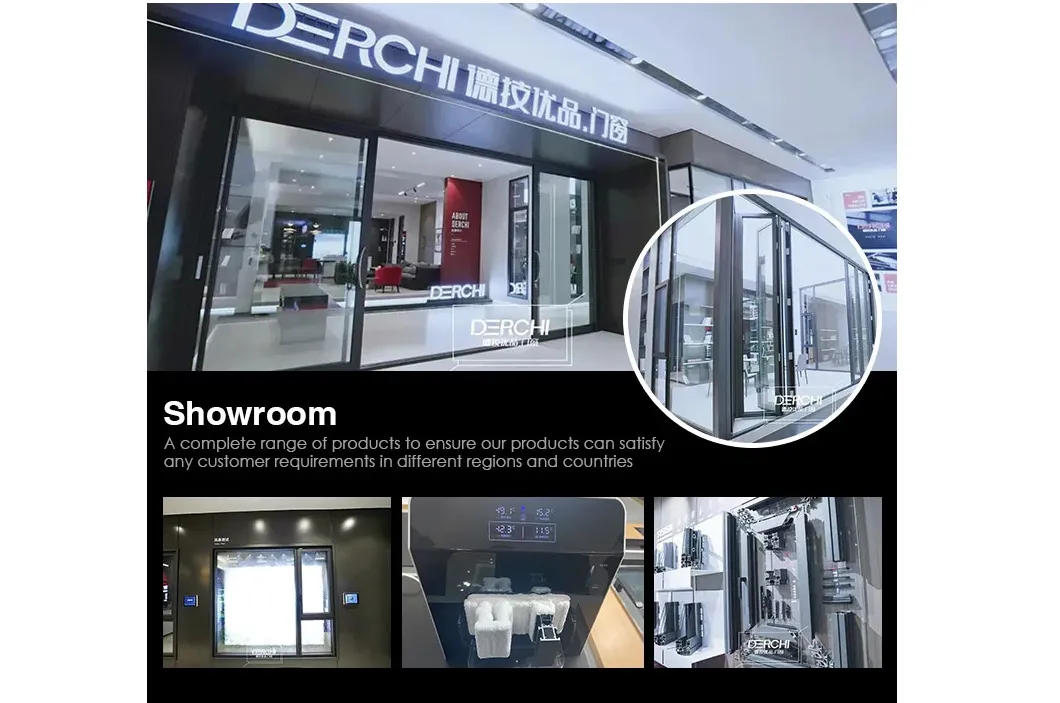

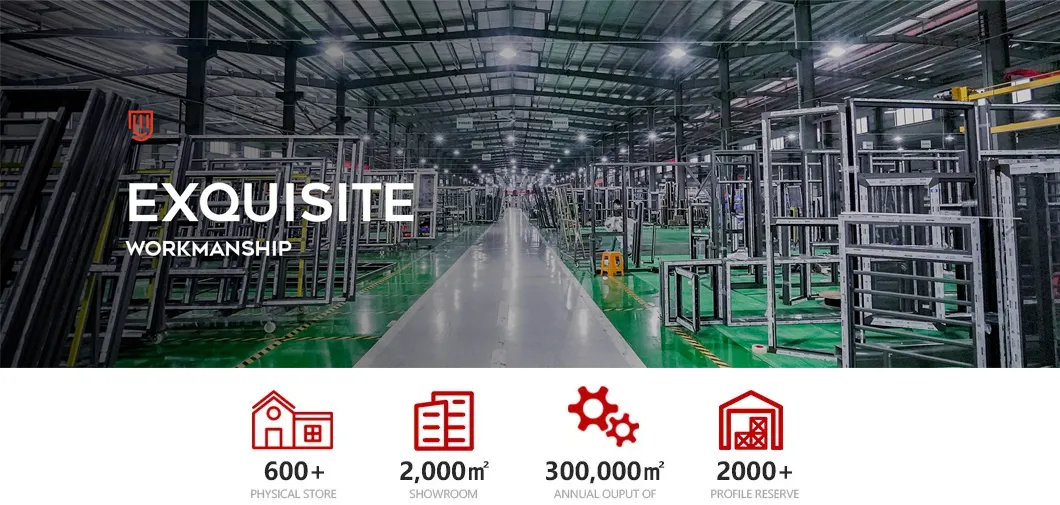

Our well-equipped facilities and excellent quality control throughout all stages of production ensure the product quality and production cycle. A complete range of products to ensure our products can satisfy any customer requirements in different regions and countries.

Banner
Process 1
Process 2
Process 3
Process 4
Frequently Asked Questions
Are you a factory?
Yes, our factory covers an area of 70,000 SQ and has 500+ employees.
What is your main product?
We can supply the window system (including profile, hardware, accessories, glass) as well as the finished products ready for installation.
How can I know your price?
The price is based on buyer's specific requirement. Please provide shop drawings/window schedules showing dimensions, quantity, type, frame color, and glass specifications.
What is your delivery time?
25-35 days after deposit and drawing confirmed.
What is your warranty?
A 10-year quality warranty is provided, including frame unfading, no peel-off, and hardware/accessories working properly under correct operation.
Are your products certificated?
Yes, our products meet Australian standards for now and we can have products tested and certificated if required.
