Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
1 / 5
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door
Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door

Fast Aluminum Hard Metal Steel Sliding Overhead Insulated Dust Proof High Speed Rolling up Cool Room Dock Security Garage Door

Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

Basic Specifications

Model NO.:XF-H-3000
Material:Aluminum Alloy
Type:Rolling
Opening Type:Power Driven
Certification:ISO9001, CE
Thermal Insulation:PU Sandwich
Speed:1.5 ~ 2.5 M / S
Safety:Infrared Security Protection
Max Dimension:5000*6000 mm
Package Weight:300.000kg

Product Presentation

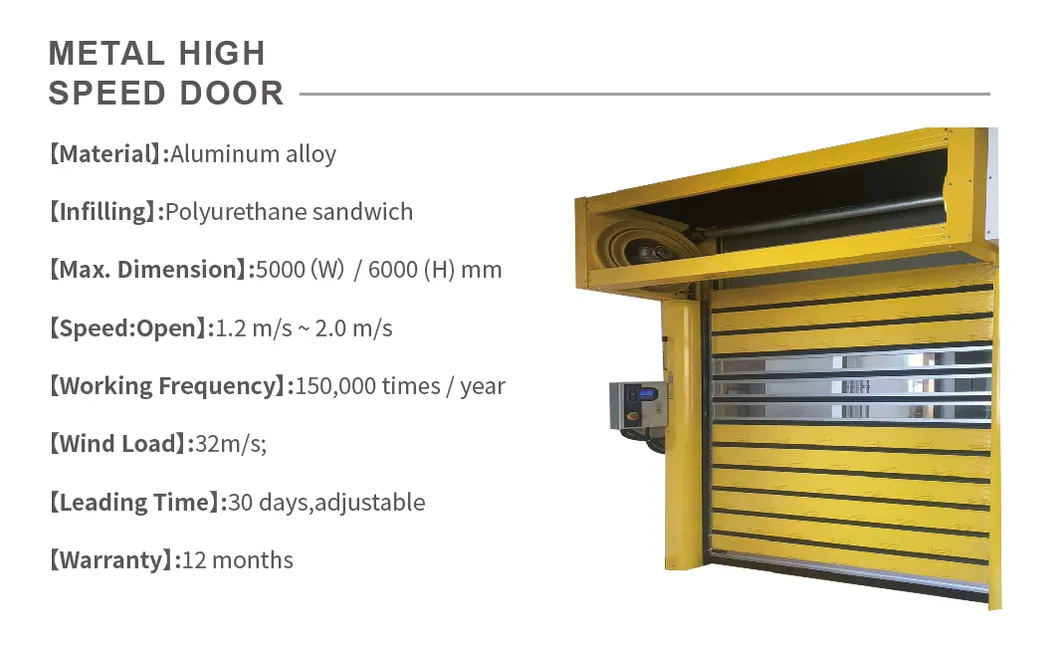

High Speed Rolling Door

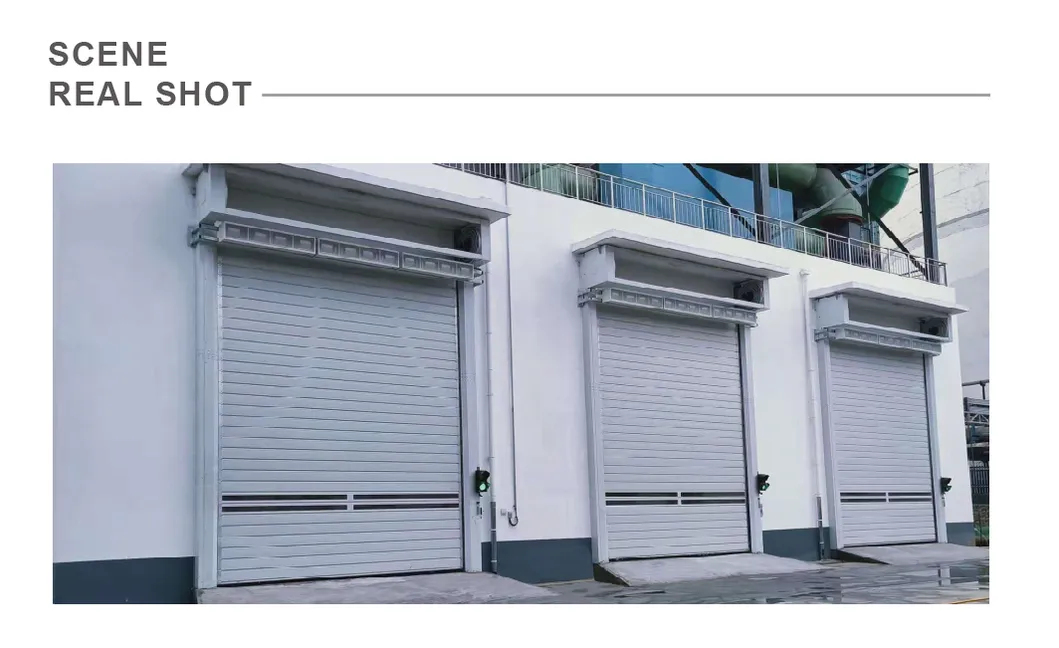

Insulated Dock Security Door

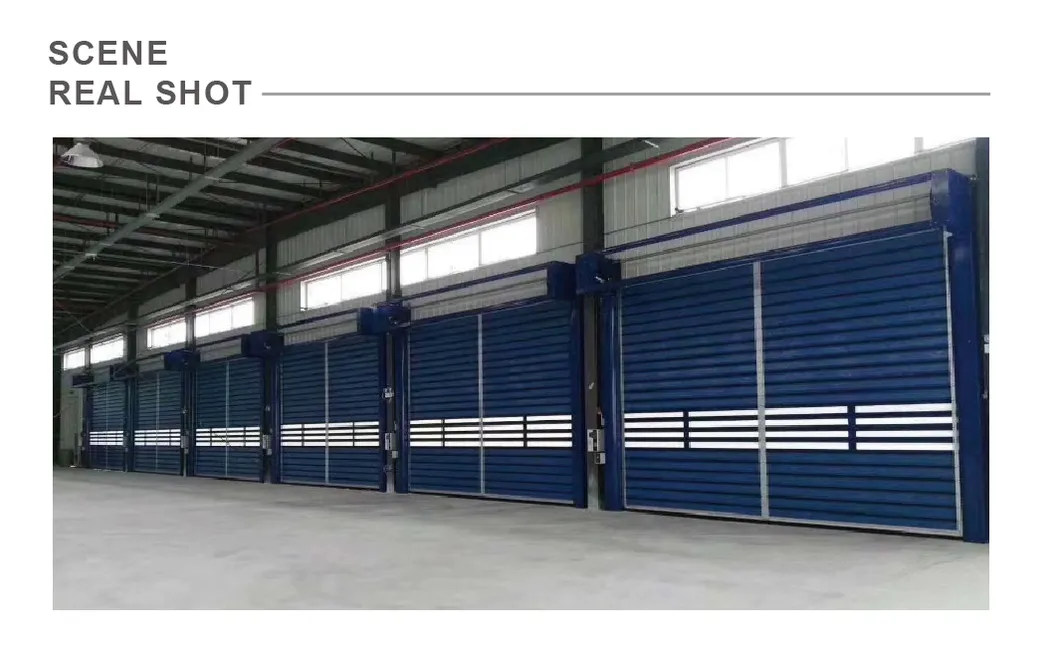

Fast Aluminum Hard Metal Door

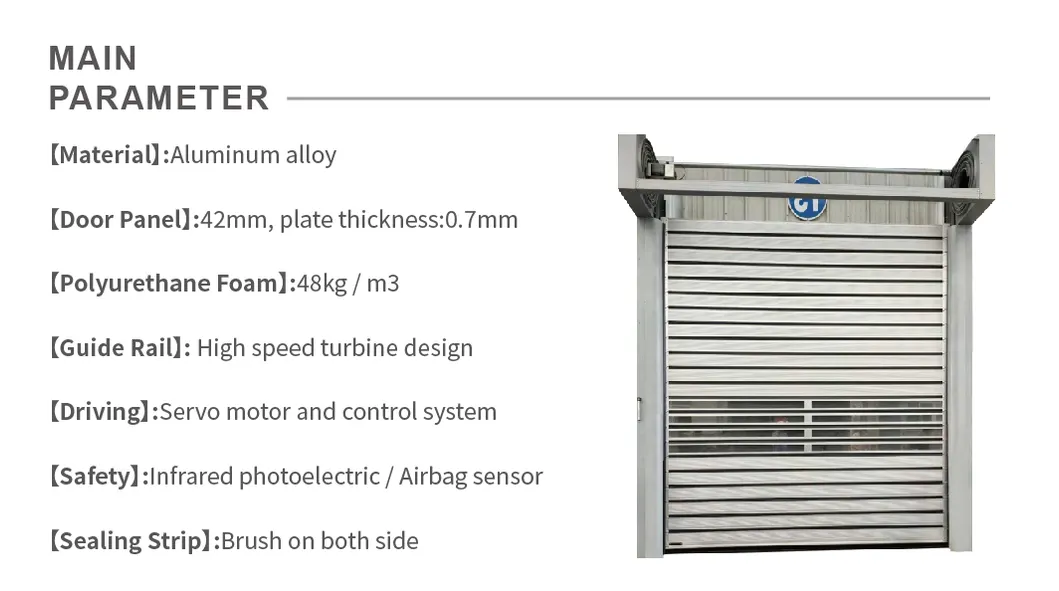

Cool Room Dock Door

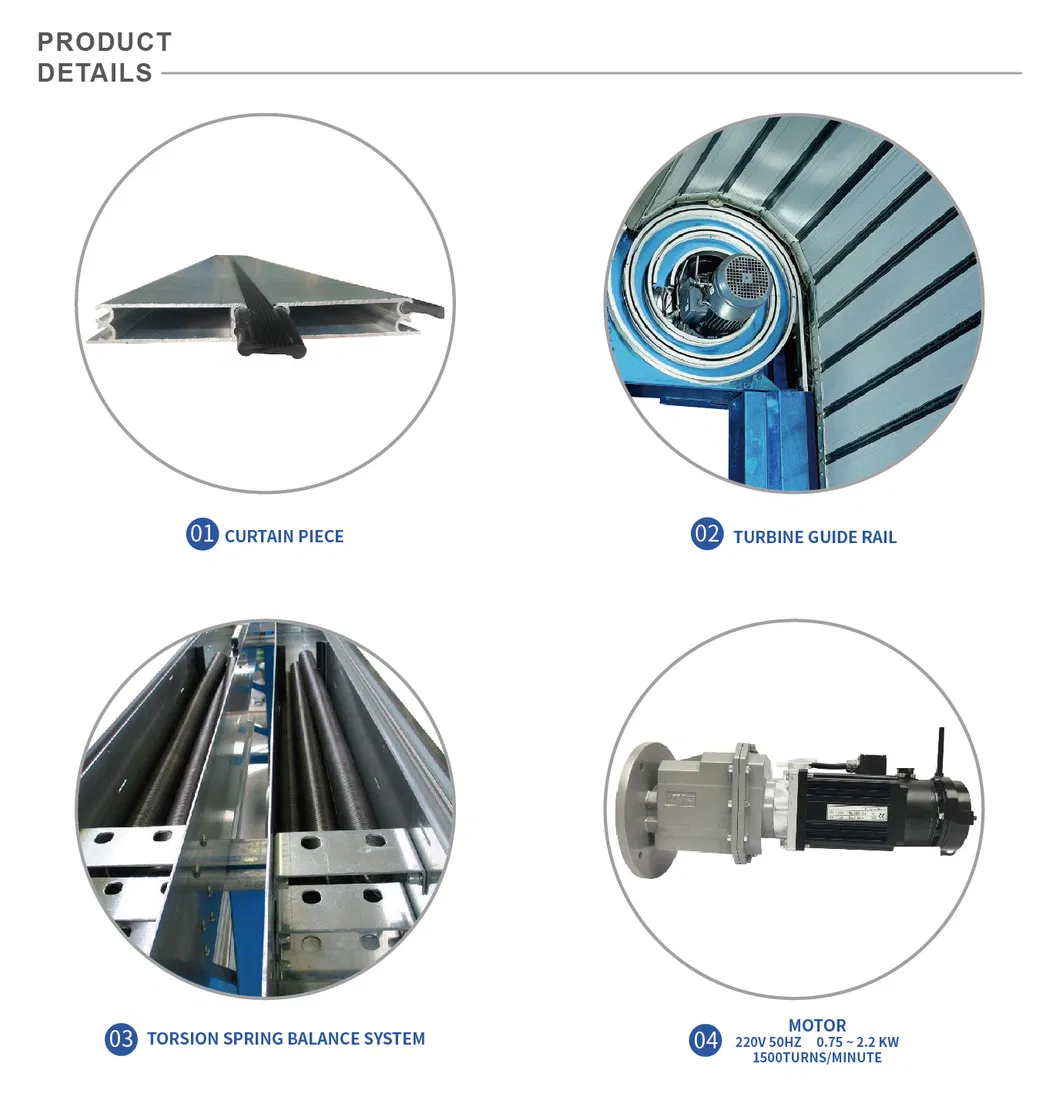

Garage Door Security

Detailed Parameters

Item Technical Description
MaterialAluminum Alloy Profile (with/without PU Sandwich), Transparent PVC Strip
Material ThicknessDouble-layer Aluminum with PU (0.8mm) or without PU (1.2mm)
Panel Thickness40mm, surface treated by anodizing and organic coloring
Speed1 ~ 2.5 m / s
Wind ResistanceBeaufort scale 12 (35 m / s)
Noise Level< 60dB
Lifting Way90° Vertical Lift / Turbo Type / Ellipse Type
Drive SystemServo Motor (0.75Kw - 2.2Kw), 220V/380V
Safety Features1) Photocell Sensor; 2) Airbag Installed at Door Edge Bottom
Technical Diagram 1
Technical Diagram 2

Performance Highlights

✔ Professional industrial door design and manufacturing solutions.
✔ Advanced broken bridge thermal insulation structure (K<0.6W/m2•K).
✔ End buffer technology to prolong the service life of operating mechanisms.
✔ Full sealing system including guide rail, middle, top, and bottom seals.

Frequently Asked Questions

Q1: What is the maximum opening speed of the door?
The door operates at a high speed of 1.5 to 2.5 meters per second, significantly improving logistics efficiency and temperature control.
Q2: How does the door handle high wind loads?
It is designed for extreme durability with a wind resistance rating of Beaufort scale 12 (up to 35 m/s).
Q3: Is the door suitable for cold storage or cool rooms?
Yes, the 40mm thick PU sandwich panel and broken bridge thermal insulation structure provide excellent heat preservation.
Q4: What safety systems are included for personnel protection?
The door comes equipped with an infrared photocell sensor and a safety airbag installed at the bottom edge to prevent accidents.
Q5: Can the door be opened manually during a power failure?
Yes, the system includes a manual opening mechanism to ensure access and safety even when the power is out.
Q6: What are the customization options for the panels?
Customers can choose from various colors (White, Grey, Silver, Blue, Red) and can add transparent vision windows as required.
