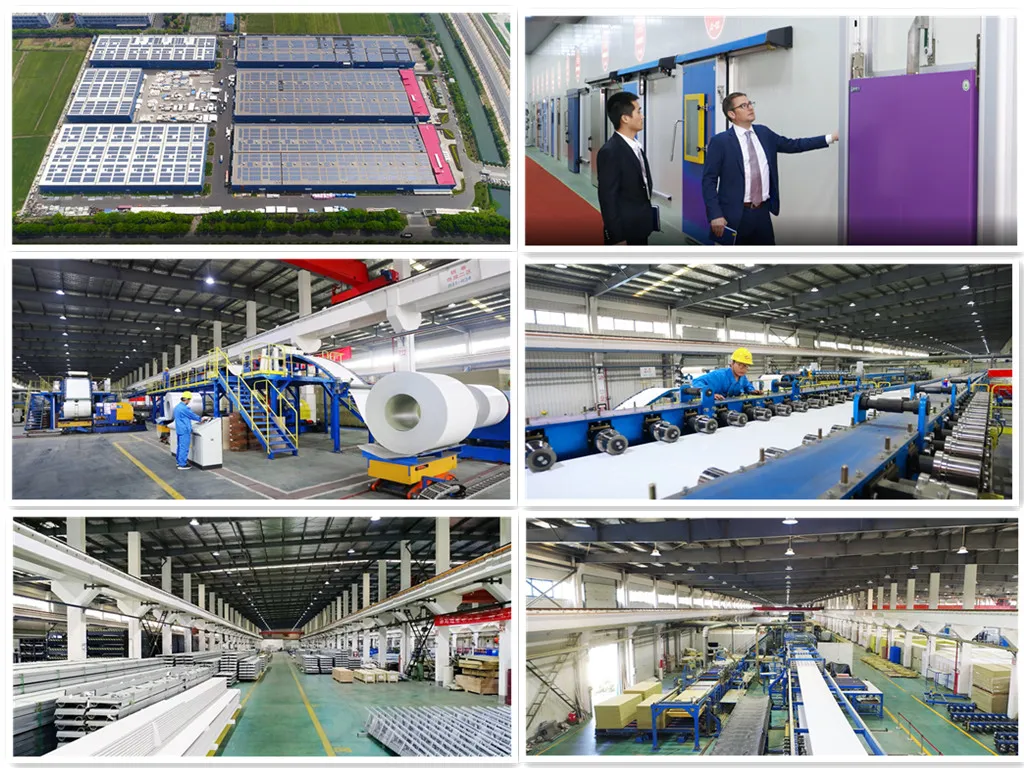

Produced on automatic lines imported from Germany, featuring fluorine-free polyurethane foam formed by constant temperature continuous foaming. Density ≥45kg/m³ with a thermal insulation coefficient K≤0.5W/m2ºC. The panels use 0.5mm Bao-Steel galvanized steel with electrostatic polyester paint, ensuring no fading for over 15 years.

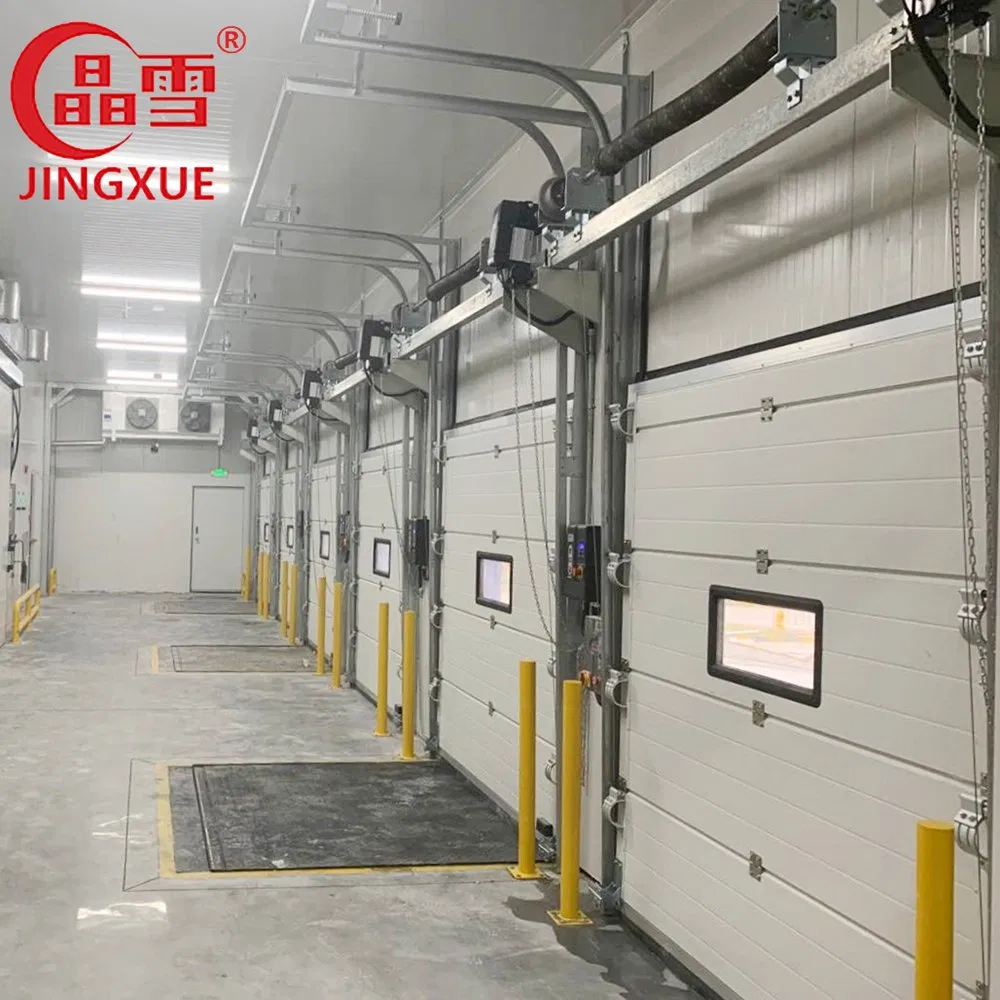

Equipped with an Electronic Limiting Motor (380V/220V) displaying fault codes and cycle counts. Features include temperature-sensitive relay protection, emergency stop functions, and a manual sprocket for safety. Standard wireless remote control works up to 100m.
Includes broken cable safety devices and broken torsion spring devices that stop the door within 20cm upon failure. A wireless safety airbag system ensures the door rebounds upon meeting resistance to protect personnel and goods.
| Category | Specifications |
|---|---|
| Door Panel | 42mm thickness, 500mm height, Pinch-resistant, Fire rating B1 |
| Material | Two-layer zinc galvanized steel (0.5mm) + PU (45kg/m³) |
| Counterbalance | 60Si2Mn Torsion spring, minimum 30,000 cycles |
| Track | 2mm hot-dipped galvanized steel, 380mm radius |
| Hardware | SUS304 steel hinges, Nylon 66 Roller, Aviation steel rope |
| Speed | 0.25m/s (Operating Speed) |
| Sealing | EPDM Bottom, Top, Side and inter-panel seals |
| Max Size | W10000mm * H6000mm |
