Basic Specifications
Model NO.sectional
Opening StyleAutomatic/Manual Switch
Opening TypeRemote / Wall / Manual
Motor Shaft3150mm - 4200mm
Power60W / 80W / 100W
Output Torque600n/1000n/1200n
PatternRibbed / Block
ColorRal / Wooden / Custom
SurfaceFinished
PU FoamCFC- Free
OriginChina
CertificationCE
Product Description
What is a Sectional Garage Door?
A sectional garage door is the most popular and practical garage door nowadays, of which the panel is split into sections horizontally. These garage doors are mainly powered by an electric opener, which can be remotely operated and in emergency cases - switched into manual controlling model. This type of garage opens by rising vertically, door sliding in tracks which then curve and then travel horizontally into the garage to leave the whole door resting parallel with the ceiling.
Space Saver
Thanks for the unique structure of sectional garage door, the space in front and top of garage can be fully used, which makes the whole system demand the minimum space of garage.
Home Securer
Relying on the excellent panel construction and electric opener system, a sectional garage door becomes the best choice for garage securing, which can be barely entered by force without special tools or loud noise.
Environment Insulator

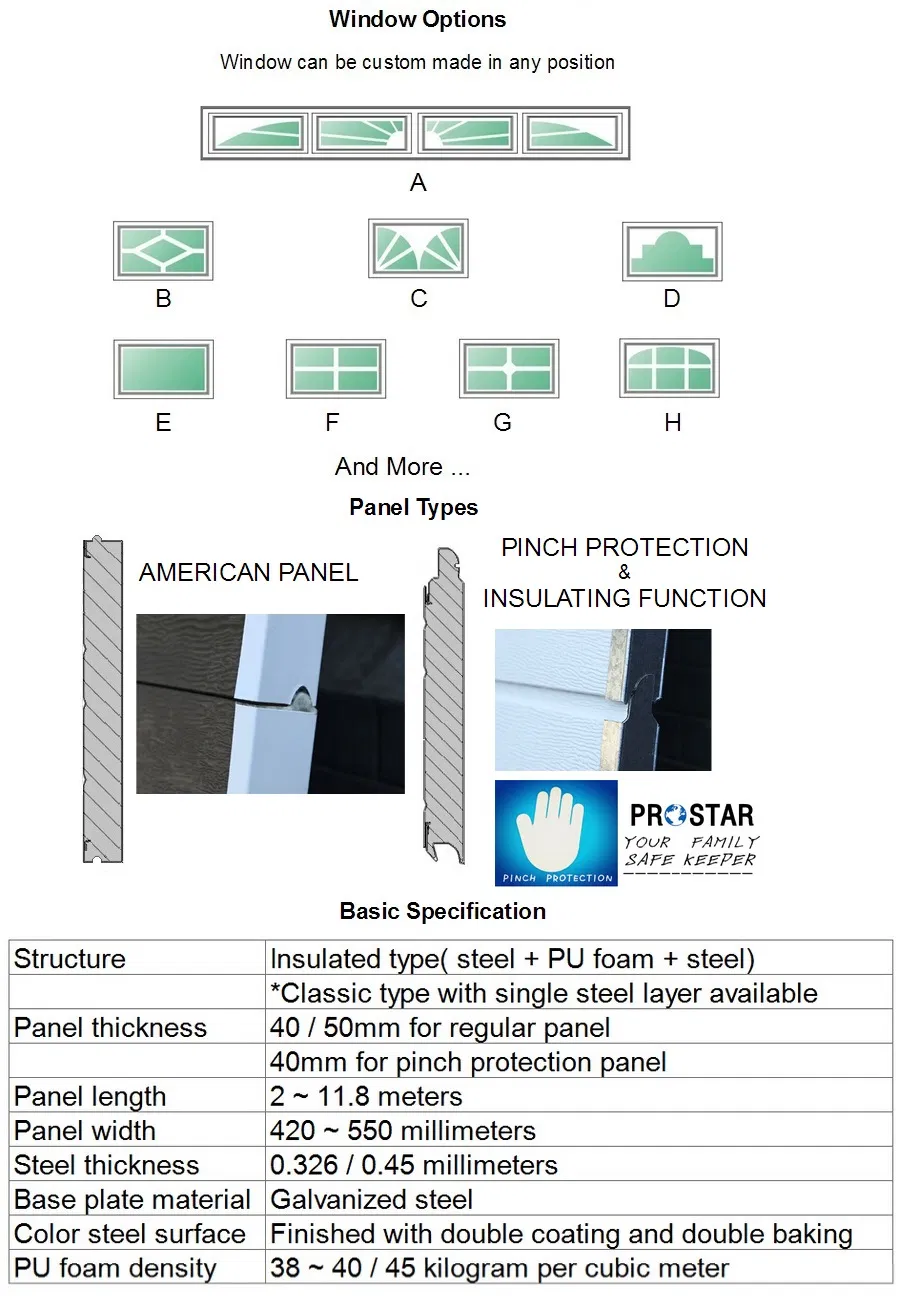

With insulated type, the combination of sandwich panel (steel + PU foam + steel) and 4 sides weather resistant seals makes the door a strong barrier that keeps wind, rain, dust, and extreme temperatures out.
Safety Standards

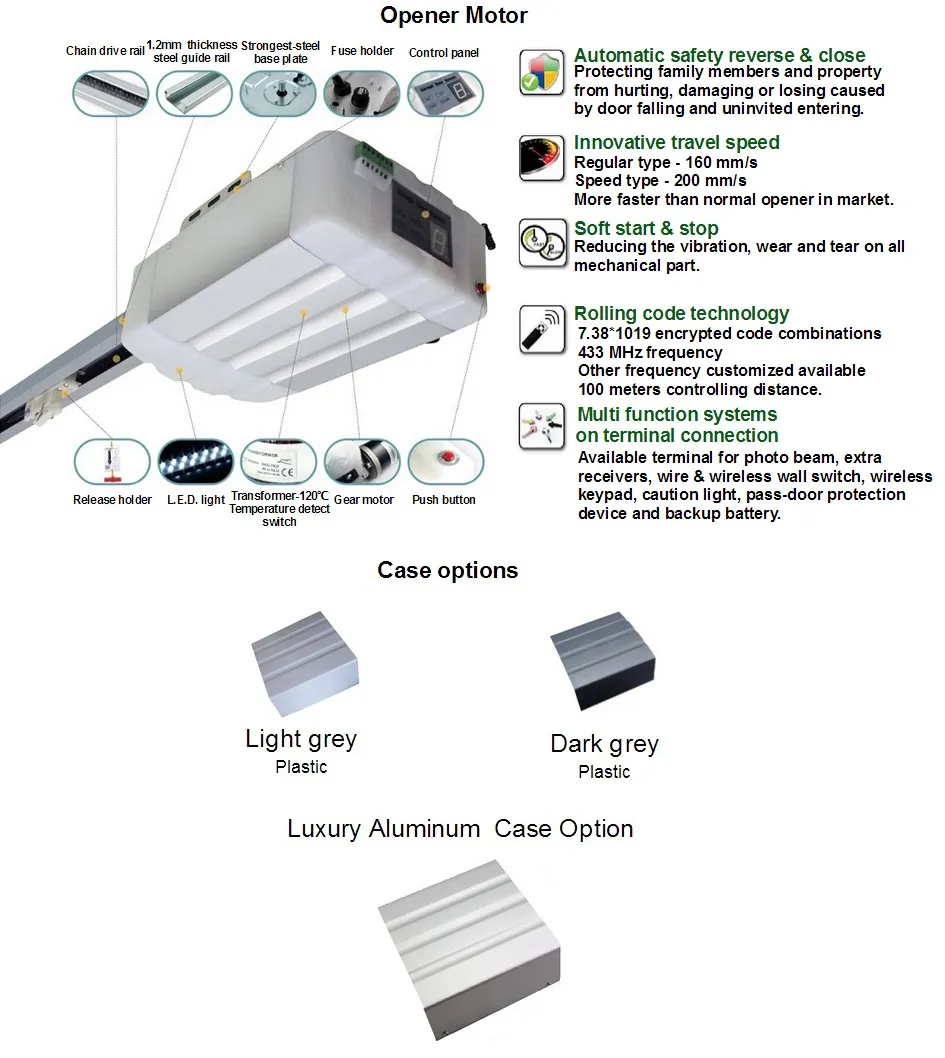

Powered by high-quality electric openers, functioning safely, stably and smoothly. With the ultra-sensitive automatic reversing mechanism, family members and property are protected from accidental damage.
Frequently Asked Questions
1. Can the sectional garage door be operated during a power failure?
Yes, the system allows for switching between automatic and manual modes, ensuring you can open or close the door even without electricity.
2. How much space do I need for installation?
Sectional doors are designed as space savers. They rise vertically and rest parallel to the ceiling, requiring minimal headroom and no "swing-out" space in front of the garage.
3. Are the door panels insulated?
Yes, the panels feature a sandwich construction (steel + CFC-free PU foam + steel), providing excellent thermal insulation and weather resistance.
4. What safety features are included?
The doors include an ultra-sensitive automatic reversing mechanism that stops and reverses the door if it encounters an obstacle, protecting children and vehicles.

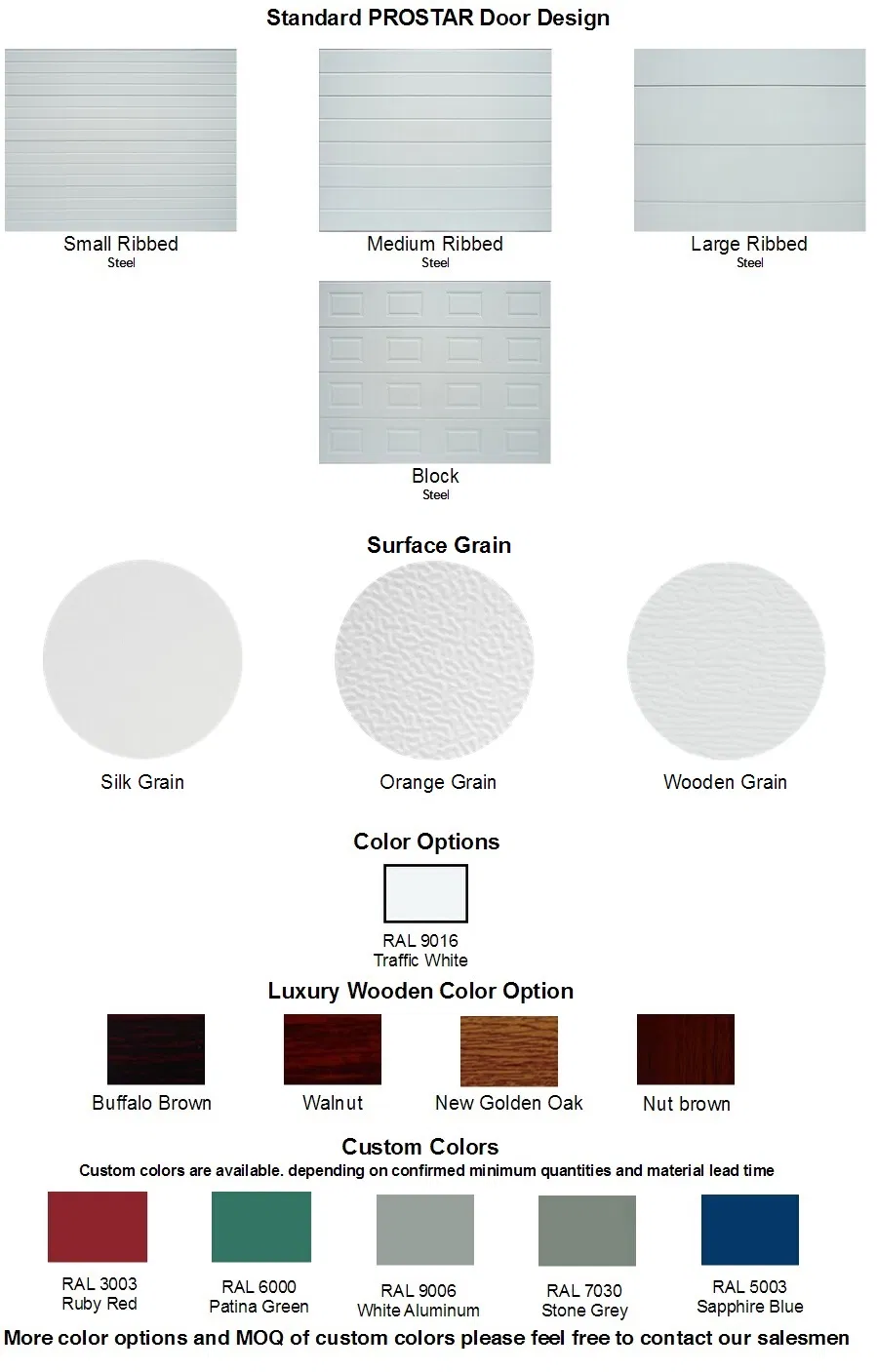

5. Can I customize the color of my garage door?
Absolutely. We offer a wide range of Ral colors, wooden finishes, and custom color options to match your home's exterior design.
6. What control options are available?
You can operate the door using a remote control, a wall-mounted switch, or manual operation in case of emergencies.
