Customization: Available
After-sales Service: Online Technical Support/Parts Replacement
Warranty: 1.5 Years
Send Inquiry

Product Description

Basic Info.
Model NO.
YO-Freezer
Material
PU Fabric
Type
Rolling
Open Style
Rolling
Opening Type
Induced
Special Function
Thermal Insulated
Color
Red/Blue/Yellow/Green/Gray/Ornage/Transparent
Certification
ISO9001, CE
Position
Industrial
Surface Finishing
Finished
Power Supply
1-Phase 220V, or 3-Phase 380V
Steel Structure
304 Stainless Steel or Powder Coated Gi
PVC Panel Thickness
20mm
Installation Area
Interior
Working Temp
-35 to 65 Celsius Degree
Max Size
3m * 4.5m
Packaging & Delivery
Package Size
300.00cm * 50.00cm * 80.00cm
Gross Weight
400.000kg
Transport Package
Export Wooden Box
Product Description
Cold storage rapid door widely used in food, chemical, textile, electronics, supermarket, cold storage, logistics, warehousing and other production efficiency, dust-free and high temperature level requirements.

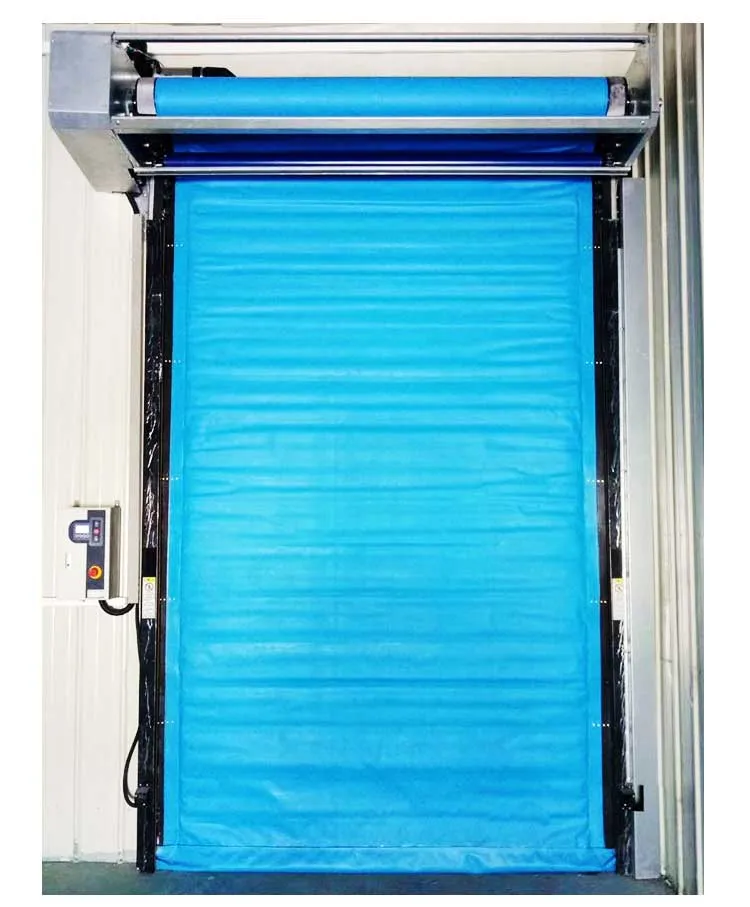

Industrial Automatic Thermal Insulated PVC Fabric Freezer Room
Technical Data
220 V Freezer Room Insulated Cold Storage Door
Max DimensionWidth * Height 3500mm*4000mm
Power Supply220±10%V, 50/60Hz. Output 0.75-1.5KW
Normal SpeedOpen 1.2m/s, Close 0.6m/s
Max SpeedOpen 2.0m/s, Close 1.0m/s
Opening Frequency1000 times / day
Wind Resistance28m/s (Class 10)
Air Tightness95m³/hour under 30 pa pressure

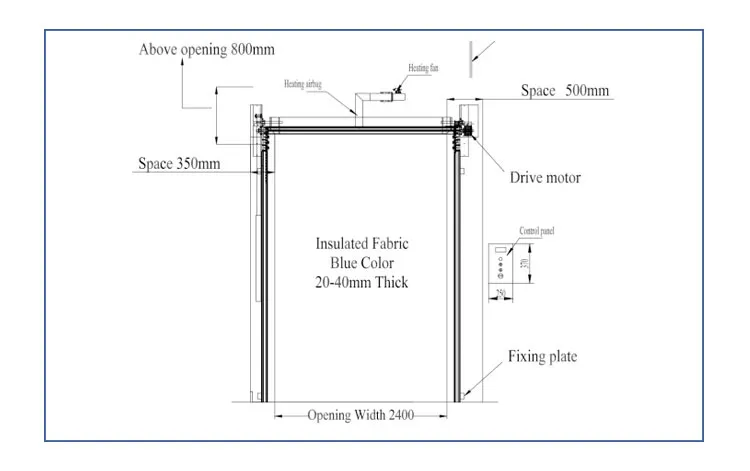

Structure Diagram
Structure Diagram
Product Details

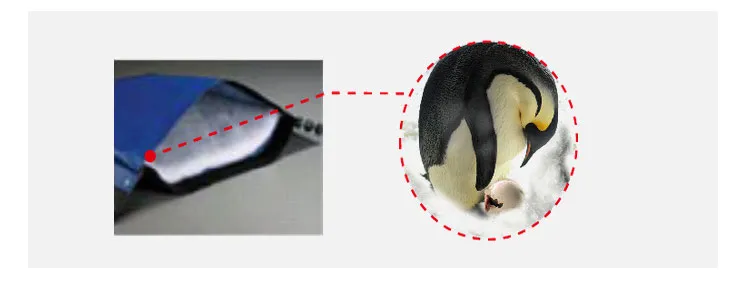

1. PVC Fabric

Insulated PVC sandwich fabric: double skin is 0.8mm PVC fabric, and inside is filled with high-denisity insulating rock wool, total thickness is 20mm.

PVC Fabric

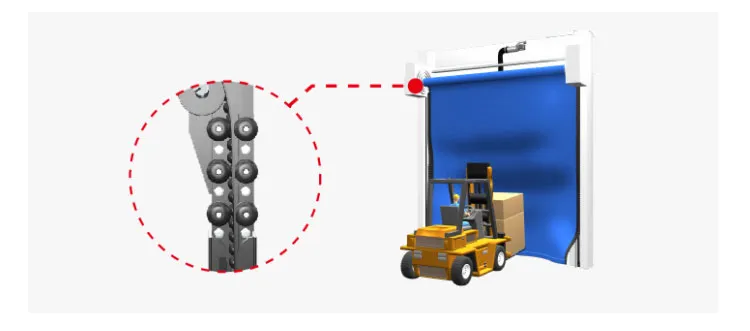

2. Zipper Design

Use zipper to connect the fabric with frame side guide rail as a whole body, realizing better sealing performance and air-tightness. Self-repairing design allows fabric to return to rails automatically after collision.

Zipper Design

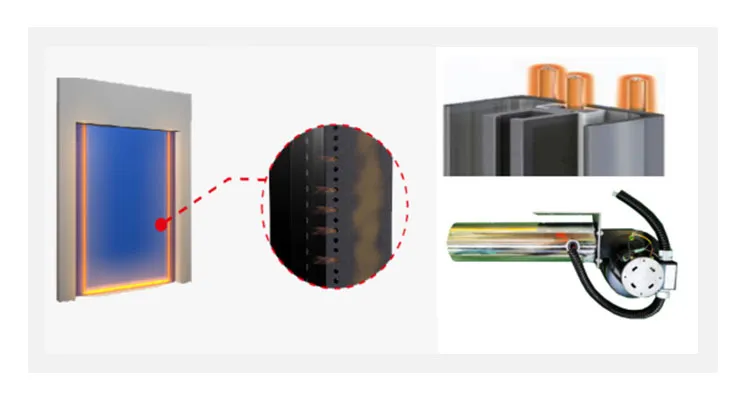

3. Anti-Freezing Heating Design

All-round heating wire belts are used to avoid freezing of door structure, preventing damage to the fabric and driving system in low temperature environments.

Heating Design

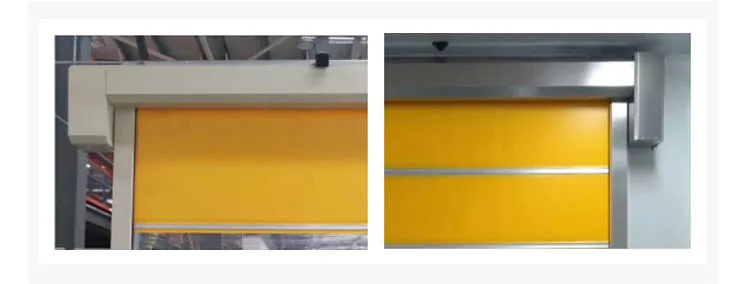

4. Frame and Rails

Standard material: Galvanized steel with painted surface. Optional: 304 stainless steel or aluminum alloy. Thickness: 1.5mm for guide rail, 1.0mm for cover box.

Frame and Rails

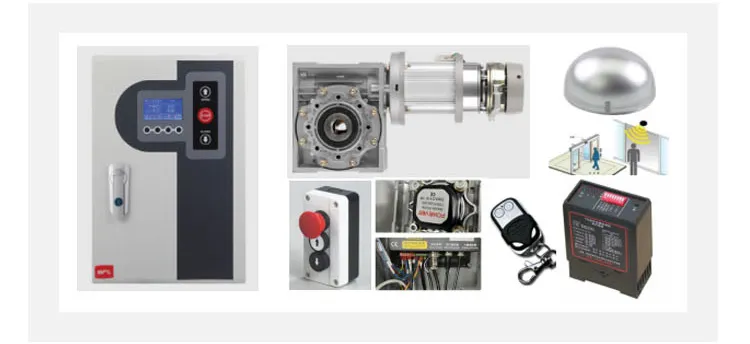

5. Motor and Controller
Motor Controller
6. Safety Devices

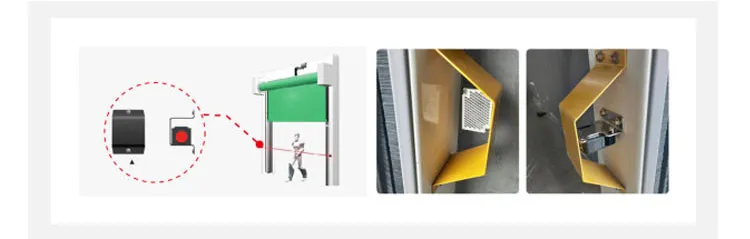

A. Safety photo cell sensor: Stops closing if an object is detected.

Sensor

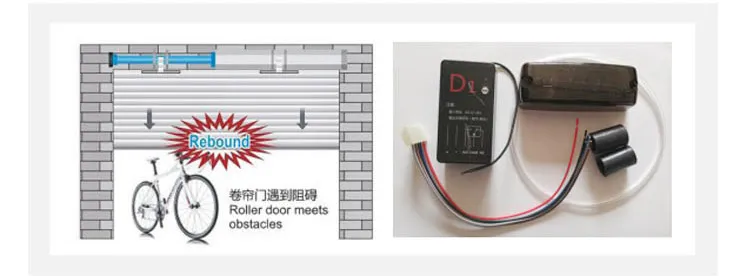

B. Safety bottom airbag sensor: Reverses door immediately upon contact.

Airbag

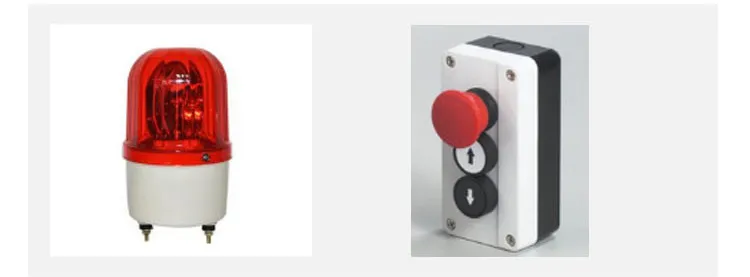

C. Alarm light and emergency buttons: Warning lamp for safety.

Alarm

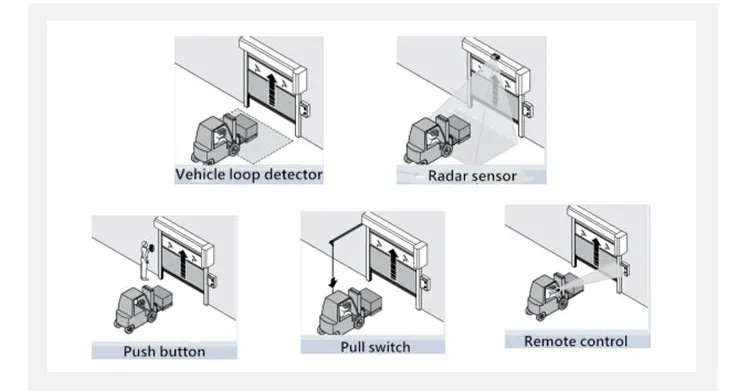

7. Operation Methods

Options include: Vehicle loop detector, Radar sensor, Push button, Pull switch, and Remote control.

Operation Methods

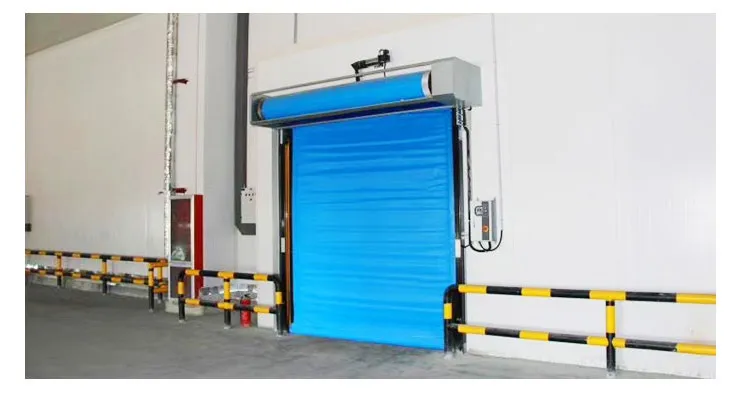

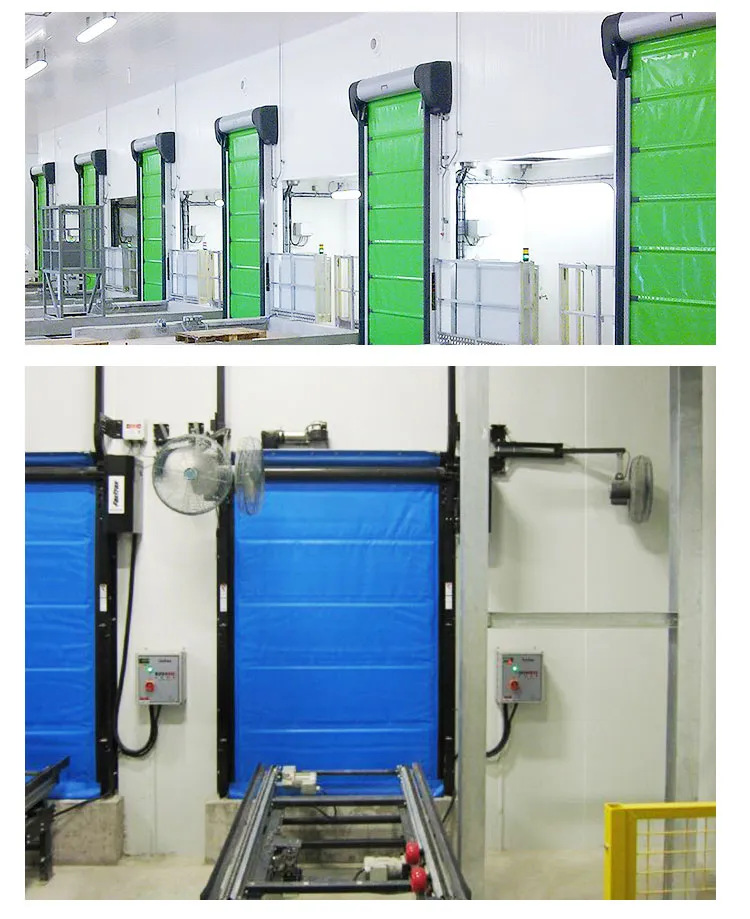

Products Real Shot
Real Shot 1 Real Shot 2 Real Shot 3 Real Shot 4 Real Shot 5 Real Shot 6
Frequently Asked Questions
Q1: What is the working temperature range for this freezer door?
A: The door is designed to operate efficiently in temperatures ranging from -35°C to 65°C, making it ideal for extreme cold storage environments.
Q2: How does the zipper design improve door performance?
A: The zipper design ensures superior airtight sealing. In the event of an accidental collision, the fabric can dislodge from the guide rail and return automatically, minimizing maintenance needs.
Q3: What safety features are included as standard?
A: Standard safety features include a safety photo cell sensor, a safety bottom airbag sensor, and an alarm light with emergency buttons on both sides.
Q4: Can the door frame material be customized?
A: Yes, while the standard material is painted galvanized steel, you can optionally choose 304 stainless steel or aluminum alloy to suit your specific industrial requirements.
Q5: What is the thickness and insulation of the door panel?
A: The panel is 20mm thick, consisting of a double-skin 0.8mm PVC fabric filled with high-density insulating rock wool for maximum thermal protection.
