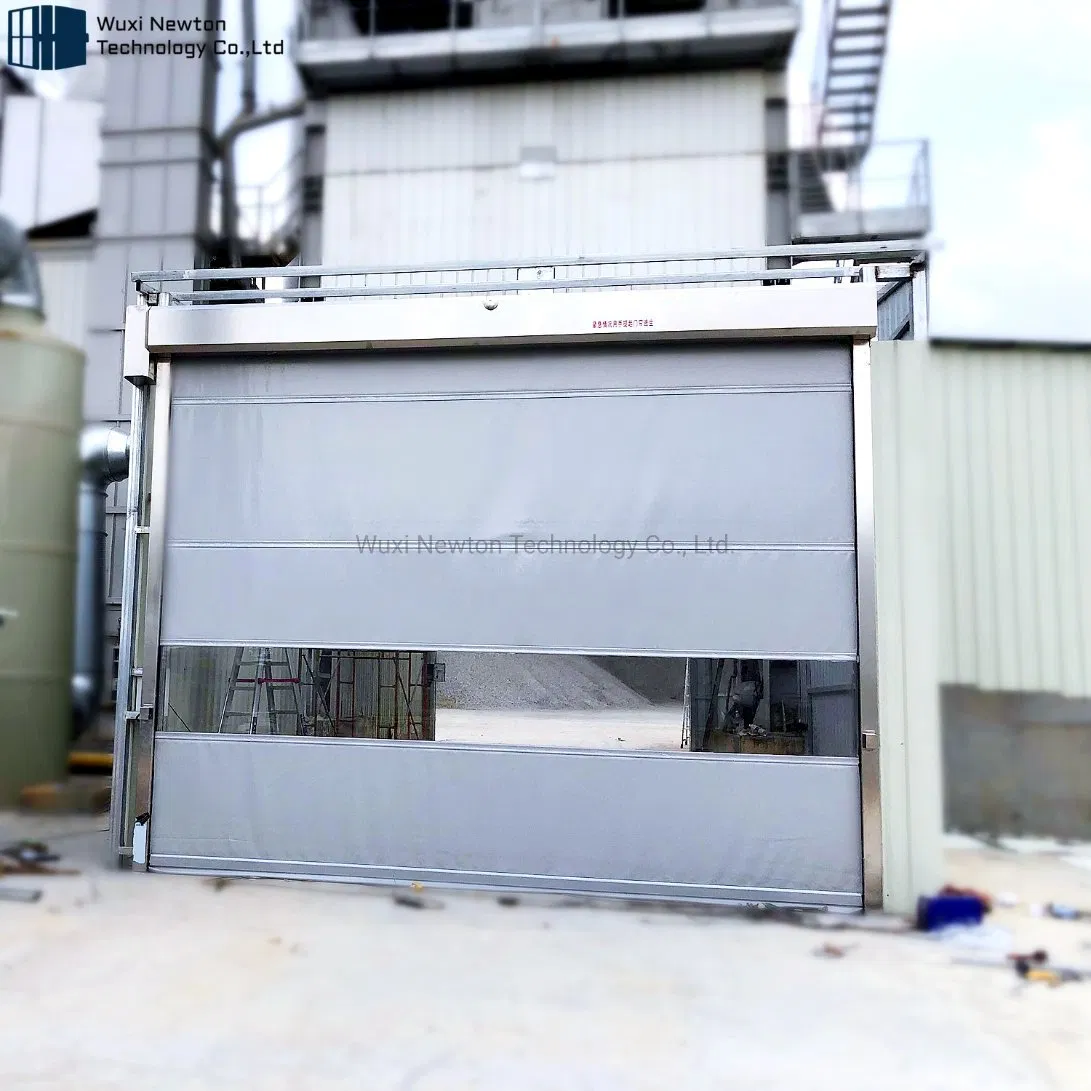

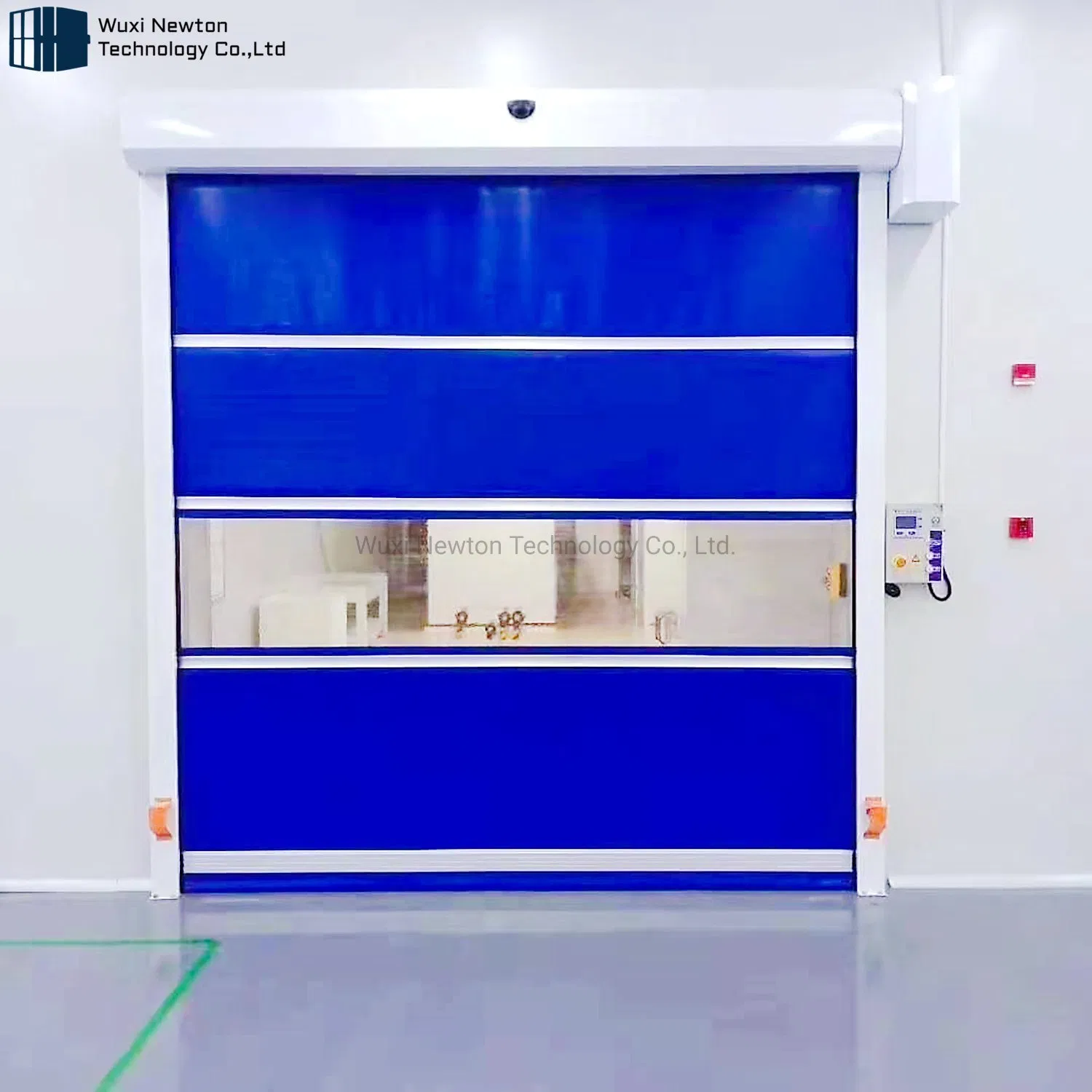

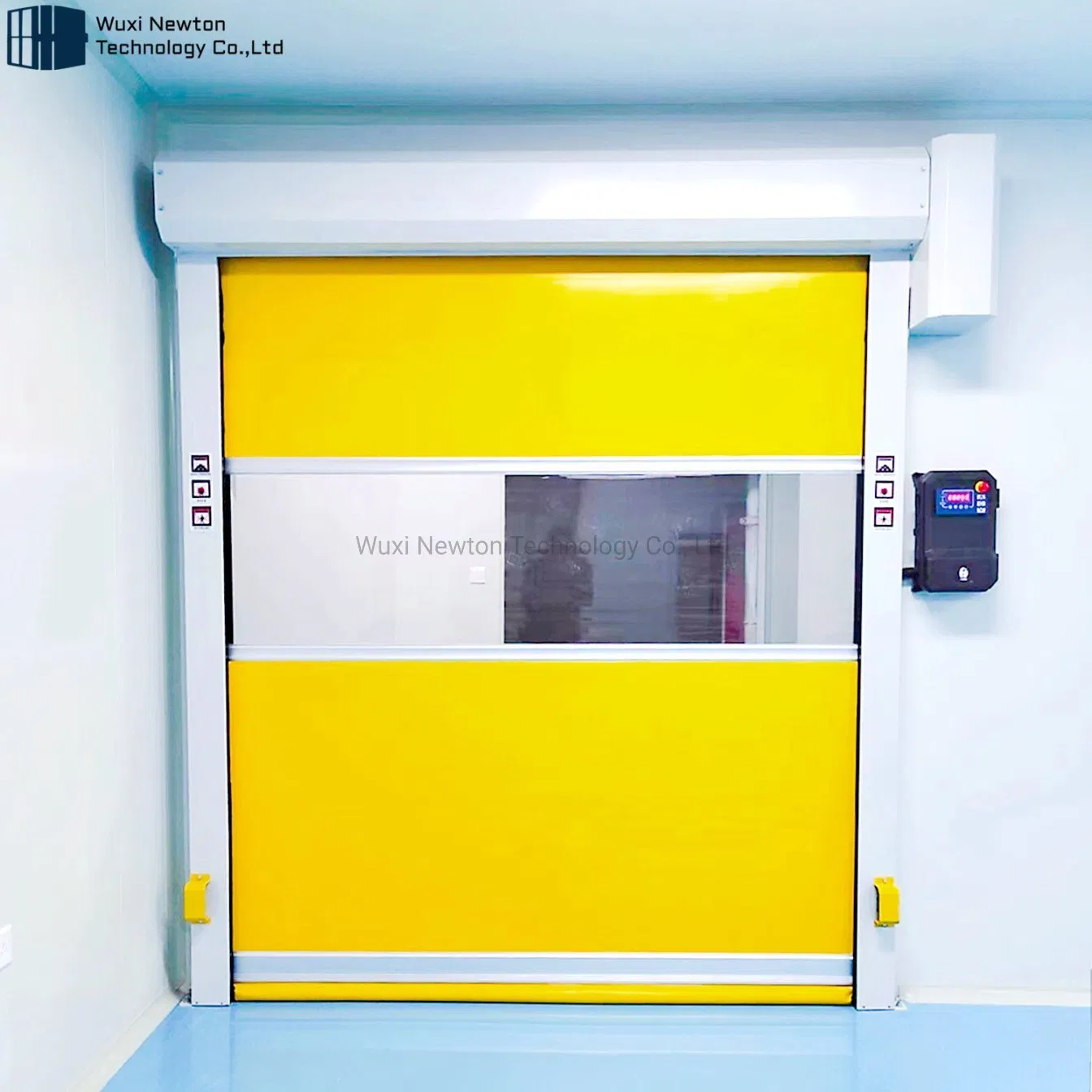

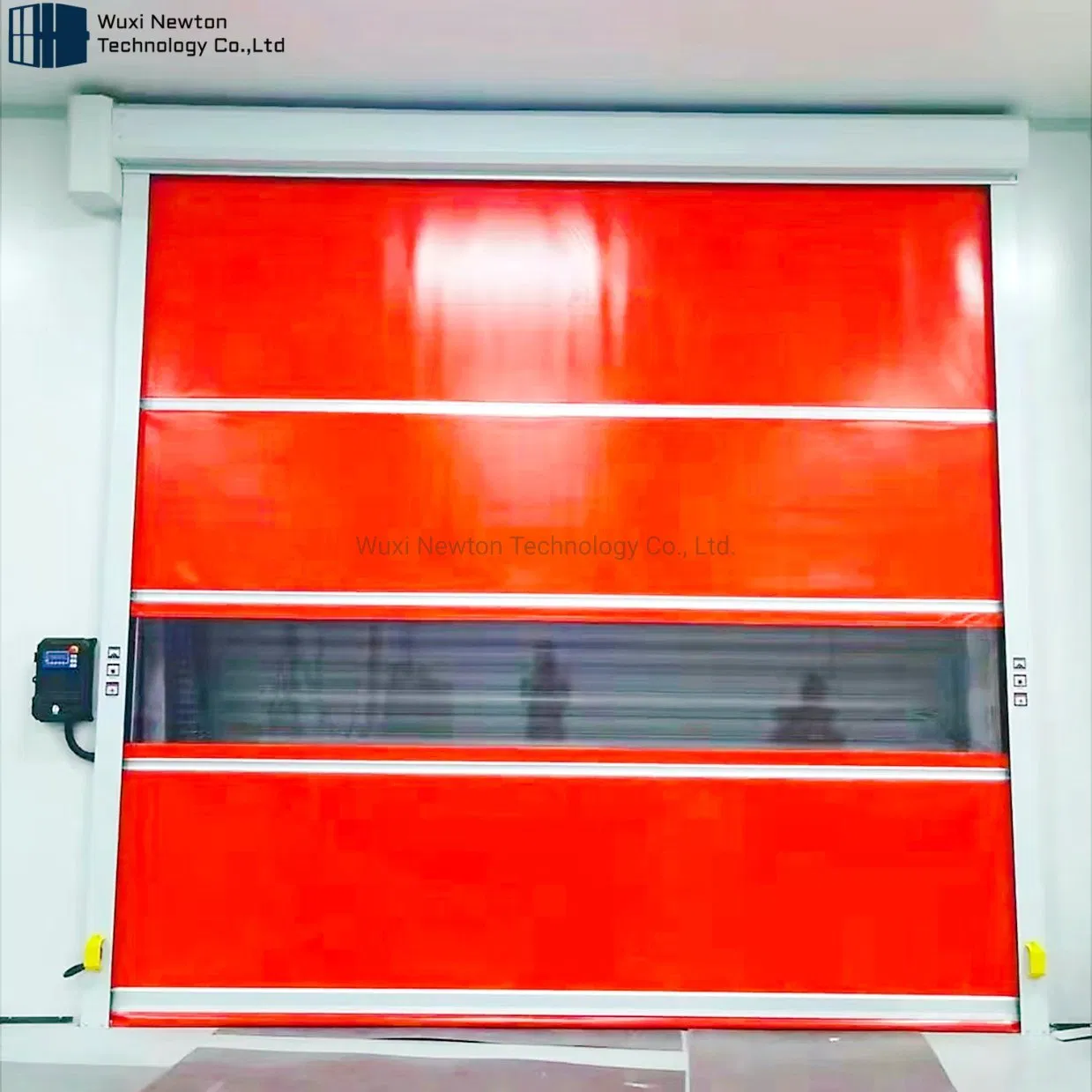

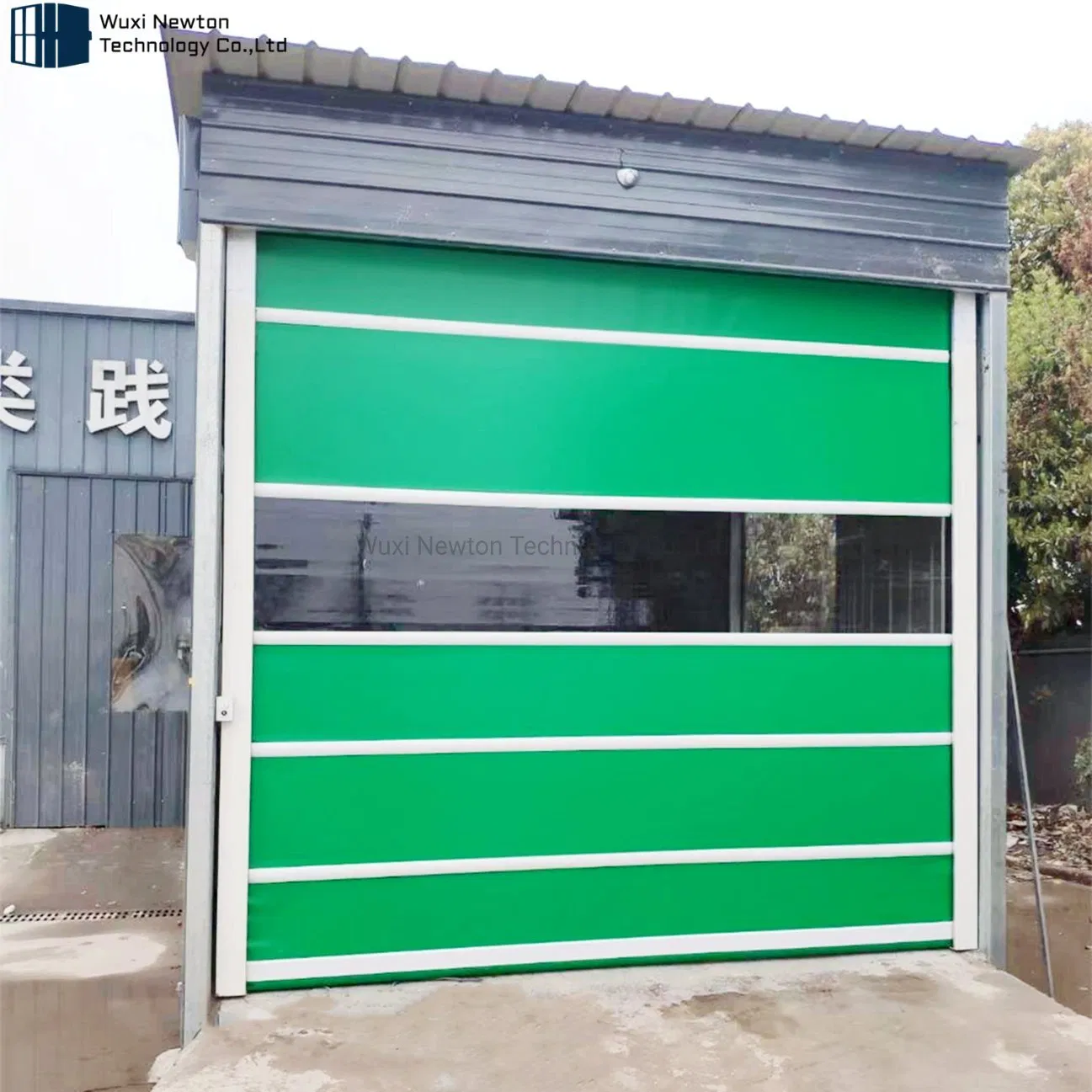

Automatic Roll up Sheet Shutter High Speed Door with Motor

Customization: Available
After-sales Service: Available
Warranty: 12 Months

Product Description

Basic Information

Model NO.
NTHD
Material
Steel
Type
Rolling
Open Style
Rolling
Opening Type
Power Driven
Special Function
Wind and Insect Resistant
Certification
ISO9001
Position
Industrial
Max. Size
5500*6500mm
Power Supply
220V

Product Description

Automatic Roll up Sheet Shutter High Speed Door with Motor
Automatic High Speed Door

🚀 Product Overview

The PVC high speed roller shutters has a high speed partition function. The cold splicing process makes the curtain more smooth and beautiful. The segmented splicing reduces the maintenance cost, reliability, practicality, easy operation and low maintenance costs. This door is the most economical selection for the facility entrance, to prevent the entrance, widely used for the electrical, mechanical, food, pharmacy, chemical, textile, printing, supermarket and the logistics & warehousing.

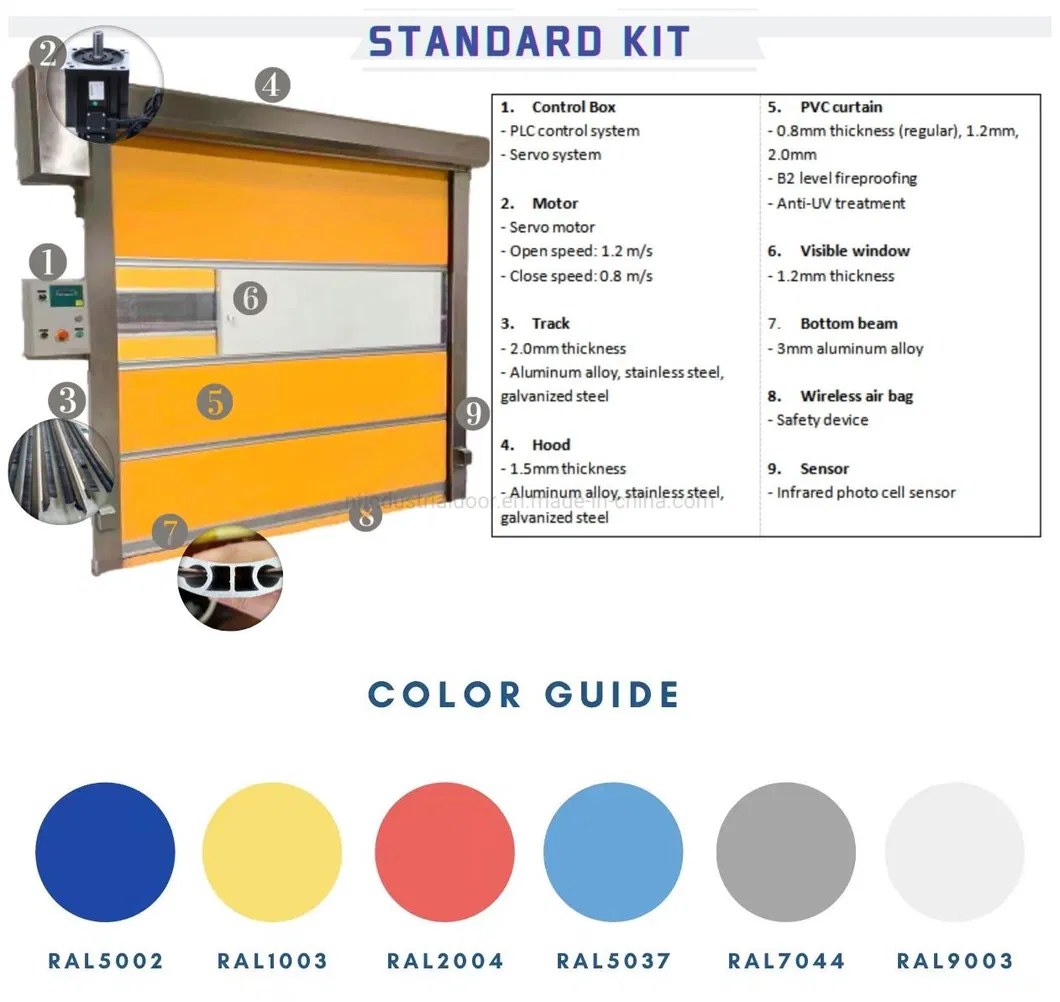

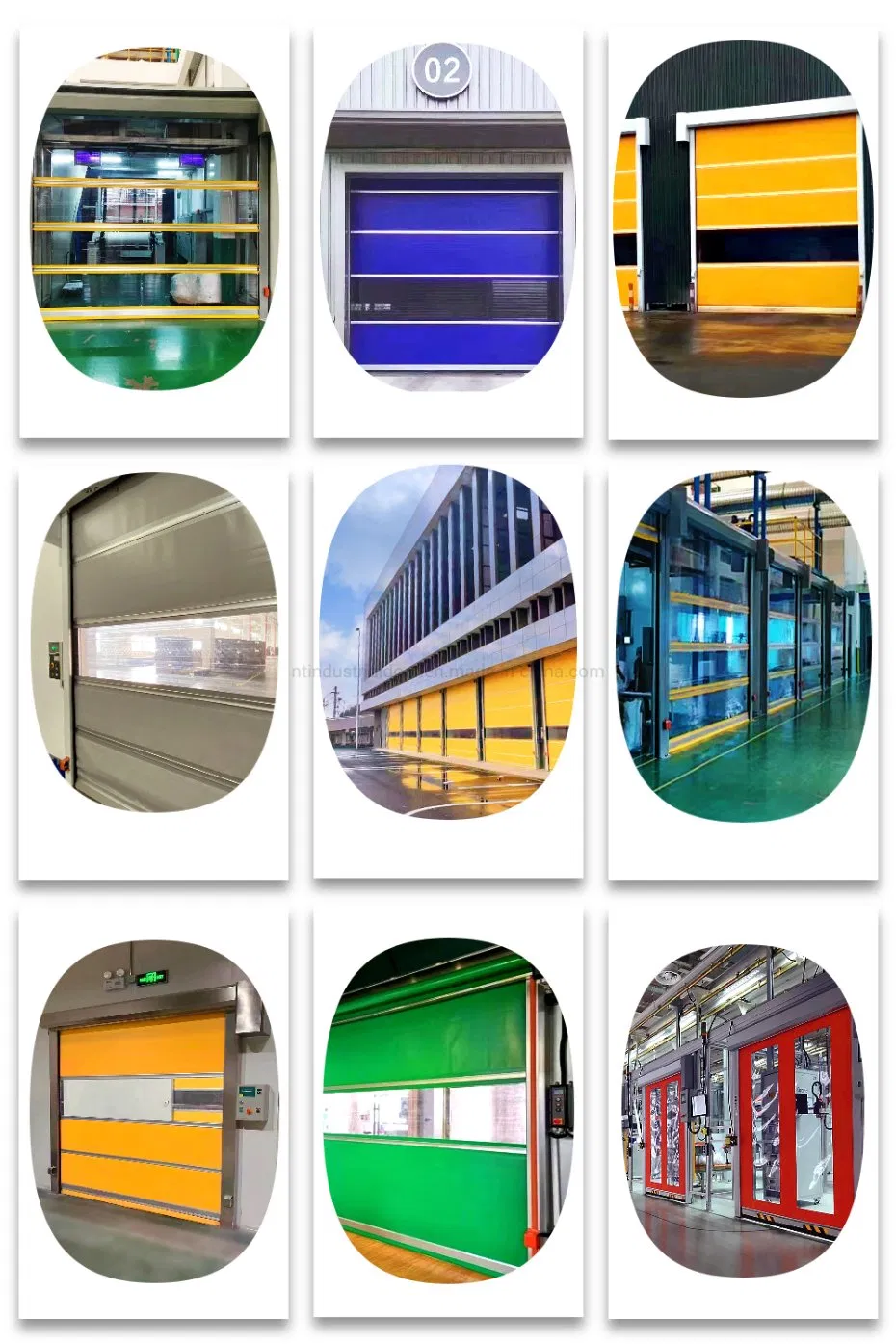

Product Detail 1 Product Detail 2

Technical Parameters

  • Opening/Closing speed: 0.8m-1.5m/sec
  • Control box: Digital tube, frequency conversion control system
  • Limit switch: Multi-turn absolute encoder
  • Power supply: 220V
  • Safety standard: According to EN ISO 12100
  • Test life circle: Tested service cycle reaches 800,000 times per year, 500 times per day
  • Wind resistance rating: Maximum level 6 (with wind-resistant ribs)
  • Standard size: Maximum 5500 x 6500mm
  • Transparent window: PVC full transparent film, thickness 1.5mm
  • Sealing performance: U-shaped airbag cloth pocket and double-row brush seal
  • Insulation protection: IP54 waterproof and dustproof
  • Safety configuration: Infrared photoelectric, pressure airbag, warning light, anti-collision pillar

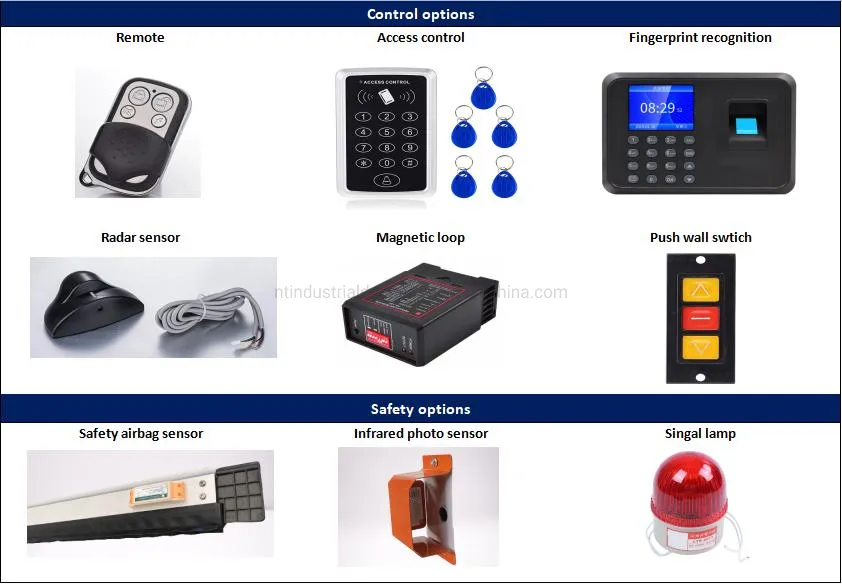

Door Structure

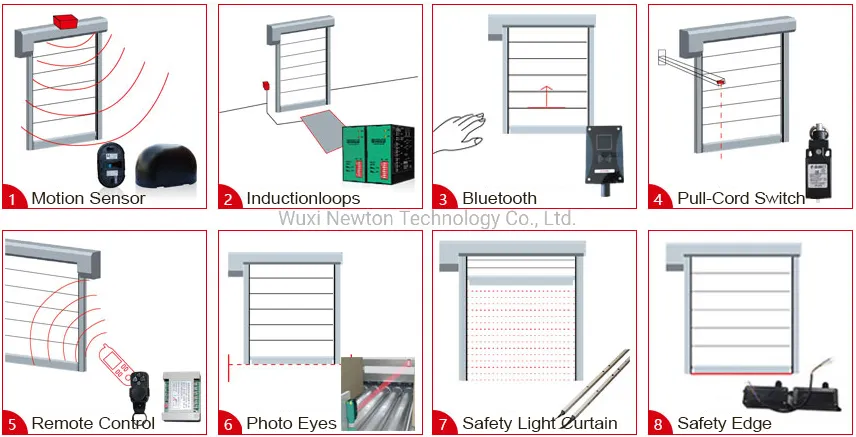

Opening Methods

  • Motion sensor
  • Induction loops
  • Bluetooth
  • Pull-cord switch
  • Remote control
  • Photo eyes
  • Safety light curtain
  • Safety edge
Opening Methods

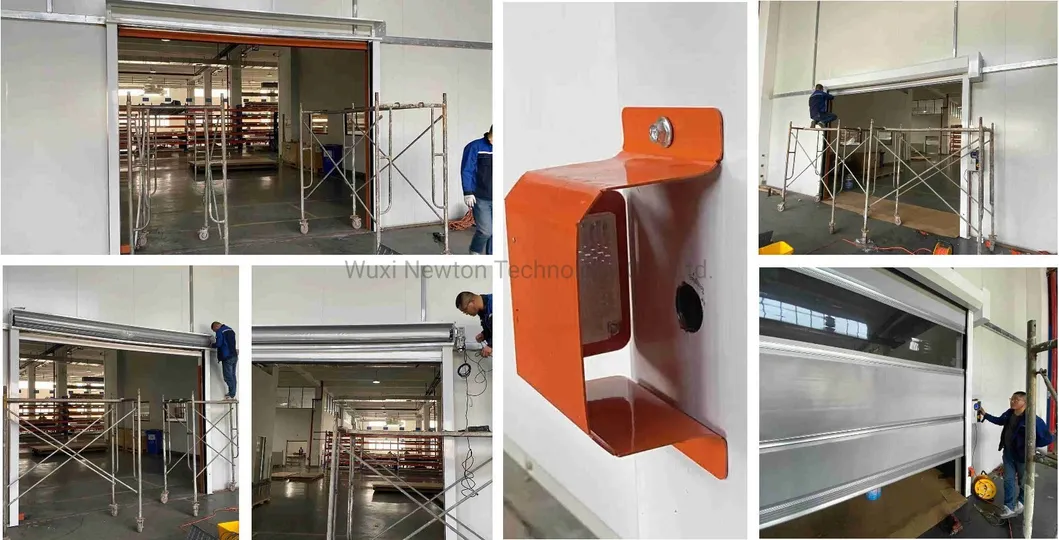

Installation Steps

Step 1Door steel frame installation
Step 2Door curtain installation
Step 3Mount the motor
Step 4Mount the door cover
Step 5Infrared detection or other safety device installation
Step 6Speed and stroke debug
Installation Overview

Our Professionalism & Service

Our team works in this industry with many years' experience, from design, manufacture, and package to delivery and installation. We provide all-sided support at every link, ensuring technicians can design suitable doors based on practical demands to save costs.

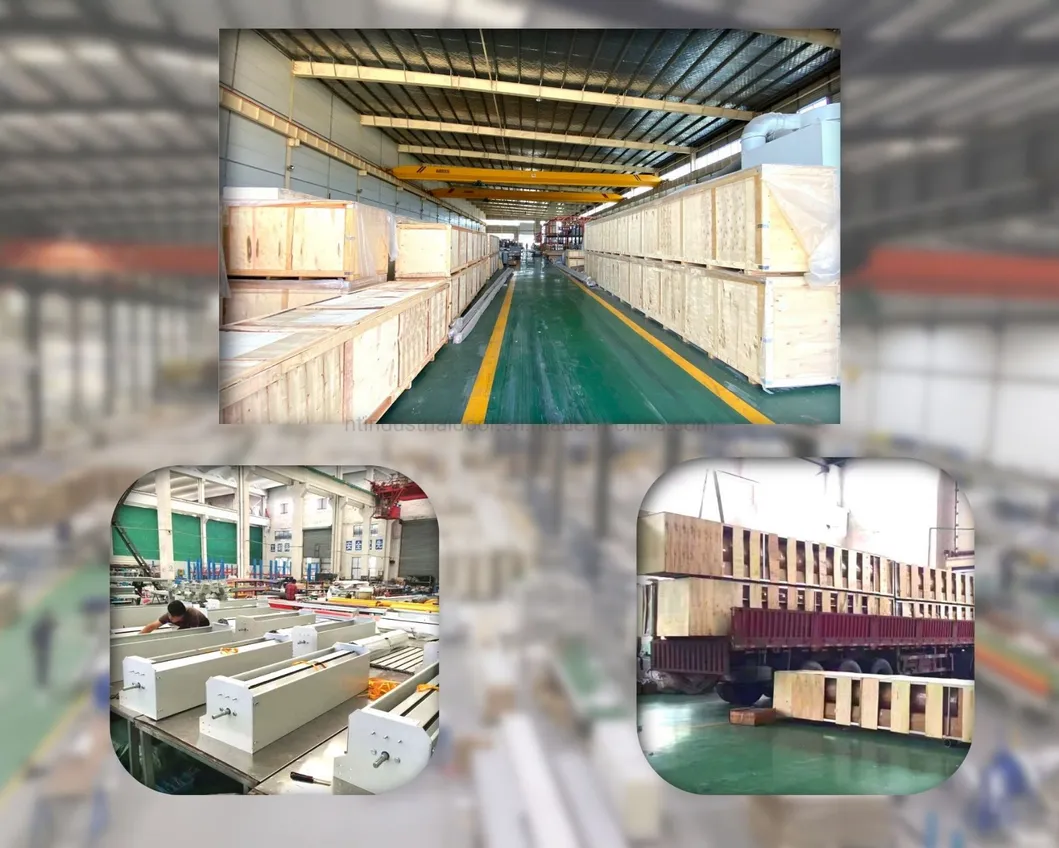

Professional Manufacturing Qualified Packaging

🛡️ Service Scope

  • Factory and production online inspection
  • Pre-shipment inspection
  • One year warranty: Accessories supplied free of charge
  • Installation support: Video guidance and online documents
  • Timely response: Quick solutions to solve problems
Global Service

About the Manufacturer

A leading manufacturer in the field of automatic doors in China, including automatic folding doors, industrial sectional doors, high-speed roll-up doors, and garage doors. Involved in the industry since 2000, we provide optimal solutions and strong support to global clients, focusing on affordable rates and fast delivery.

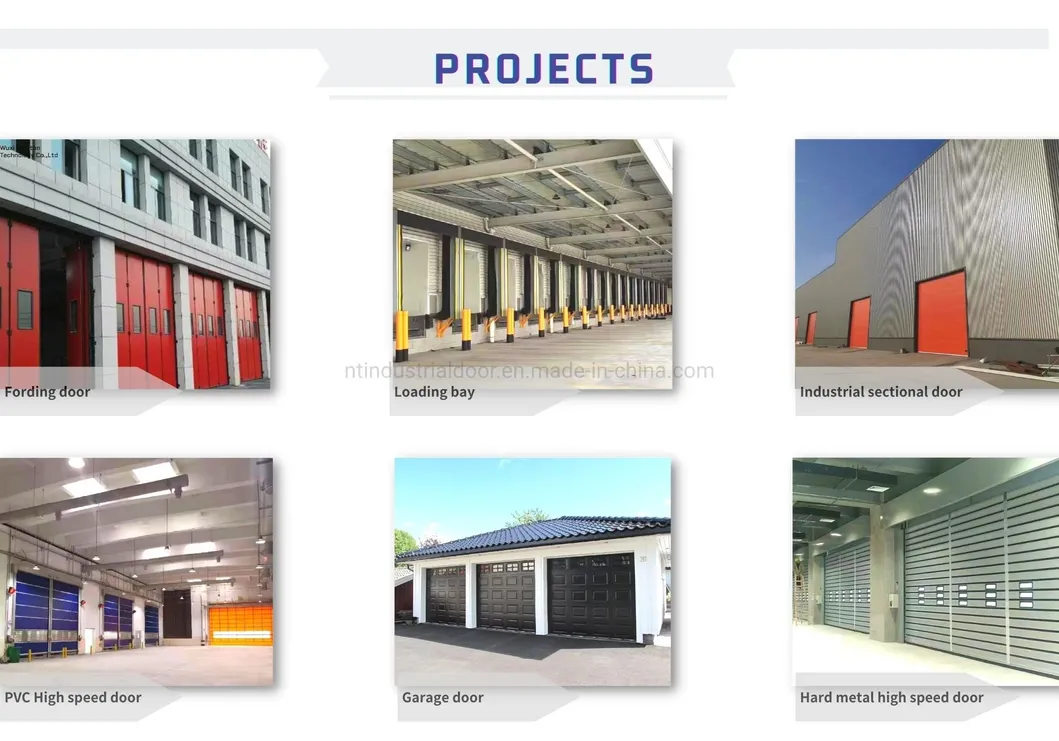

Factory Overview

Frequently Asked Questions (FAQ)

What is the maximum size available for these high-speed doors?
The standard maximum size for our automatic high-speed roll-up doors is 5500mm in width and 6500mm in height.
How fast do these doors open and close?
The opening and closing speed ranges from 0.8m/sec to 1.5m/sec, which helps in maintaining temperature and efficiency in industrial environments.
What kind of safety features are included?
Standard safety configurations include infrared photoelectric protection, a pressure airbag at the bottom, warning lights, and anti-collision pillars to ensure safe operation.
Can the door withstand high winds?
Yes, the door is equipped with wind-resistant ribs and has a maximum wind resistance rating of Level 6.
What is the expected lifespan of the door system?
Our doors are tested for a high service cycle, reaching up to 800,000 times per year or approximately 500 operations per day.
What power supply is required for installation?
The standard high-speed door motor and control system operate on a 220V power supply.
