Automatic Roller Shutter Imitation Copper All Aluminum Alloy Sectional Garage Doors

Customization: Available
Material: Aluminum Alloy
Thickness: 40mm

Product Description

Basic Info
Model NO.
all aluminum sectional garage
Opening Style
Slide
Opening Type
With Remote Control
Motor Shaft
3.6m
Power
120W
Output Torque
800N
Door Panel Pattern
Wood Grain, Imitation Copper
Color
Customize
Surface Finishing
Finished
Features
Anti-Pinch, Resistance Rebound
Advantage
Windproof (12 Typhoon Resistance)
Production Capacity
50000PCS/Year
Product Description

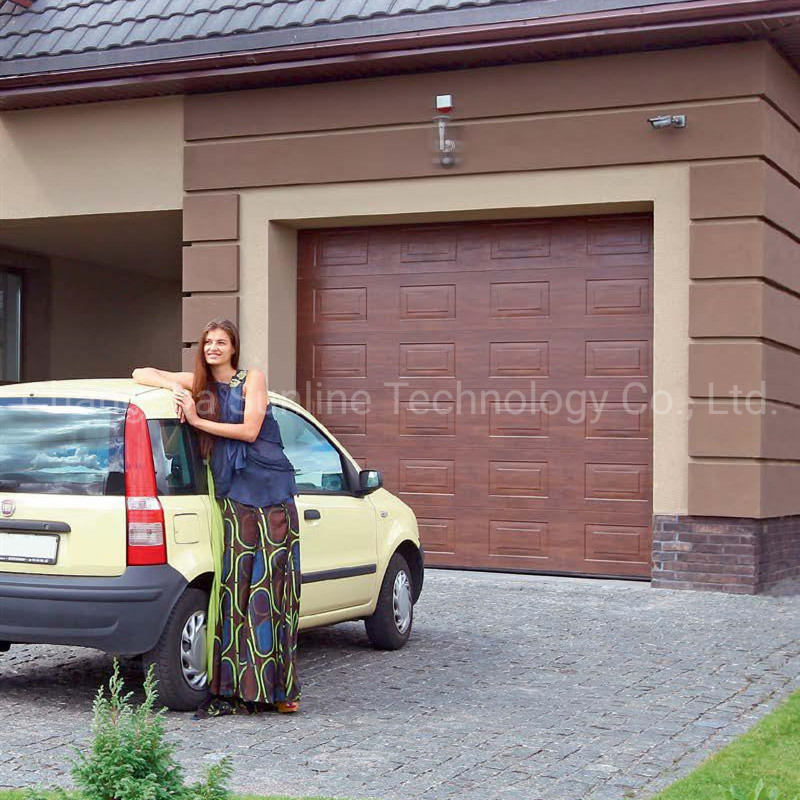

High-end luxury aluminum Sectional Garage Door with remote control

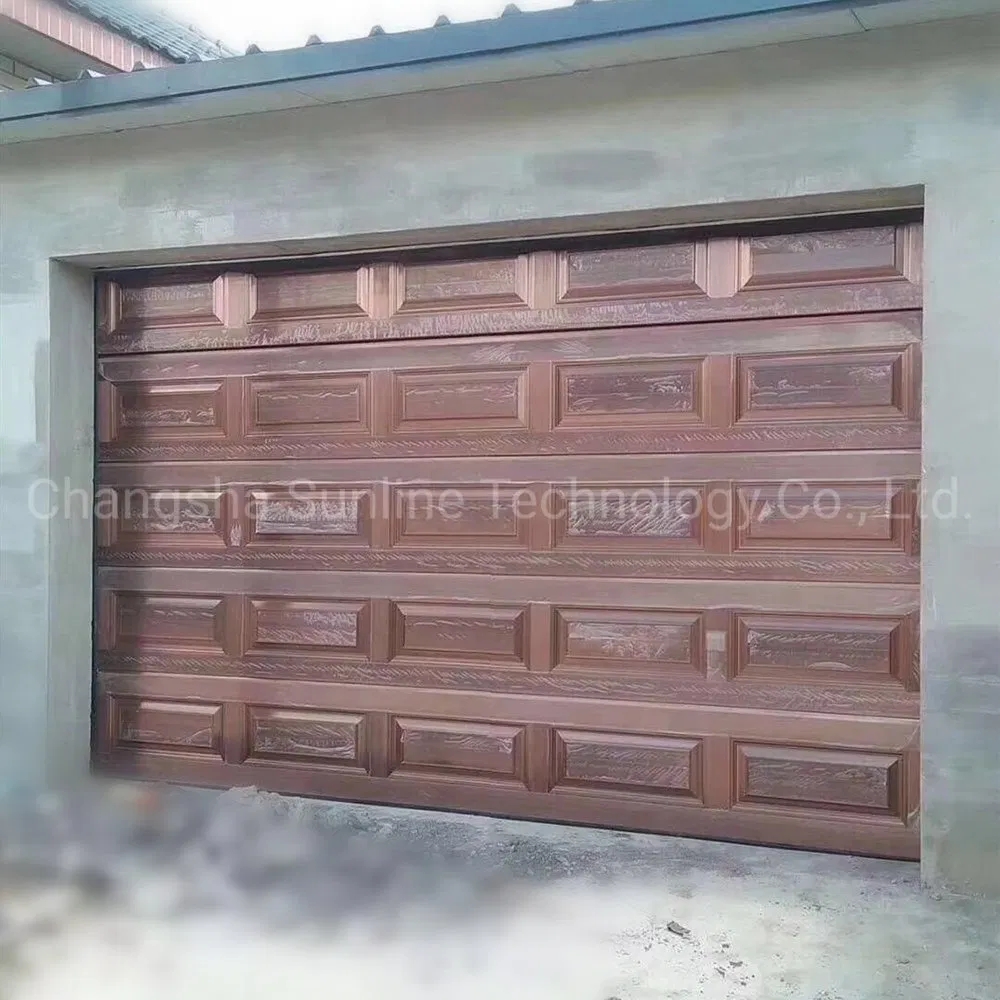

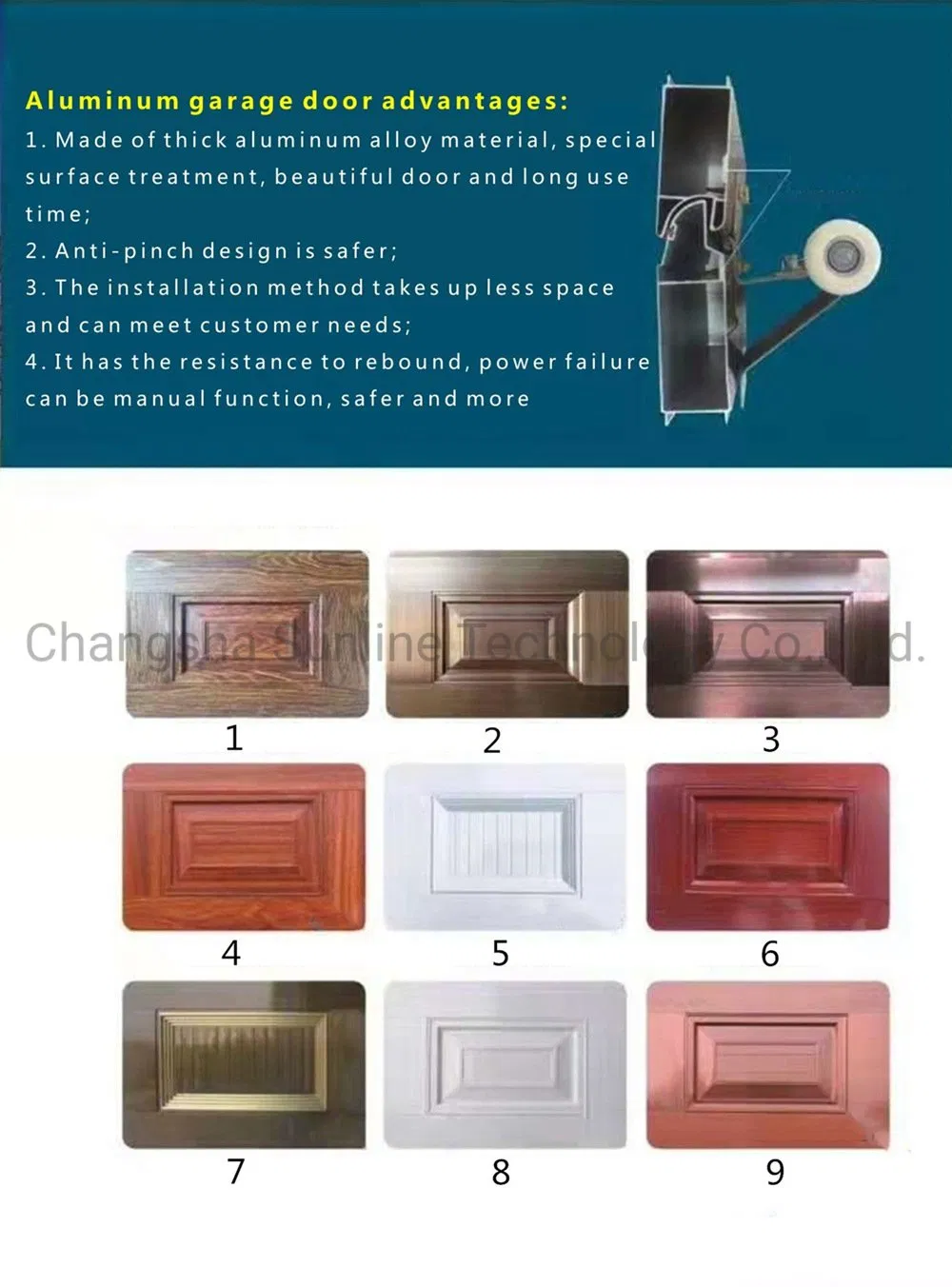

Anti-pinch electric aluminum garage door is available in a variety of colors. It is a high-end luxury and novel garage door with reliable quality that can resist up to 12 typhoon-level winds. Color options include sprayed white, gold oak, red walnut, imitation copper, champagne, gold nanmu, and imitation copper wire drawing. Custom colors are also available upon request.

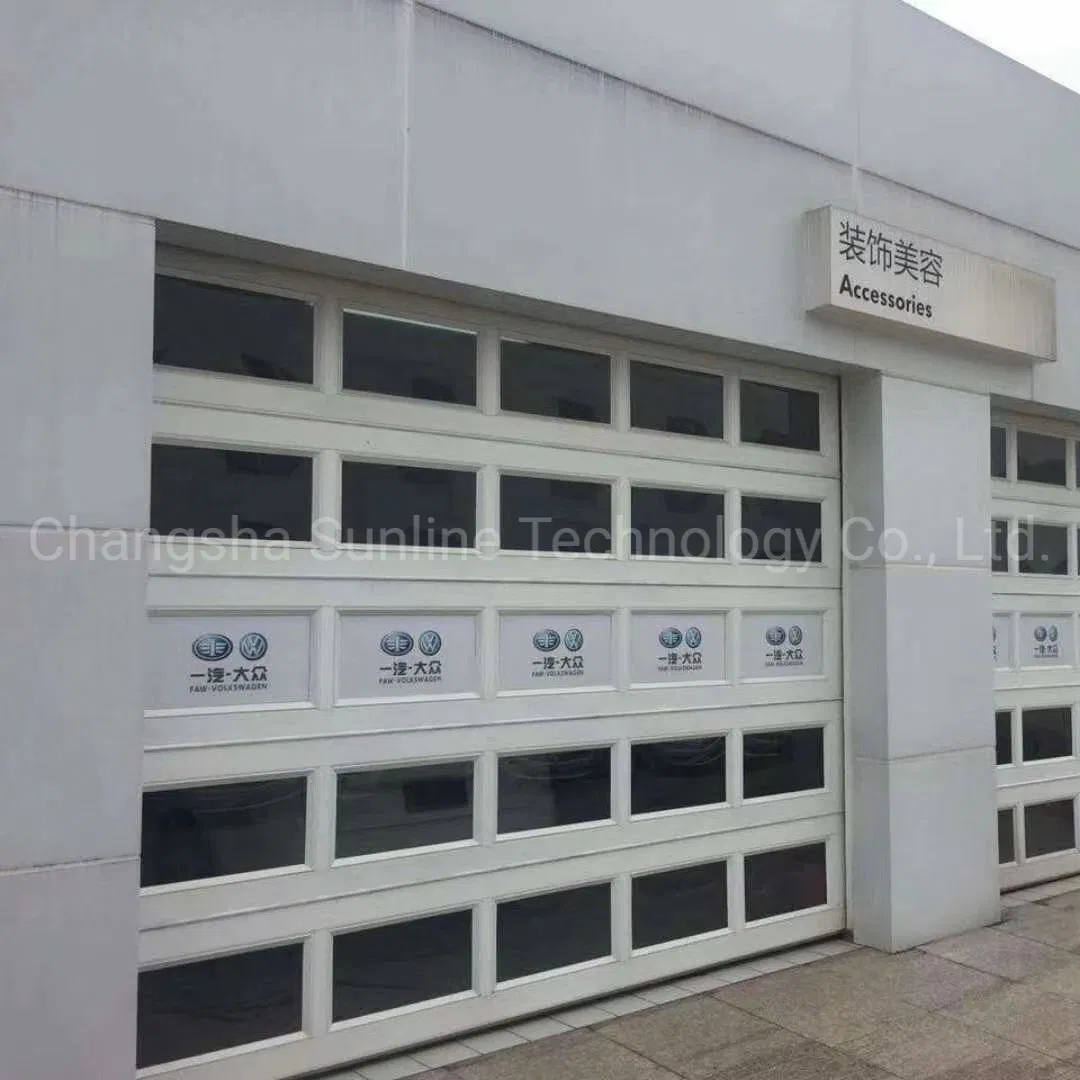

The aluminum alloy garage door is crafted from double-layer materials and assembled by hand to ensure each part is tightly combined. Screw fixings are thickened for durability to prevent loosening. Optional features include lighting windows and ventilation windows with diamond mesh.

Main Advantages:

Door panels adopt special aluminum alloy surface technology: sun protection, moisture-proof, rust prevention, anti-corrosion, and anti-cracking.
Multiple control methods: remote control and mobile phone control.
Equipped with resistance rebound function for enhanced safety.

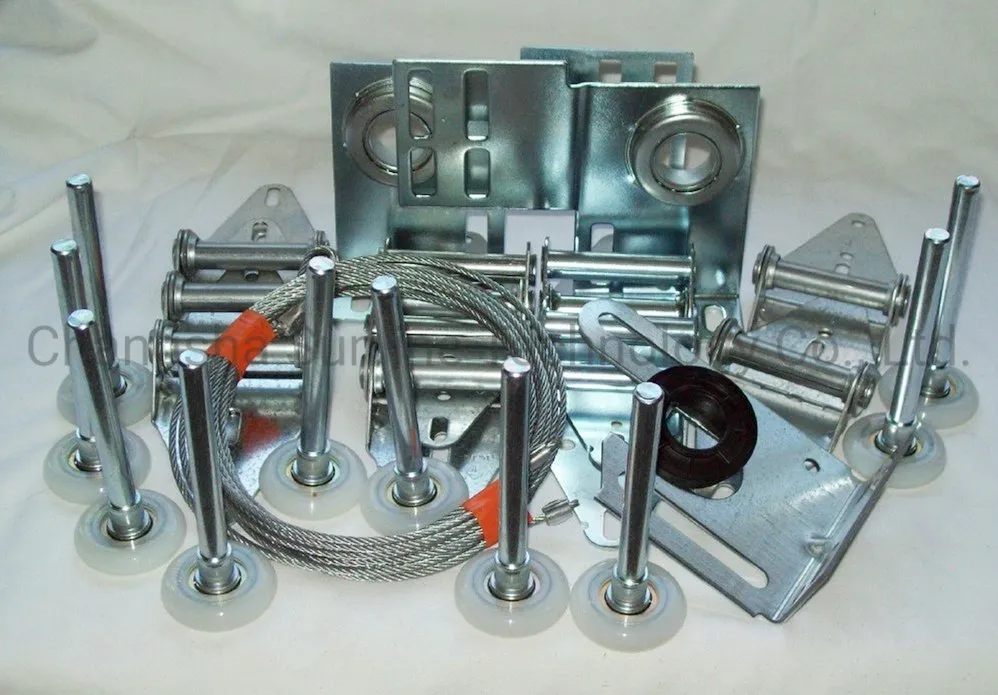

Assembly Features & Specifications

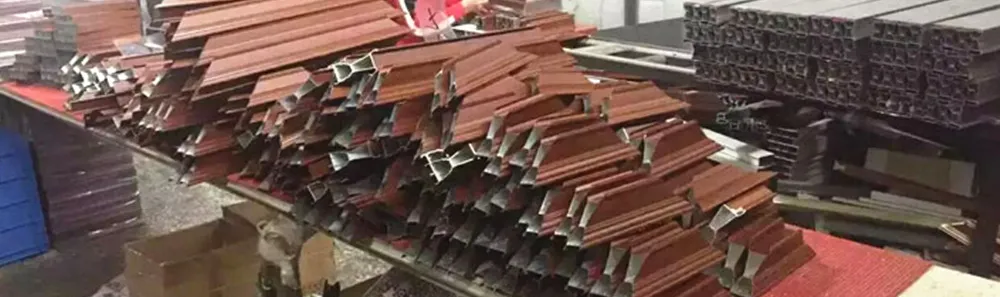

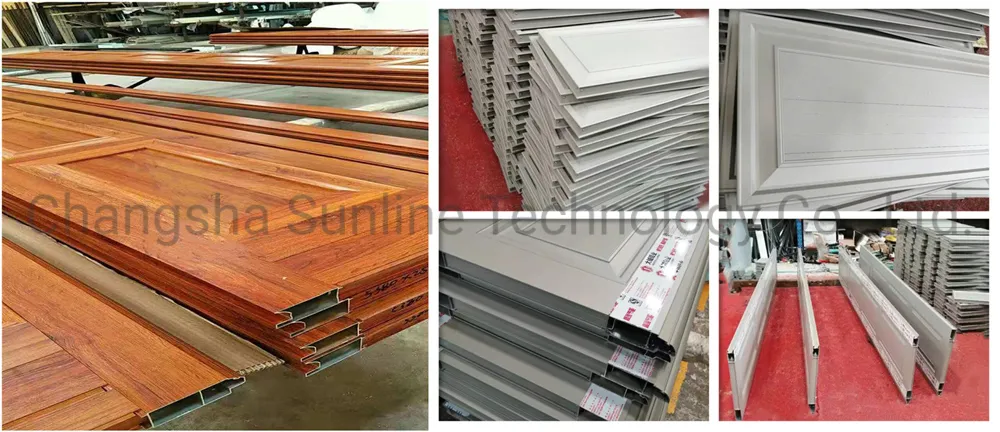

1.Door Panel: Inner and outer plates made of 1.2mm aluminum alloy. Total thickness: 40mm. Wind pressure resistance: 1200N/m².
2.Track: Processed by galvanized steel sheet with 1.5mm thickness.
3.Roller: Wear-resistant nylon or steel with rolling bearings for smooth, silent operation. Shaft diameter: 15.0mm.
4.Hinge: Middle hinges 2.0mm thick; end hinges are arc-shaped with no gap for anti-pinch protection.
5.Axle: Galvanized steel pipe with a diameter of 25.4mm.
6.Wire Rope: High-strength flexible galvanized steel wire (4.2mm for heights ≤5500mm; 6.0mm for heights >5500mm).
7.Opener: Intelligent remote control with integrated resistance rebound function.
Product Visuals
Frequently Asked Questions
1. Can the color of the garage door be customized?
Yes, we offer standard colors like white, gold oak, walnut, and imitation copper, but we also support fully customized colors to match your home's exterior.
2. How wind-resistant are these aluminum garage doors?
Our sectional garage doors are designed for durability and can resist up to 12 typhoon-level winds, making them ideal for coastal or high-wind areas.
3. What safety features are included with the automatic opener?
The door is equipped with an anti-pinch design and an intelligent resistance rebound function, which ensures the door stops and reverses if it encounters an obstacle.
4. Can I control the door using my smartphone?
Yes, in addition to standard remote controls, the motor supports mobile phone control for convenient access from anywhere.
5. What is the thickness and material of the door panels?
The panels are 40mm thick and constructed with inner and outer 1.2mm high-grade aluminum alloy plates for maximum strength and rust prevention.
6. Is the operation of the door noisy?
No, we use wear-resistant nylon rollers with rolling bearings and high-quality tracks to ensure the door runs smoothly and quietly.
