Chi Modern Automatic Steel Sectional Insulated Garage Door for Homes

1 / 5

Chi Modern Automatic Steel Sectional Insulated Garage Door for Homes

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	2 Year

Send Inquiry

Product Description

Basic Product Information

Model NO.

CHI-26USA

Material

Steel

Thickness

40mm/50mm

Opening Style

Sectional Roll up and Sliding

Opening Type

With Remote Control

Power

100W

Door Panel Pattern

Linear

Surface Finishing

Finished

Door Material

Galvanized Steel - PU Foam - Galvanized Steel

Feature

Electric/Beautiful/Quiet/High Quality/Durable

Application

Home/Golf Cart Shed/Industrial/Villa/Commercial

Production Capacity

1000/Month

Technical Specifications

Project	Specifications Details

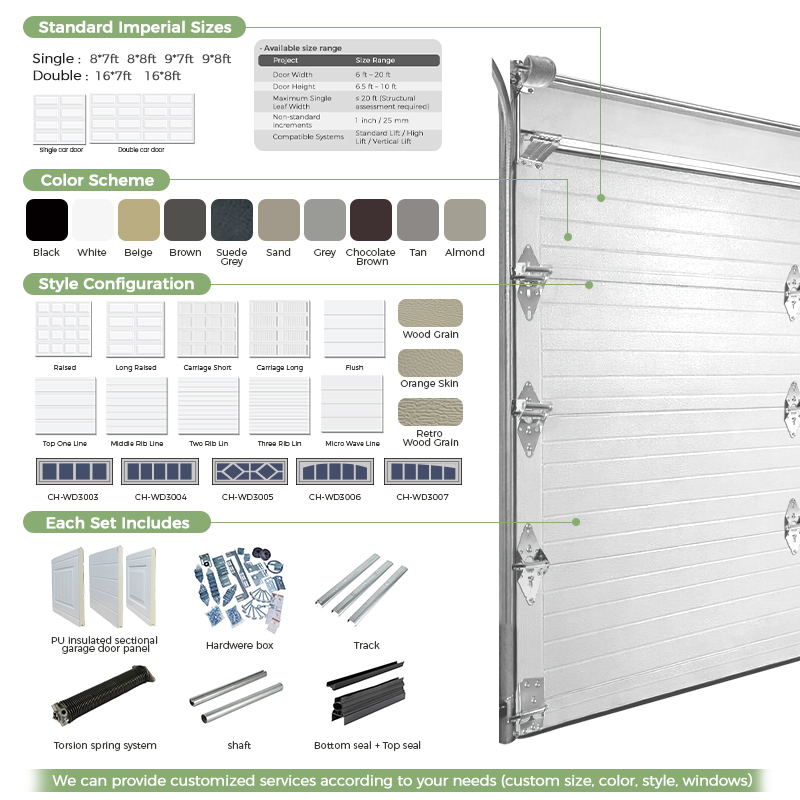

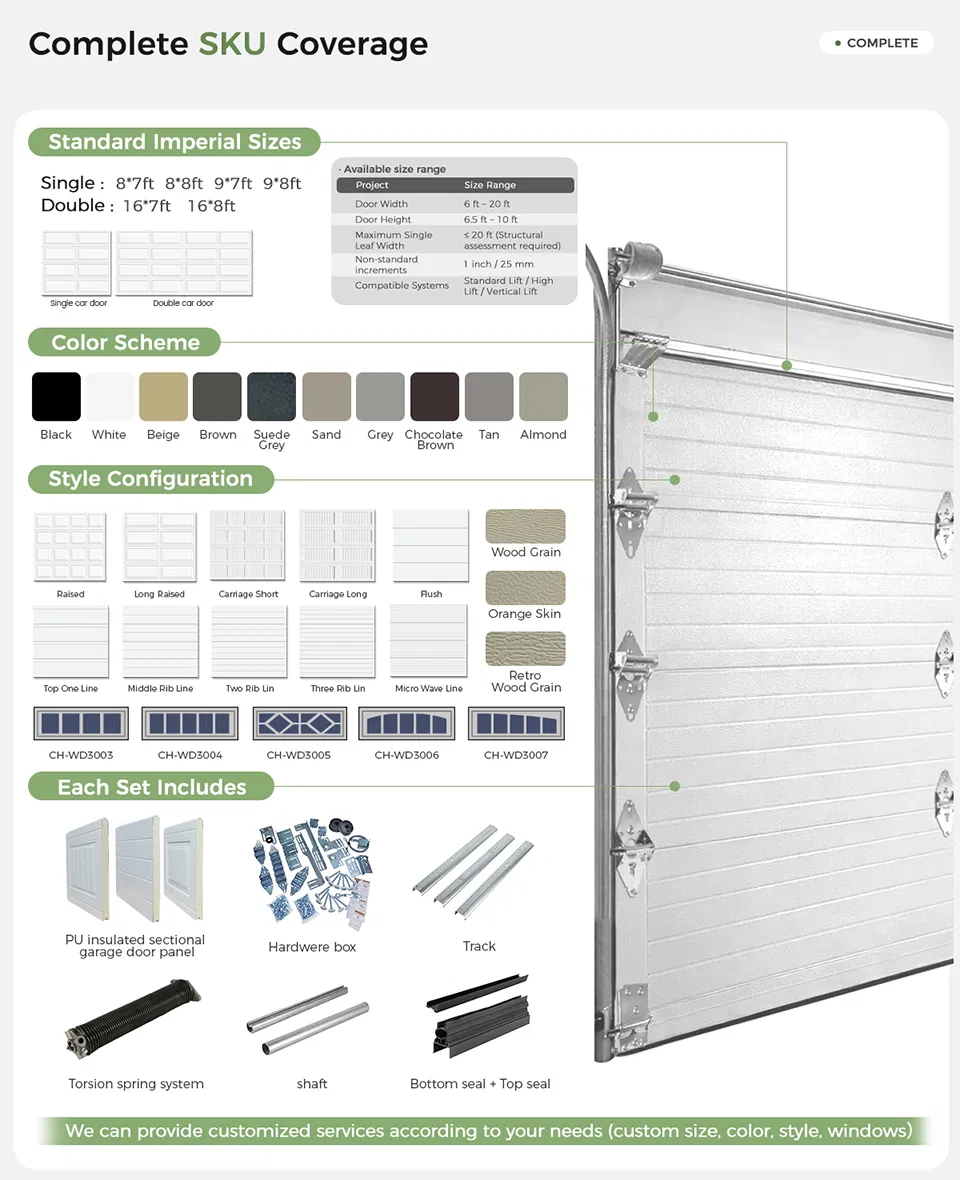

Door Panel System	Single: 8'x7', 8'x8', 9'x7' Double: 16x7', 16'x8' Thickness: 40/50mm Galvanized Steel: 0.326/0.4/0.45mm
Track System	2-inch standard rail; 12"/15" elbow; pre-drilled standard holes
Connection Structure	Male and female tenons + continuous integrated sealing strip
Hardware Box	Hinges (2.5mm), double-bearing nylon rollers (150kg load capacity)
Spring System	Torsion springs (60Si2MnA), lifespan 50,000-100,000 cycles

Detailed Description

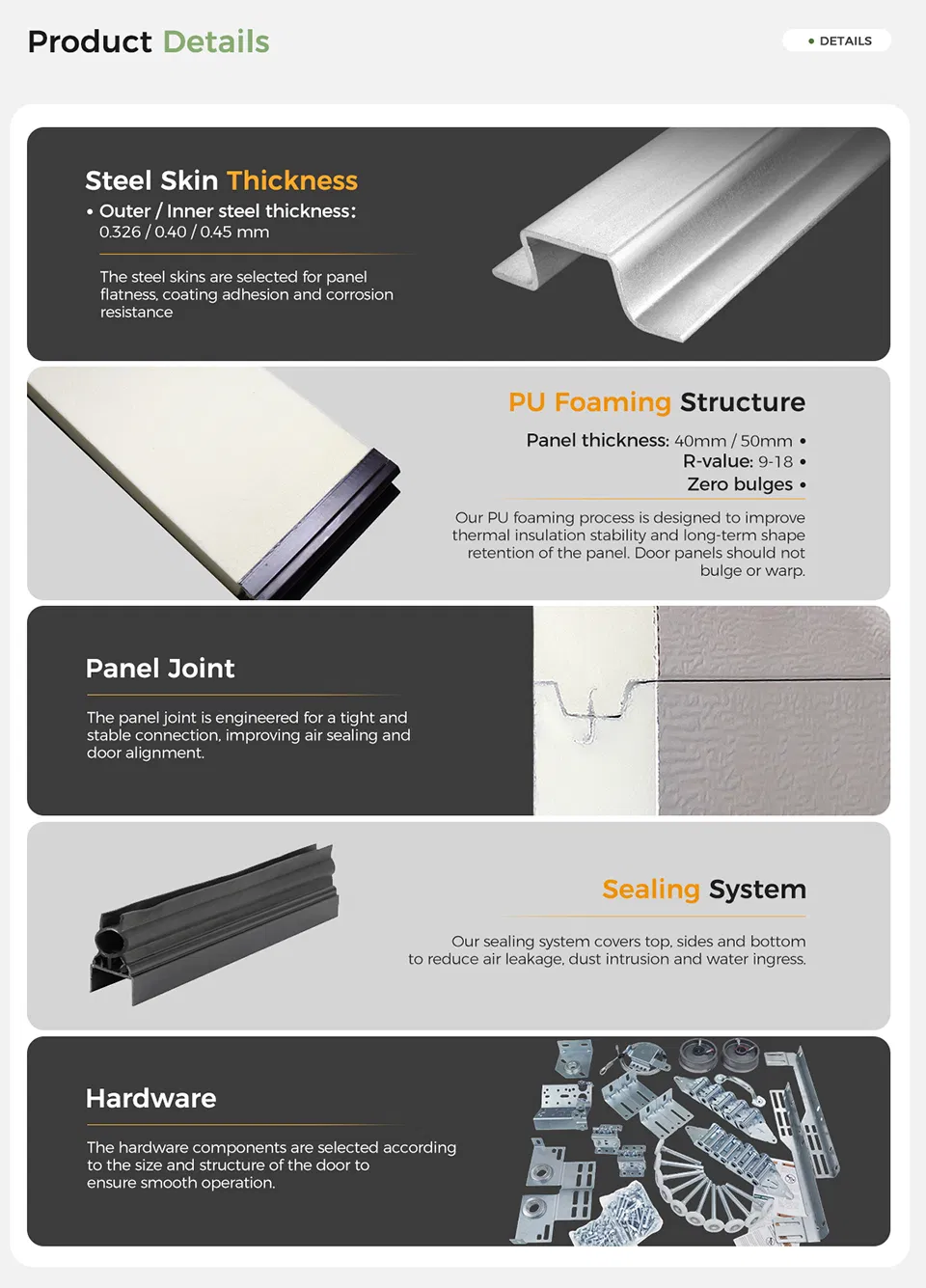

1. This steel-insulated, polyurethane-insulated, segmented garage door is designed specifically for the North American residential market. Featuring a sandwich structure with double-layered galvanized steel and PU foam core, providing an R-value of 9-18.

2. Available in common single and double garage dimensions (8x7ft, 9x7ft, 16x7ft, 16x8ft), with metric options available for export markets.

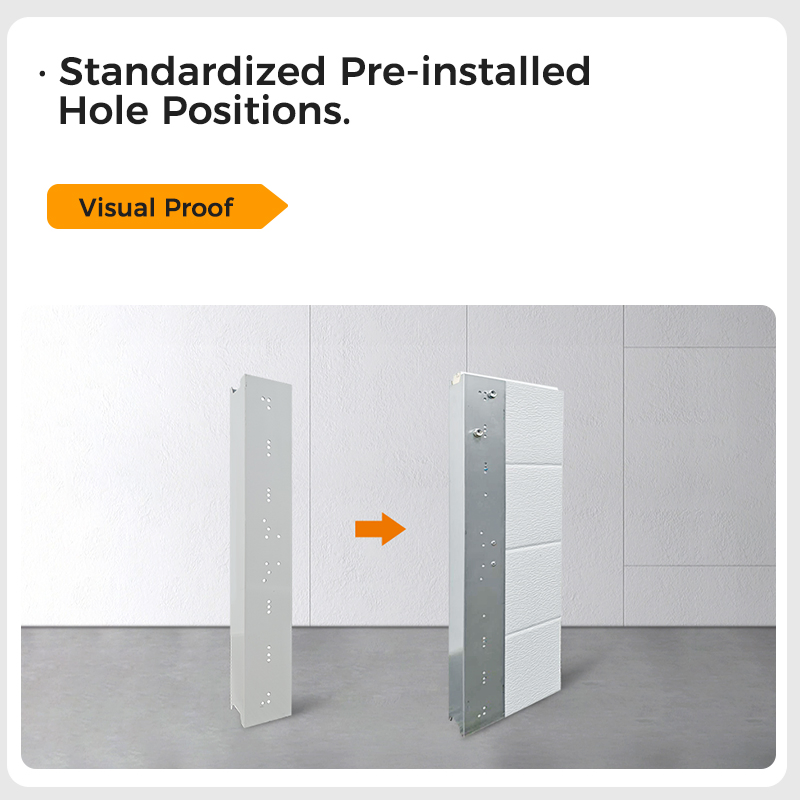

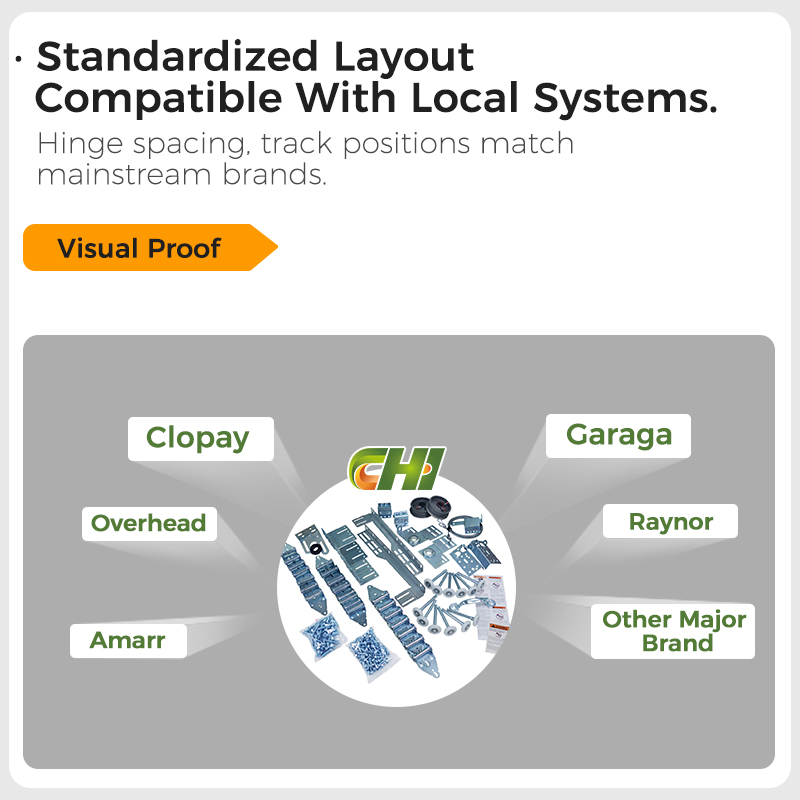

3. Engineered with standardized hinge positions and track spacing for full compatibility with mainstream residential systems.

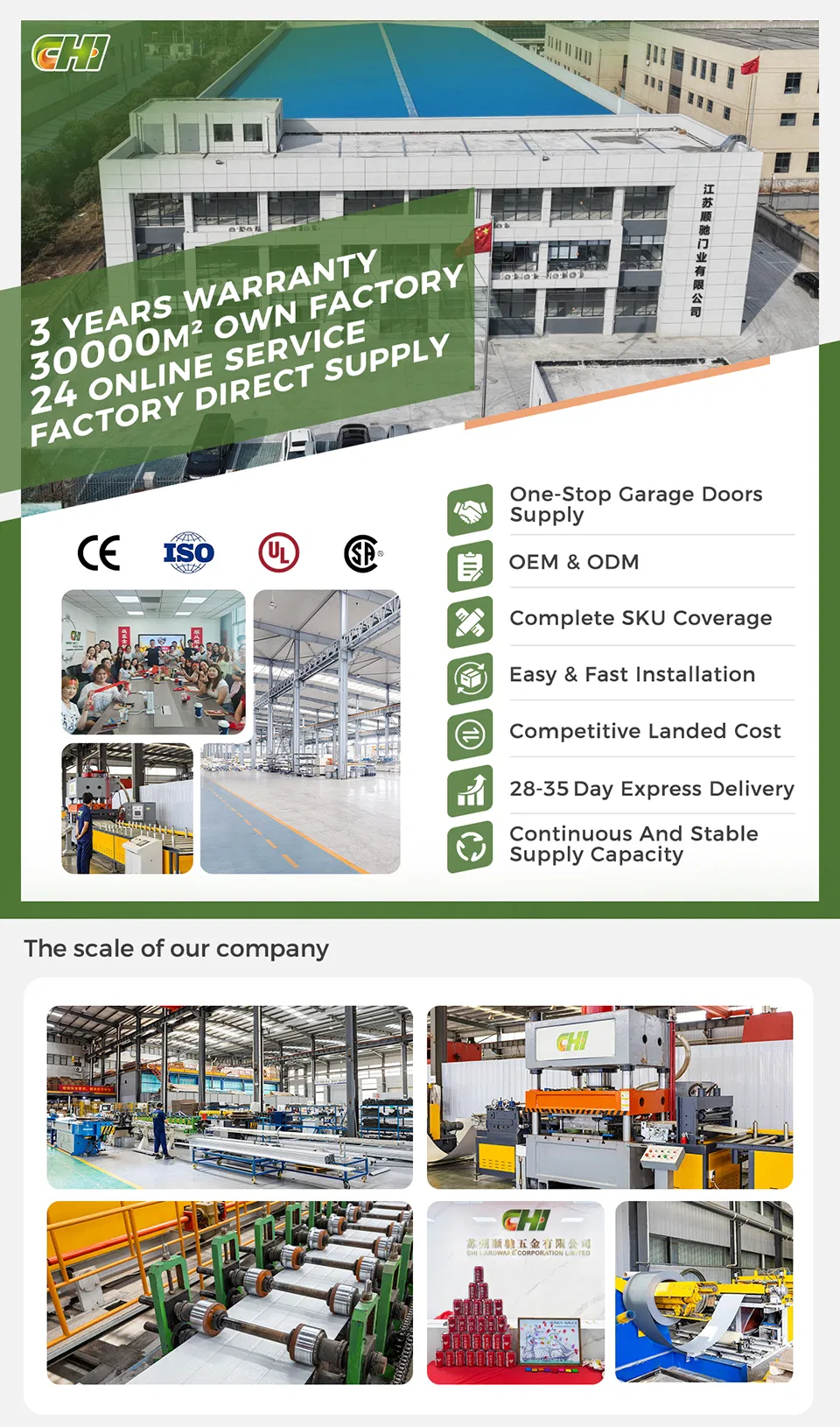

Automatic Steel Sectional Insulated Garage Door Overview

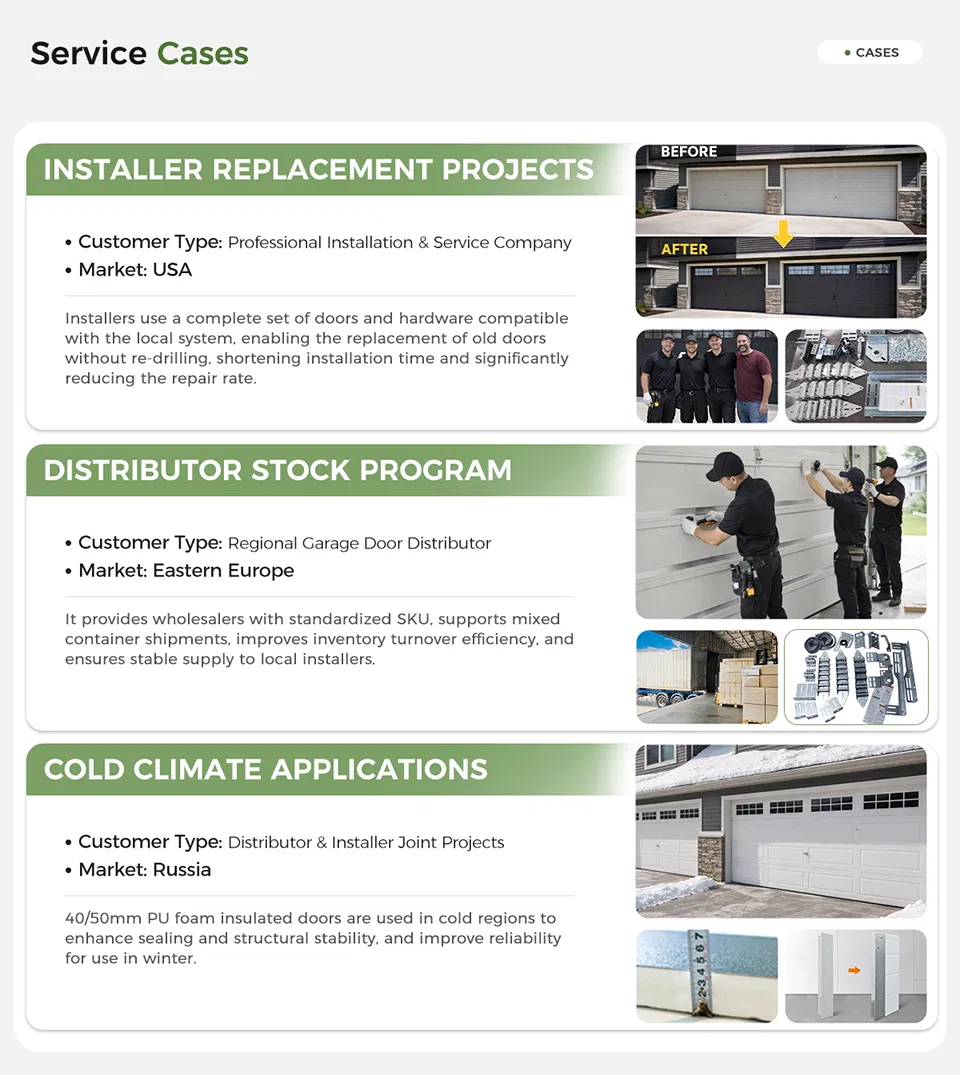

Product Case & Quality Control

Certifications

Frequently Asked Questions

What materials are the garage doors made of?

The doors feature a sandwich structure consisting of double-layered galvanized steel sheets with a PU (Polyurethane) foam core for superior insulation.

What are the standard sizes available?

We offer common North American sizes including 8x7 ft, 9x7 ft for single doors, and 16x7 ft, 16x8 ft for double doors. Customized sizes are also supported.

What is the R-value of these insulated doors?

Depending on the panel thickness (40mm or 50mm), our doors provide a stable insulation performance with an R-value ranging from 9 to 18.

Are the doors compatible with remote control systems?

Yes, the doors are designed for automatic operation and come with remote control compatibility as a standard feature.

What is the typical lead time for an order?

The standard lead time is approximately 30 days for orders between 1-2 square meters, while larger orders are subject to negotiation.

What kind of spring system is used?

We use high-quality torsion springs made of 60Si2MnA material, with an operational lifespan of up to 100,000 cycles.
