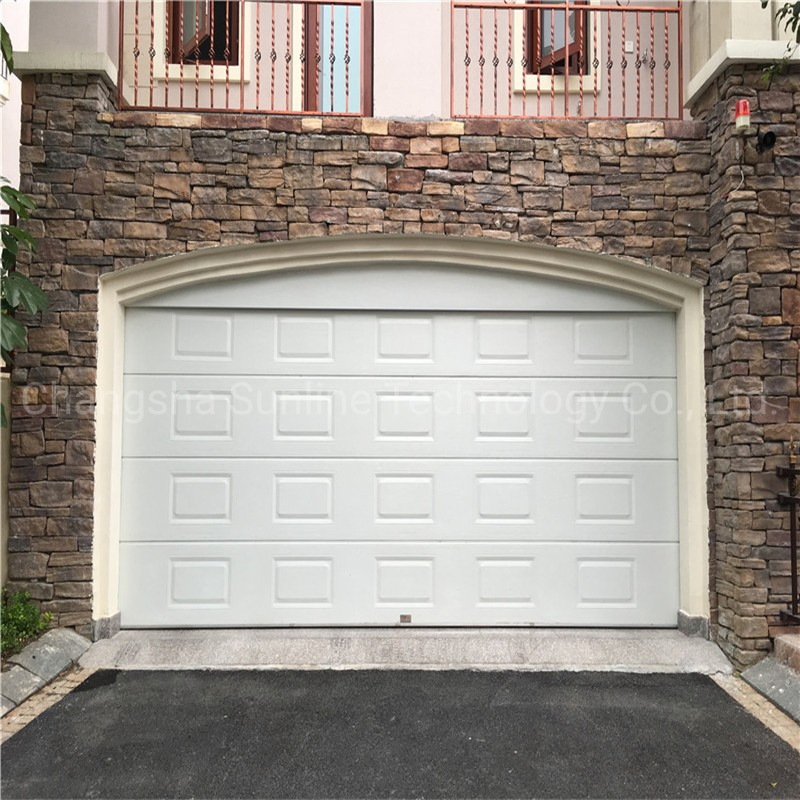

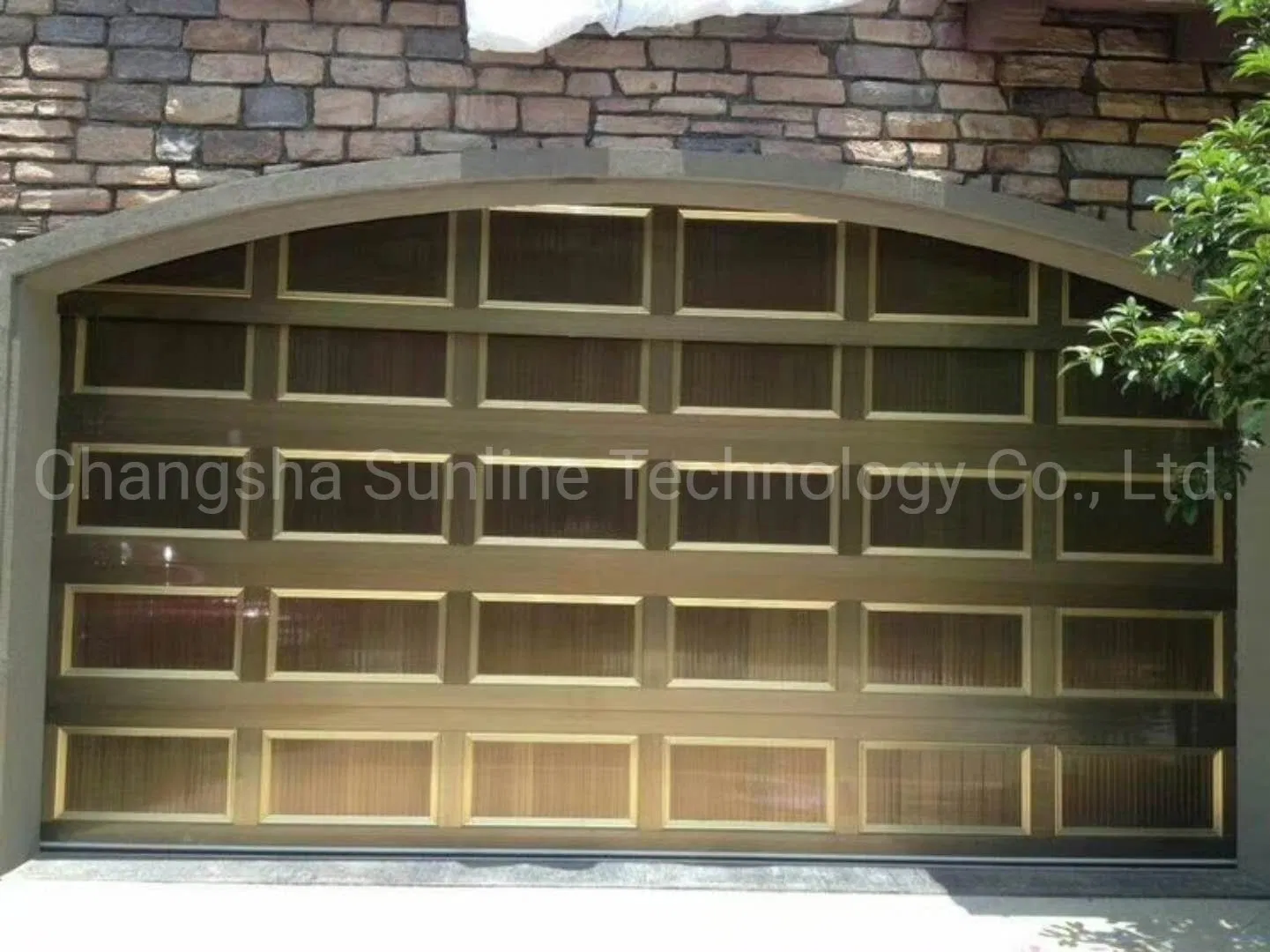

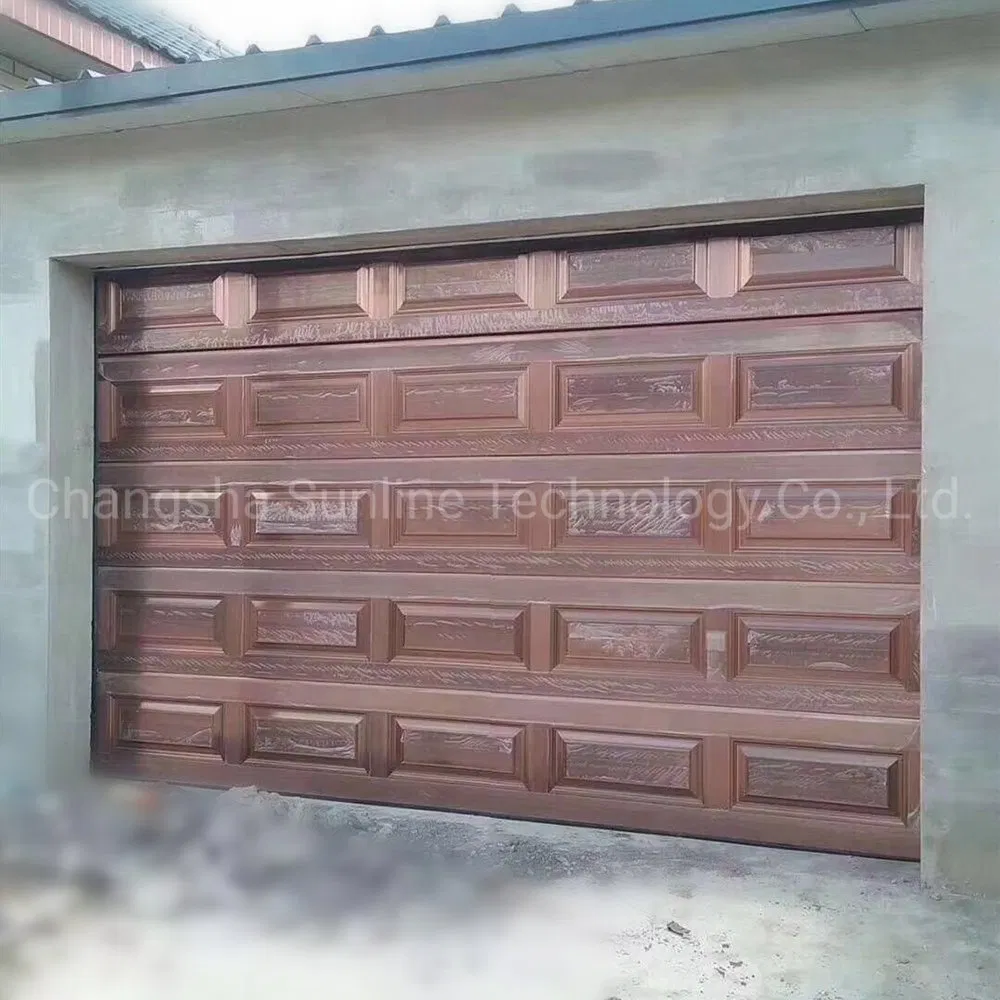

China Auto Automatic 3*3m Imitation Copper& Wood Grain All Aluminum Alloy Sectional Garage Door
China Auto Automatic 3*3m Imitation Copper& Wood Grain All Aluminum Alloy Sectional Garage Door
China Auto Automatic 3*3m Imitation Copper& Wood Grain All Aluminum Alloy Sectional Garage Door
1 / 3
China Auto Automatic 3*3m Imitation Copper& Wood Grain All Aluminum Alloy Sectional Garage Door
China Auto Automatic 3*3m Imitation Copper& Wood Grain All Aluminum Alloy Sectional Garage Door
China Auto Automatic 3*3m Imitation Copper& Wood Grain All Aluminum Alloy Sectional Garage Door

China Auto Automatic 3*3m Imitation Copper& Wood Grain All Aluminum Alloy Sectional Garage Door

Customization: Available
Material: Aluminum Alloy
Thickness: 40mm
Send Inquiry

Product Description

Basic Specifications

Model NO.:
3*3m
Opening Style:
Slide
Opening Type:
With Remote Control
Power:
120W
Output Torque:
800N
Panel Pattern:
Wood Grain, Imitation Copper
Color:
Customize
Features:
Anti-Pinch, Resistance Rebound
Advantage:
Windproof (Resist 12 typhoon)
Origin:
China

Product Description

High-end luxury aluminum Sectional Garage Door with remote control

The anti-pinch electric aluminum garage door is available in a variety of colors, offering a high-end luxury and novel design. With reliable quality, it is engineered to resist up to 12 typhoons! Available colors include sprayed white, gold oak, red walnut, imitation copper, champagne, gold nanmu, and imitation copper wire drawing. Custom colors are also supported.

Constructed from double-layer material and hand-assembled, every part is tightly combined with thickened screw fixings for durability. The door body can include lighting or ventilation windows (with diamond mesh). Panel interfaces include step, concave-convex, and anti-pinch designs.

Main Advantages:

●
Special aluminum alloy surface technology: sun protection, moisture proof, rust prevention, anti-corrosion, and anti-cracking.
●
Multiple control methods: remote control and mobile phone control.
●
Safety Features: Resistance rebound function for enhanced security.

Technical Assembly Features:

1.
Door Panel: 1.2mm aluminum alloy inner/outer plates; 40mm total thickness; wind pressure resistance of 1200N/m2.
2.
Track: Galvanized steel sheet with 1.5mm thickness.
3.
Roller: Wear-resistant nylon or steel with rolling bearings for smooth, silent operation.
4.
Hinges: 2.0mm thick middle hinges; arc-shaped end hinges with no gap to prevent pinching.
5.
Wire Rope: High-strength flexible galvanized steel wire (φ4.2mm to φ6.0mm) ensuring a safety factor 5-8 times the door weight.

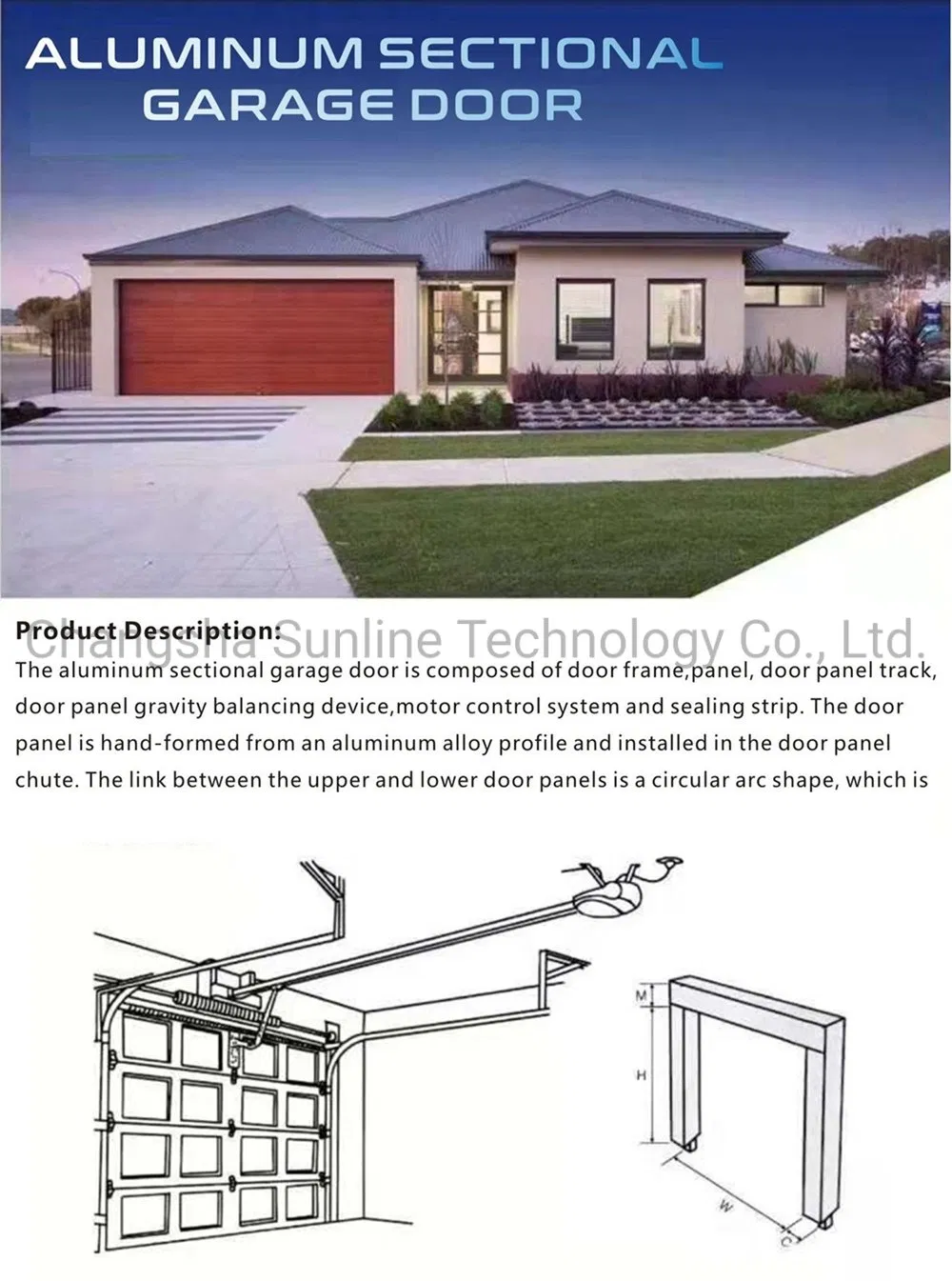

Aluminum Alloy Sectional Garage Door Details

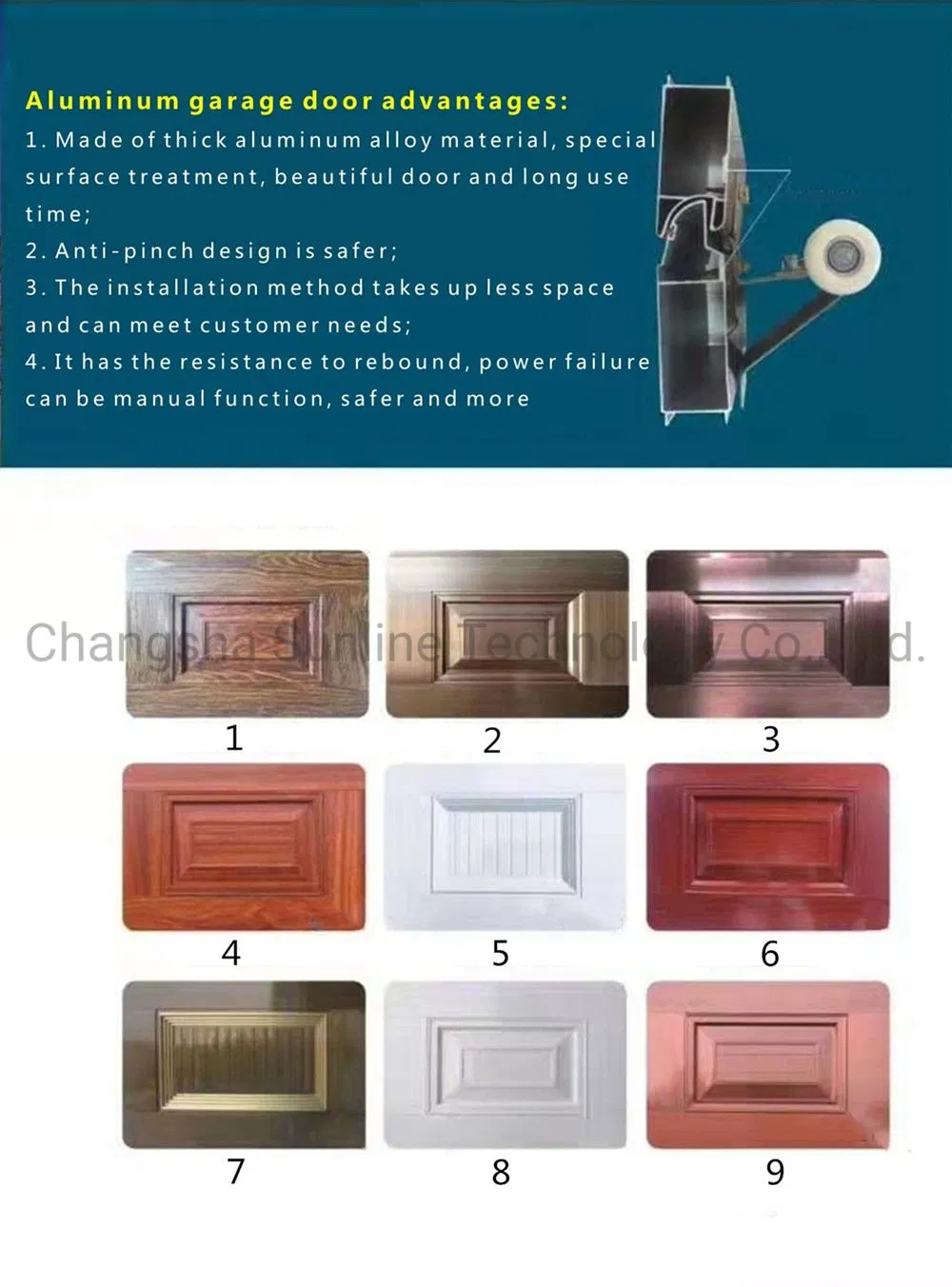

Imitation Copper Garage Door Panel
Wood Grain Garage Door Texture

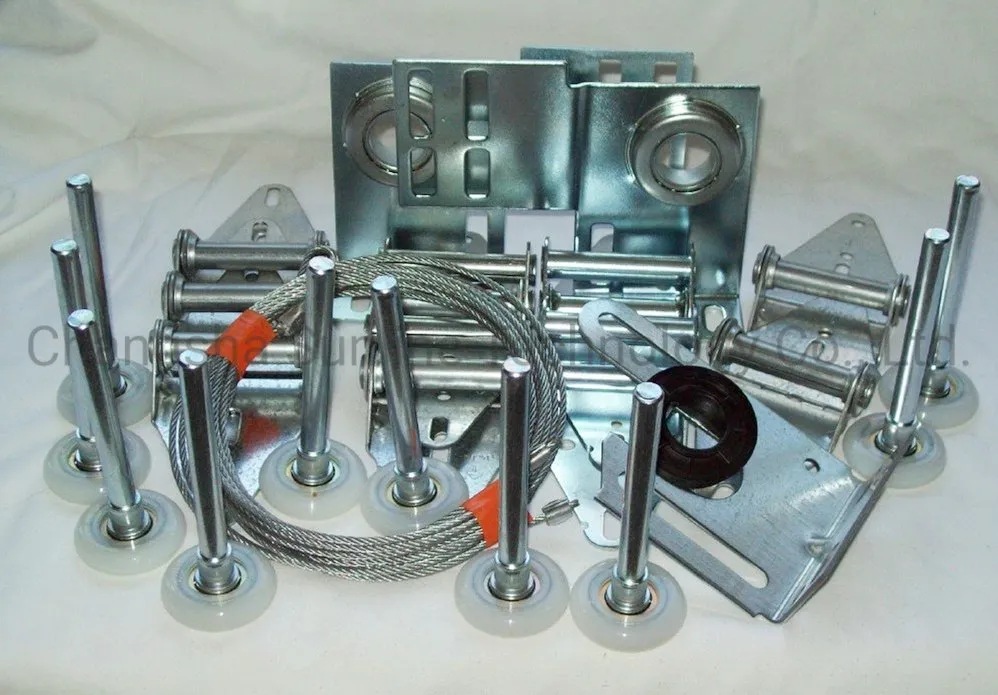

Garage Door Assembly Components

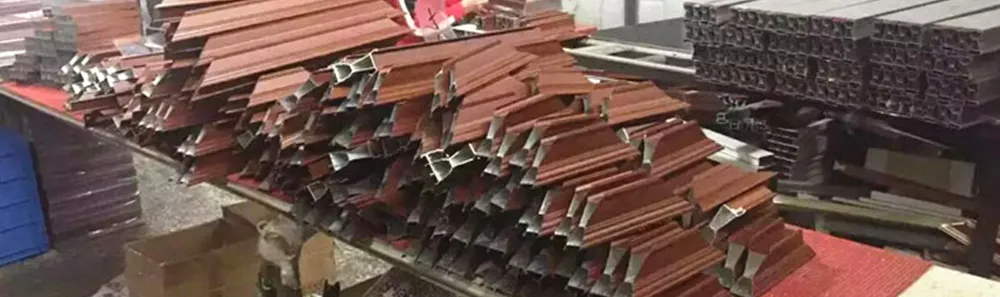

Anti-pinch Garage Door Structure
Automatic Sectional Garage Door Showcase

Frequently Asked Questions

What materials are used for the garage door panels?
The panels are constructed from double-layer 1.2mm aluminum alloy with a total thickness of 40mm, providing excellent durability and insulation.
How does the door handle wind resistance?
This door is designed to be windproof with a standard wind pressure resistance of 1200N/m2, allowing it to withstand up to 12 typhoon levels.
What safety features are included?
The door includes an anti-pinch design for panels and hinges, as well as a resistance rebound function in the motor to prevent accidents during closing.
Can I control the door using my smartphone?
Yes, the intelligent opener supports multiple control methods including standard remote control and remote mobile phone control.
What color and pattern options are available?
We offer wood grain and imitation copper patterns. Colors include white, gold oak, red walnut, champagne, and gold nanmu, with fully customizable options available.
Is the operation of the door noisy?
No, the door uses rollers made of wear-resistant nylon or steel containing rolling bearings, ensuring smooth and silent operation.
