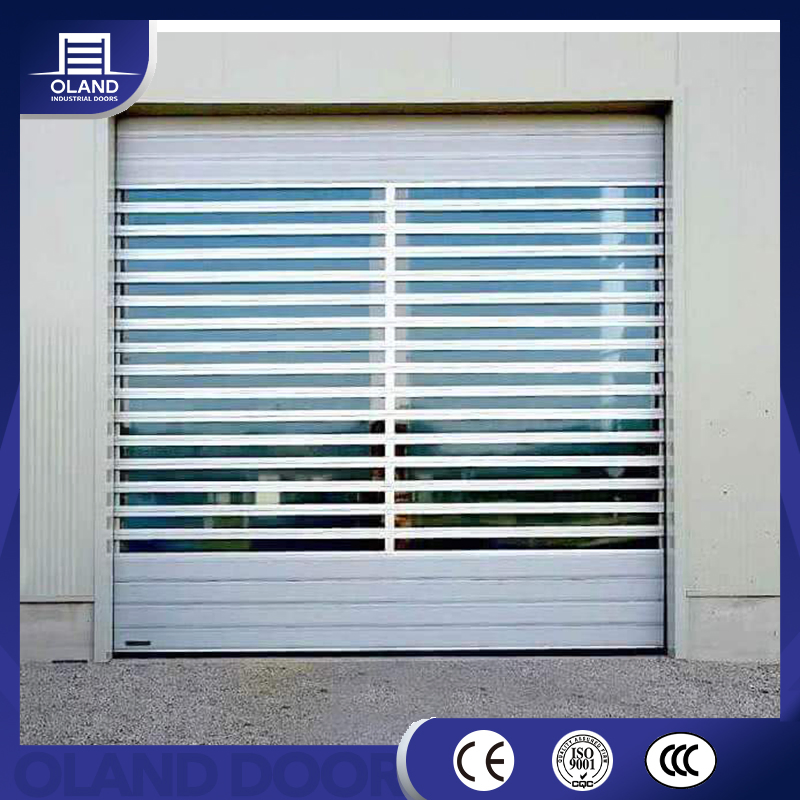

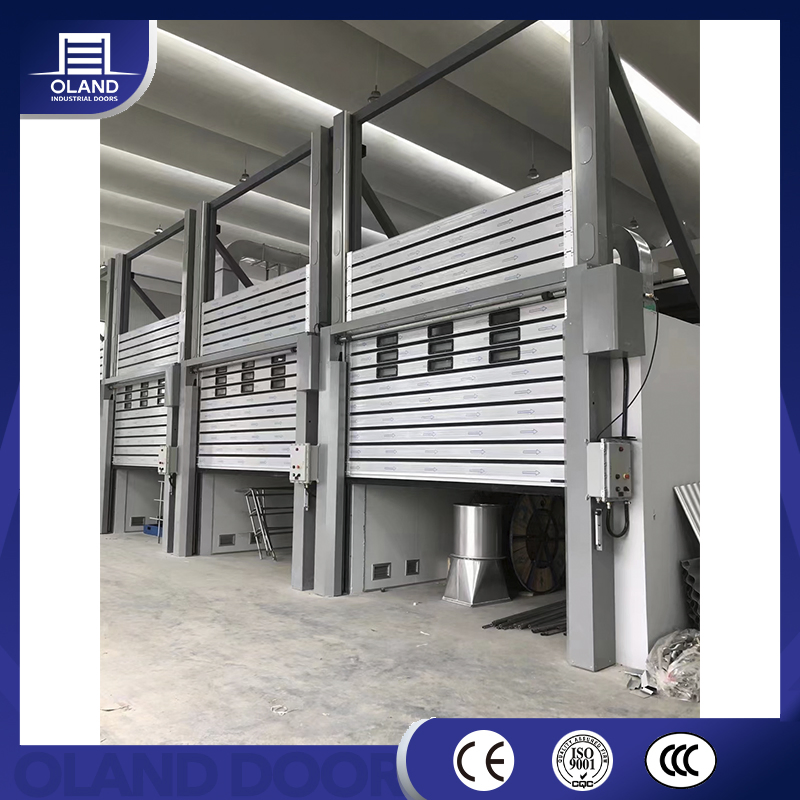

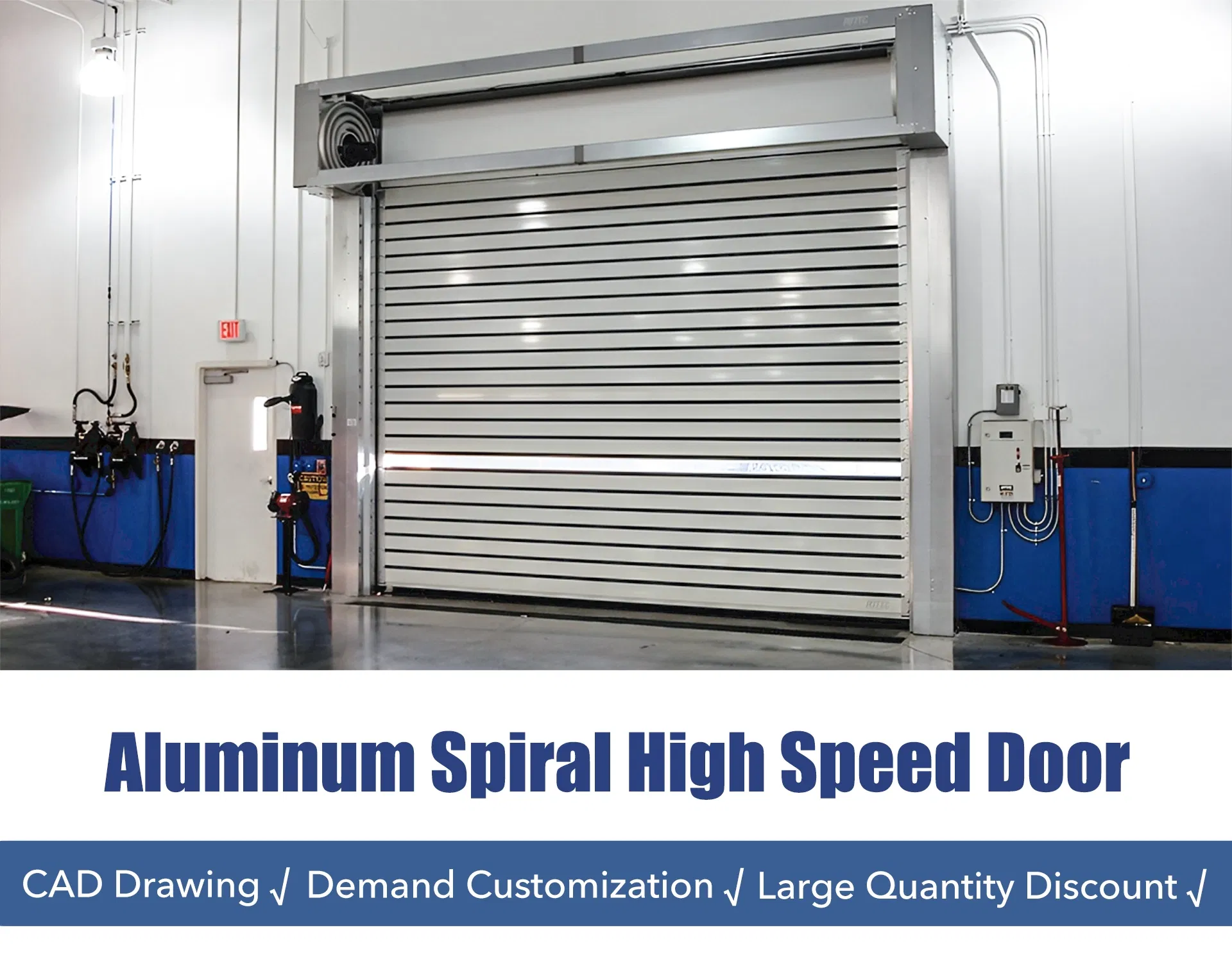

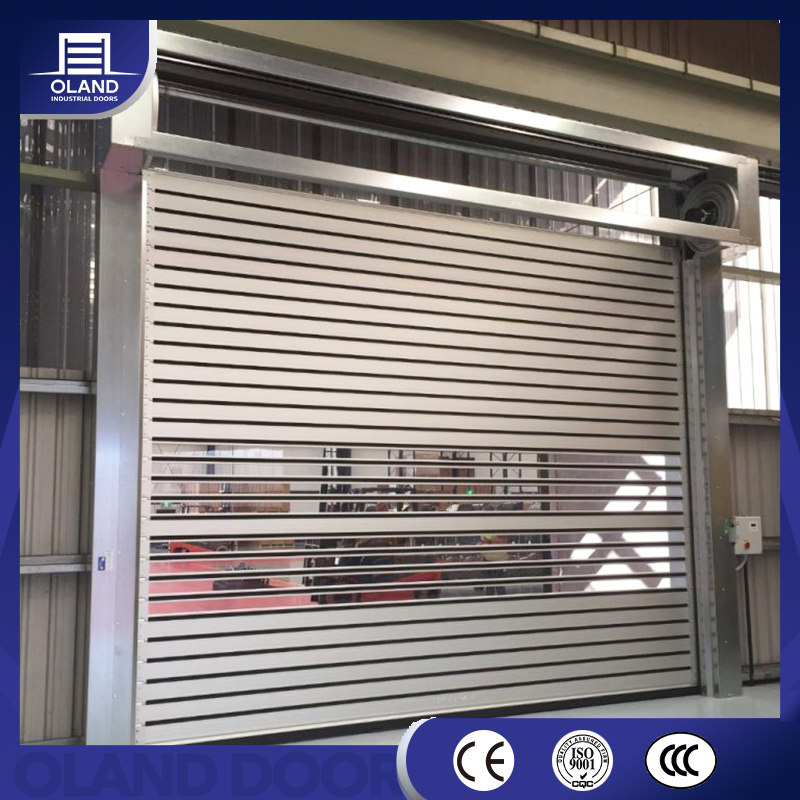

Key Features: Aluminum alloy spiral high speed door adopts high-strength aluminum alloy door plate, with sturdy structure, beautiful appearance, and multiple properties such as high-speed opening and closing, heat insulation and sound insulation, and wind and dust resistance.

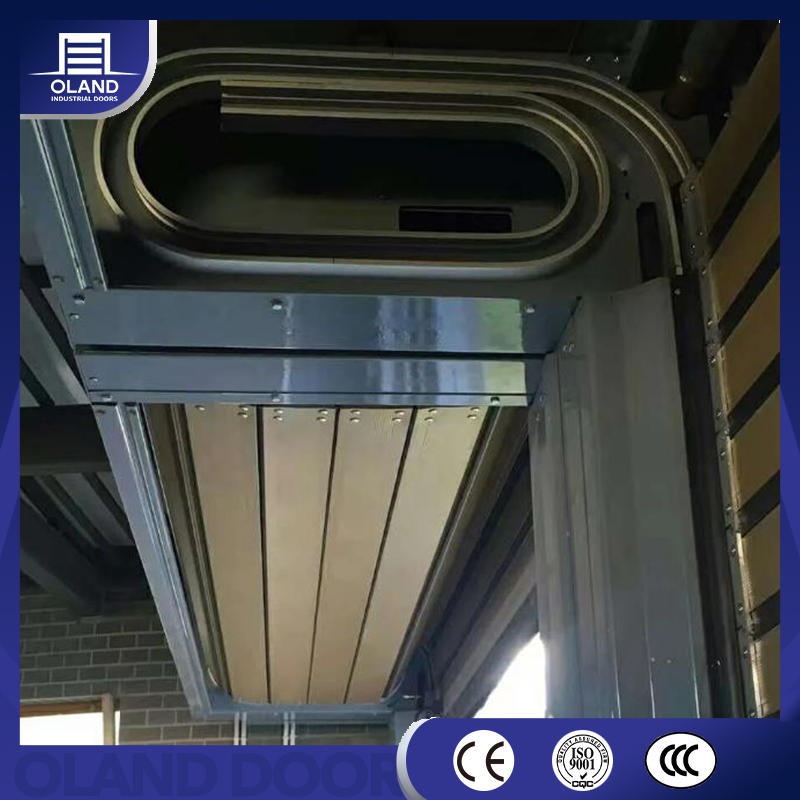

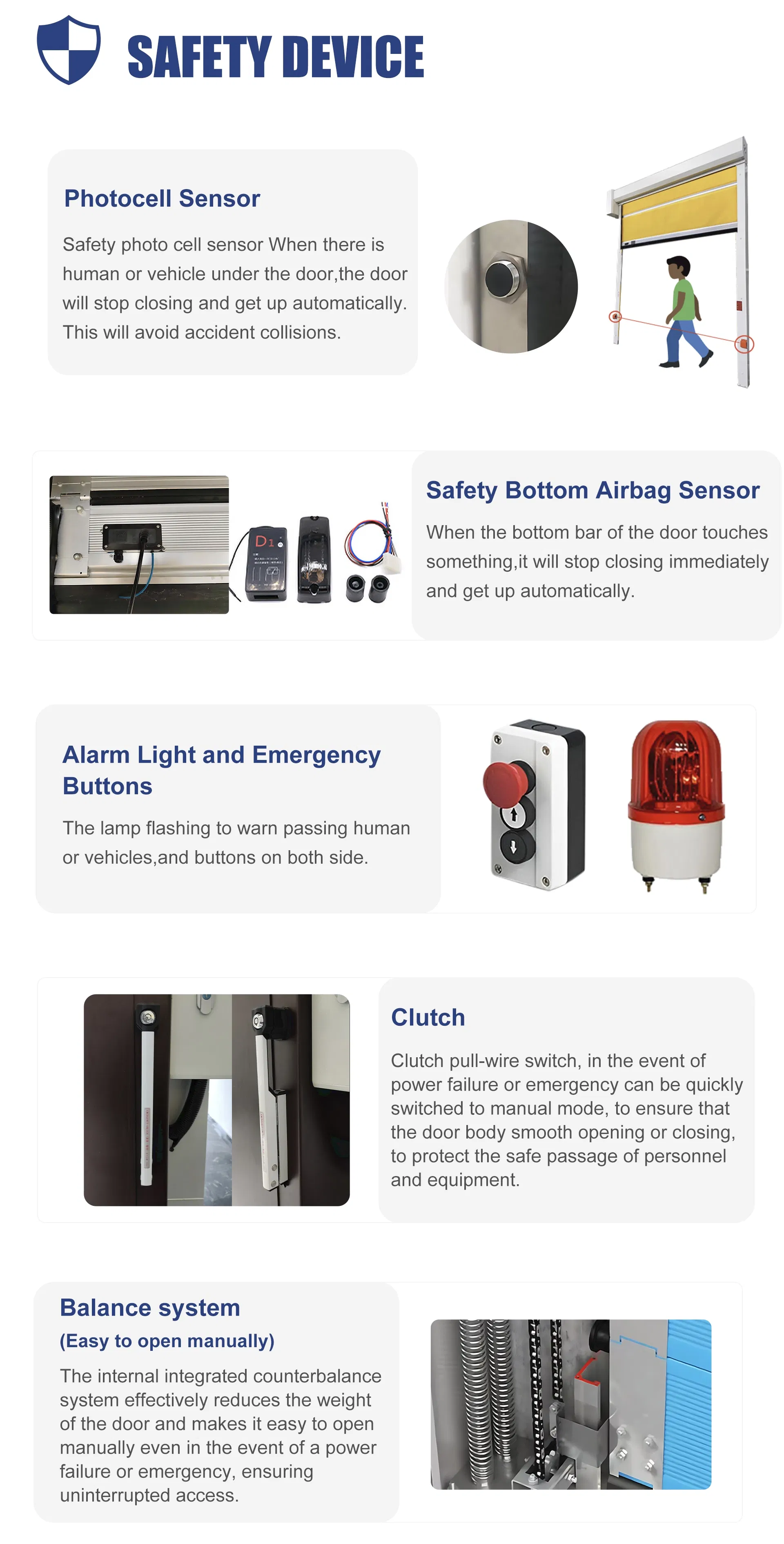

The door body is operated by spiral guide rail system without curtain friction, which improves the operation stability and service life. Built-in balancing system and clutch device can be easily opened manually in case of power failure to protect emergency access.
| Technical Data Details | |
|---|---|
| Maximum size | width*height 8000mm*8000mm |

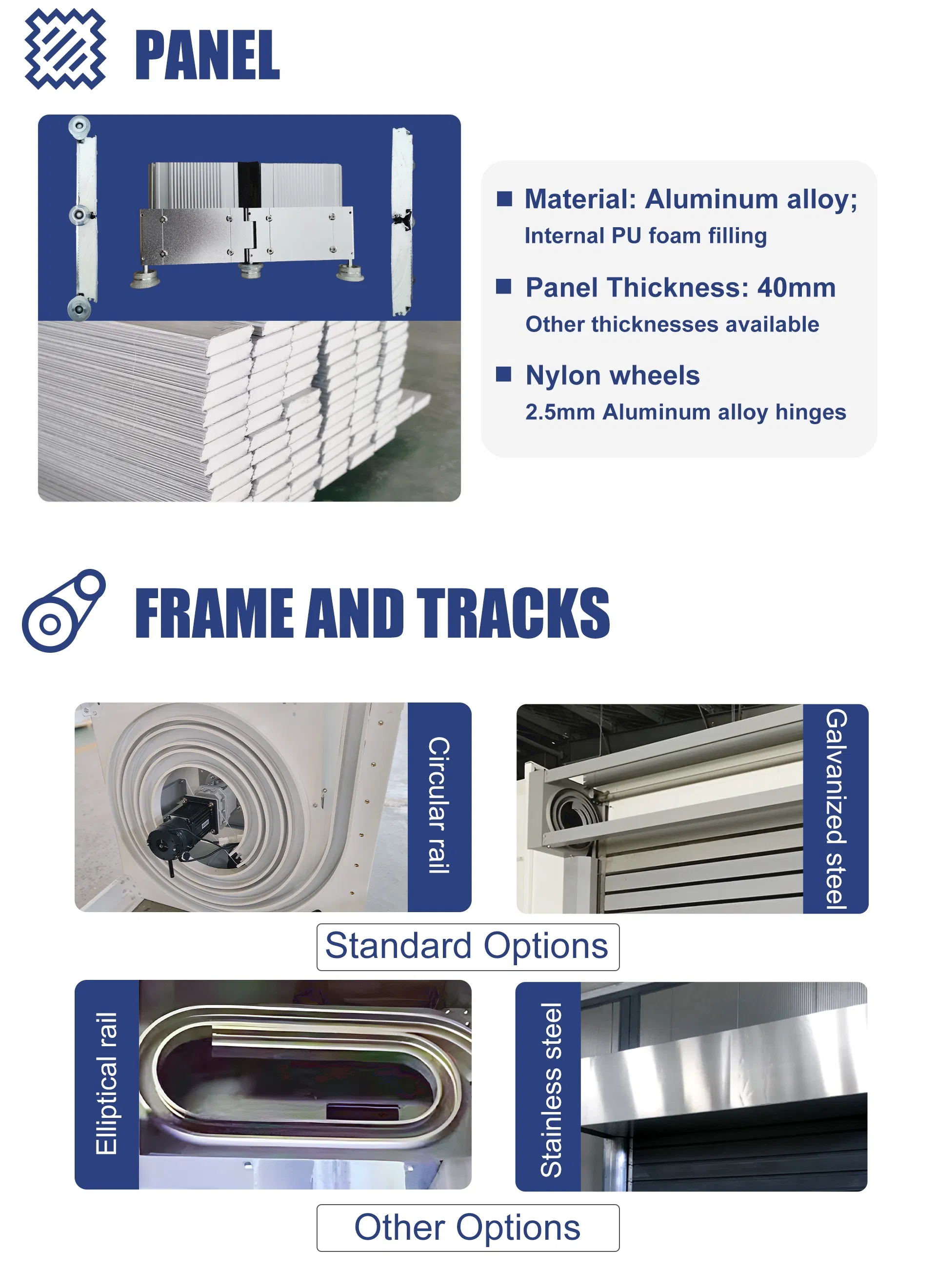

| Panel | Aluminum alloy + PU foam |
| Power supply | 220±10%V, 50/60Hz. Output power 0.75-1.5KW |
| Max speed | Open 2.0m/s, Close 1.0m/s |
| Protection level | IP55 |

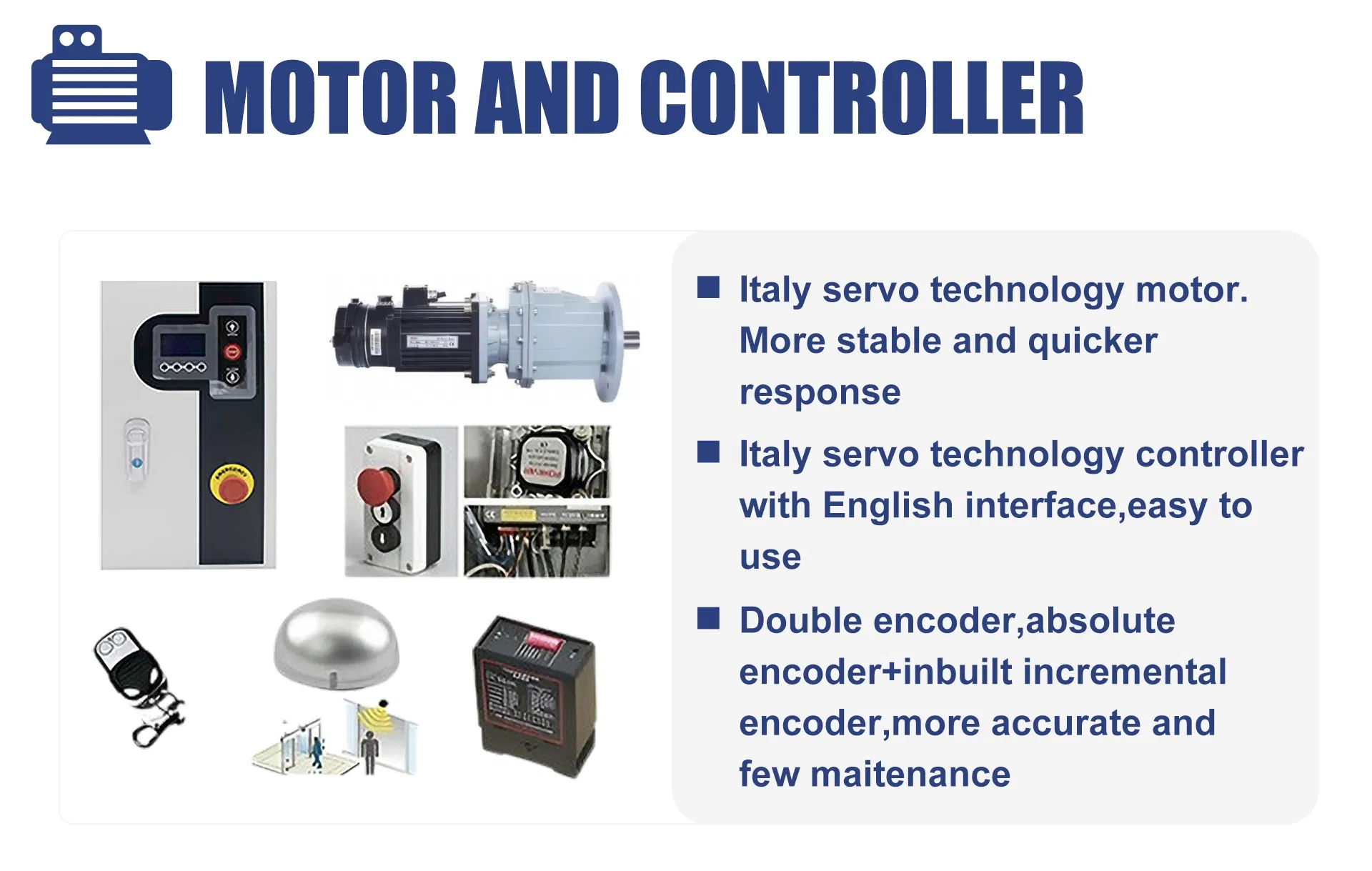

| Control system | Servo type |
| Wind resistance | Beaufort scale 12 (35m/s) |
| Sound insulation | 25DB |
| K Value | 0.4W/m²·K |

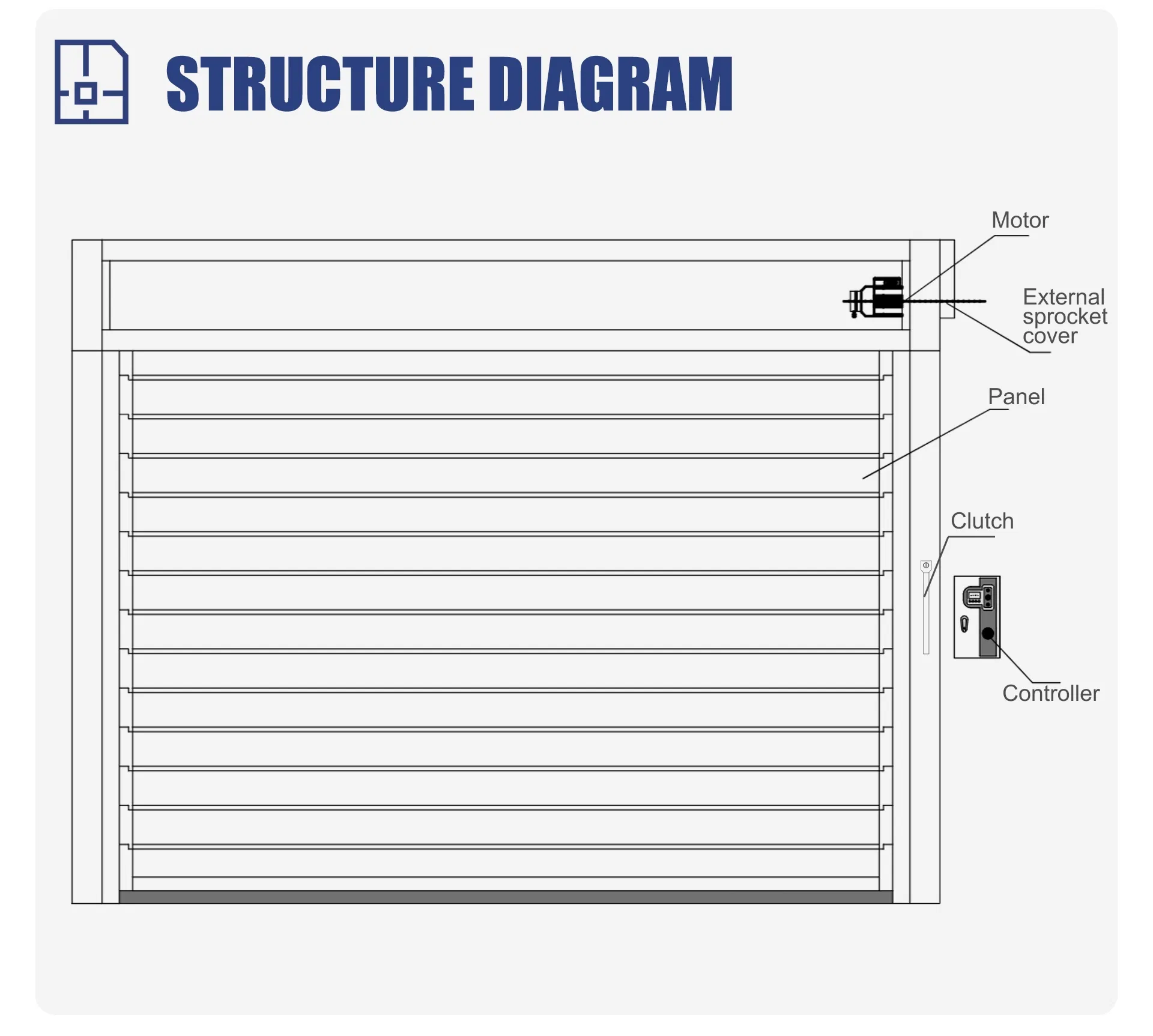

Standard version of the aluminum spiral high speed door structure and accessories. Customization options are available for specific industrial needs.
