| Material | Aluminum Alloy | Thickness | 40mm |
| Opening Style | Rolling | Opening Type | With Remote Control |
| Motor Shaft | 3.9m | Power | 100W |
| Output Torque | 1000N | Max Size | W8000mm * H8000mm |
| Wind Resistance | Beaufort scale 12 (35m/s) | Surface Finishing | Finished |
| Working Temp. | -35 to 65 Celsius Degree | Protection Class | IP55 |
| Package Size | 250.00cm * 50.00cm * 50.00cm | Gross Weight | 200.000kg |
Aluminum Alloy Metal doors are widely used in underground garages, automobile factories, food, chemicals, textiles, electronics, supermarkets, refrigeration, logistics, warehousing, and other places. They are designed to meet the requirements of high-performance logistics and clean environments.
| Opening Speed: 0.6m-2.0m/s (Adjustable) | Closing Speed: 0.5m-1.5m/s (Adjustable) |

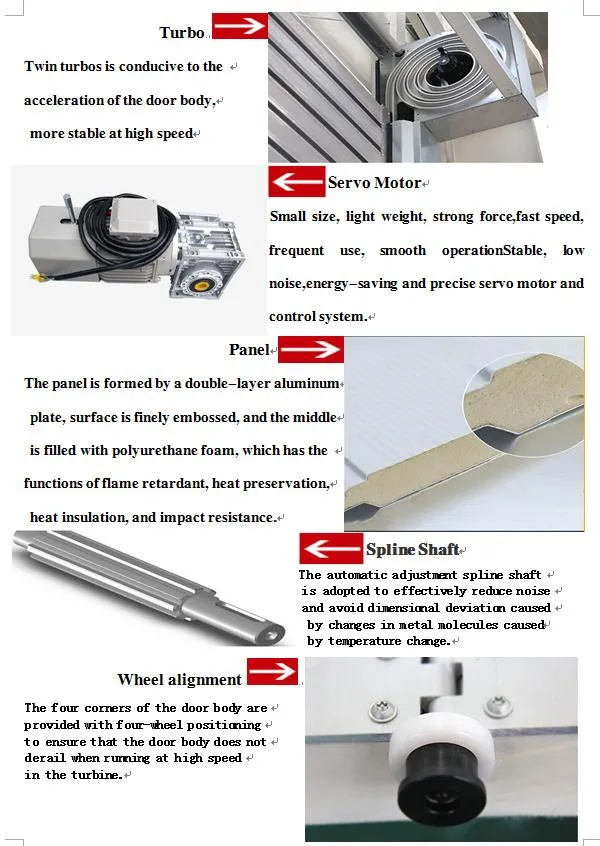

| Control System: Servo type | Driving System: Servo motor |
| Sound Insulation: R=25dB | Power Supply: 220V/380V 50/60HZ |
Greatly reduces forklift or human waiting time at busy entrances, improving factory production efficiency.
Complies with GMP standards, easy to clean, and prevents dust or insects from entering clean room environments.
Super seal design keeps indoor energy or cold air contained, saving energy costs in temperature-controlled areas.
Compatible with radar sensors, vehicle loop detectors, and remote controls for a seamless automated workflow.
Features bottom soft wireless safety edges, photo sensors, and warning lamps as standard configurations.
Available in various structures like 304 stainless steel or aluminum alloy frames with different color options.
