High-end luxury aluminum Sectional Garage Door
A high-end luxury and novel garage door solution, featuring anti-pinch electric operation and reliable quality capable of resisting level 12 typhoons.

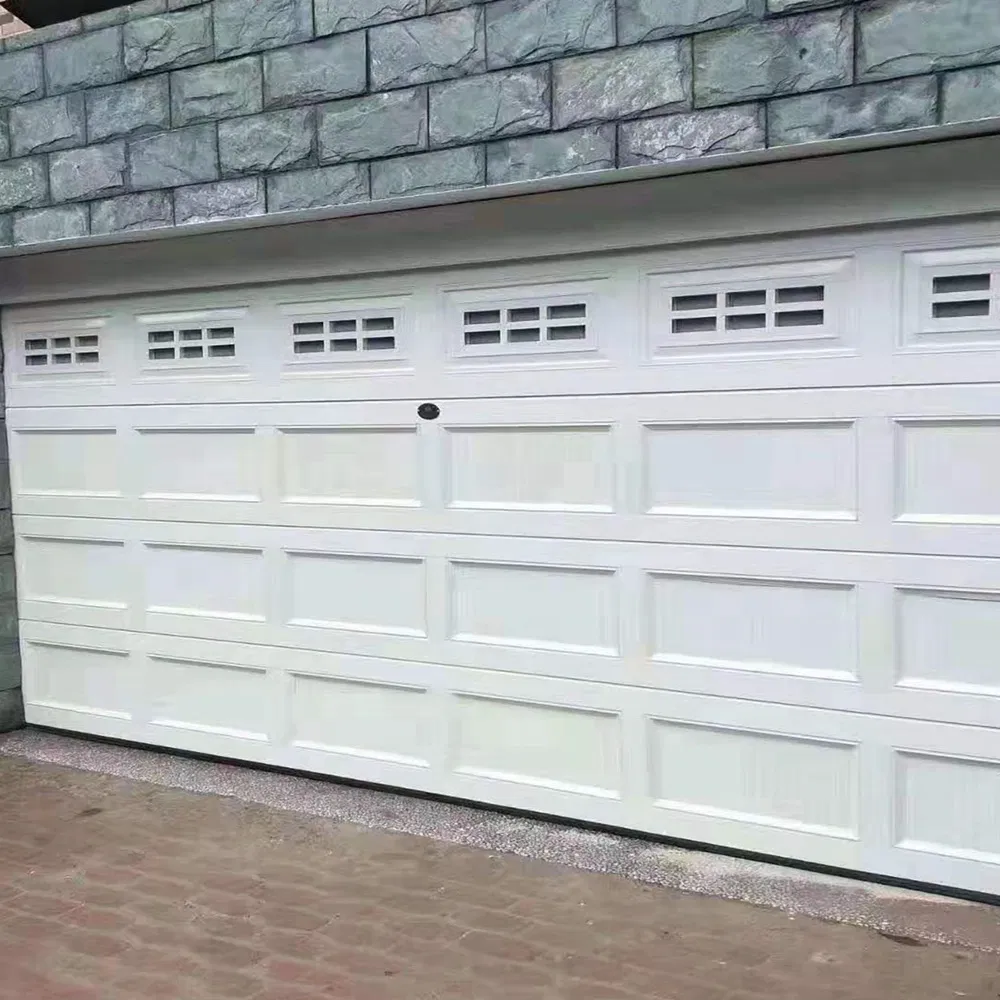

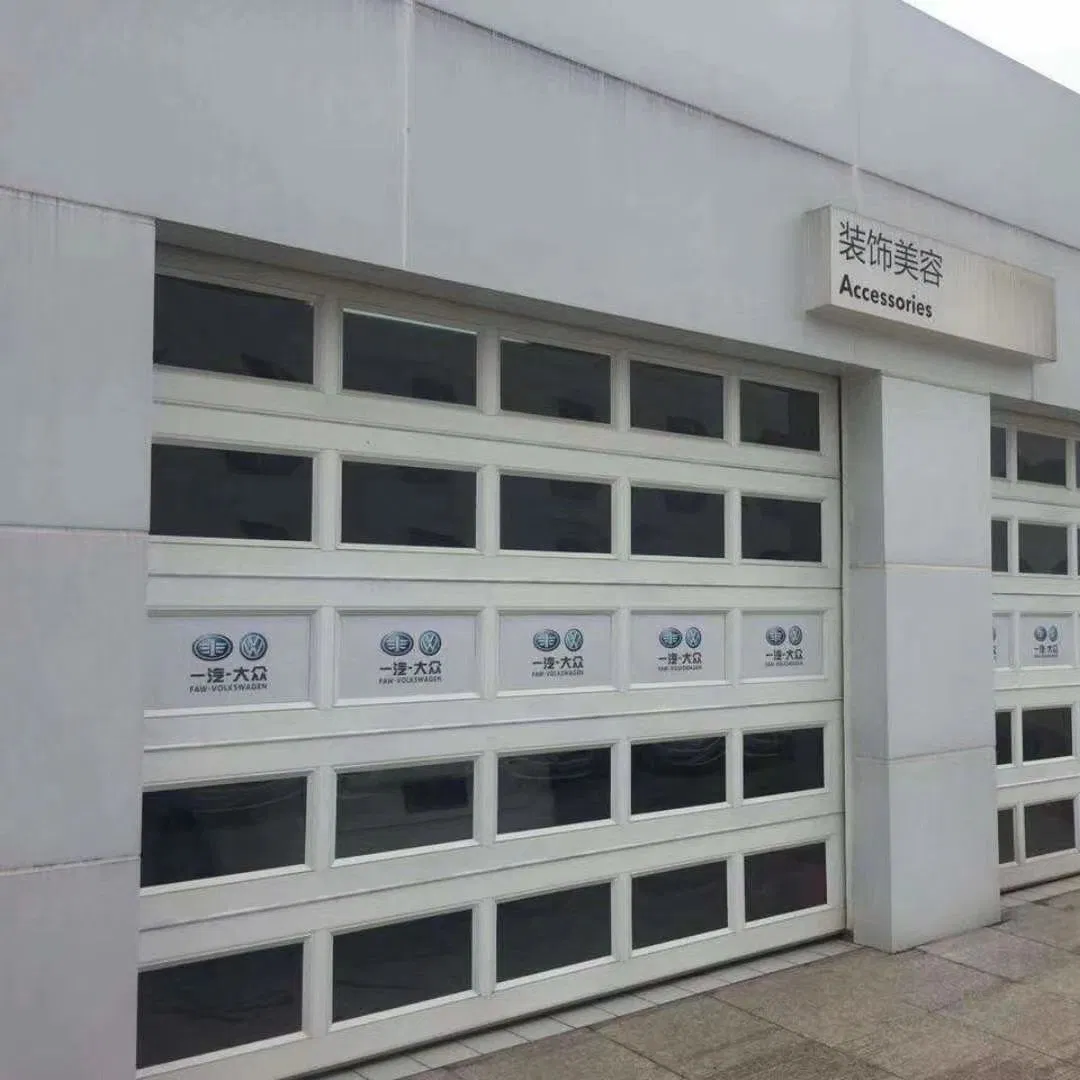

The aluminum alloy garage door is constructed from double-layer materials and handcrafted to ensure each component is tightly integrated. The thickened screw fixings provide durability and prevent loosening over time. Aesthetic options include lighting windows and ventilation windows equipped with diamond mesh.
Main Advantages
- Surface Technology: Special aluminum alloy treatment providing sun protection, moisture resistance, rust prevention, anti-corrosion, and anti-cracking.
- Intelligent Control: Supports remote control, mobile phone operation, and features an integrated resistance rebound safety function.
- Wind Resistance: Standard wind pressure resistance of 1200N/m2.
Technical Features

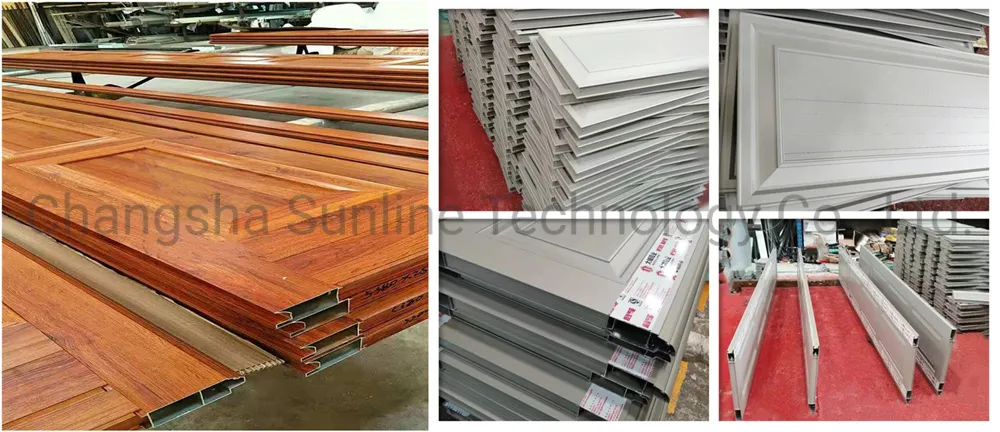

- Door Panel: Inner and outer plates made of 1.2mm aluminum alloy; total thickness 40mm.

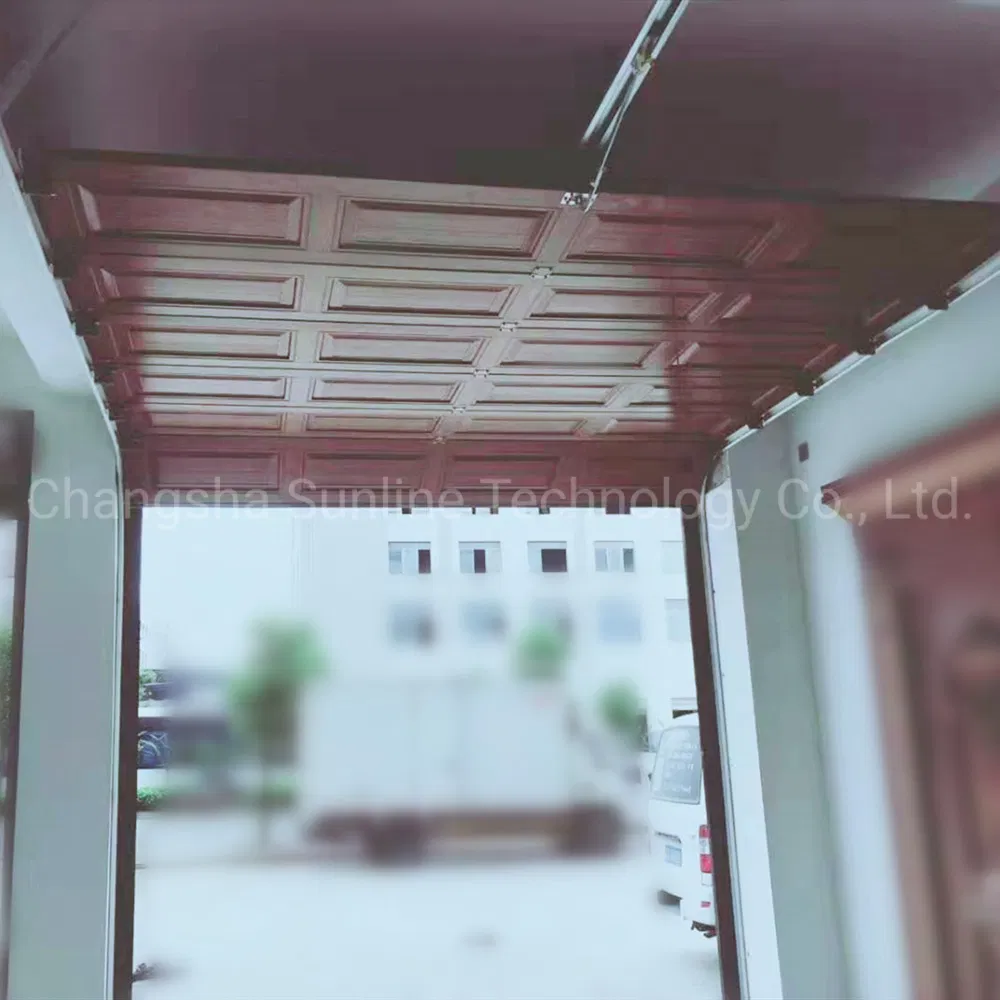

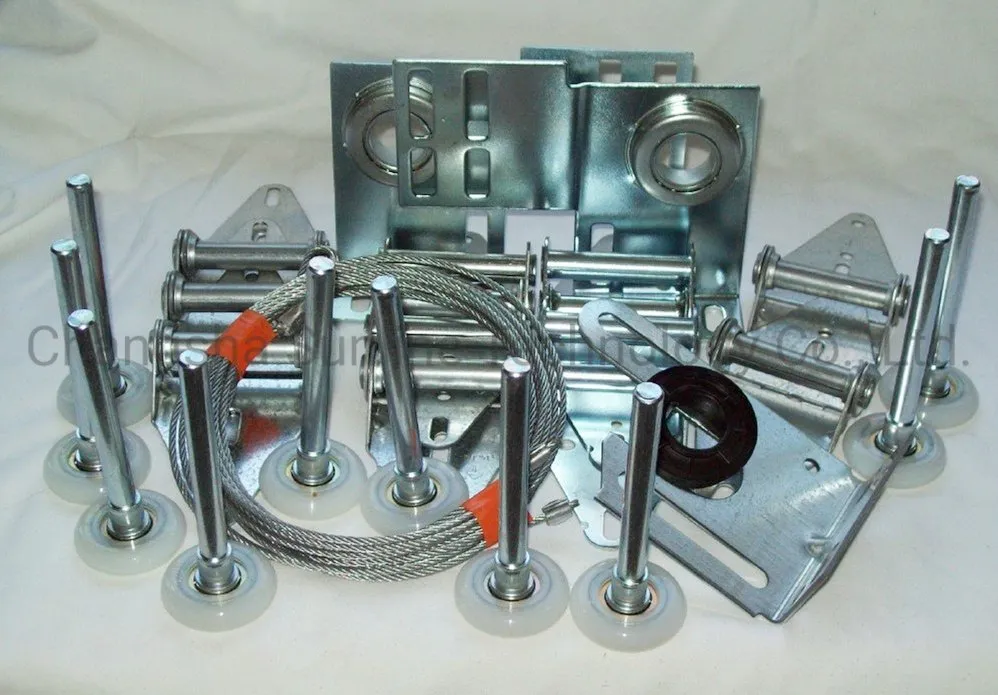

- Track System: Processed from galvanized steel sheet with 1.5mm thickness.
- Rollers: Wear-resistant nylon or steel with rolling bearings for smooth, silent operation (15mm shaft).
- Hinges: 2.0mm thick middle hinges; arc-shaped end hinges to eliminate gaps and prevent pinching.
- Safety Wire Rope: High-strength flexible galvanized steel wire (4.2mm to 6.0mm) with a safety factor 5-8 times the door weight.
- Opener: Intelligent remote control with built-in resistance rebound function for enhanced security.
Frequently Asked Questions
1. What colors are available for the aluminum garage door?

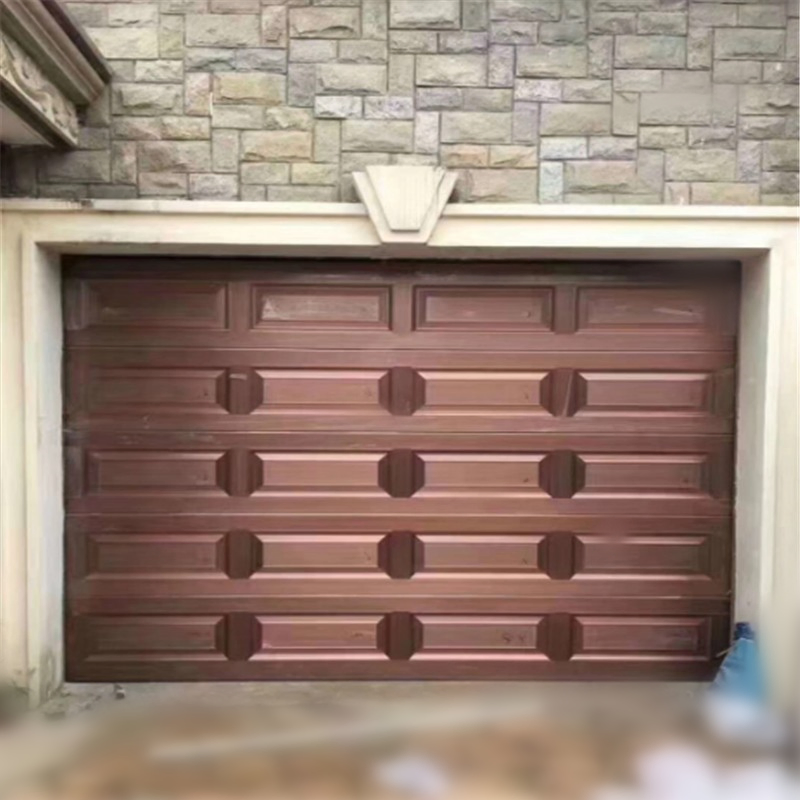

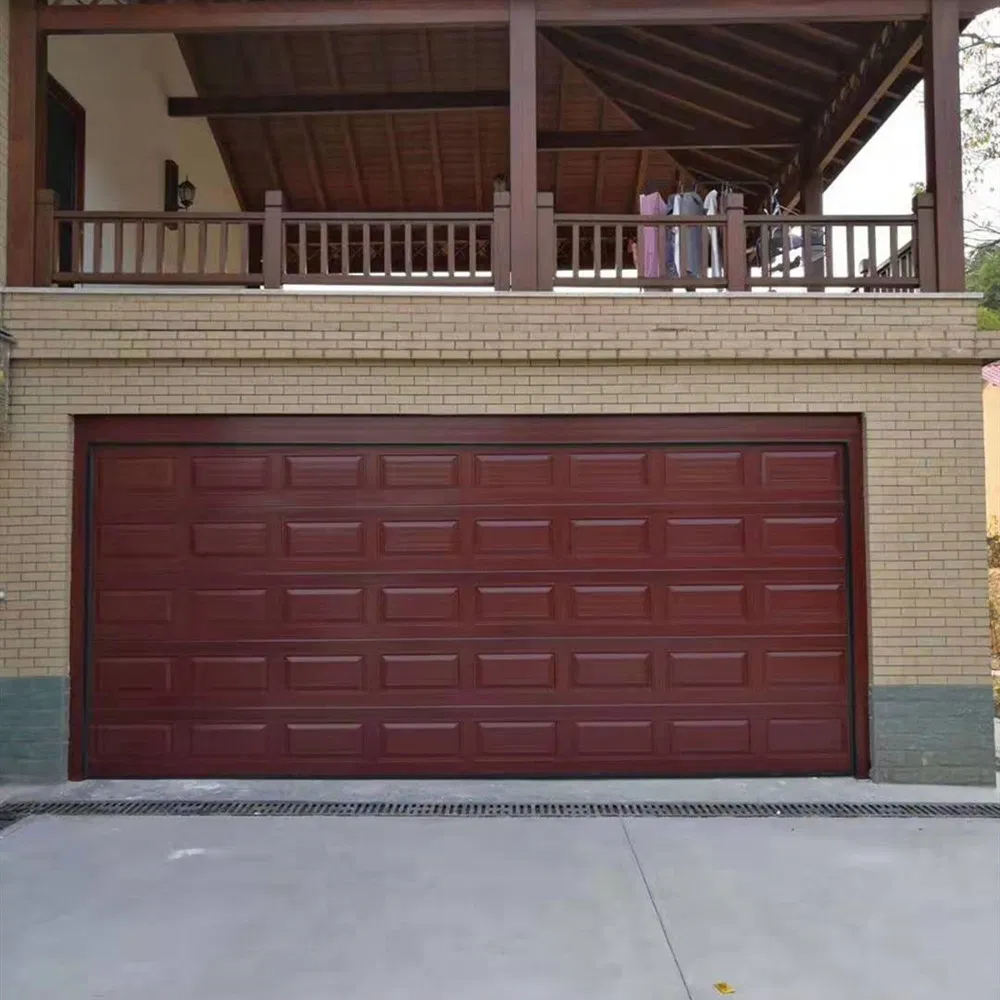

We offer a wide range of finishes including spray white, gold oak, red walnut, imitation copper, champagne, and gold nanmu. Custom colors are also available upon request.
2. How strong is the wind resistance of this door?
The door is designed for high durability with a standard wind pressure resistance of 1200N/m2, which is capable of withstanding up to a level 12 typhoon.
3. What safety features are included?
The system includes an anti-pinch door panel design and a resistance rebound function, which ensures the door stops and reverses if it encounters an obstacle.
4. Can I control the door using my smartphone?
Yes, the intelligent motor supports multiple control methods, including traditional remote control and remote mobile phone control.
5. What is the thickness of the door panels?
The door panels have a total thickness of 40mm, featuring inner and outer plates made of 1.2mm high-grade aluminum alloy.
6. Is the door operation noisy?
No, the door uses high-quality rollers made of wear-resistant nylon with internal rolling bearings to ensure smooth and silent operation.
