| Model NO. | NTHSD |
| Material | Steel |
| Type | Rolling |
| Open Style | Rolling |
| Opening Type | Power Driven |
| Special Function | Wind and Insect Resistant |
| Color | Customized |
| Certification | ISO9001, CE |
| Position | Industrial |
| Surface Finishing | Finished |
| Application | Electrical, Mechanical, Food, Pharmacy, Chemical |
| Frame Material | Steel, Stainless Steel |
| PVC Material | High Strength Polyethylene |
| Opening/Closing Speed | 0.8-1.5m/Sec |
| Max. Size | 5500*6500mm |
| Max Wind Resistance | Level 6 |

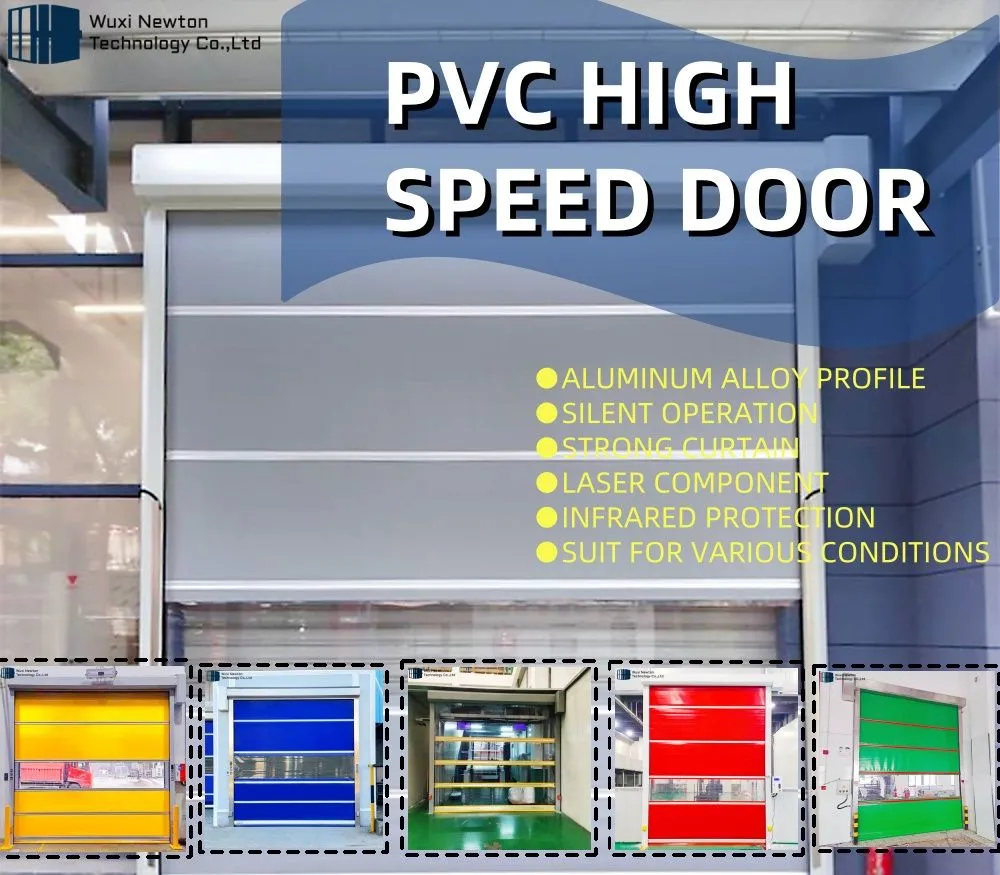

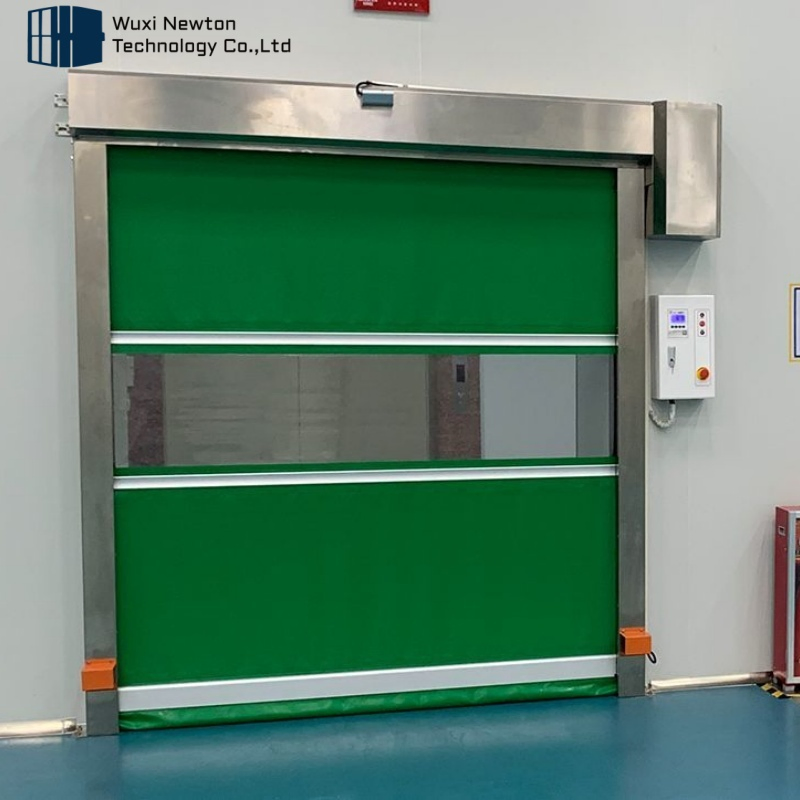

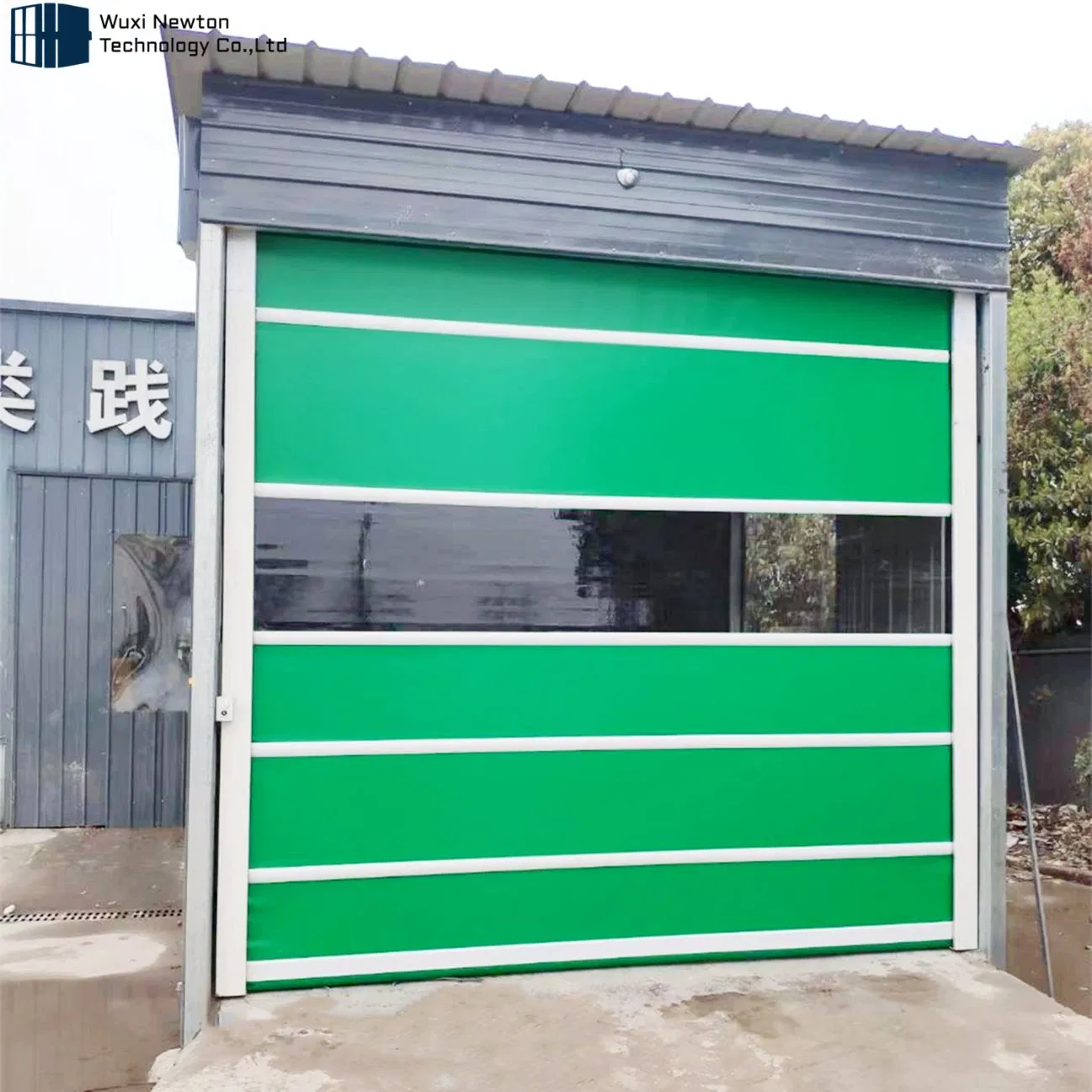

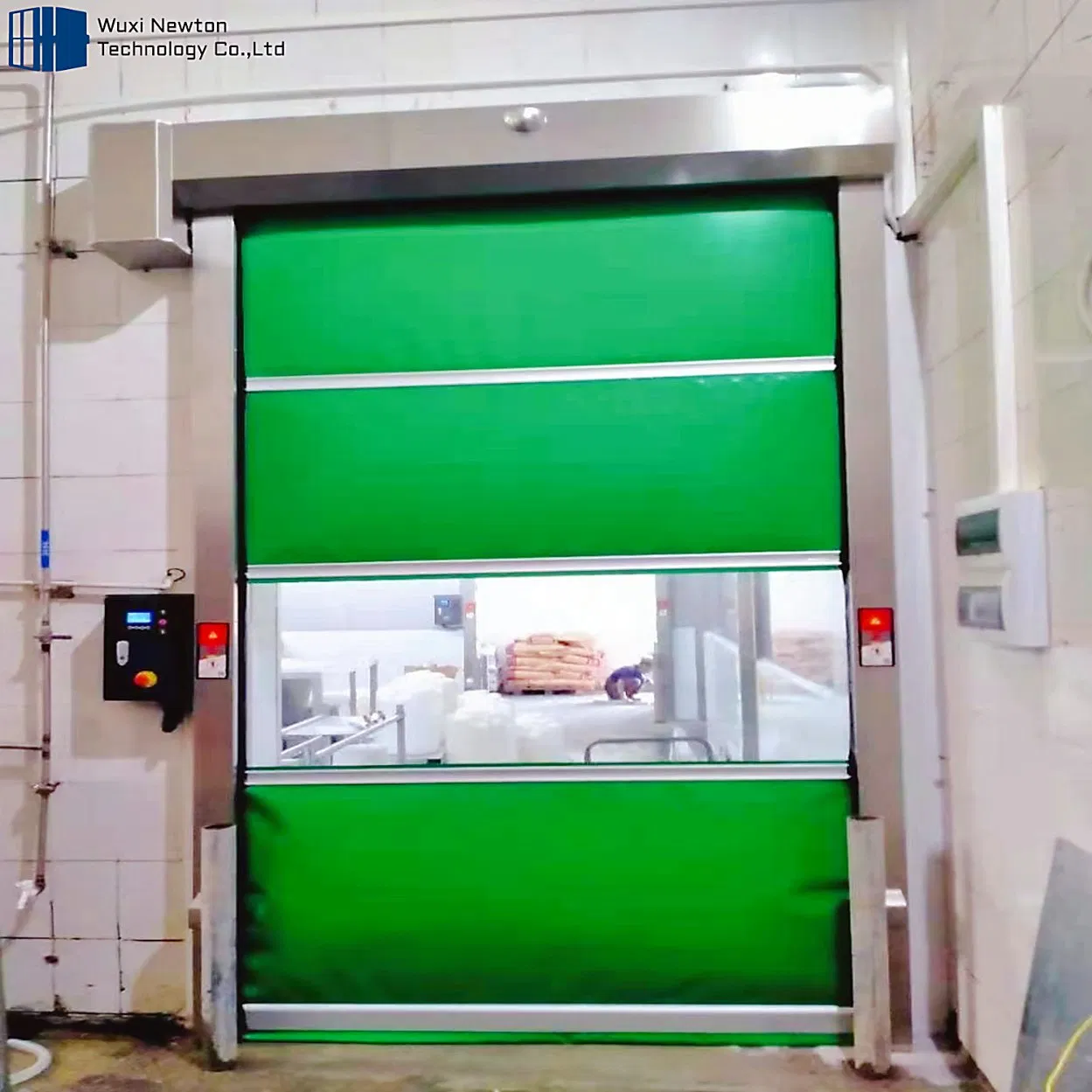

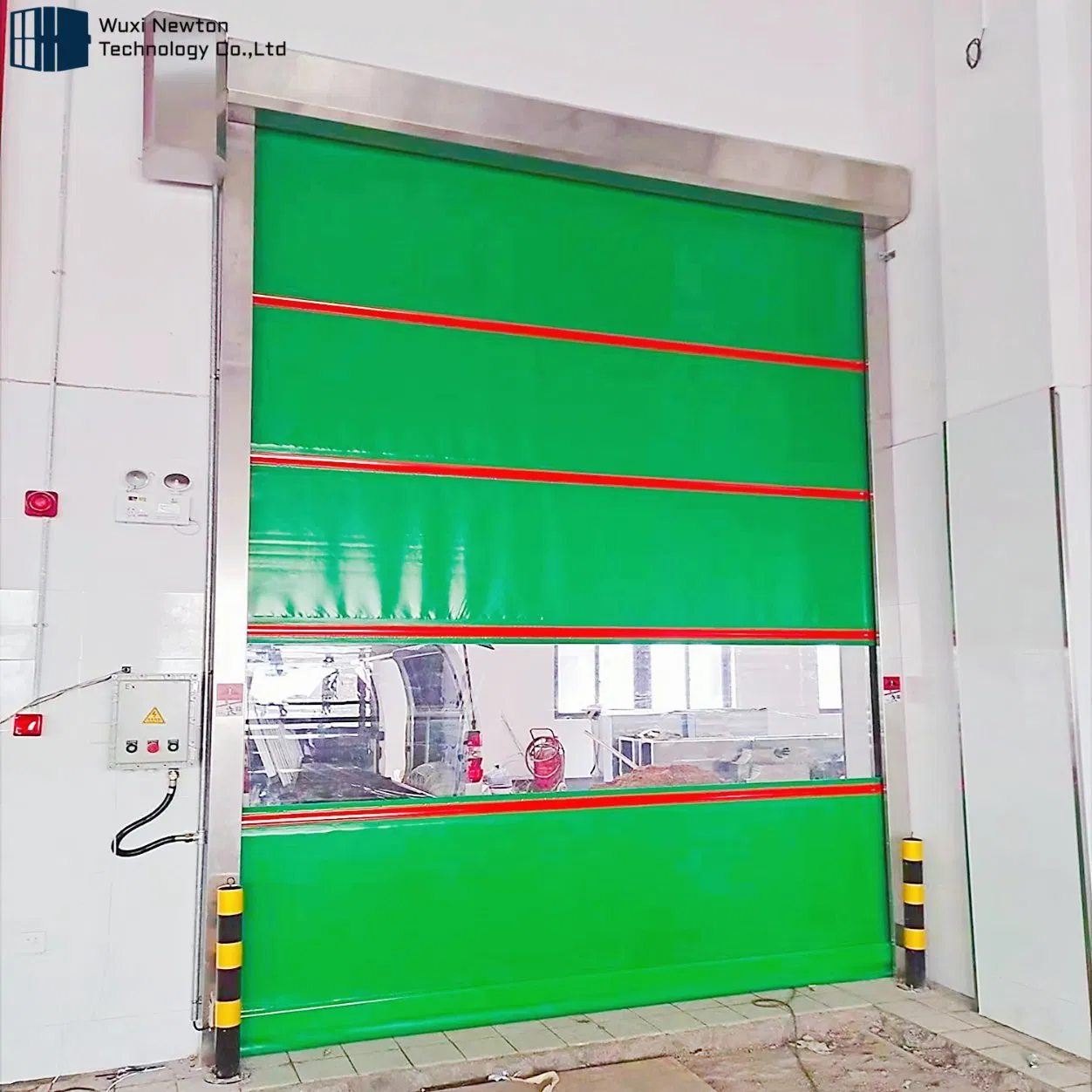

The PVC high speed roller shutters have a high-speed partition function. The cold splicing process makes the curtain more smooth and beautiful. Segmented splicing reduces maintenance costs, ensuring reliability, practicality, and easy operation. This door is the most economical selection for facility entrances to prevent environmental contamination, widely used in food processing plants, cleanrooms, and laboratories.
| Product Name | PVC High Speed door |
| Standard Size | Maximum 5500 x 6500mm |
| Service Cycle | 800,000 times per year / 500 times per day |
| Control Box | Digital tube, frequency conversion control system |
| Power Supply | 220V |
| Insulation Protection | IP54 waterproof and dustproof |

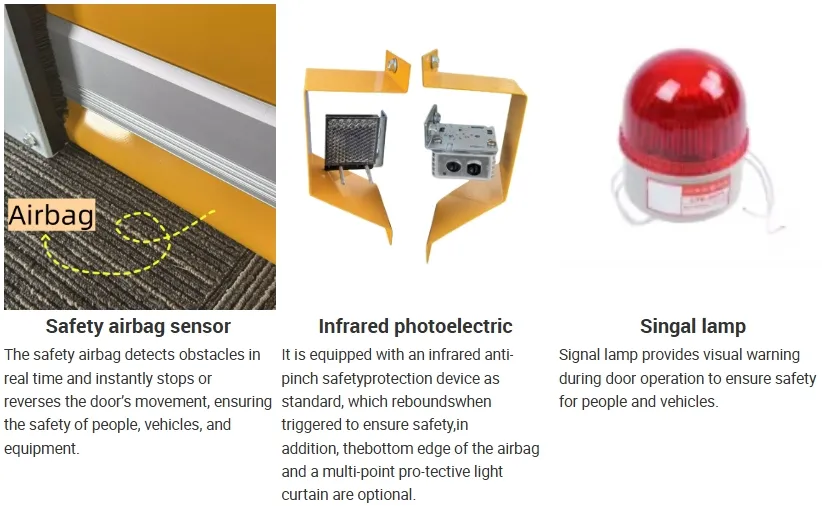

| Safety Configuration | Infrared photoelectric, pressure airbag, warning light |
High quality aluminum alloy material, anti-wear and corrosion resistance, providing strong practicability and structural firmness.

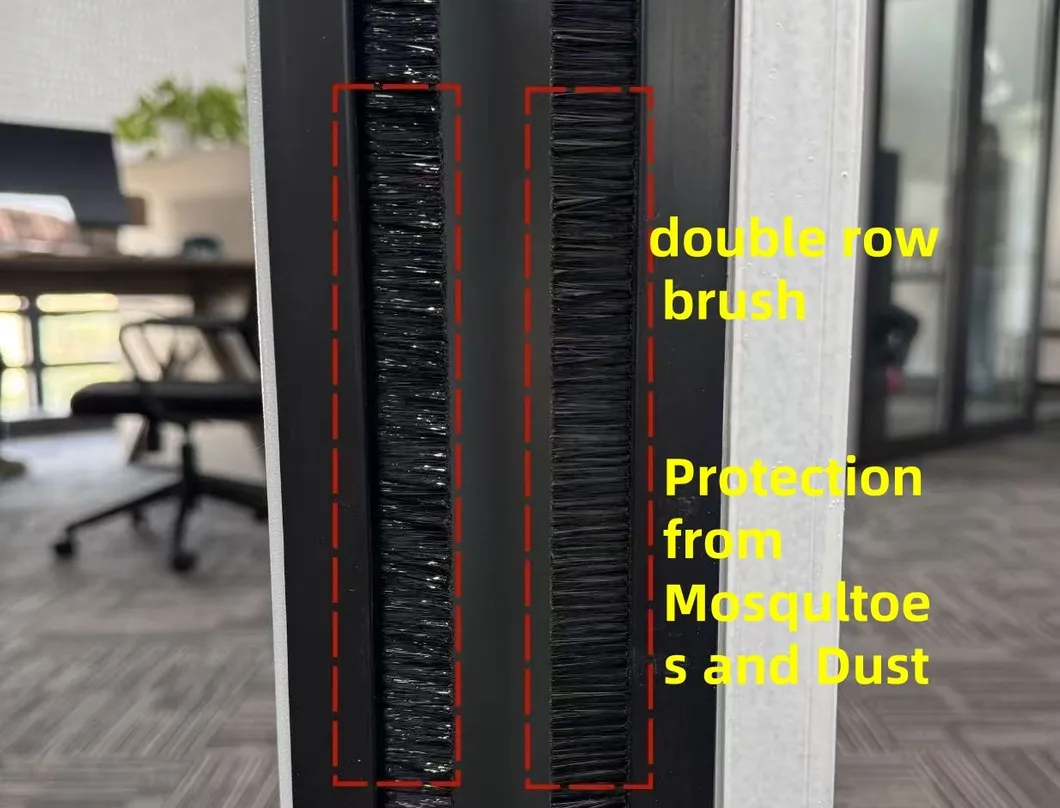

Equipped with double-row card-type sealing brushes. It forms a four-sided air-tight structure with the U-shaped bottom edge and integrated door head sealing box for better partition effects.

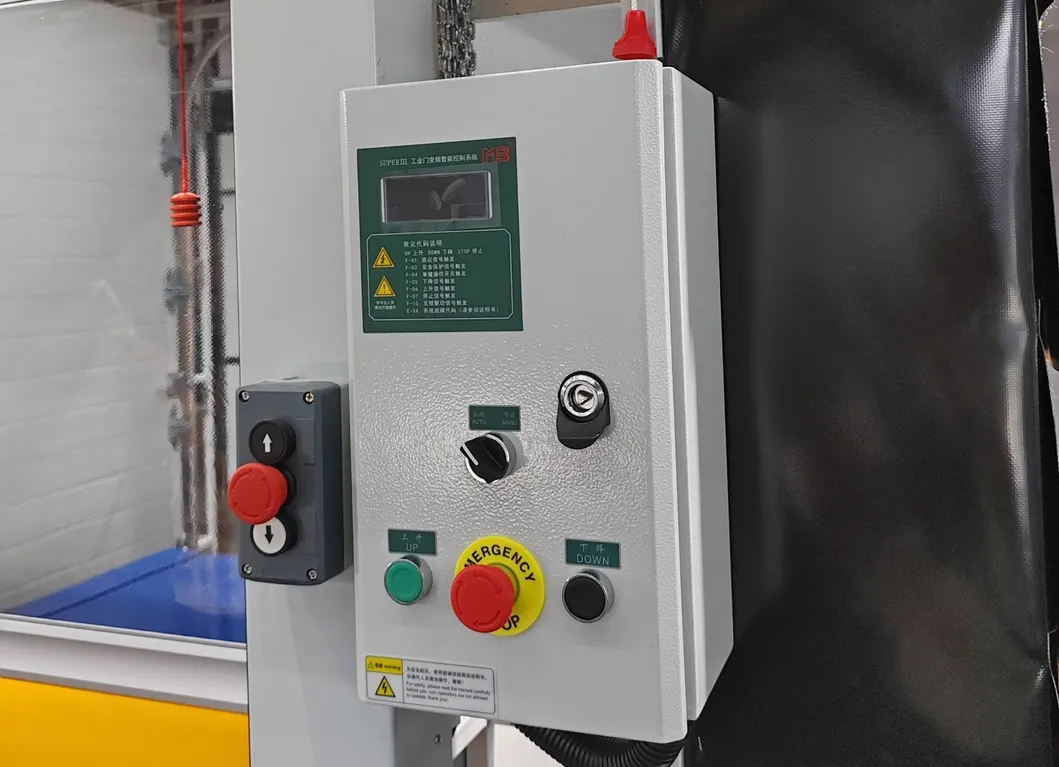

Equipped with a brand control system and servo high-precision drive unit to ensure stable, fast, and efficient operation of industrial rolling shutter products.

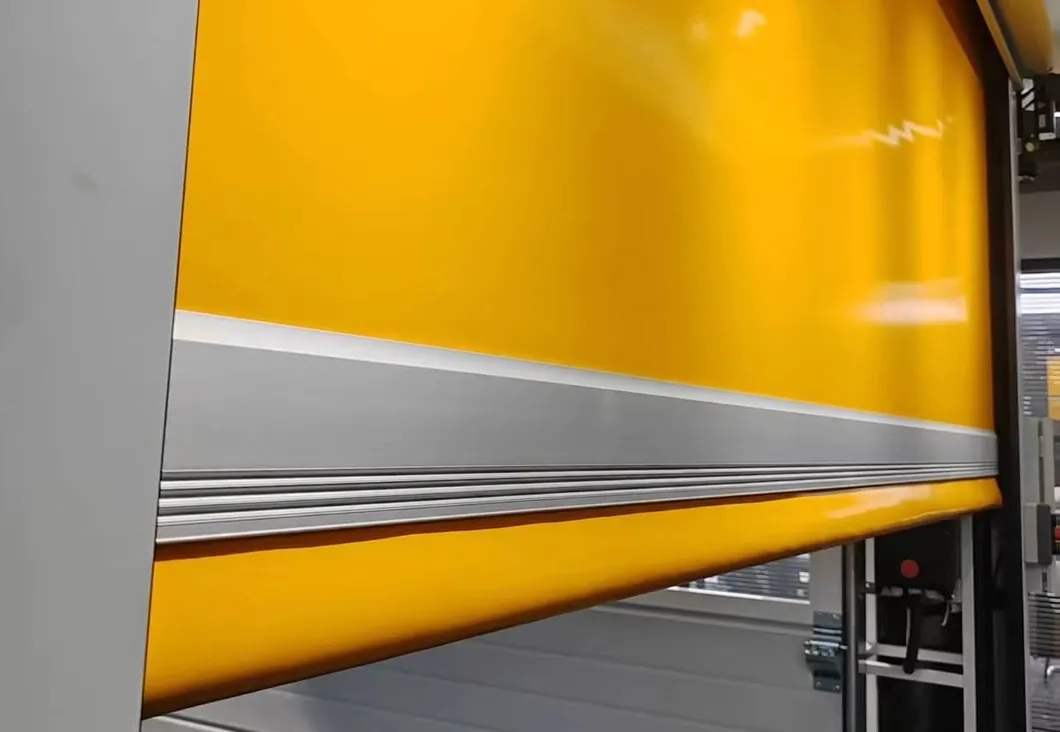

High-strength PVC base cloth with surface self-cleaning function. It is wear-resistant, tear-resistant, and impact-resistant for a longer service life.

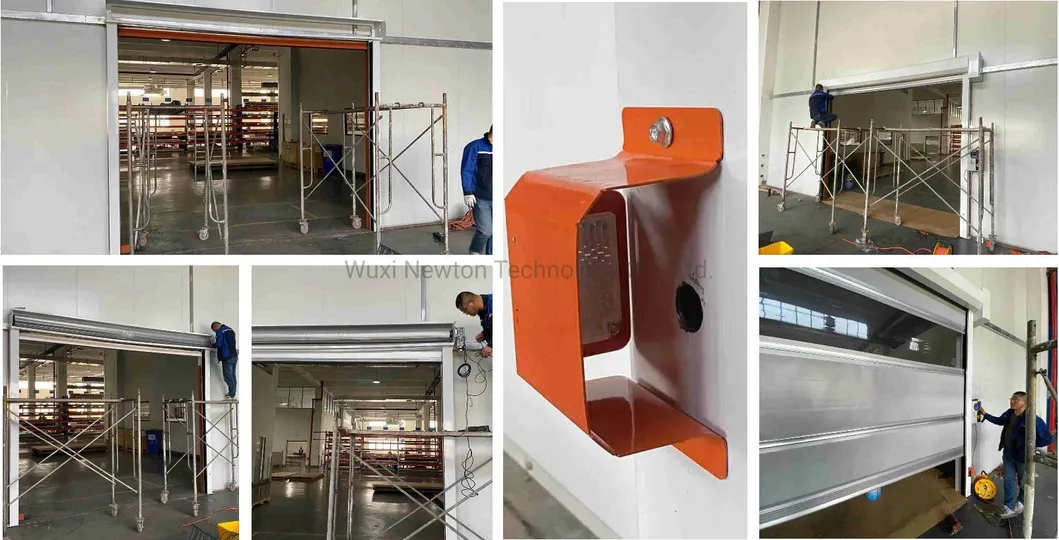

| Step 1 | Door steel frame installation |
| Step 2 | Door curtain installation |
| Step 3 | Mount the motor |
| Step 4 | Mount the door cover |
| Step 5 | Safety device installation (Infrared) |
| Step 6 | Speed and stroke debugging |
