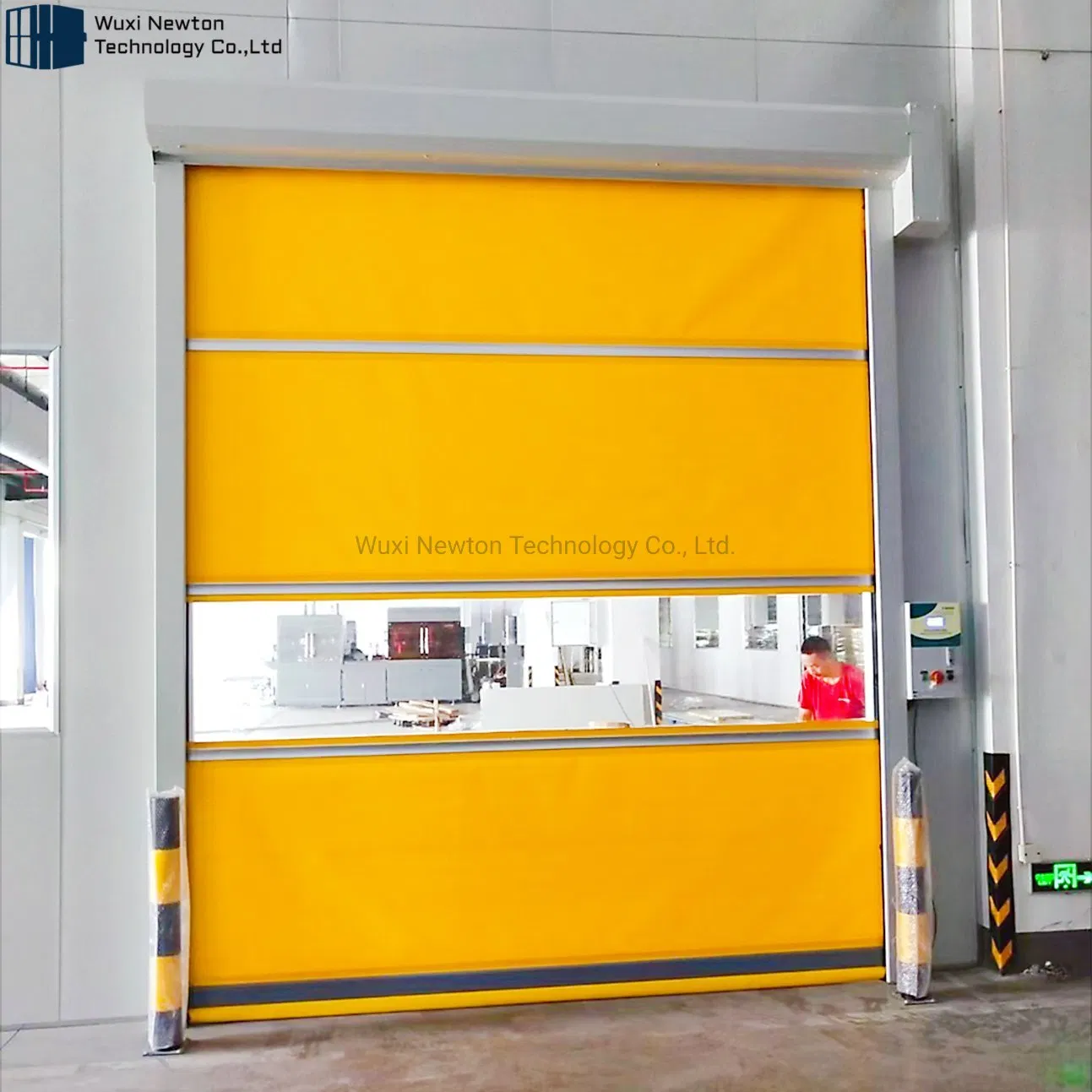

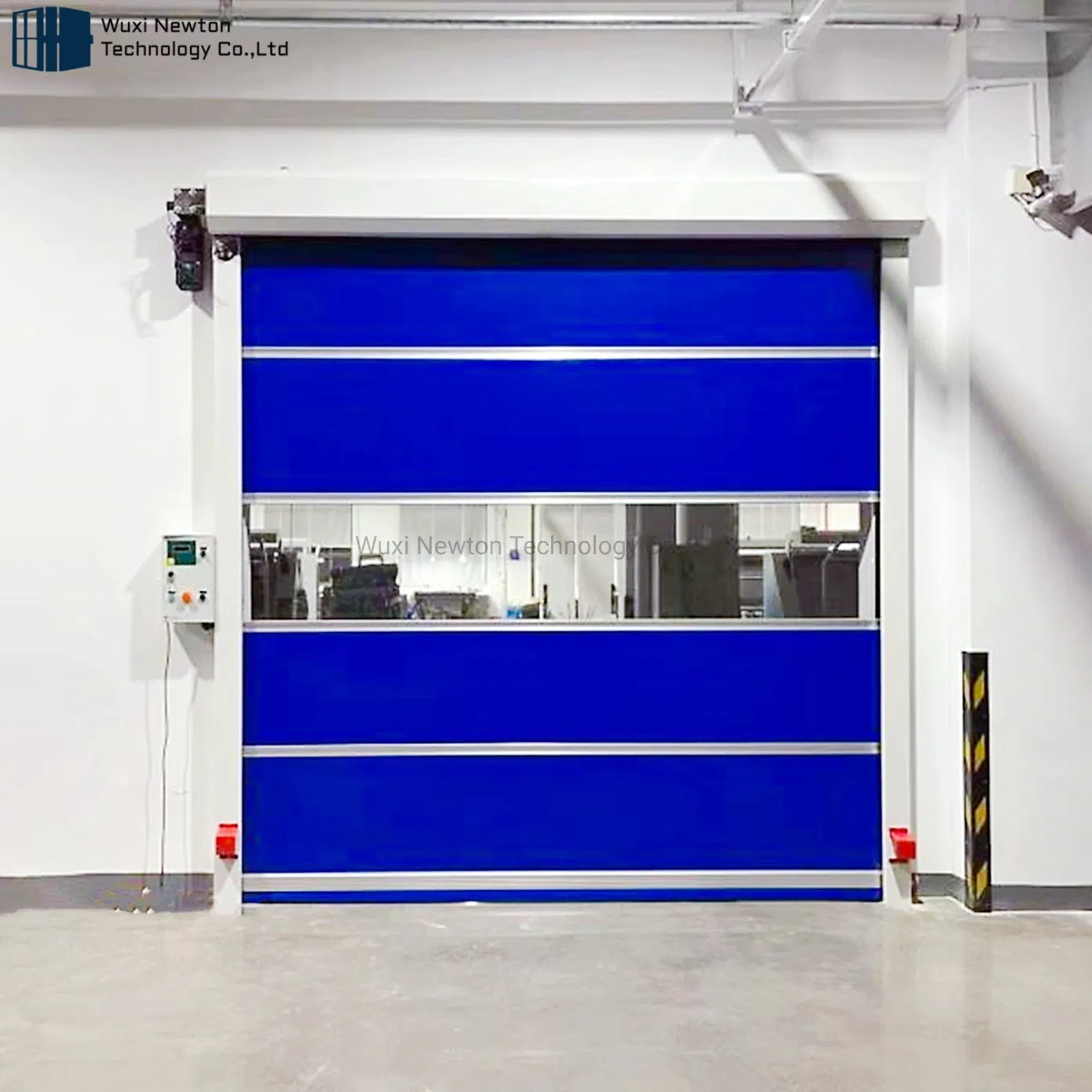

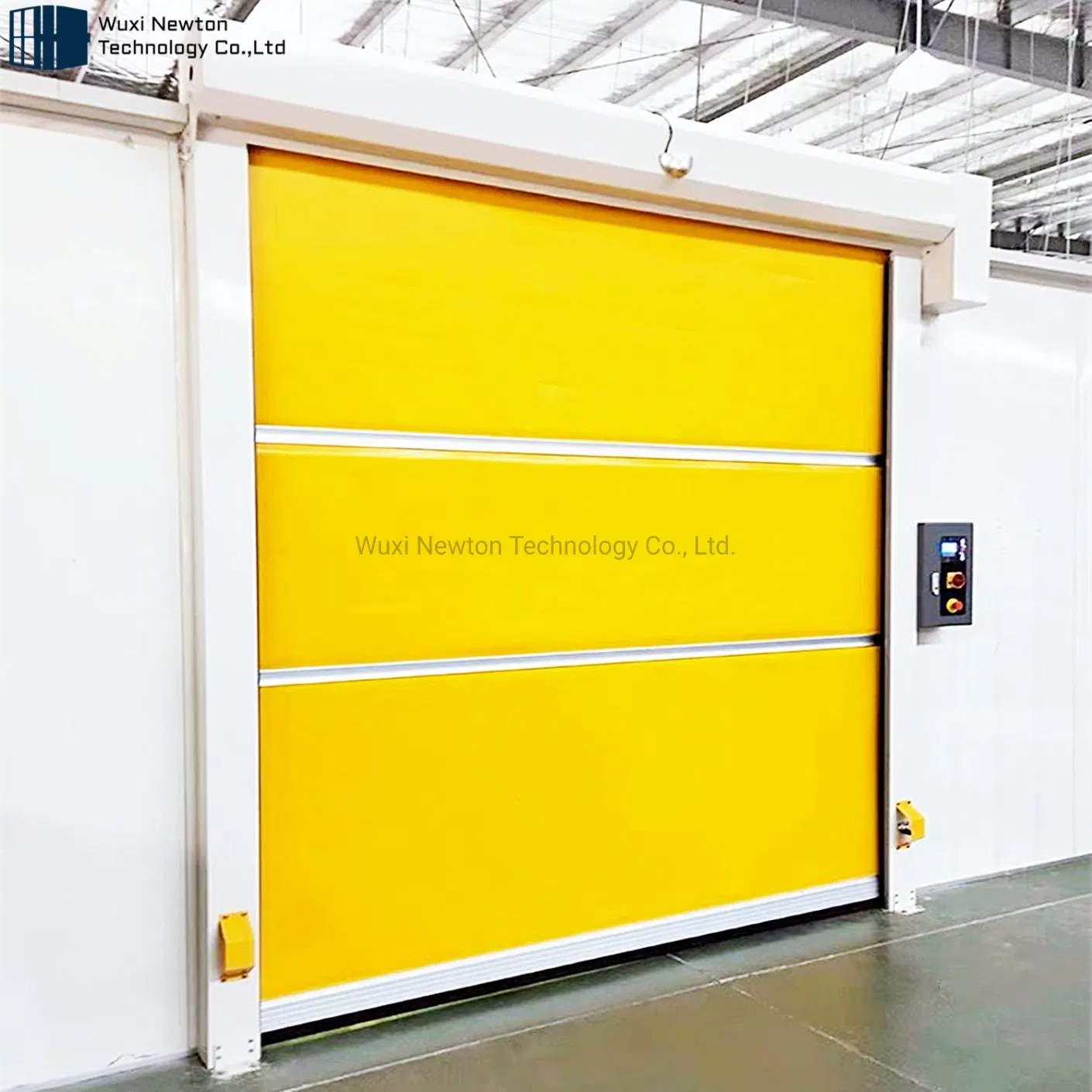

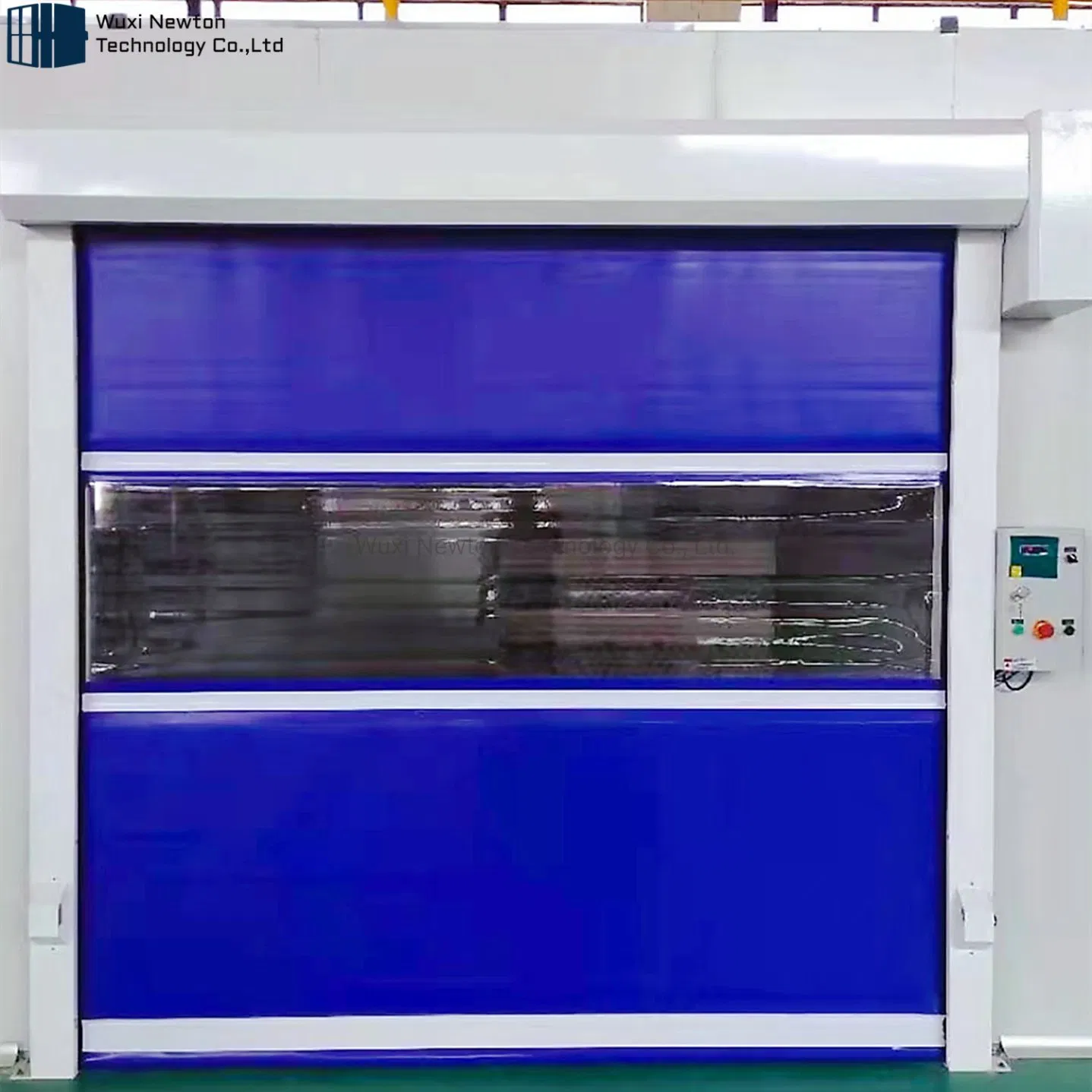

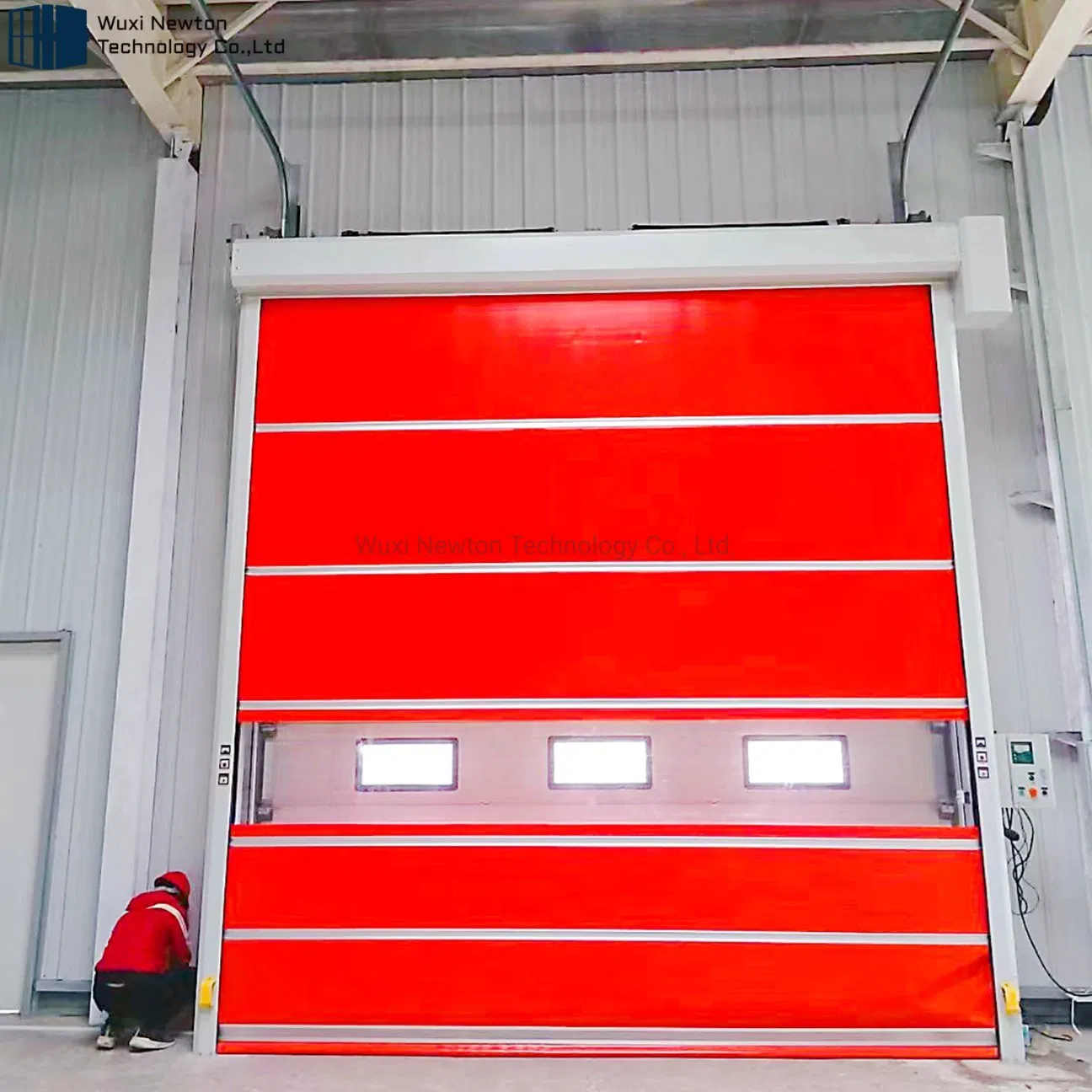

Fast Clean Room Industrial High Speed Roll up Sheet Shutter Door

Customization: Available
After-sales Service: Available
Warranty: 12 Months

Product Description

Basic Specifications
Model NO.
NTHD
Material
Steel
Type
Rolling
Special Function
Wind and Insect Resistant
Certification
ISO9001
Opening Speed
0.8-1.5m/Sec
Max. Size
5500*6500mm
Power Supply
220V
Wind Resistance
Level 6
Application
Electrical, Mechanical, Food, Pharmacy, Chemical
Product Overview

The PVC high speed roller shutters feature a high-speed partition function. The cold splicing process ensures the curtain is smooth and aesthetically pleasing. Segmented splicing significantly reduces maintenance costs while offering reliability, practicality, and easy operation. This door is the most economical selection for facility entrances, widely utilized in electrical, mechanical, food, pharmacy, chemical, textile, printing, supermarkets, and logistics warehousing.

High Speed Shutter Door

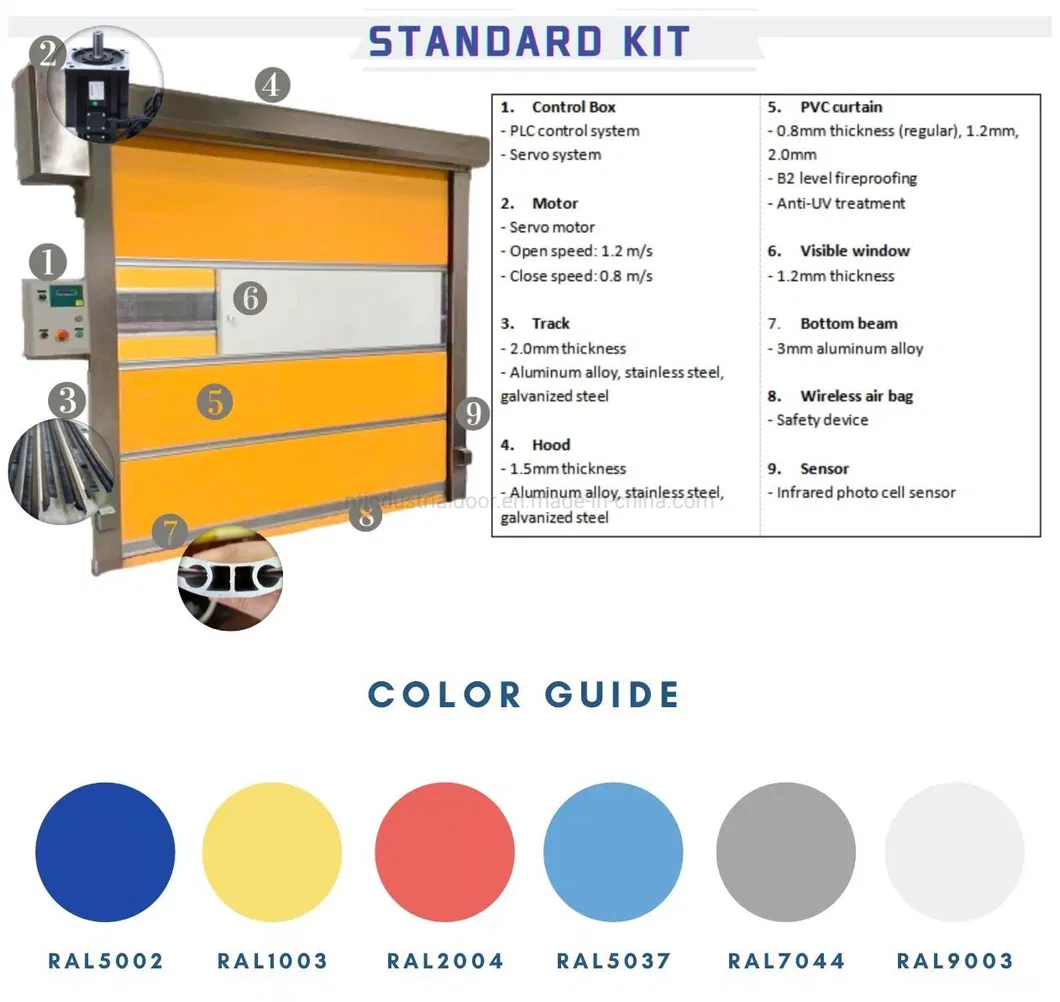

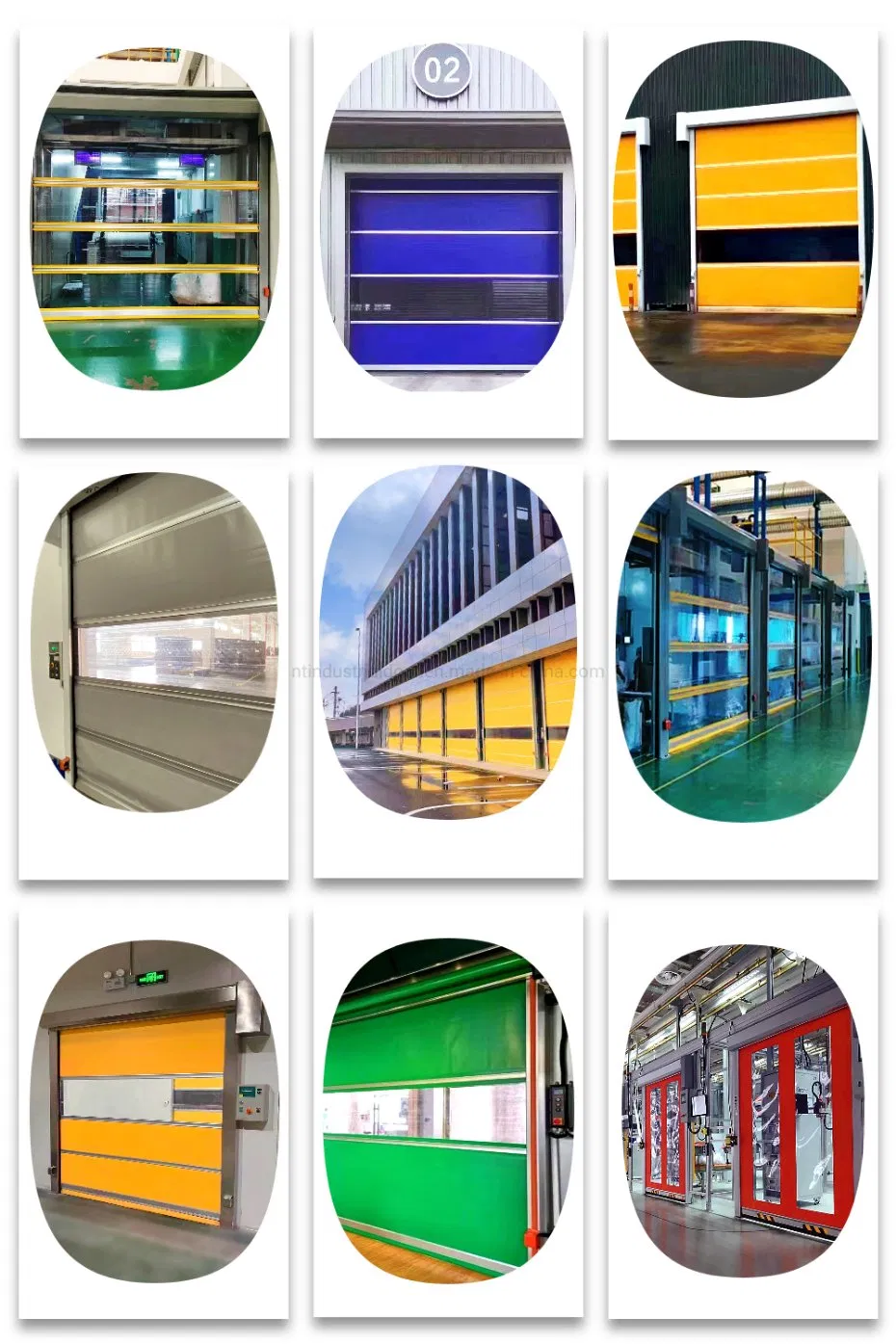

Industrial Door View 1 Industrial Door View 2
Technical Parameters & Testing

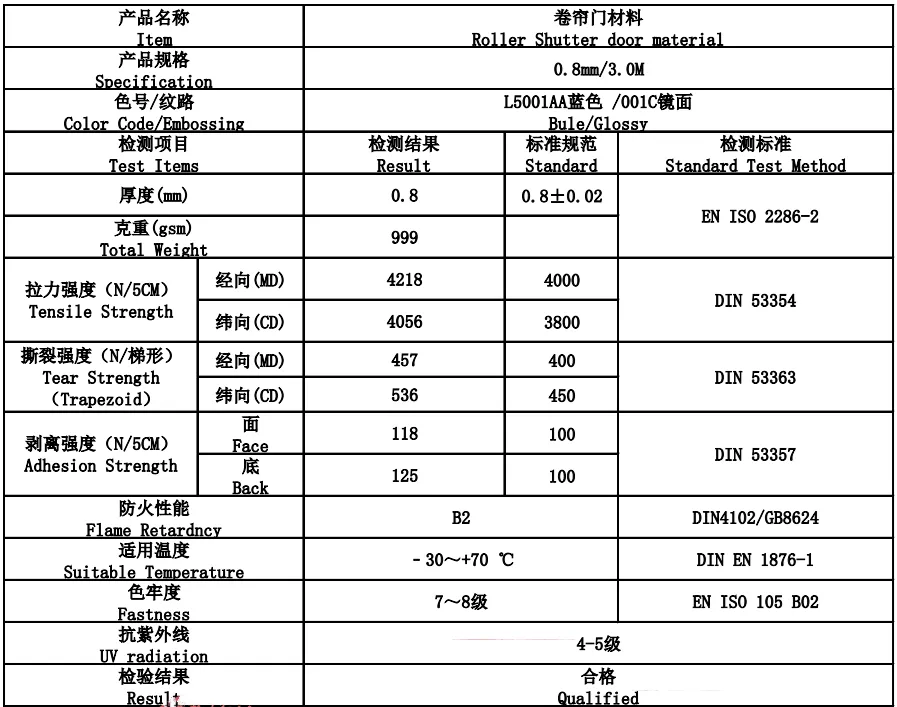

Testing Report
  • Control Box: Digital tube, frequency conversion control system
  • Limit Switch: Multi-turn absolute encoder
  • Safety Standard: According to EN ISO 12100
  • Service Life: Tested cycle reaches 800,000 times/year, 500 times/day
  • Sealing: U-shaped airbag cloth pocket and double-row brush seal to prevent dust and insects
  • Protection: IP54 waterproof and dustproof for harsh environments
Product Dimensions

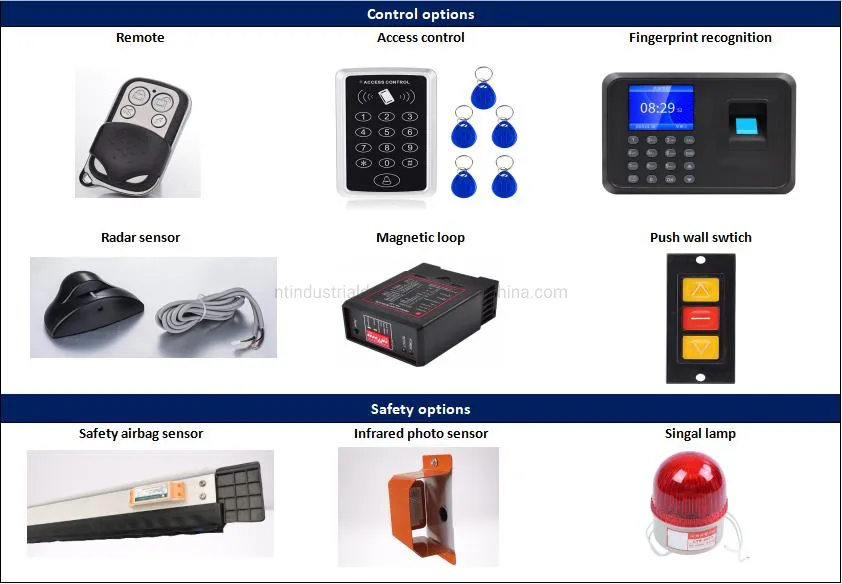

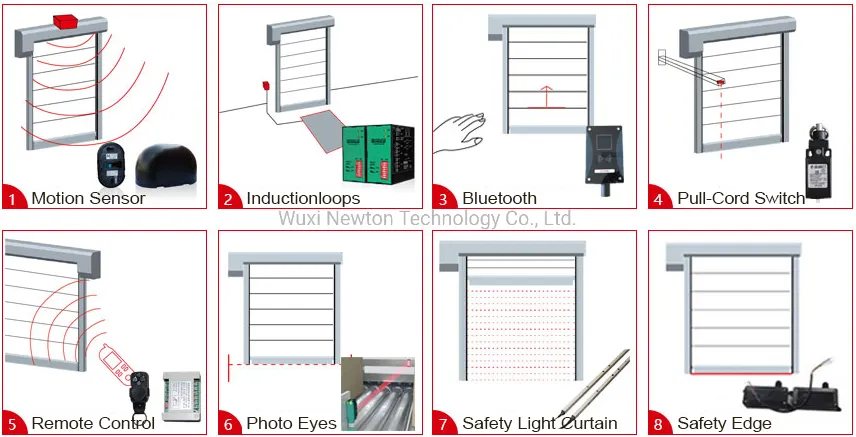

Versatile Opening Methods
  • Motion sensor
  • Induction loops
  • Bluetooth control
  • Pull-cord switch
  • Remote control
  • Photo eyes & Light curtains
Opening Mechanisms

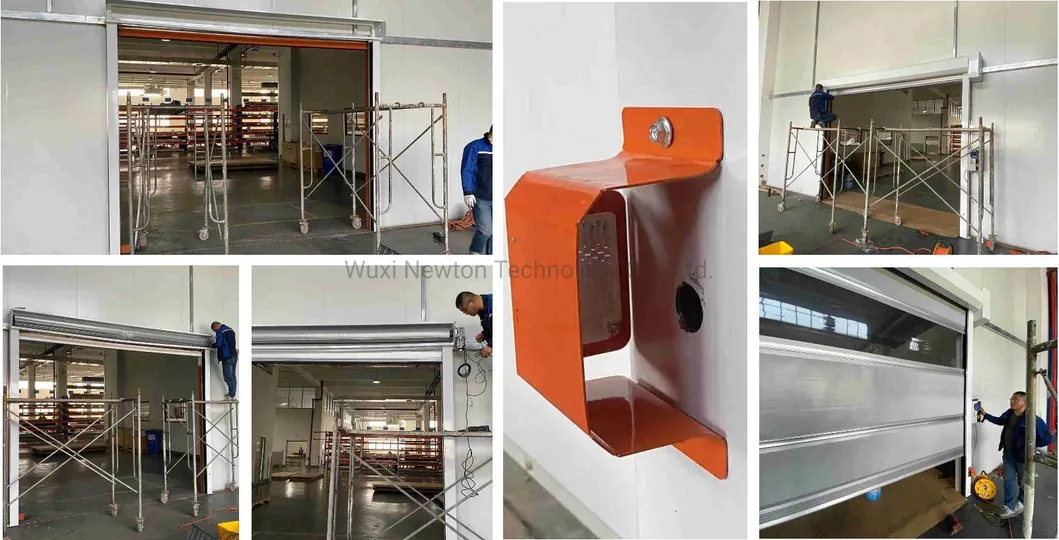

Installation Steps
01 Door steel frame installation
02 Door curtain installation
03 Mount the motor
04 Mount the door cover
05 Infrared detection or other safety device installation
06 Speed and stroke debug
Installation Diagram
Service & Packaging

Qualified plywood is used for LCL shipments, while qualified cartons or pallets are used for FCL. Custom packaging is available upon request. Our team provides comprehensive support from design and manufacture to installation and maintenance.

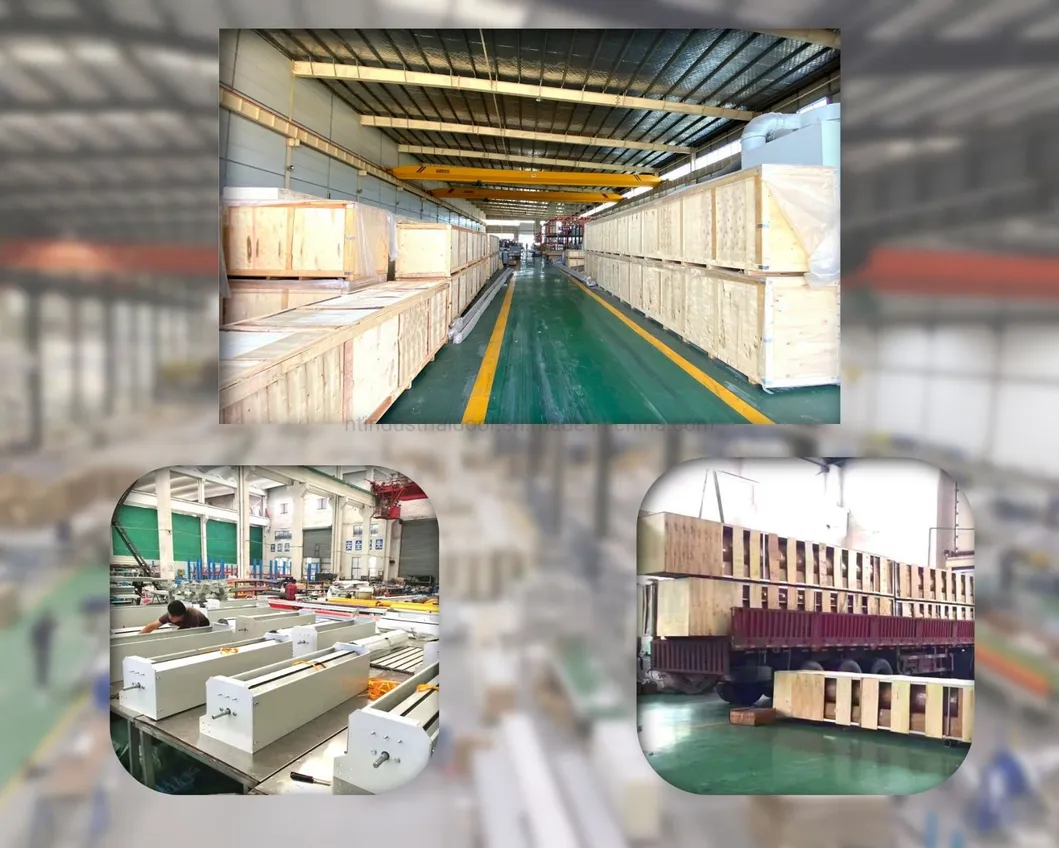

Packaging Process Shipping Logistics
Service Scope
About The Manufacturer

As a leading manufacturer of automatic doors in China, the company specializes in automatic folding doors, industrial sectional doors, high-speed roll-up doors, and garage doors. With a history dating back to 2000, the company is recognized worldwide for proprietary design and manufacturing expertise, providing optimal solutions and strong support to global clients.

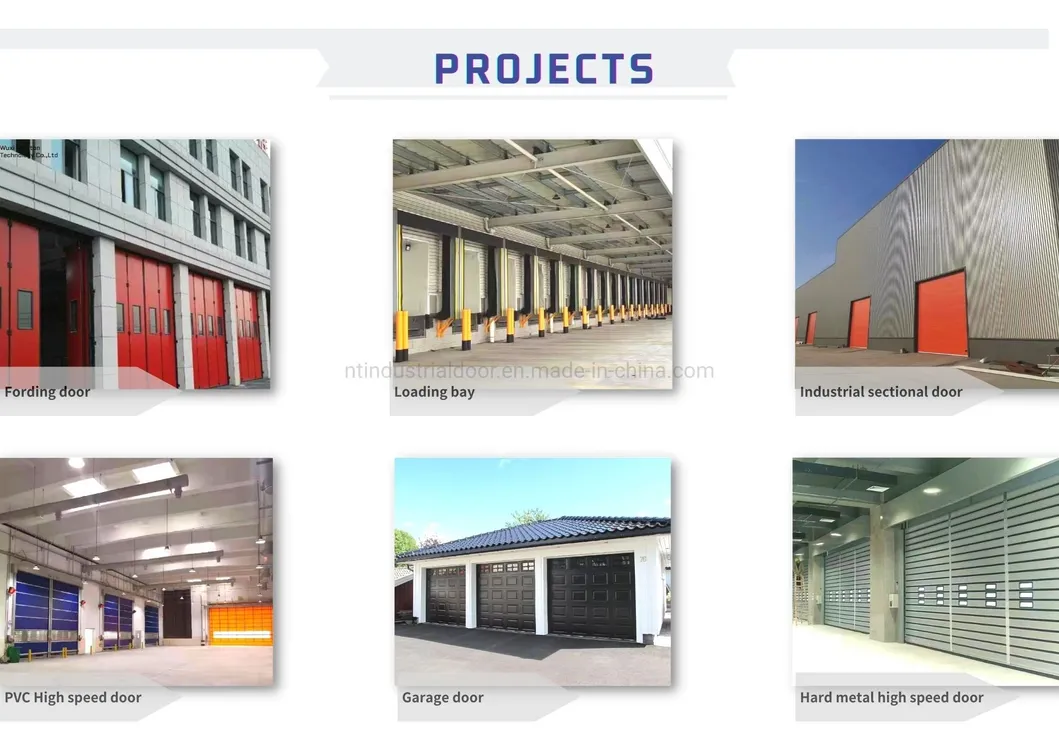

Product Catalog
Frequently Asked Questions
What is the standard opening speed of the door?
The high-speed shutter door features an opening and closing speed ranging from 0.8m to 1.5m per second, controlled by a frequency conversion system.
How does the door handle wind resistance?
The doors include wind-resistant ribs connected in sections for easy replacement, reaching a maximum wind resistance of Level 6.
What safety features are included as standard?
Standard configurations include infrared photoelectric protection, a pressure airbag, a warning light, and anti-collision pillars to ensure maximum safety.
Is it possible to have a visible window in the curtain?
Yes, we offer PVC full transparent film windows with a thickness of 1.5mm for better visibility and safety.
What kind of warranty and after-sales service do you provide?
We provide a one-year warranty on accessories, installation video support, and timely online guidance to ensure smooth operation.
Which industries are these doors most suitable for?
These doors are ideal for clean rooms and facilities in the food, pharmacy, chemical, mechanical, and electrical industries.
