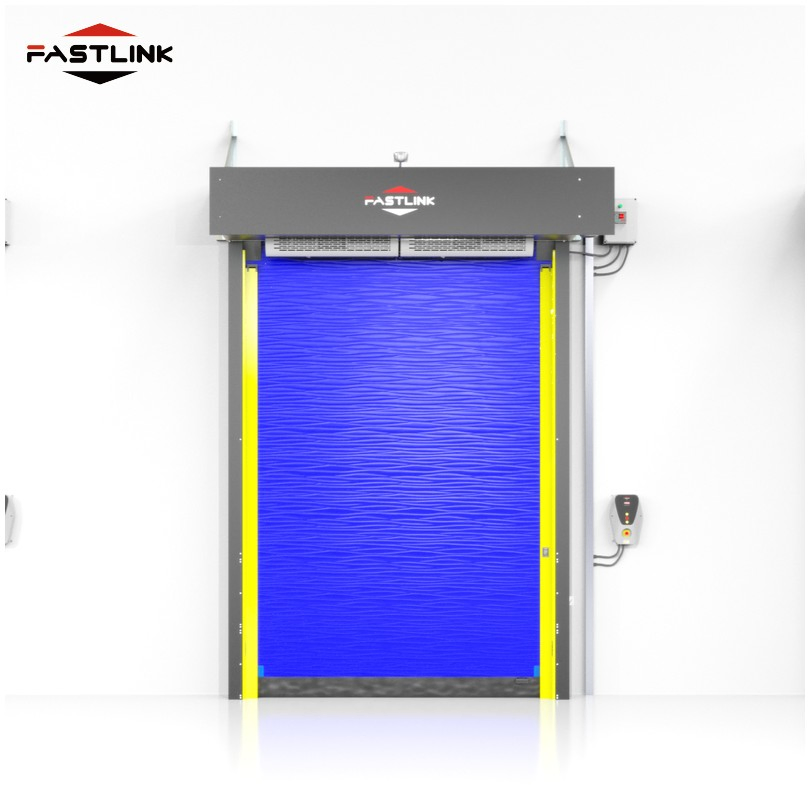

Model NO.:HSR-IPP
Material:PVC, Polymer, Aluminum Alloy

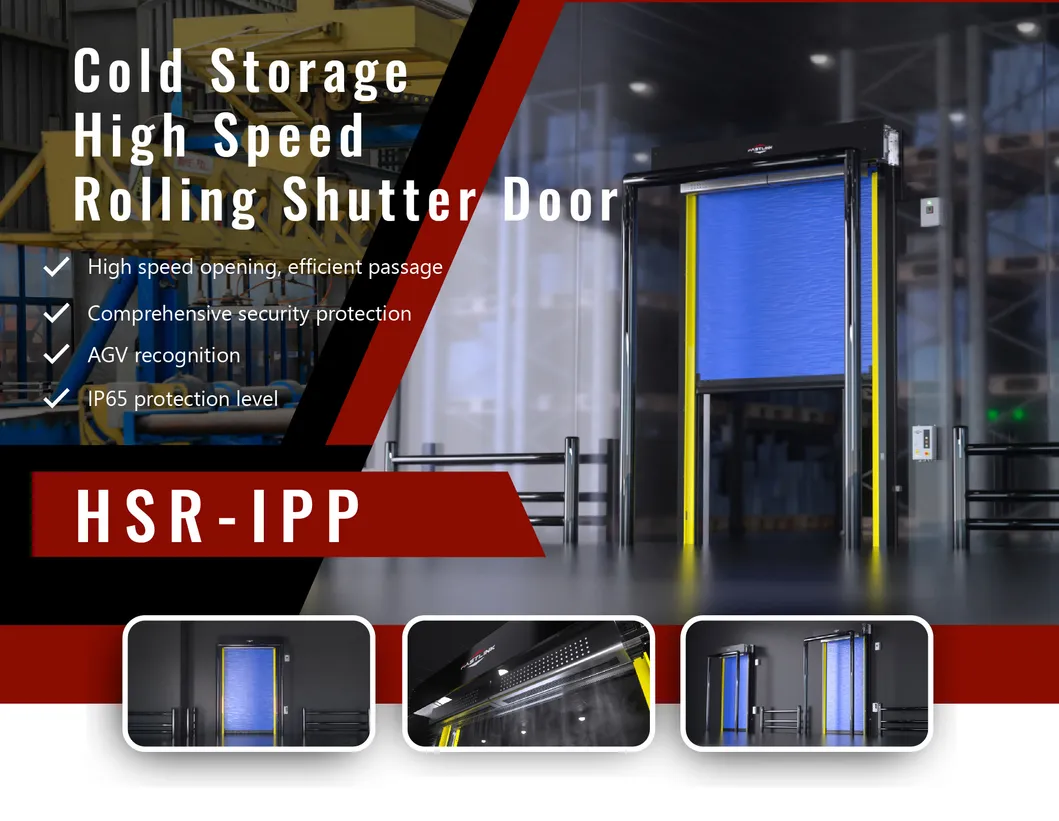

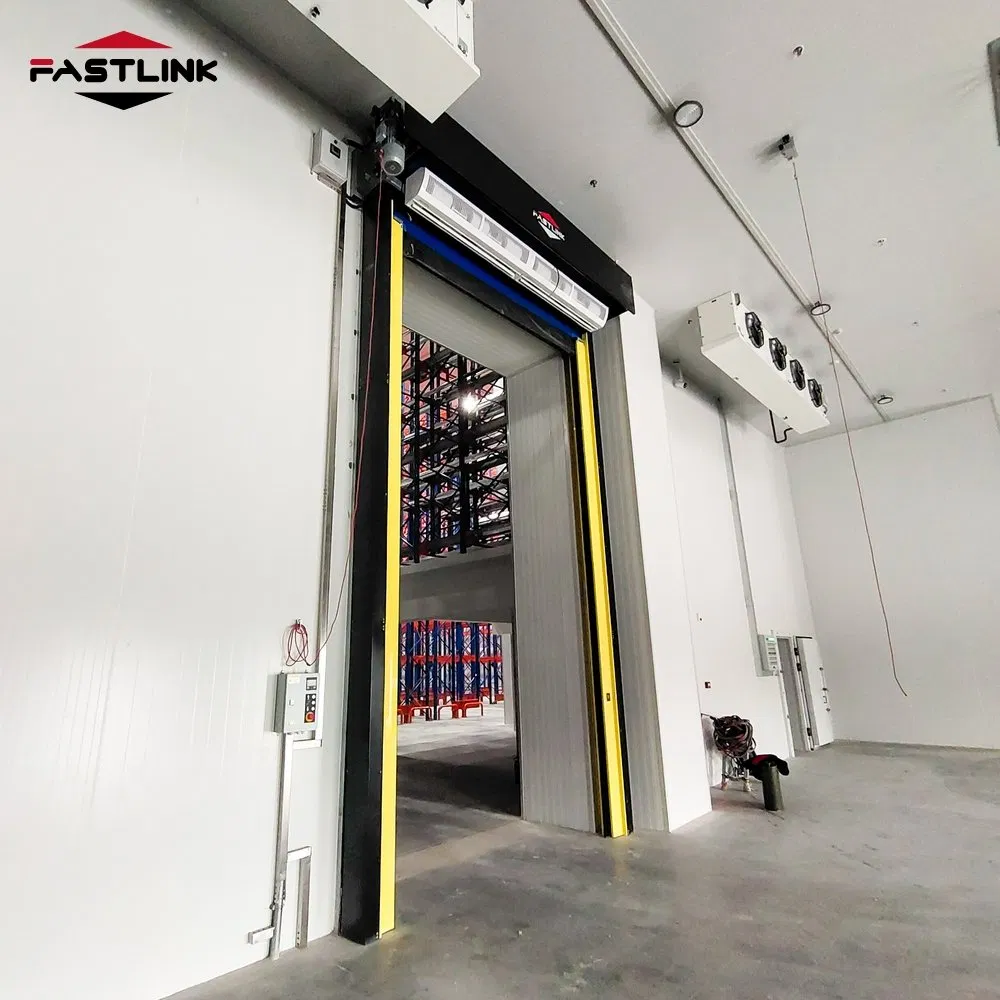

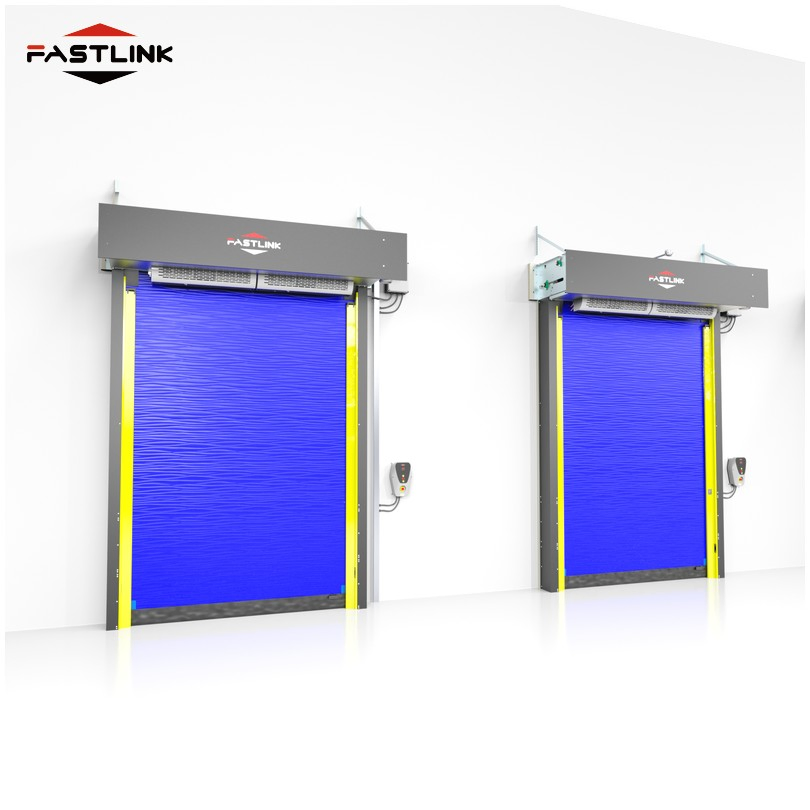

Type:Cold Storage High Speed Door
Open Style:Electric / Remote Control
Special Function:Security & Insulation
Sheet Thickness:28mm
Speed:2.0 M/S
Wind Resistance:225PA
Thermal Performance:K=1.2W/(M².K)

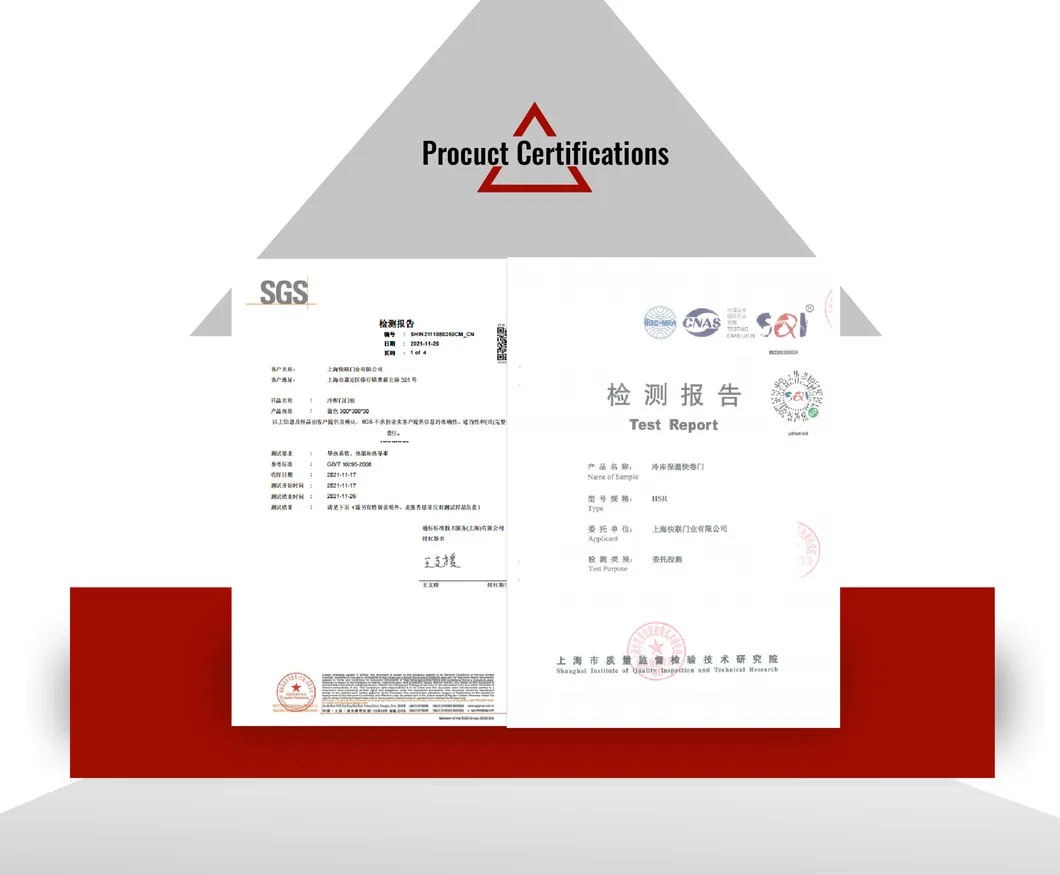

Certification:CE, CPR, UL
?
Frequently Asked Questions
How is the insulation performance in extreme cold?
The door features a composite curtain designed with uniform insulation throughout. When installed in -18ºC cold storage, the curtain will not frost or freeze.
What is the maximum speed of the door?
The maximum opening speed is 2.0 m/s, which efficiently meets high-frequency passing demands and significantly reduces energy consumption.

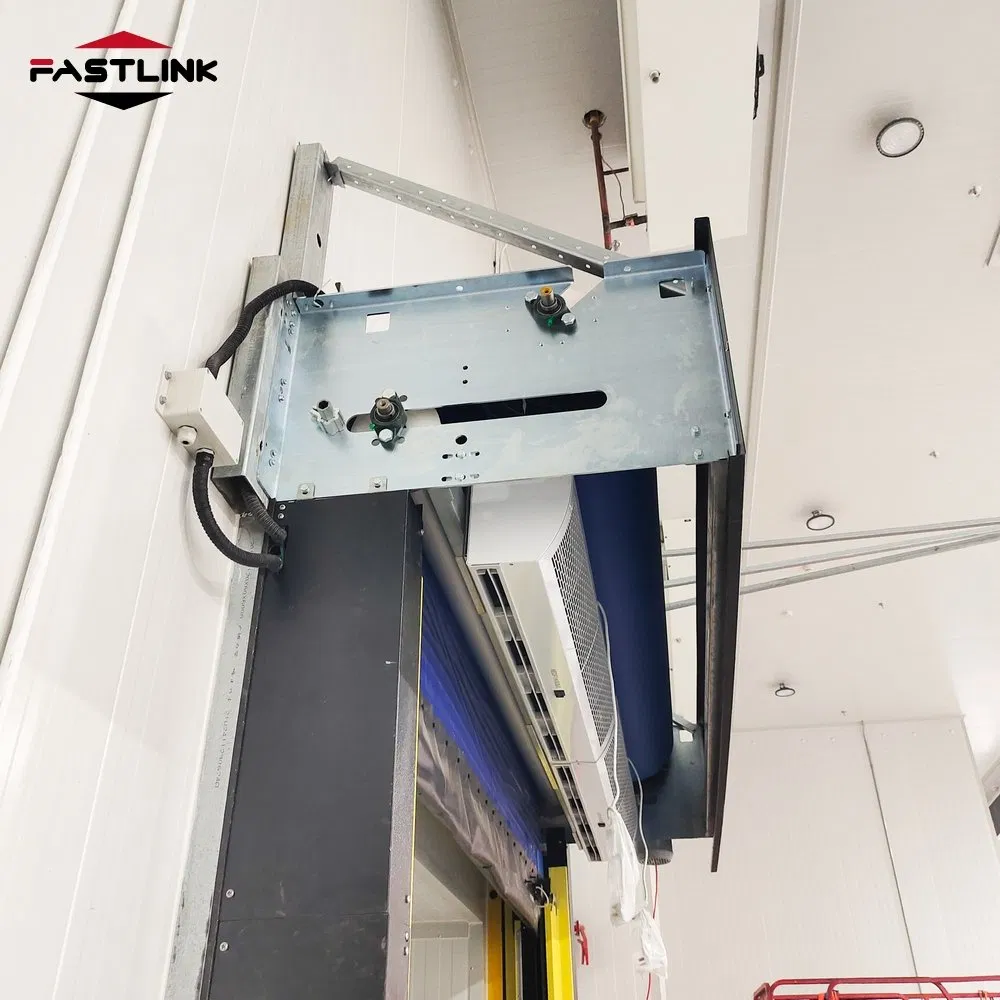

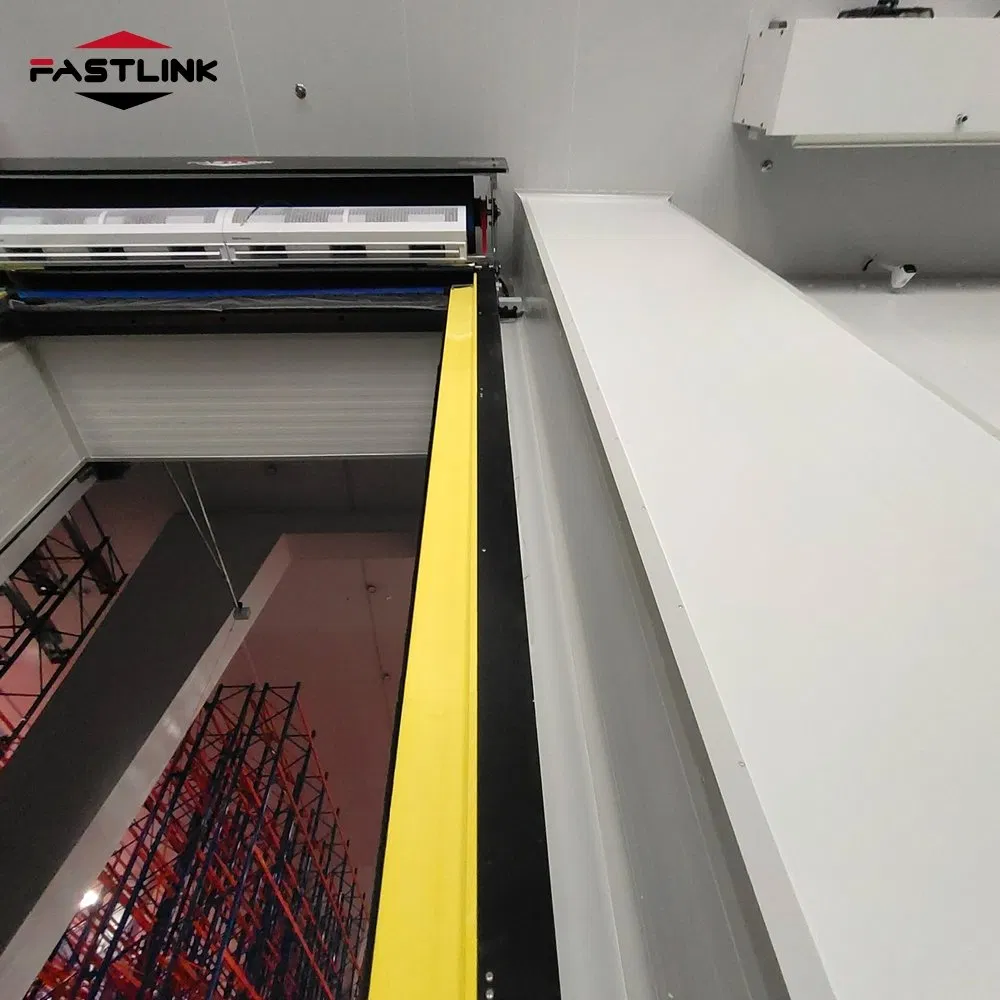

How much installation space is required above the opening?
A minimum space of 1000mm needs to be reserved above the door opening for proper installation.
What safety features are included?
Standard safety features include wireless safety bottom sensors and safety infrared devices. Optional safety light curtains and warning lights are also available.
Is there an emergency opening method if power fails?
Yes, the door is equipped with an emergency manual opening device. A UPS power supply is also available as an optional feature for urgent automatic opening.
What are the dimensions limits for this model?
The minimum size is W1200mm * H2000mm, and the maximum size is W3000mm * H5600mm.
