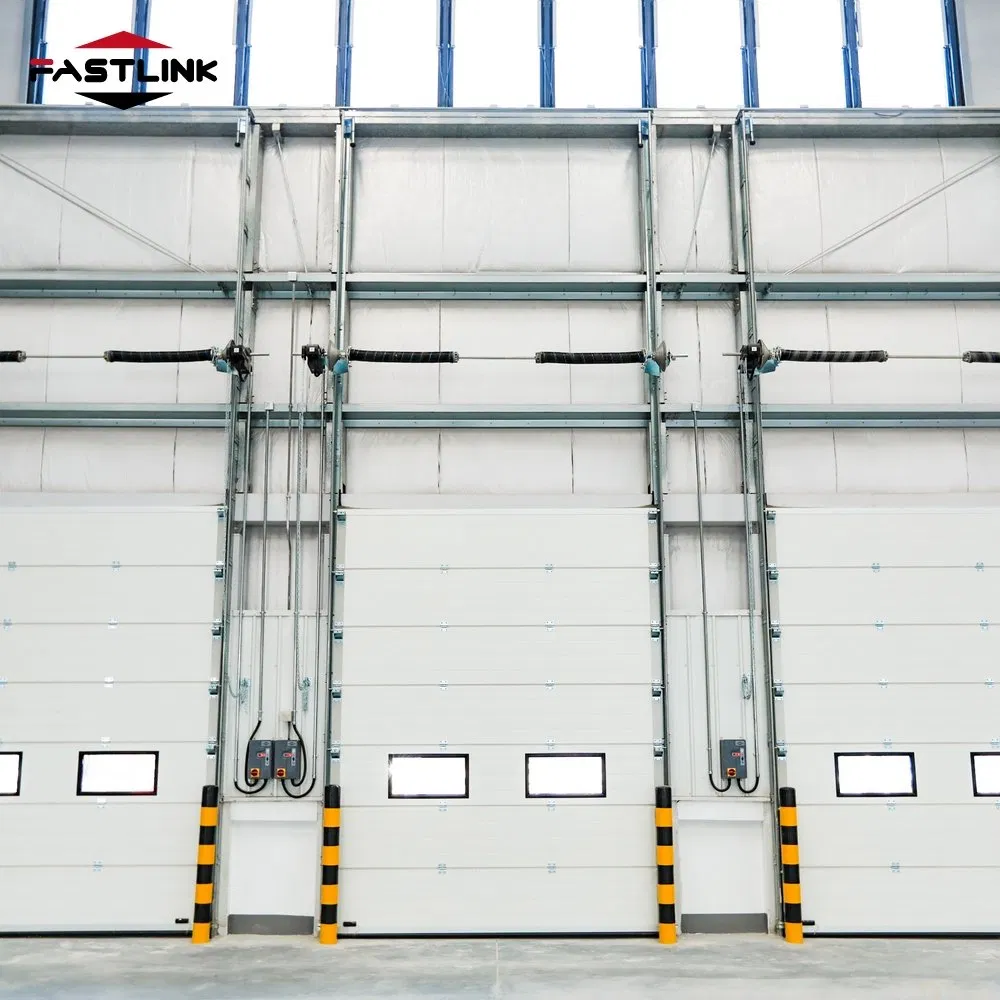

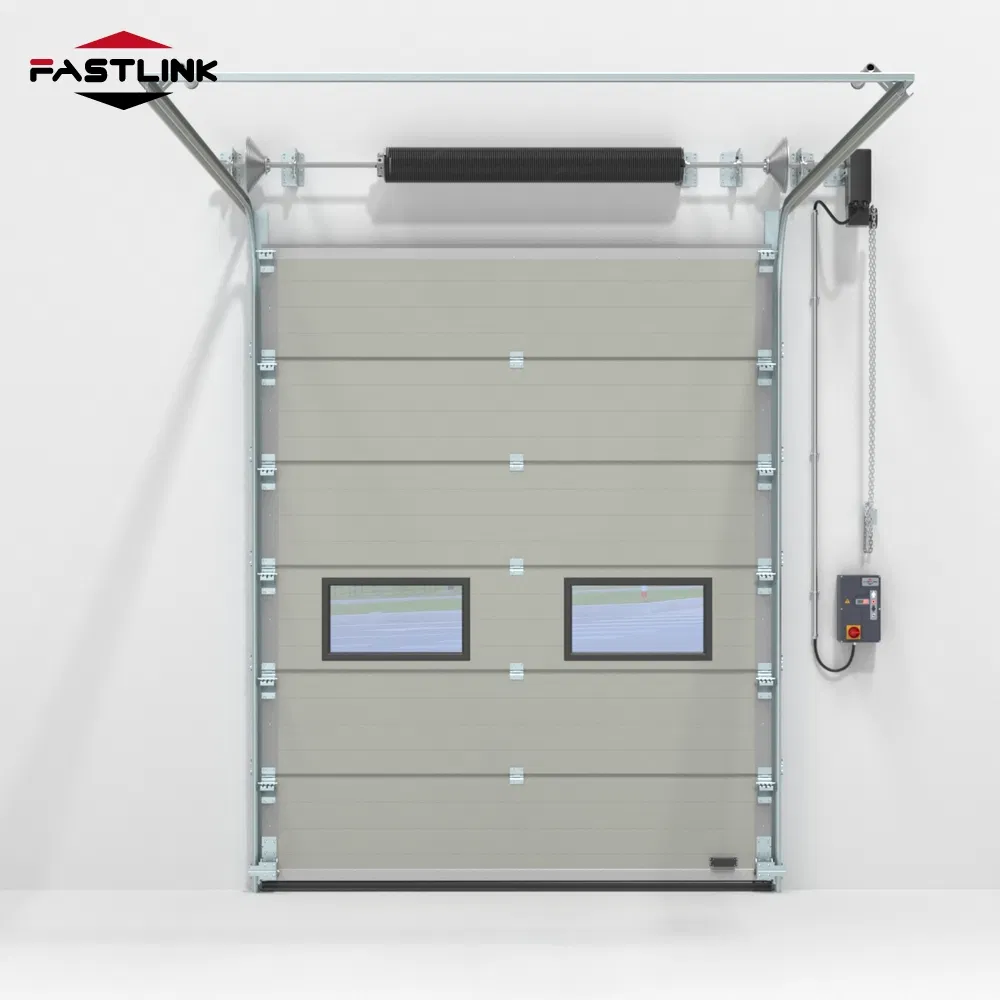

Fastlink Aluminum Overhead Automatic Panellift Commercial Grarage Insulated Sectional Doors
Fastlink Aluminum Overhead Automatic Panellift Commercial Grarage Insulated Sectional Doors
Fastlink Aluminum Overhead Automatic Panellift Commercial Grarage Insulated Sectional Doors
Fastlink Aluminum Overhead Automatic Panellift Commercial Grarage Insulated Sectional Doors
Fastlink Aluminum Overhead Automatic Panellift Commercial Grarage Insulated Sectional Doors
1 / 5
Fastlink Aluminum Overhead Automatic Panellift Commercial Grarage Insulated Sectional Doors
Fastlink Aluminum Overhead Automatic Panellift Commercial Grarage Insulated Sectional Doors
Fastlink Aluminum Overhead Automatic Panellift Commercial Grarage Insulated Sectional Doors
Fastlink Aluminum Overhead Automatic Panellift Commercial Grarage Insulated Sectional Doors
Fastlink Aluminum Overhead Automatic Panellift Commercial Grarage Insulated Sectional Doors

Fastlink Aluminum Overhead Automatic Panellift Commercial Grarage Insulated Sectional Doors

Customization: Available
After-sales Service: 2 Years
Warranty: 1year
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
SSD-IAS
Material
Aluminum Alloy / Steel
Type
Sliding / Sectional
Open Style
Sliding / Remote Control
Special Function
Insulation, Wind Resistance
Color Options
Ral9002/Ral9006/Ral7040/Ral7045
Certification
CE, CPR, UL
Door Panel
PU Sandwich Panel, 42mm Thickness
Wind Resistance
700pa (GB/T 7106-2008)
Thermal Property
K=1.1W/(M².K)
Operating Speed
0.25m/S

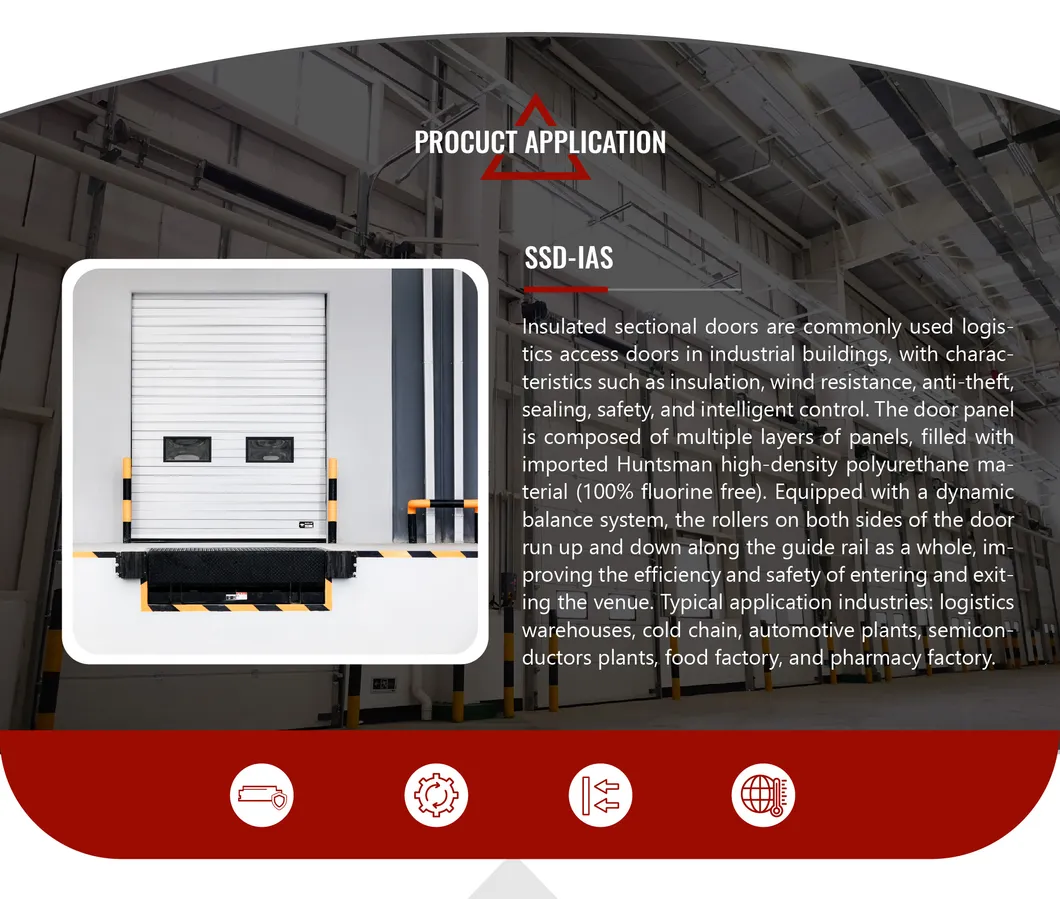

Application
Workshop, Logistics, Warehouse
Insulated Sectional Door
L

Product Technical Details

Industrial Attributes & Performance
Size RangeMin: 2000x2000mm | Max: 11500x6000mm

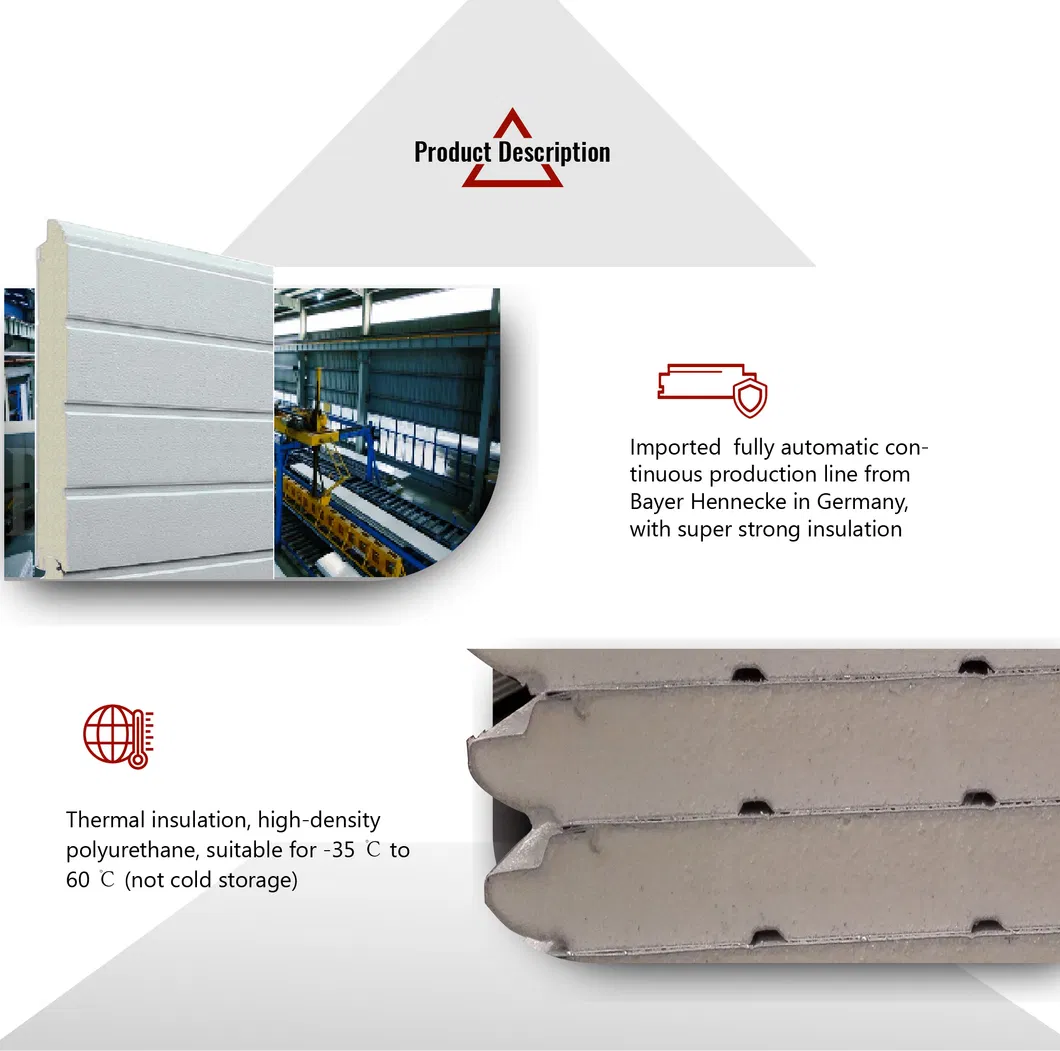

PU MaterialFreon-free, Density: 48kg/m³, Closed-cell rate >95%
Surface FinishingEmbossed metal surface

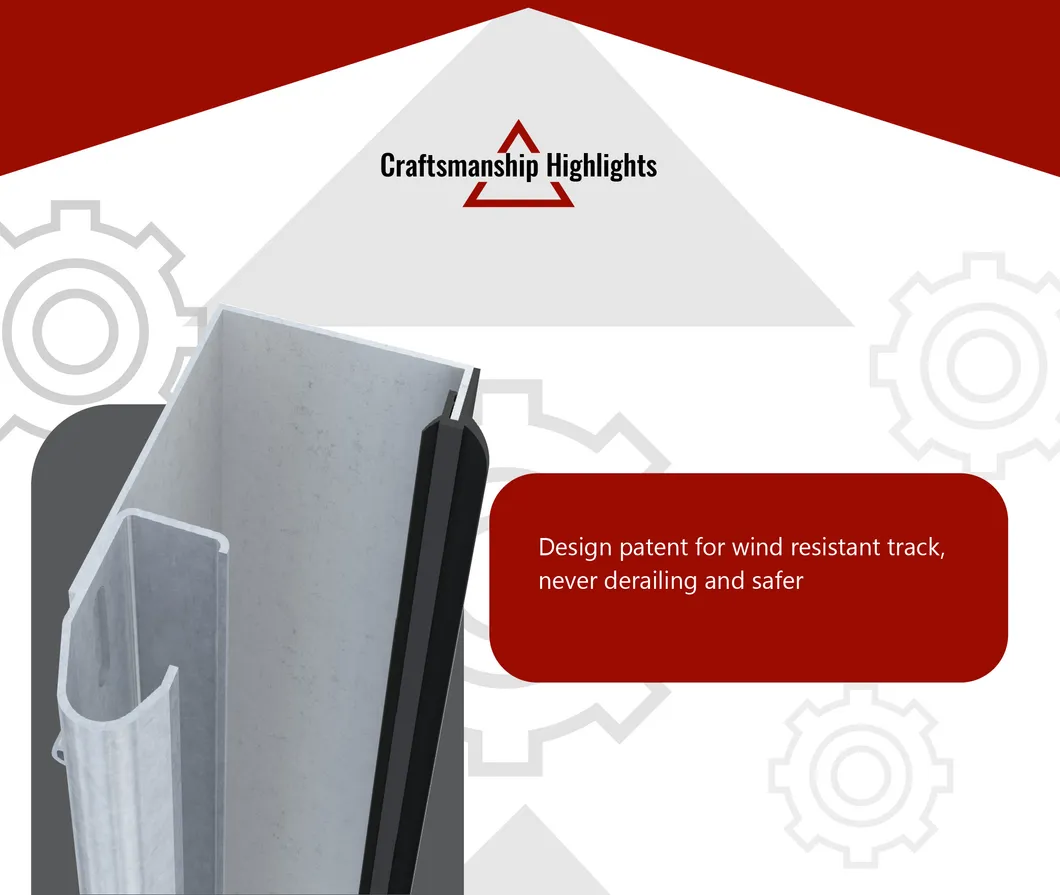

Rail DesignPatented wind-resistant track design (Bolted connection)

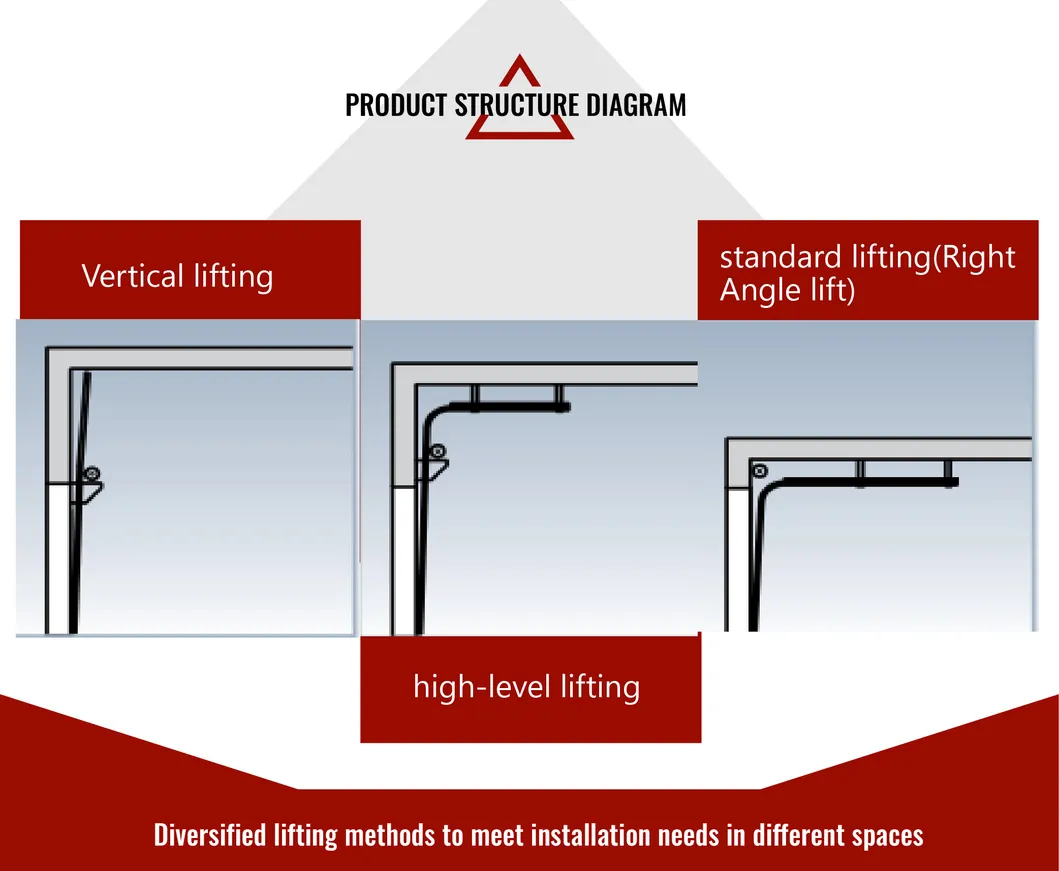

Lifting ModesVertical Lift / High Lift / Standard Lift

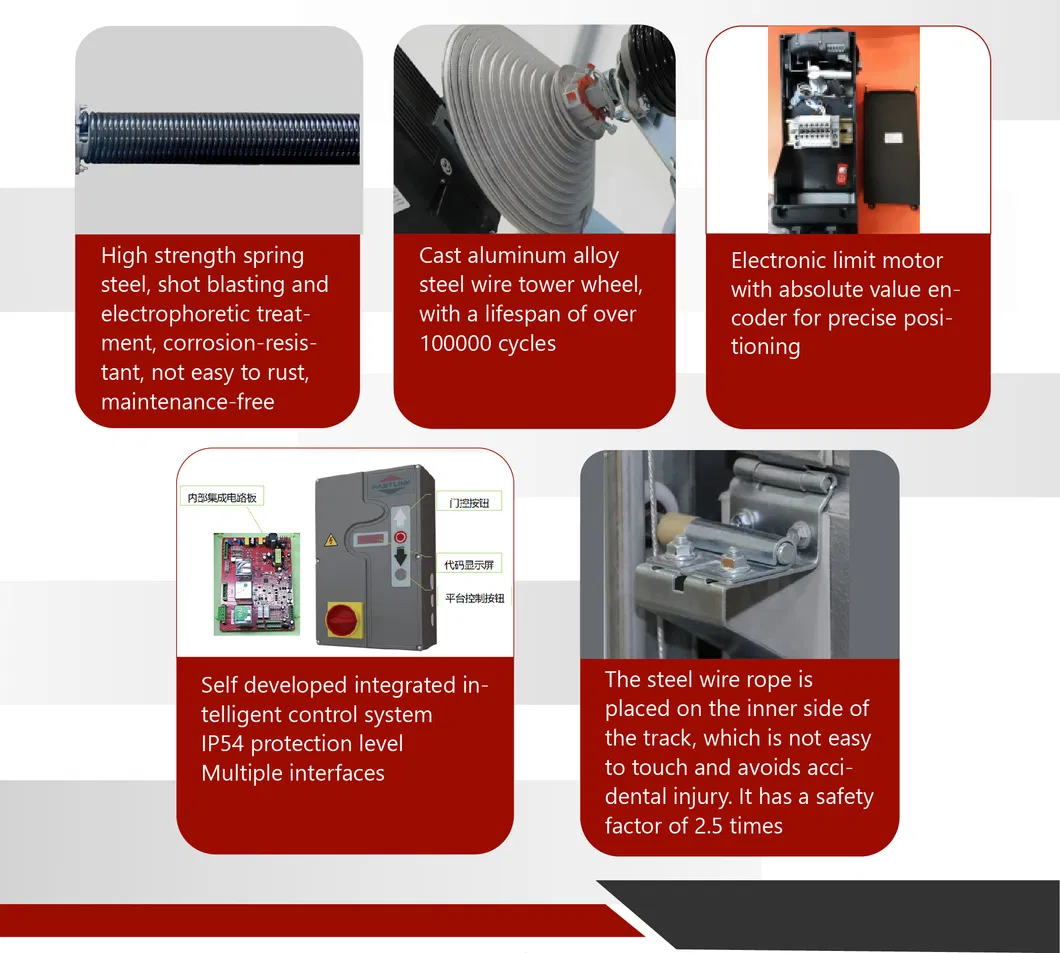

Motor SystemElectronic limit motor with absolute encoder

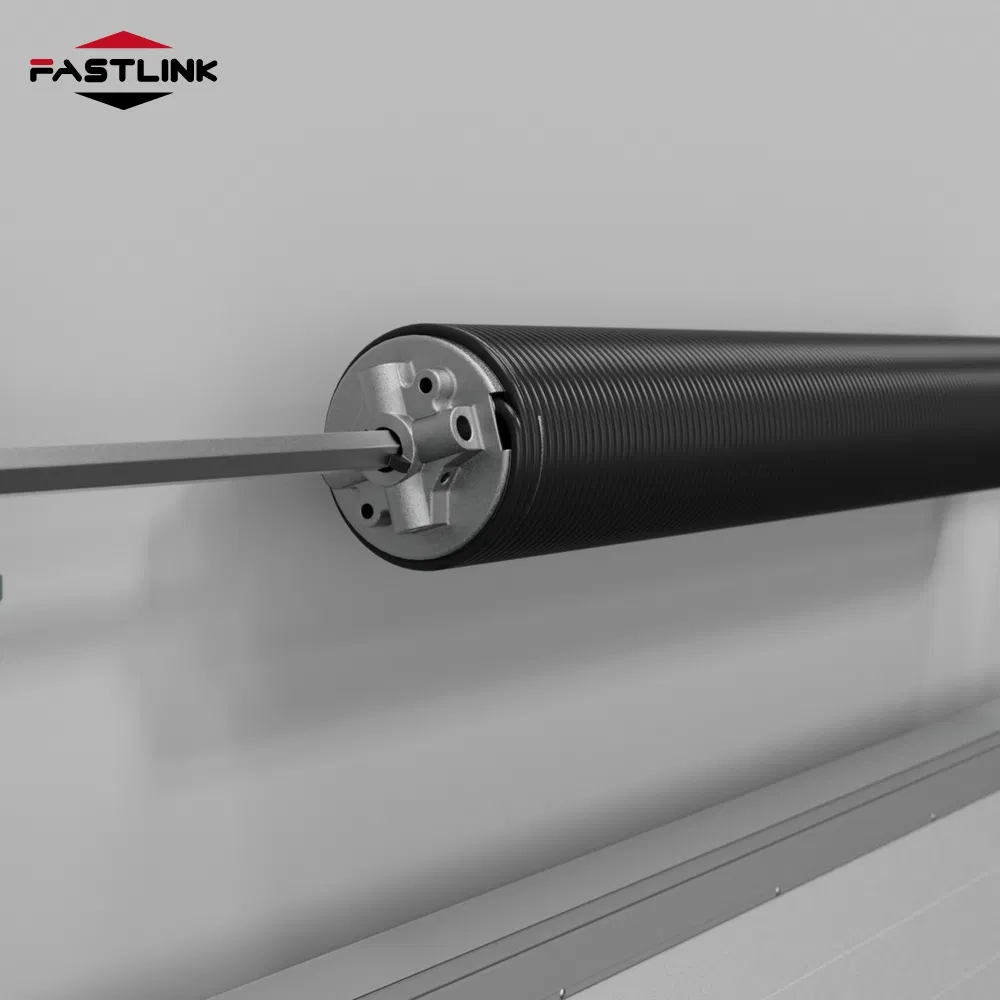

Spring SystemHigh-strength spring steel, Shot blasting electrophoresis
Control BoxIntelligent system: Fault display, Fire linkage, Interlock
AirtightnessGrade 7 (GB/T 7106-2008)
WatertightnessGrade 1 (GB/T 7106-2008)
S

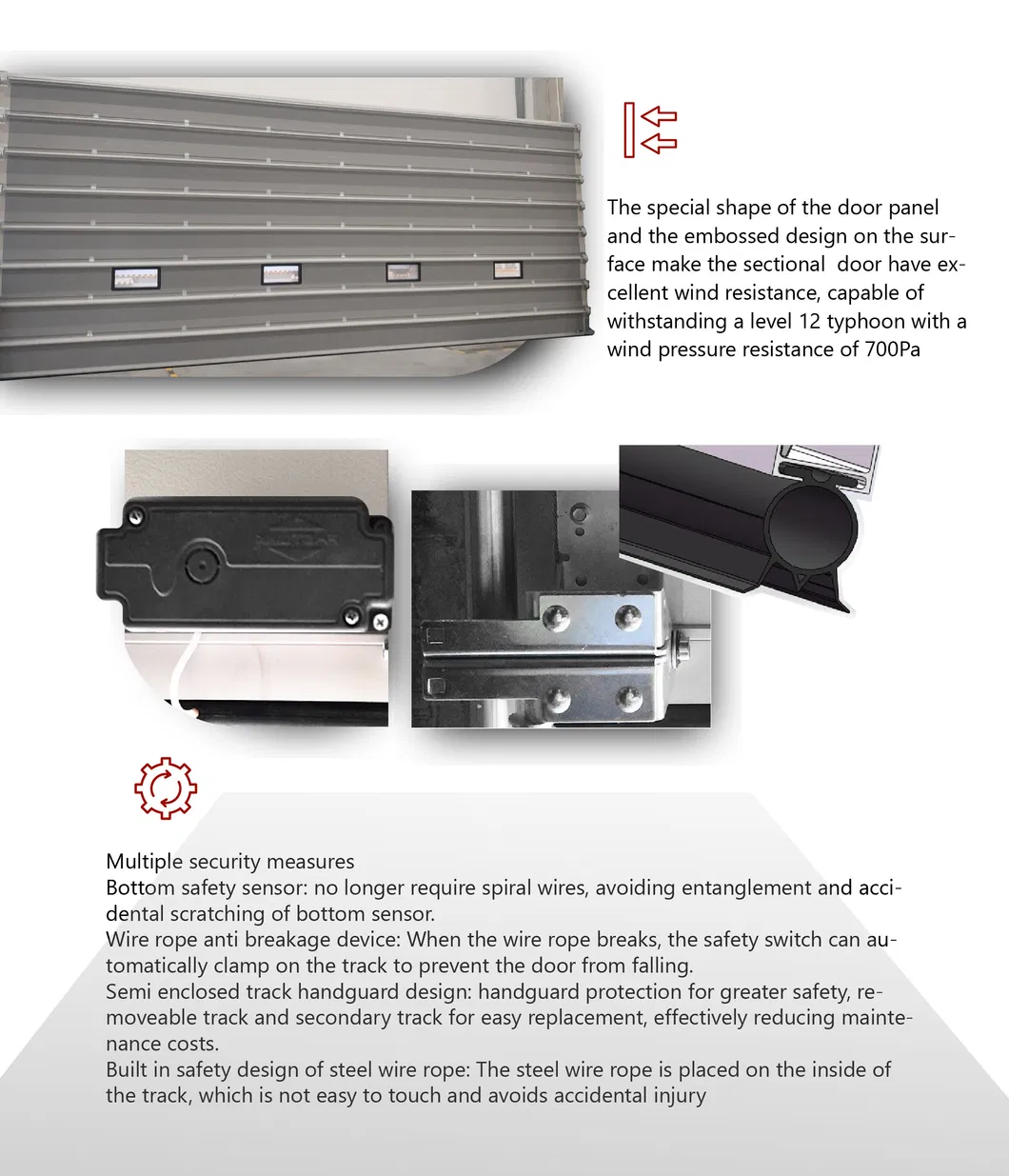

Advanced Security Configuration

  • Wireless Bottom Safety Device: Eliminates spiral wires, avoiding entanglement.
  • Wire Rope Anti-breaking Device: Automatically locks the door if the rope breaks.
  • Anti-pinch Design: Panel structure prevents hand injuries.
  • Semi-closed Track: Hand guard design for safer operation.
  • Safety Built-in: Wire rope is placed inside the track to prevent accidental contact.

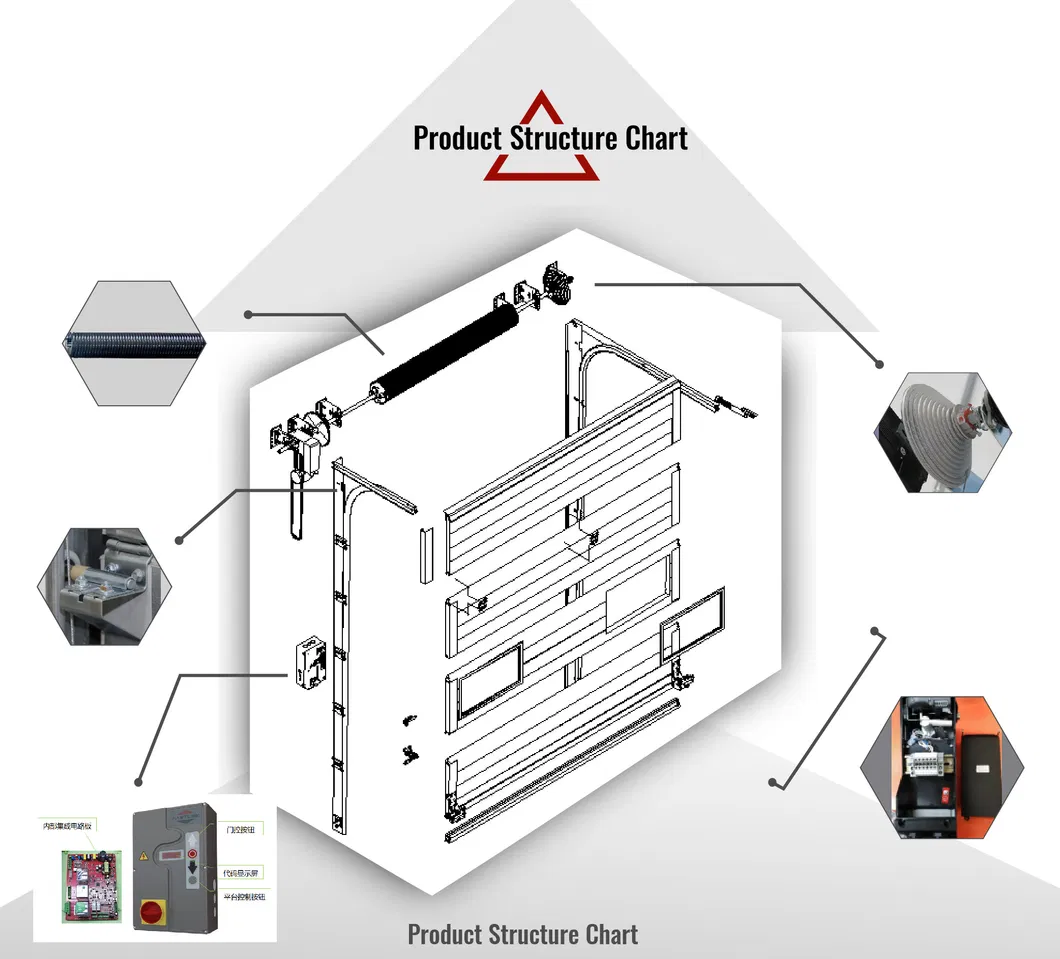

Structure Detail 1 Structure Detail 2 Structure Detail 3
Process 1 Process 2 Process 3
Component 1 Component 2 Component 3
Detail 4 Detail 5 Detail 6
P

Packaging & Delivery

Package Size
406.40cm * 66.40cm * 97.10cm
Gross Weight
190.000kg
Lead Time
30 Days
Supply Ability
3000 Sets / Month

Semi-Automatic PET Bottle Blowing Machine Information: Suitable for producing PET plastic containers and bottles in all shapes.

Rail Dimension
?

Frequently Asked Questions

Is the Insulated Sectional Door safe to use?
Yes, it has passed CE certification and features multiple safety systems including anti-breakage protection for wire ropes and springs, anti-pinch panels, and resistance-rebound sensors.
How much installation space is needed above the door opening?
A minimum installation space of 500mm is required above the door opening.
Can sectional doors be used in garages?
Yes, as long as there is sufficient installation space, they are ideal for use as vehicle access doors in commercial and industrial garages.
What is the expected service life of these doors?
With normal maintenance, these doors can be used for more than 10 years. Proper usage and regular checks help extend their service life.
What are the wind resistance and insulation properties?
The doors have a wind resistance rating of 700pa and a thermal insulation property of K=1.1W/(m².K), making them highly efficient for climate-controlled workshops.
What colors and sizes are available?
Available colors include RAL9002, RAL9006, RAL7040, and RAL7045. Sizes range from a minimum of 2x2m up to a maximum of 11.5x6m.
