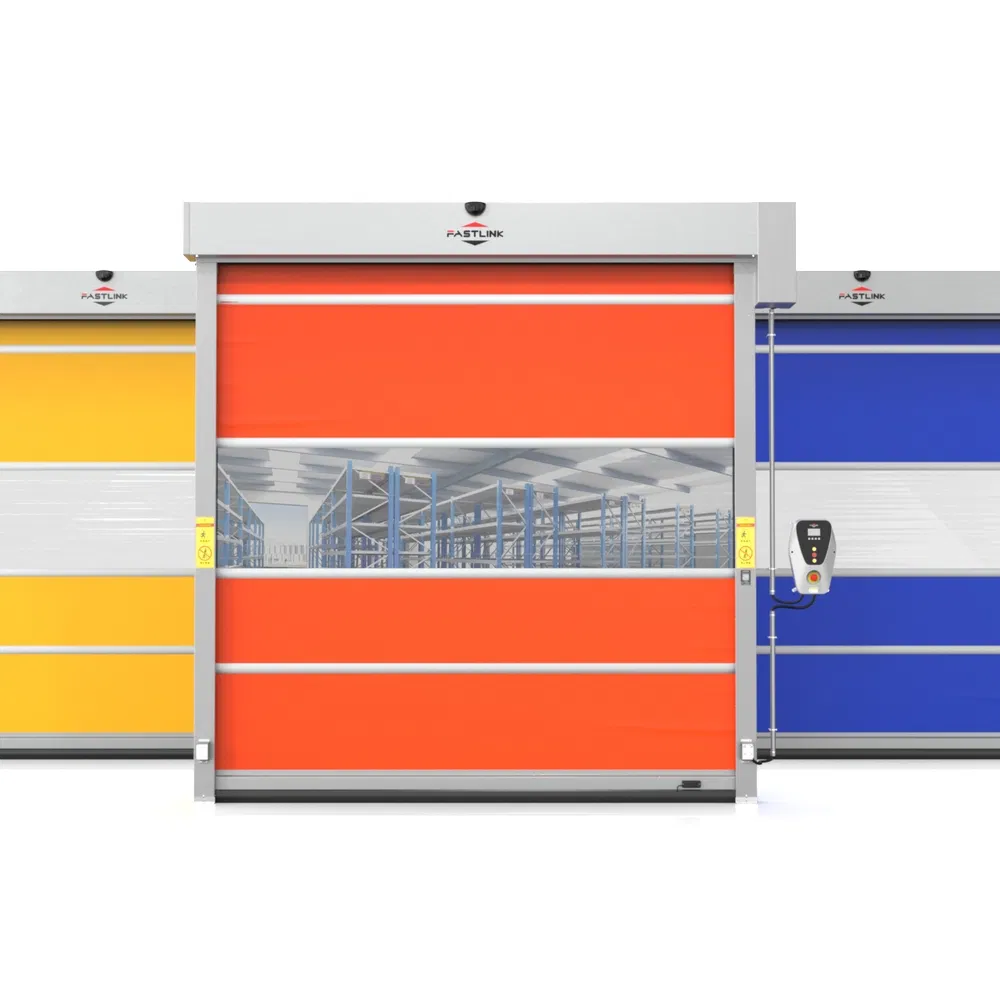

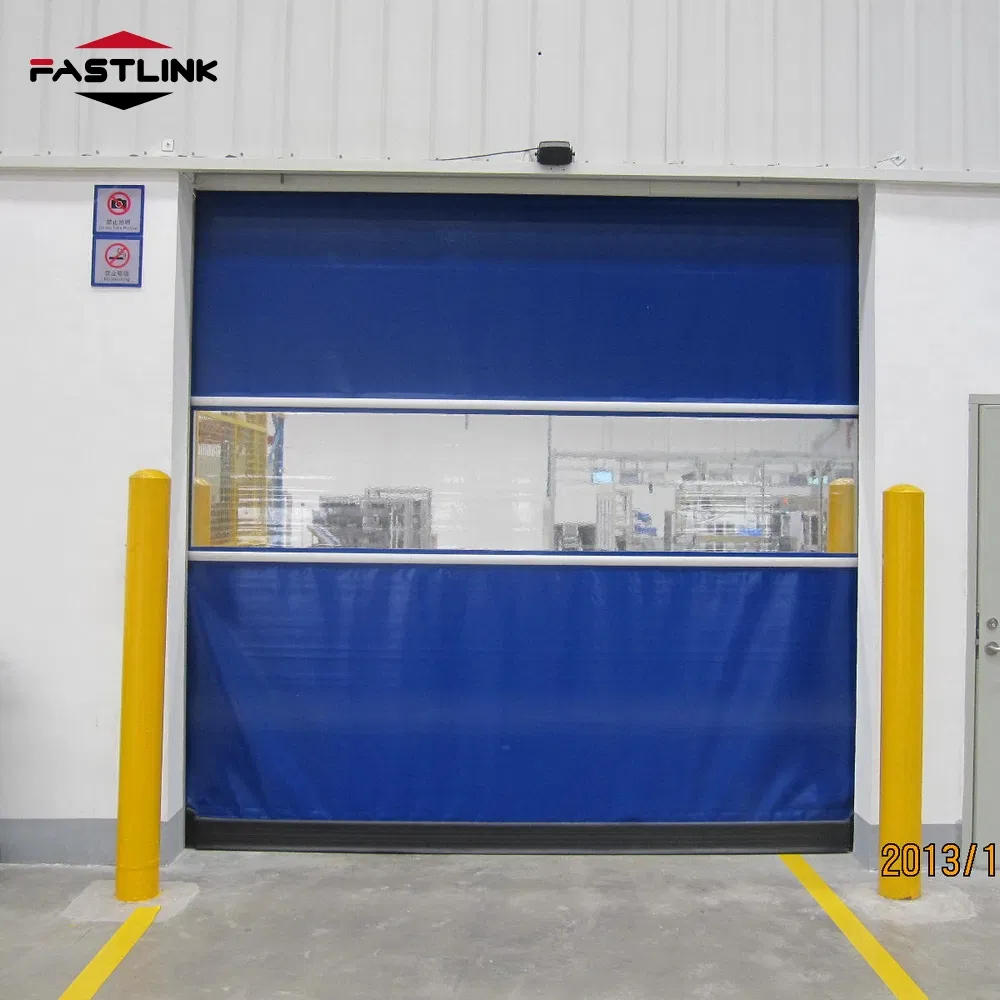

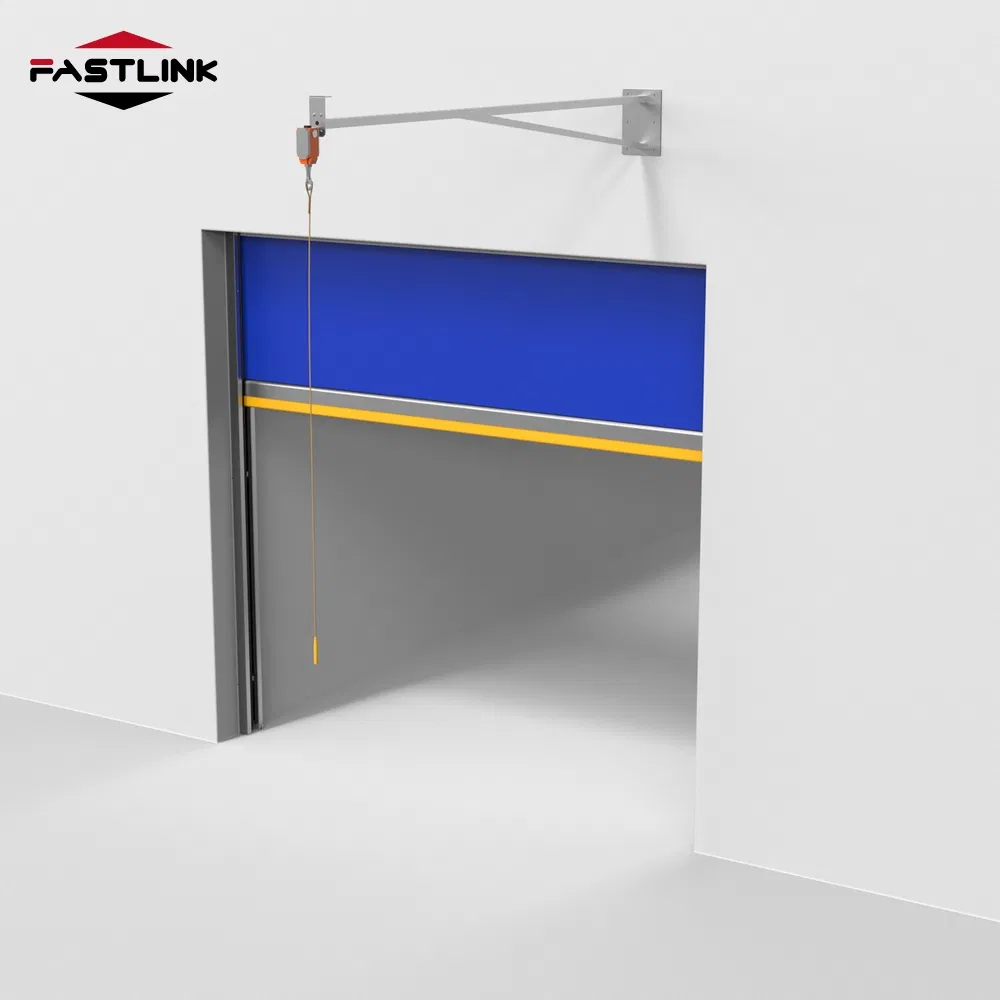

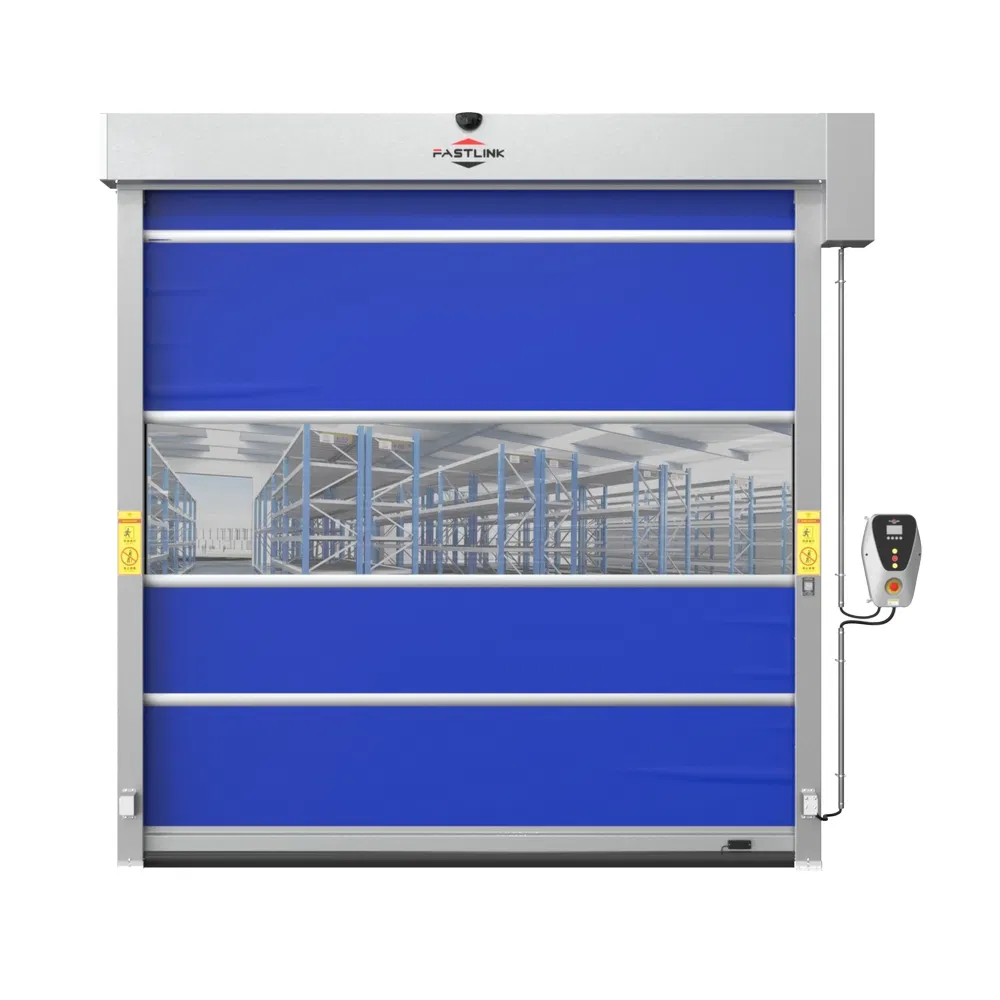

Fastlink Customized Industrial PU High Speed Mechanical PVC Interior Aluminum Electric Rolling Shutter Doors
Fastlink Customized Industrial PU High Speed Mechanical PVC Interior Aluminum Electric Rolling Shutter Doors
Fastlink Customized Industrial PU High Speed Mechanical PVC Interior Aluminum Electric Rolling Shutter Doors
Fastlink Customized Industrial PU High Speed Mechanical PVC Interior Aluminum Electric Rolling Shutter Doors
Fastlink Customized Industrial PU High Speed Mechanical PVC Interior Aluminum Electric Rolling Shutter Doors
1 / 5
Fastlink Customized Industrial PU High Speed Mechanical PVC Interior Aluminum Electric Rolling Shutter Doors
Fastlink Customized Industrial PU High Speed Mechanical PVC Interior Aluminum Electric Rolling Shutter Doors
Fastlink Customized Industrial PU High Speed Mechanical PVC Interior Aluminum Electric Rolling Shutter Doors
Fastlink Customized Industrial PU High Speed Mechanical PVC Interior Aluminum Electric Rolling Shutter Doors
Fastlink Customized Industrial PU High Speed Mechanical PVC Interior Aluminum Electric Rolling Shutter Doors

Fastlink Customized Industrial PU High Speed Mechanical PVC Interior Aluminum Electric Rolling Shutter Doors

Customization: Available
After-sales Service: 2years
Warranty: 1year
Send Inquiry

Product Description

■

Basic Specifications

Model NO.
HSR-IPB
Material
PVC
Type
High Speed Door
Open Style
Electric
Opening Type
Intelligent Control
Special Function
Windproof
Color
Ral7015/Ral9002
Certification
CE, CPR, UL
Position
Industrial
Single Gross Weight
180kg/M²
Main Material
Aluminum
Safety Device

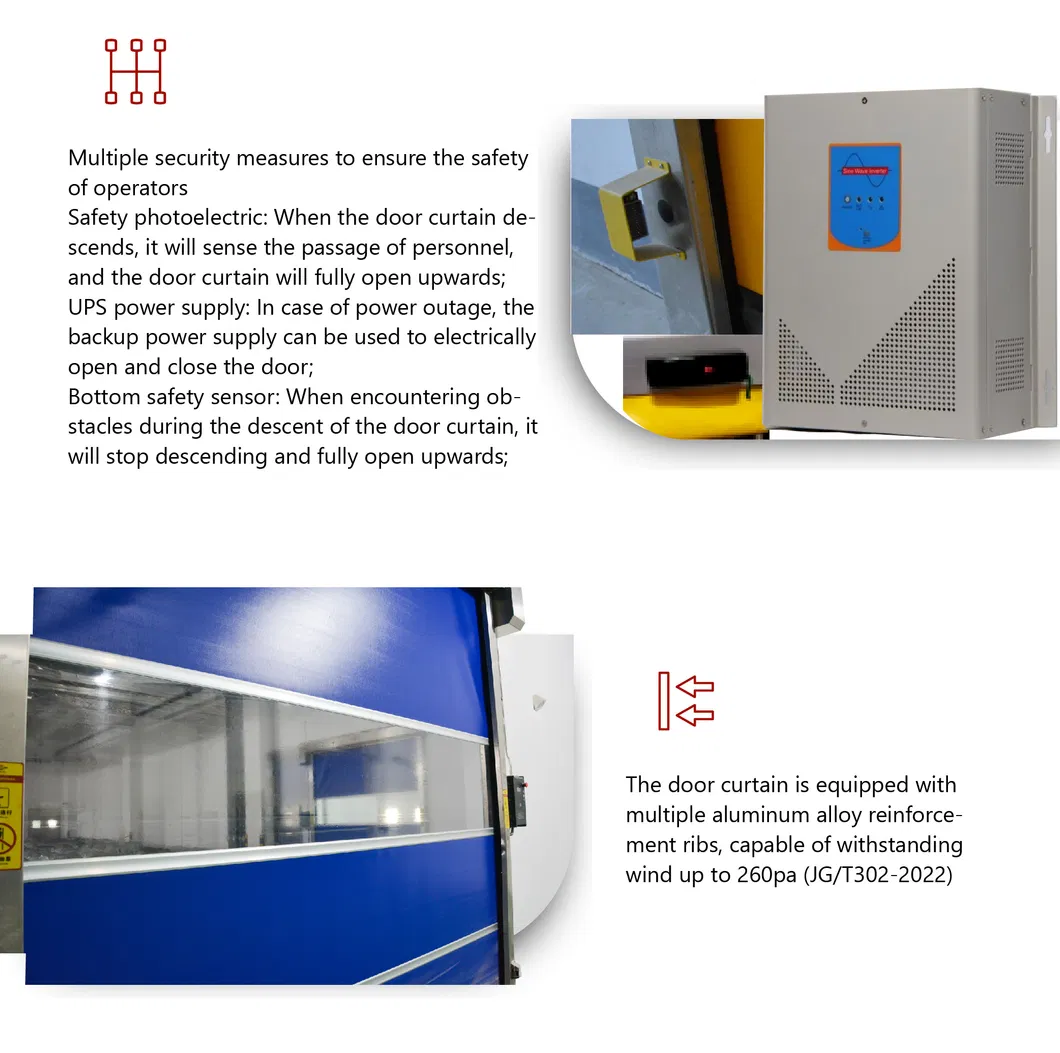

Infrared Sensor (Standard)
■

Product Description

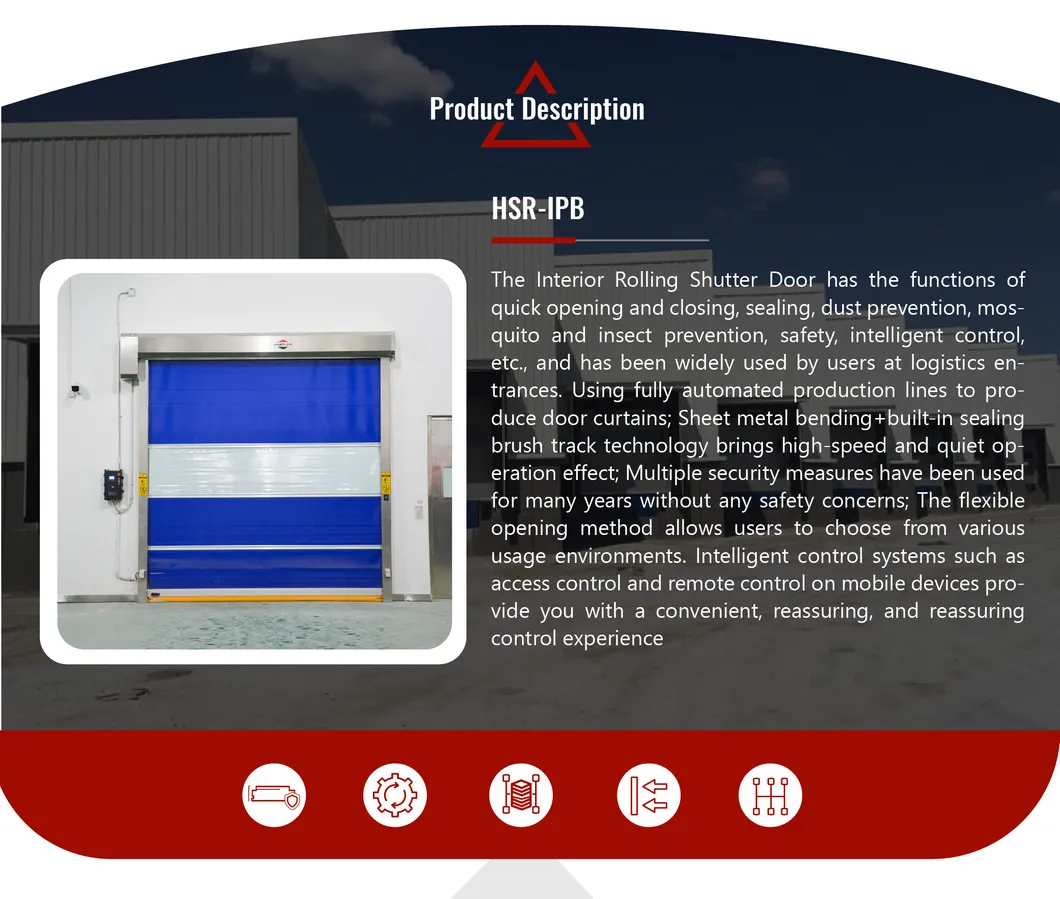

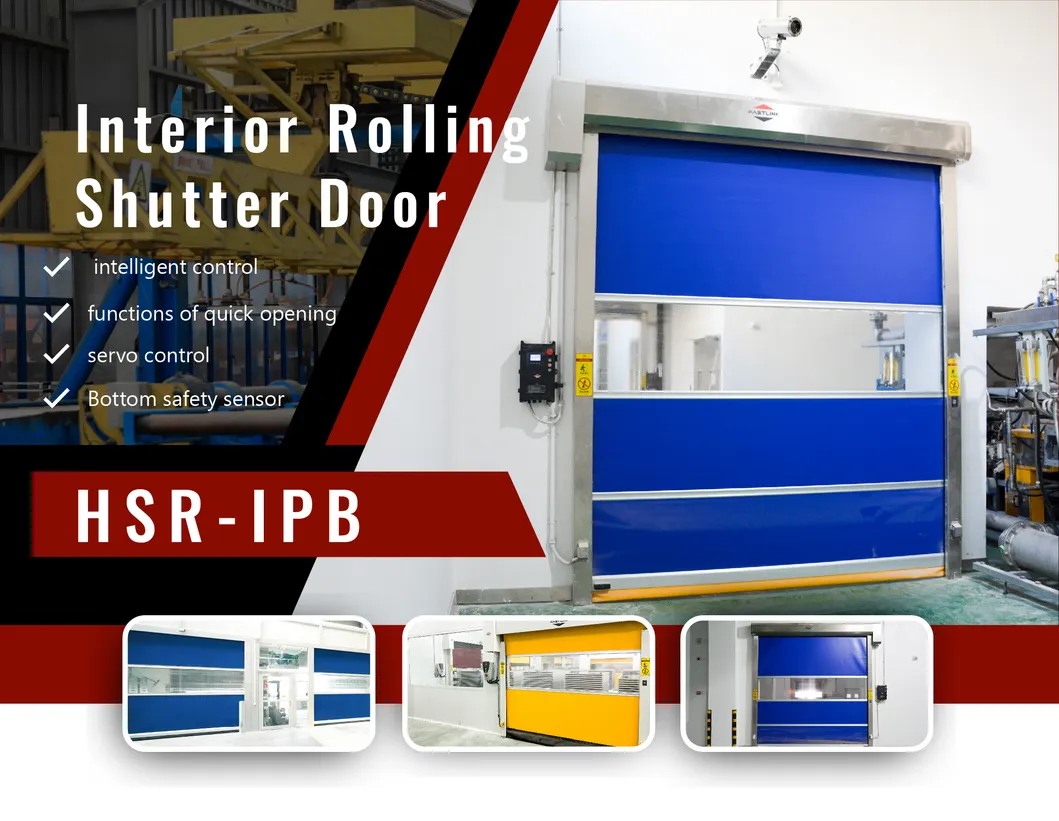

Industrial High Speed PVC Door
Technical Parameters
Product TypeInterior-use Rolling Shutter Door
Sheet Material0.8mm/1.2mm PVC curtain
Frame MaterialMetal painted or Stainless steel

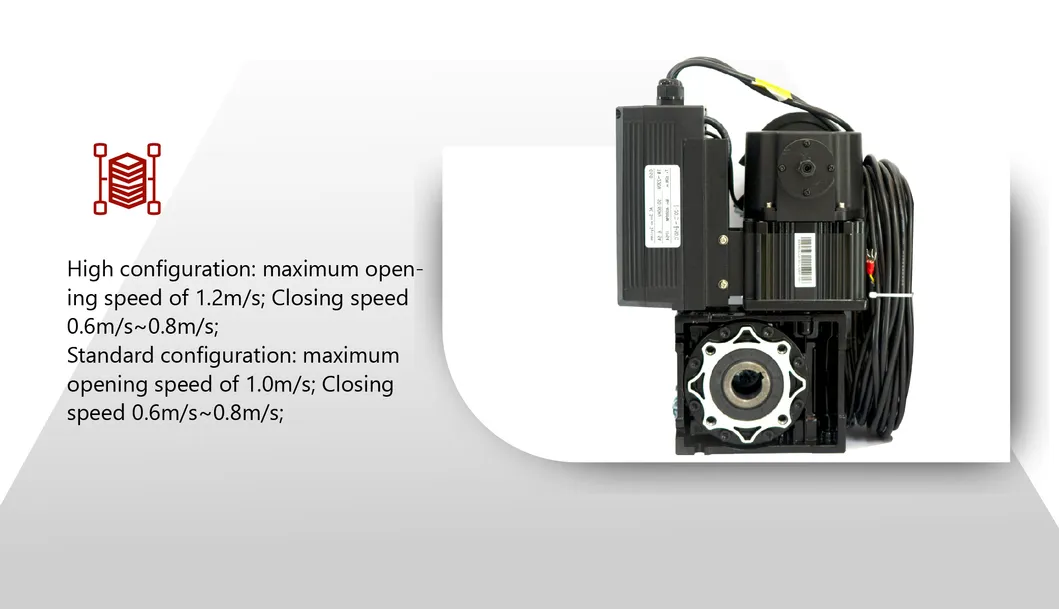

Max Opening Speed1.0m/s (Standard) - 1.2m/s (High config)
Closing Speed0.8m/s

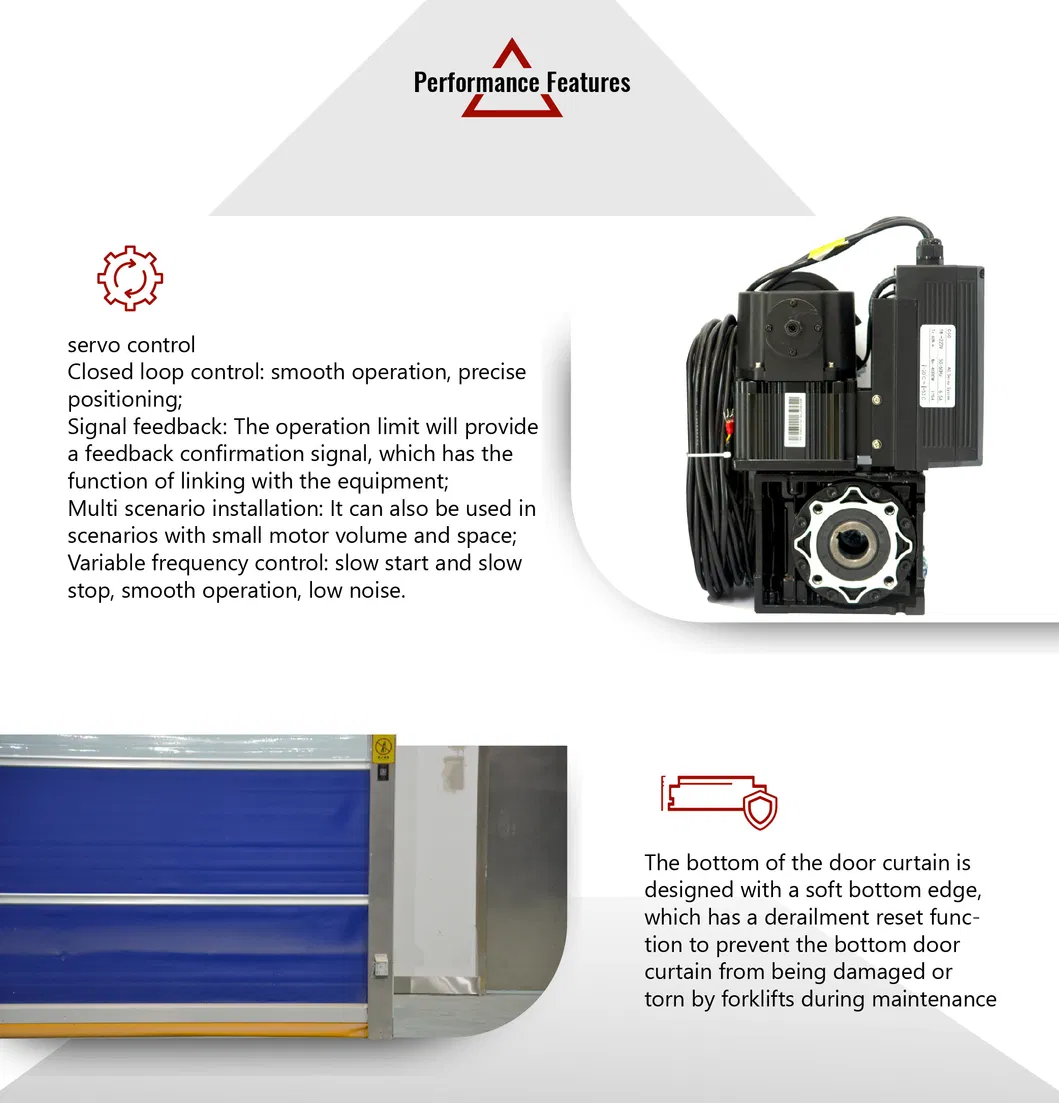

Motor TypeServo Motor
Wind Resistance260pa (JG/T302-2022)
Min SizeW1500mm * H2000mm
Max SizeW6000mm * H6000mm

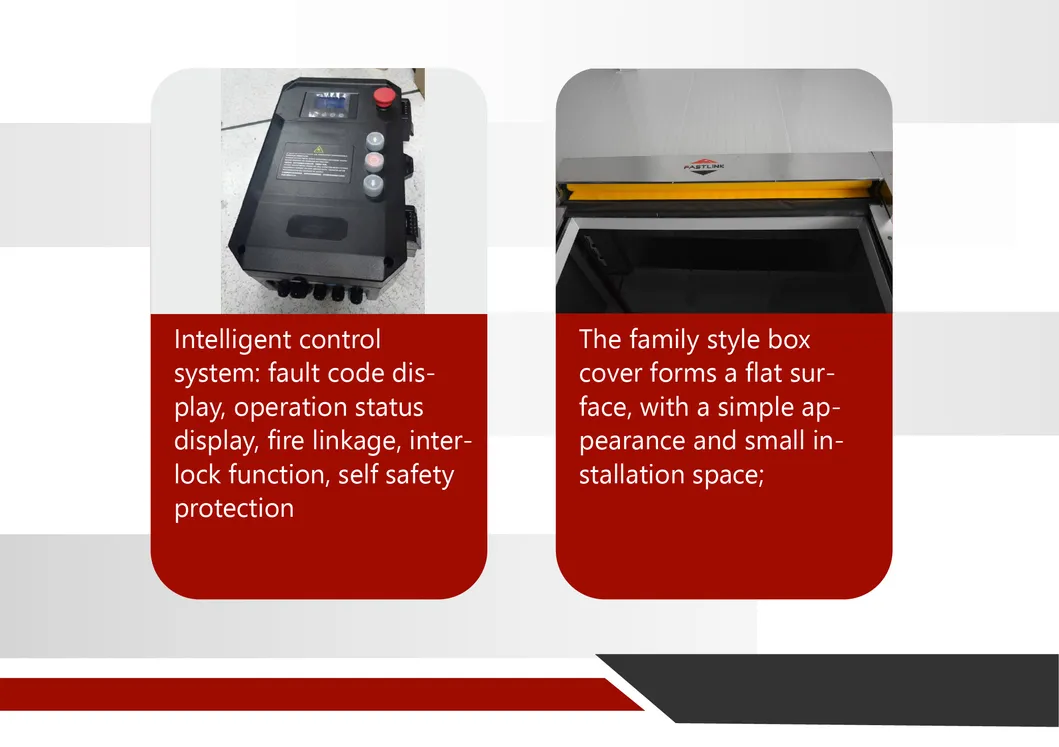

Control SystemFault code display, fire linkage, self-safety protection
■

Detailed Display

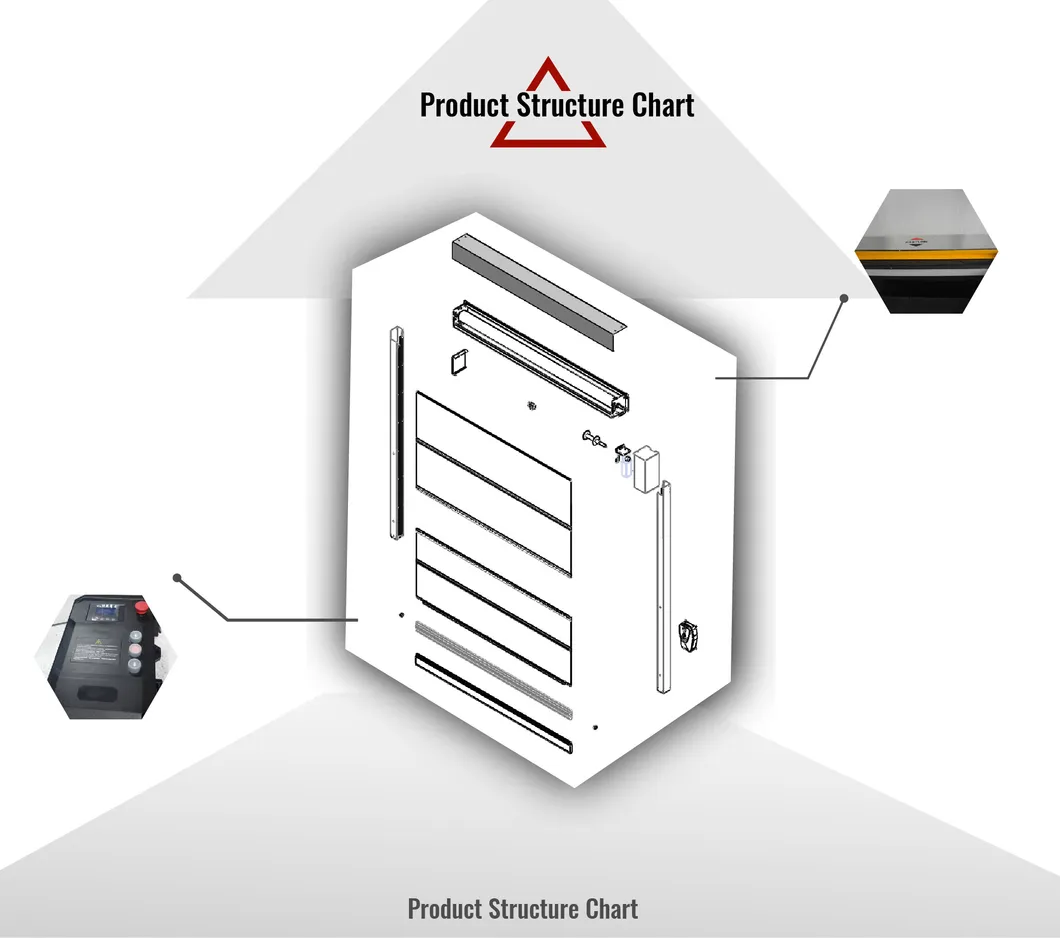

Details 1 Details 2 Details 3 Details 4 Details 5 Details 6 Details 7 Details 8 Details 9 Details 10 Details 11 Details 12
Operational banner Service banner
?

Frequently Asked Questions

What environments are these doors mainly used in?

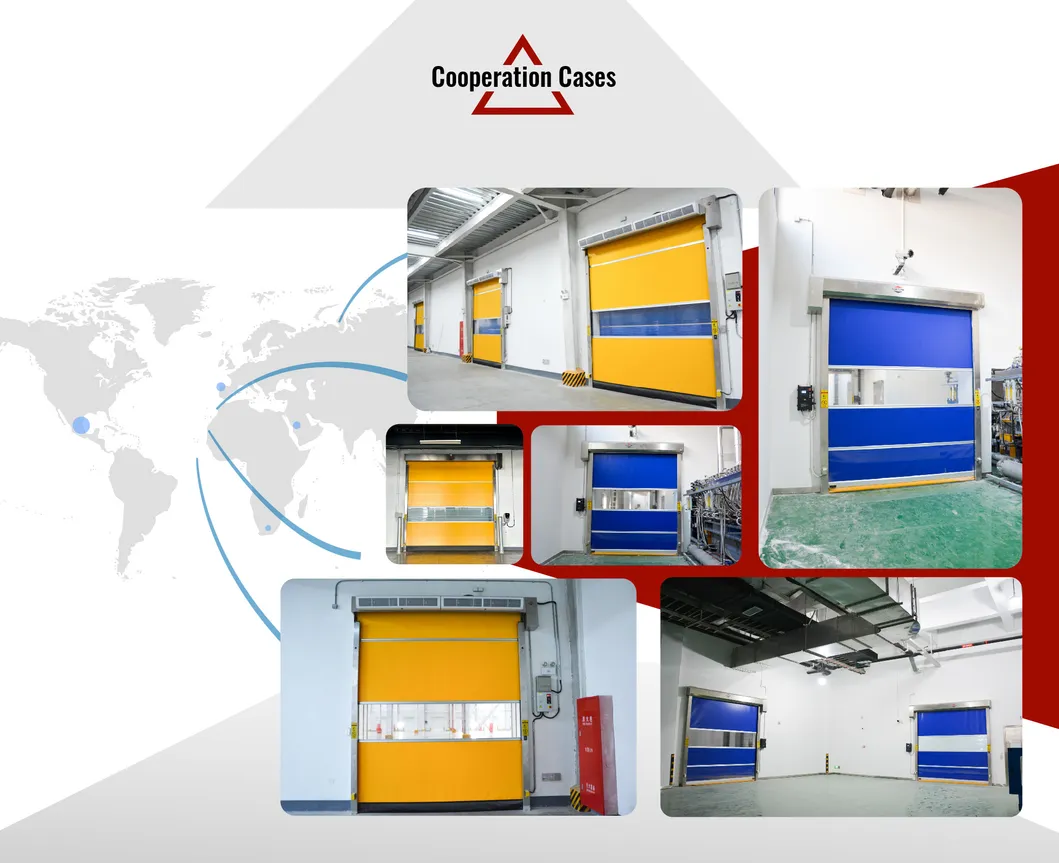

Interior Rolling Shutter Doors provide sealing, dust prevention, and efficient passage. They are widely used in food, medicine, electronics, automotive, logistics, and chemical industries.
How much installation space is required?
You need at least 500mm above the door opening. The motor side requires at least 500mm, while the non-motor side requires at least 200mm of clearance.
Can the PVC door curtain be cleaned easily?
Yes, PVC door curtains are non-absorbent and can be rinsed or wiped with clean water. Custom IP levels for rails and electrical controls are available for high-moisture environments.
What happens if a forklift hits the door?
When equipped with a soft bottom edge, the curtain can detach from the side tracks upon impact. It is designed to automatically reset into the tracks during the next upward cycle.
What is the wind resistance rating of this door?
This model has a wind resistance rating of 260pa, complying with JG/T302-2022 standards, making it suitable for interior windproof applications.
What control modes are available for operation?

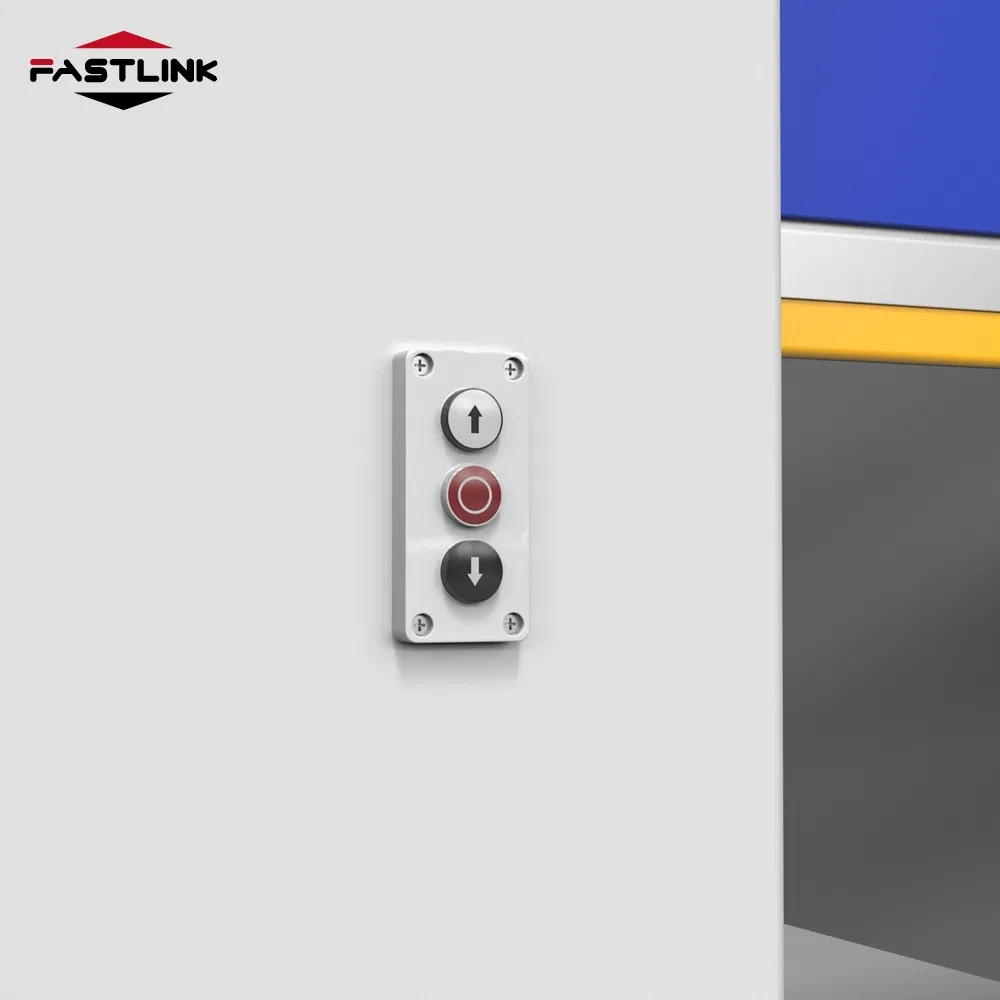

Options include standard push buttons, remote control, single/double-side radar (with or without man-vehicle separation), geomagnetic sensors, pull ropes, and advanced access systems (swipe card, password, or face recognition).
