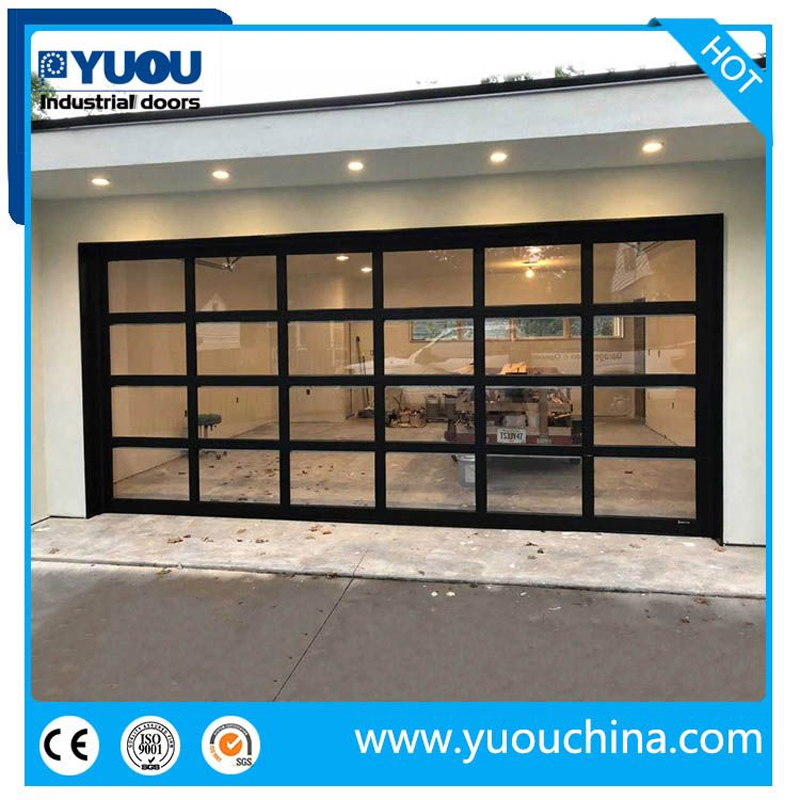

Commercial Shopfront Transparent Clear View Polycarbonate or Tempered Glass Aluminum Alloy Frameless Sliding Sectional Overhead Garage Door for 4s Shop Store

1 / 5

Commercial Shopfront Transparent Clear View Polycarbonate or Tempered Glass Aluminum Alloy Frameless Sliding Sectional Overhead Garage Door for 4s Shop Store

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:YO-Sectional

Material:Aluminum Alloy

Type:Revolving

Open Style:Revolving

Opening Type:Induced

Special Function:Thermal Insulated

Color:Various Color

Certification:ISO9001, CE

Application:Cold Room, Warehouse, Workshop

Panel Thickness:40mm

Max Specification:8m * 8m

Origin:China

Packaging & Delivery

Package Size:3000.00cm * 600.00cm * 600.00cm

Gross Weight:300.000kg

Transport Package:Export Wooden Case

Product Description

Sectional door has a beautiful appearance, high strength, low noise and insulation properties, making it widely used in areas with high cleanliness requirements, such as factories, medicine, food, electronics, printing, supermarkets, etc.

Technical Data

Motorized Transparent Sectional Door Polycarbonate Garage door
Max dimension	width * height 12000mm*8000mm
Power supply	220±10%V, or 380V, 50/60Hz, IP55
Opening/closing speed	20-40cm/s
Panel thickness	40mm/50mm/75mm/100mm/Back rib door
PU Density	48±2kg/m³
Wind resistance	28-35m/s (Class 10-12)
Sound insulation	24DB
Insulation level	0.38W/M°C
Water tightness	30Pa

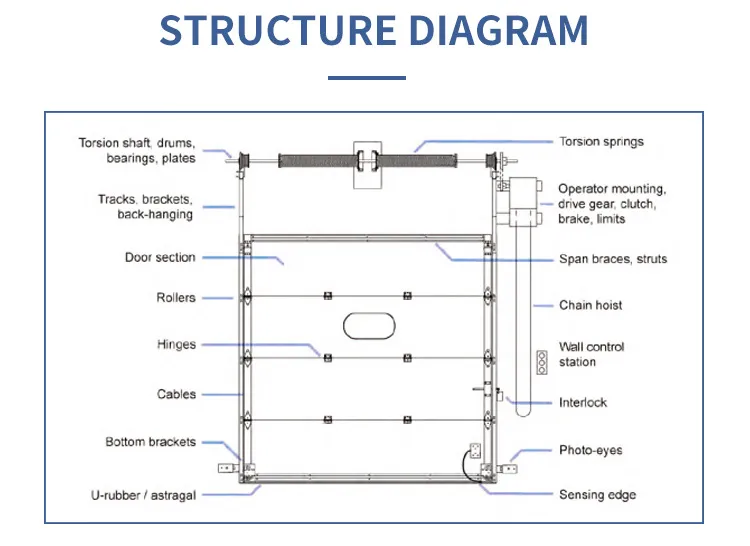

Structure Diagram

Product Details

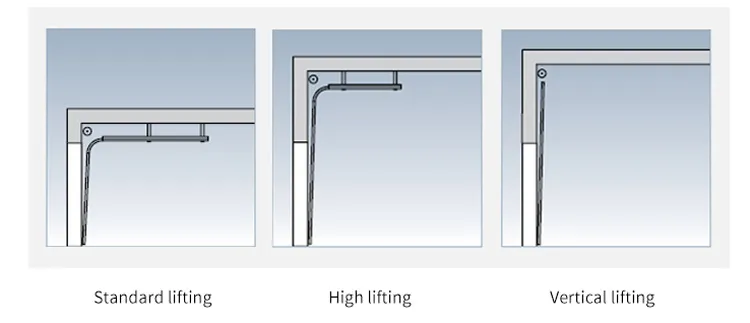

1. Lifting Way

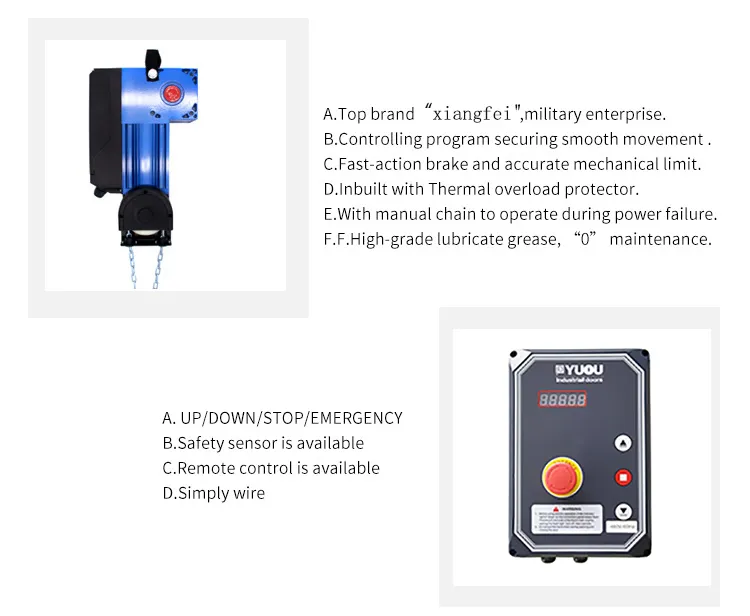

2. Motor and Controller

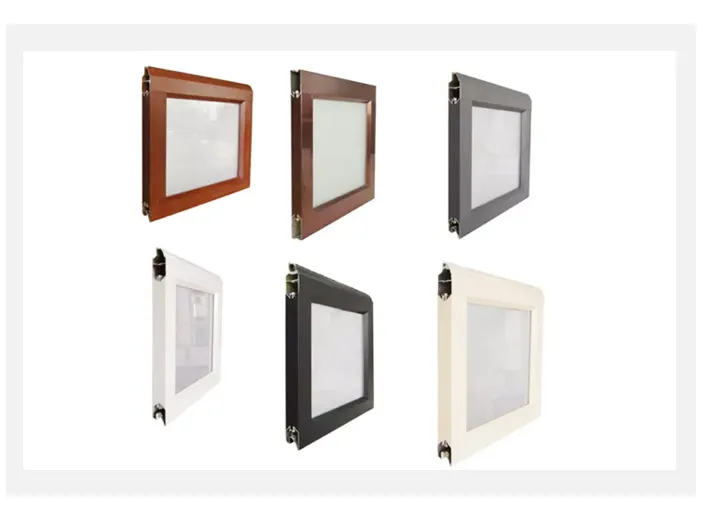

3. Panel (Finger Safe Style)

Two layer 1.2mm aluminum alloy, surface: Electrostatic coating. Total thickness: 40mm

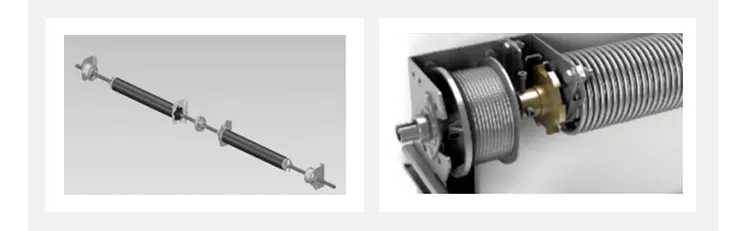

4. Safety Devices

1. Spring brake device: anti-broken
2. Service life: 100 thousand opening and closing
3. Driving force: 140N
4. Chosen according to door size, weight and lifting pattern

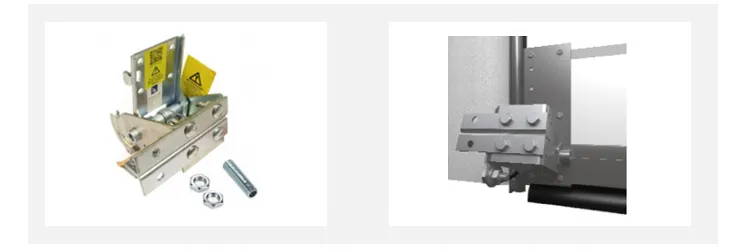

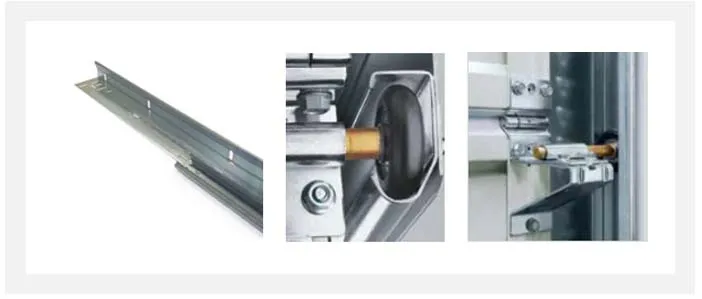

5. Accident Dropping Safety Device & Guide Rail

Door bottom is equipped with dropping avoid steel cord, securing the accident dropping within 5cm.

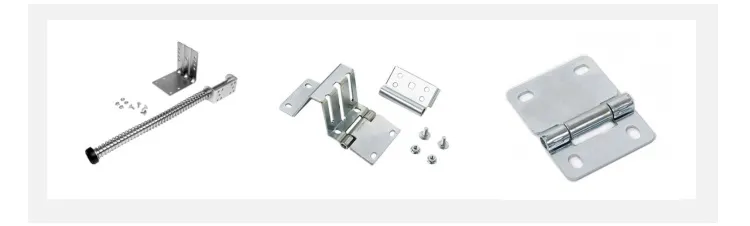

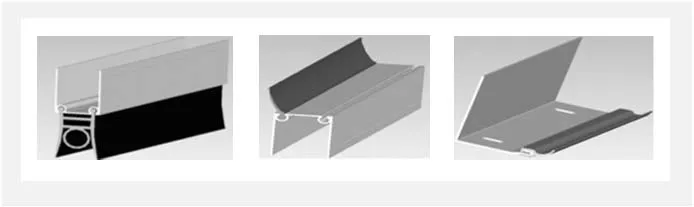

6. Seals & Buffer

EPDM Sealing rubber is installed onto top, bottom and periphery: cold resistant and anti-broken.

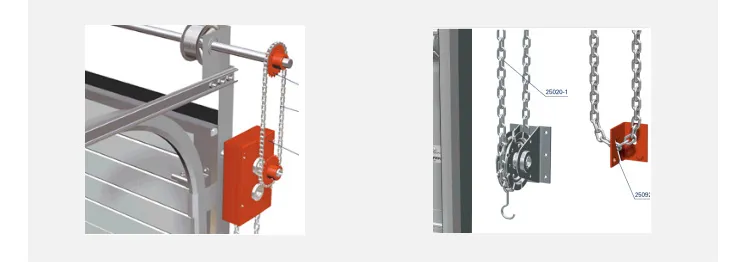

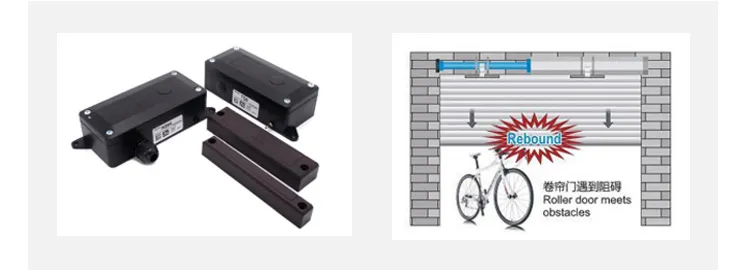

7. Manual Device & Wireless Airbag

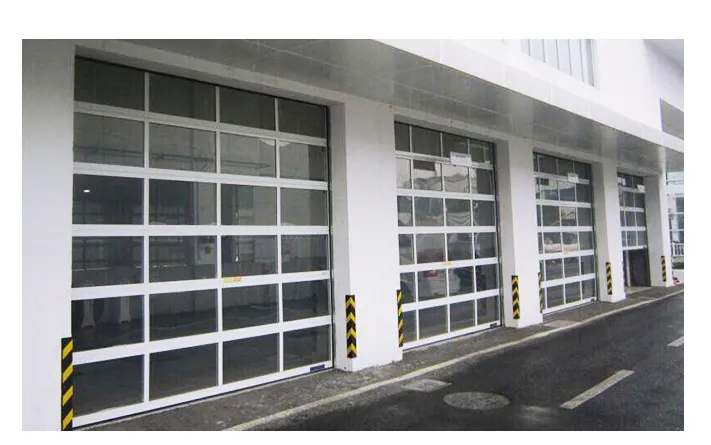

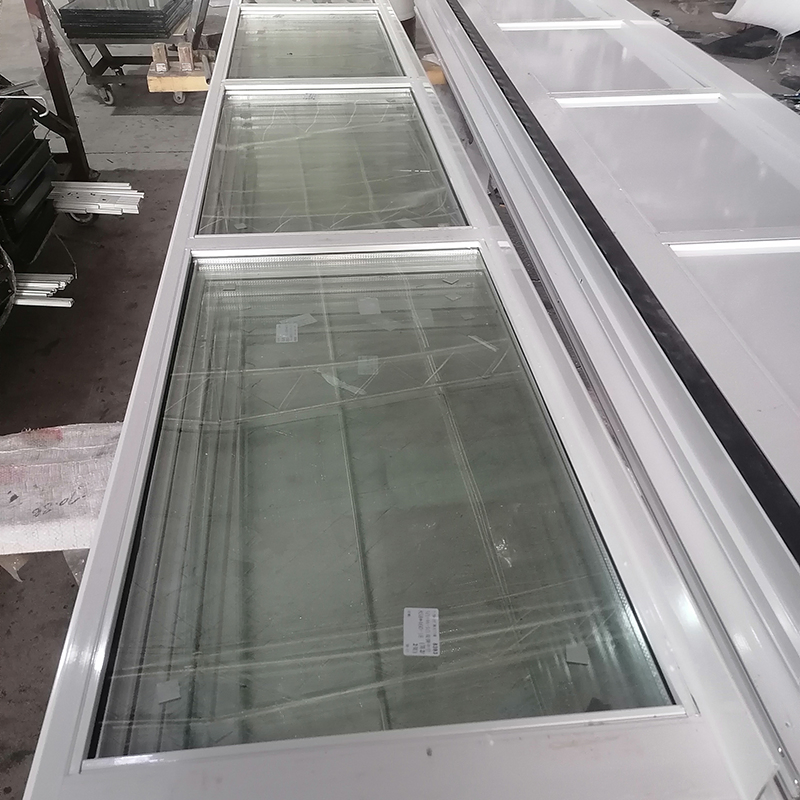

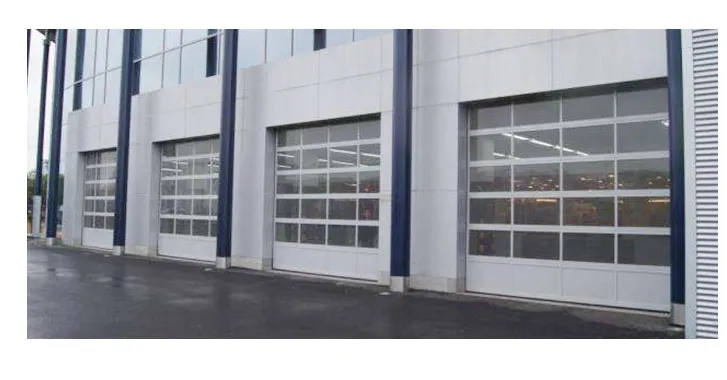

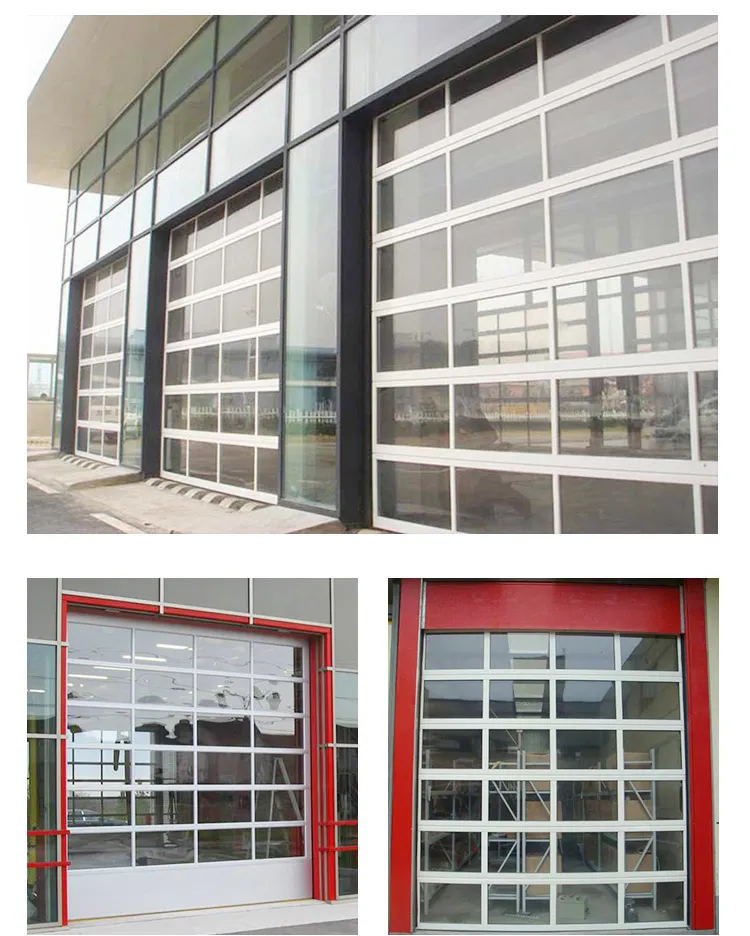

Products Real Shot

Frequently Asked Questions

Q: What are the primary applications for this sectional door?

It is widely used in environments requiring high cleanliness and insulation, such as factories, food processing plants, pharmaceutical facilities, electronics workshops, and supermarkets.

Q: What is the maximum size available for the YO-Sectional door?

The technical data supports a maximum dimension of up to 12,000mm in width and 8,000mm in height.

Q: How does the door perform against high winds?

The door is designed for high wind resistance, capable of withstanding speeds between 28-35m/s, which corresponds to Class 10-12.

Q: What safety features are included?

Safety features include a spring brake anti-broken device, an accident dropping safety steel cord (stops within 5cm), and a bottom wireless safety airbag.

Q: What is the power supply requirement for the motorized system?

The system supports 1-Phase 220V or 3-Phase 380V at 50/60Hz, with an IP55 protection rating.

Q: Are the door panels durable and insulated?

Yes, the panels are made of two-layer aluminum alloy with a thickness ranging from 40mm to 100mm, featuring high-density PU insulation (48±2kg/m³).
