Customization: Available
After-sales Service: 2 Years
Warranty: 1 Year
Send Inquiry

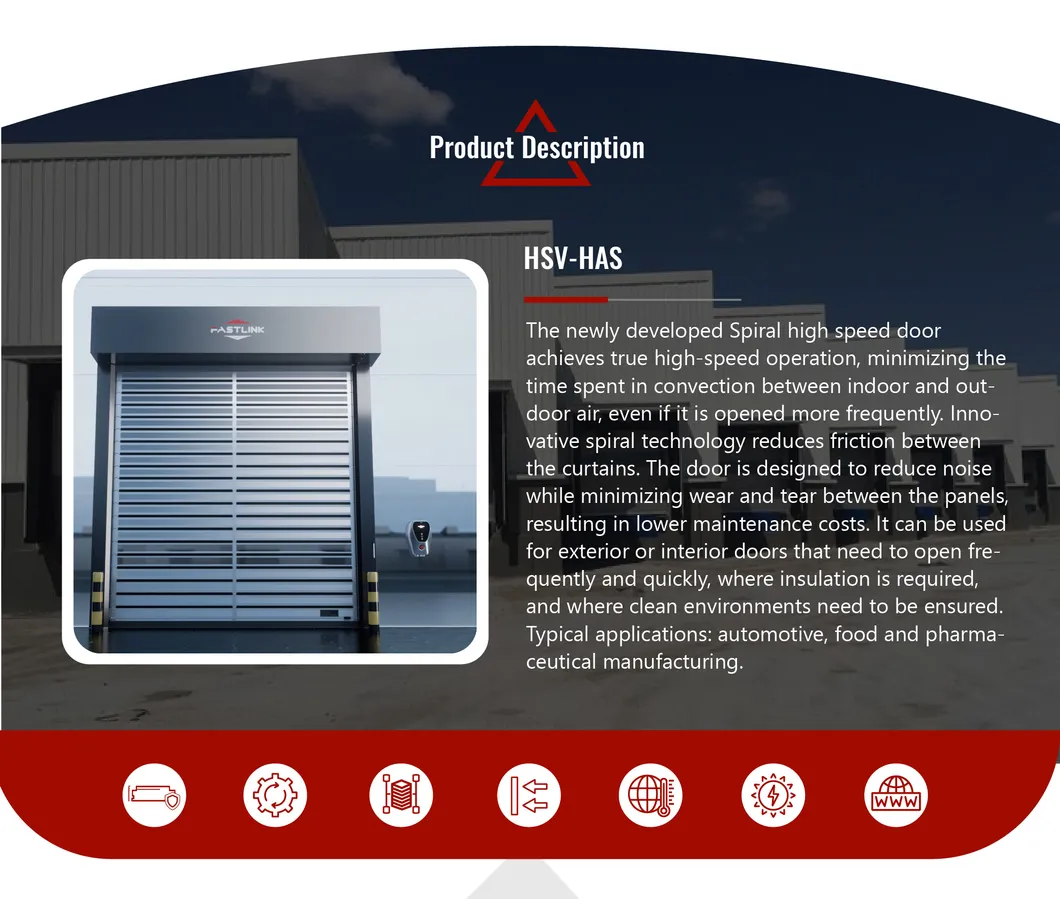

Product Description

Basic Specifications

Model NO.
HSV-HAS
Material
Aluminum Alloy
Type
Sliding
Open Style
Electric
Opening Type
With Remote Control
Special Function
Security
Certification
CE
Position
Industrial
Motor
Servo Motor
Thickness
40mm
Wind Resistance
1500PA~3000pa
Water Tightness
Level 6(GB/T 7106-2019)
Rapid Roll up Spiral High Speed Door

Technical Parameters

Critical Attributes
Product NameSpiral High-Speed Door
Door Panel MaterialAluminum Alloy
CharacteristicThermal insulation, wind resistance, anti-theft, sealing, safety, intelligent control

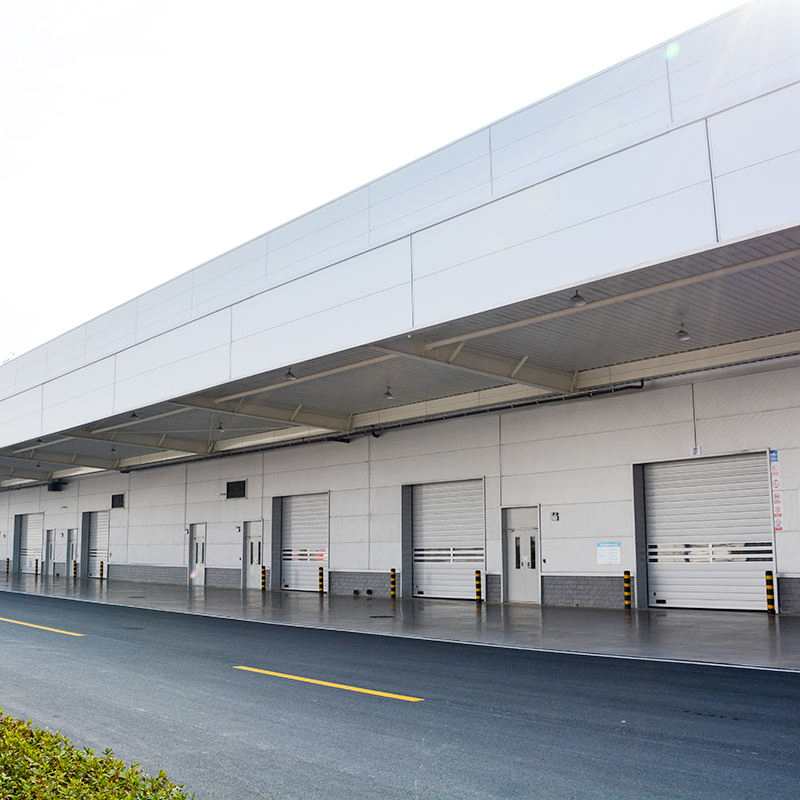

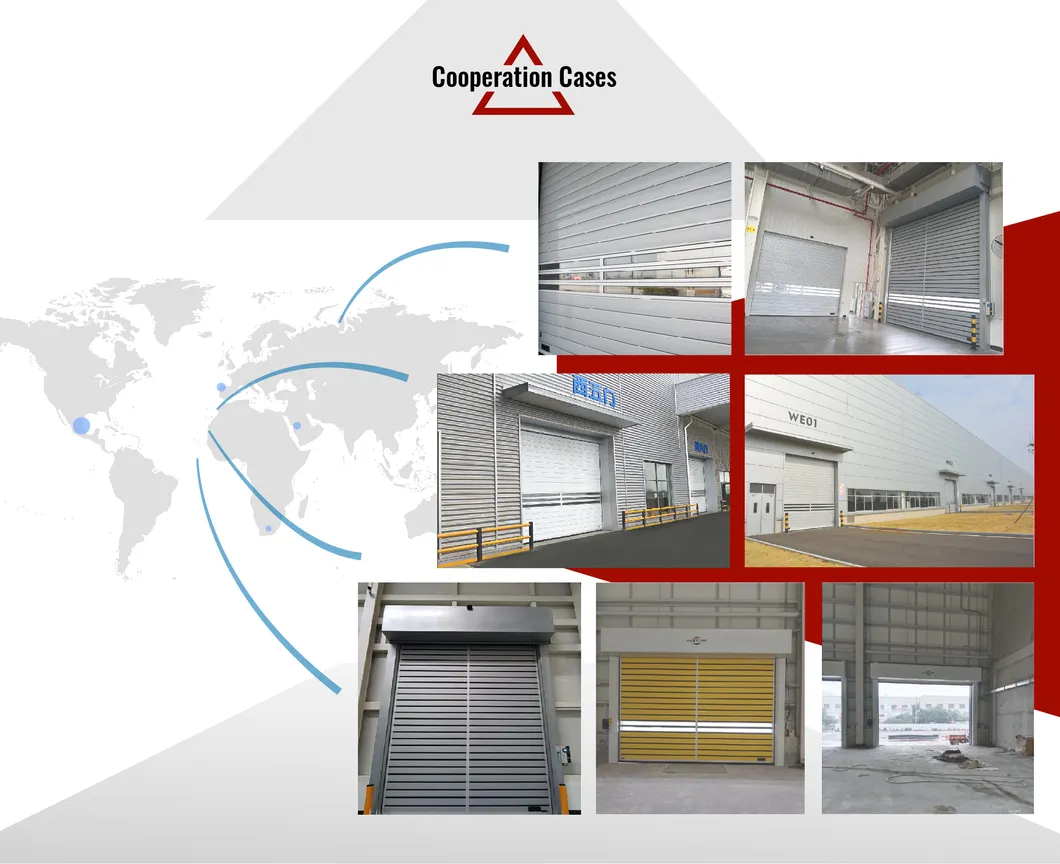

ApplicationIndustrial plants, logistics and warehousing buildings
Performance & Operation
Opening SpeedMax 2.5m/s
Closing Speed0.8m/s
Size RangeW1250mm * H2000mm to W8000mm * H9000mm
Panel TypePolyurethane sandwich panel (42mm)

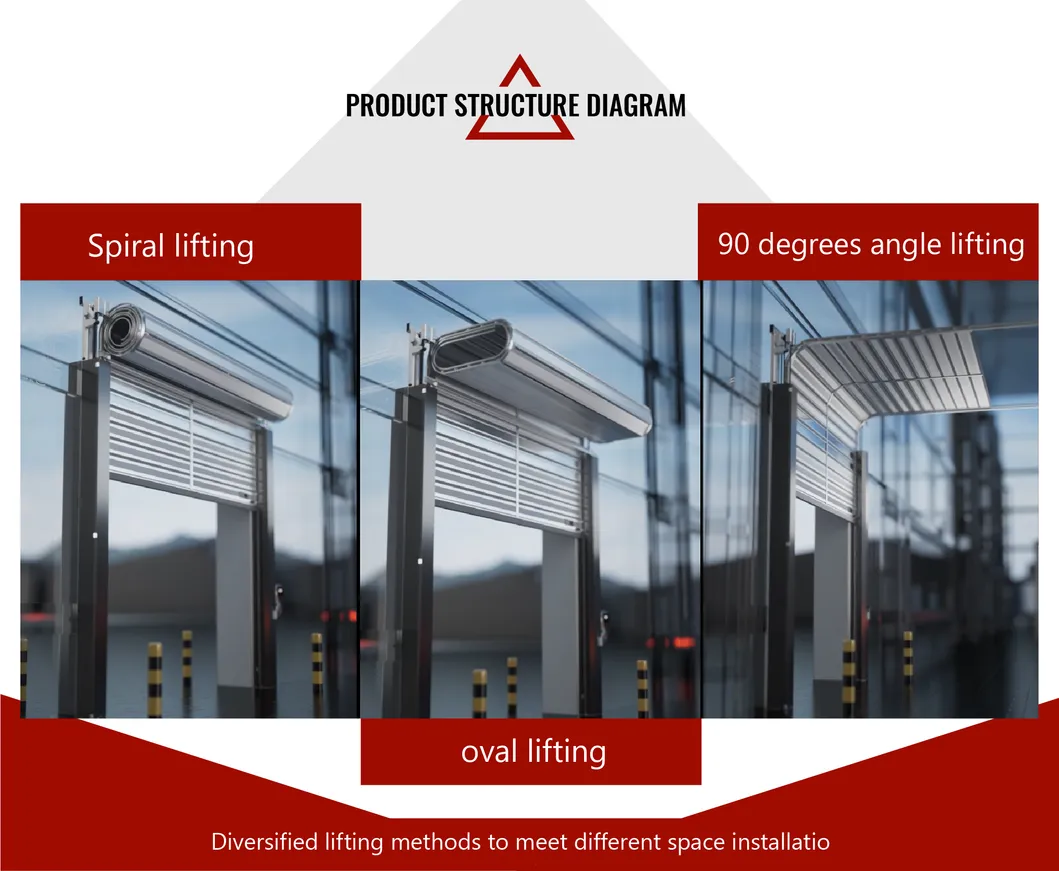

Lifting MethodSpiral lift / Oval lift / 90 degree right angle lift

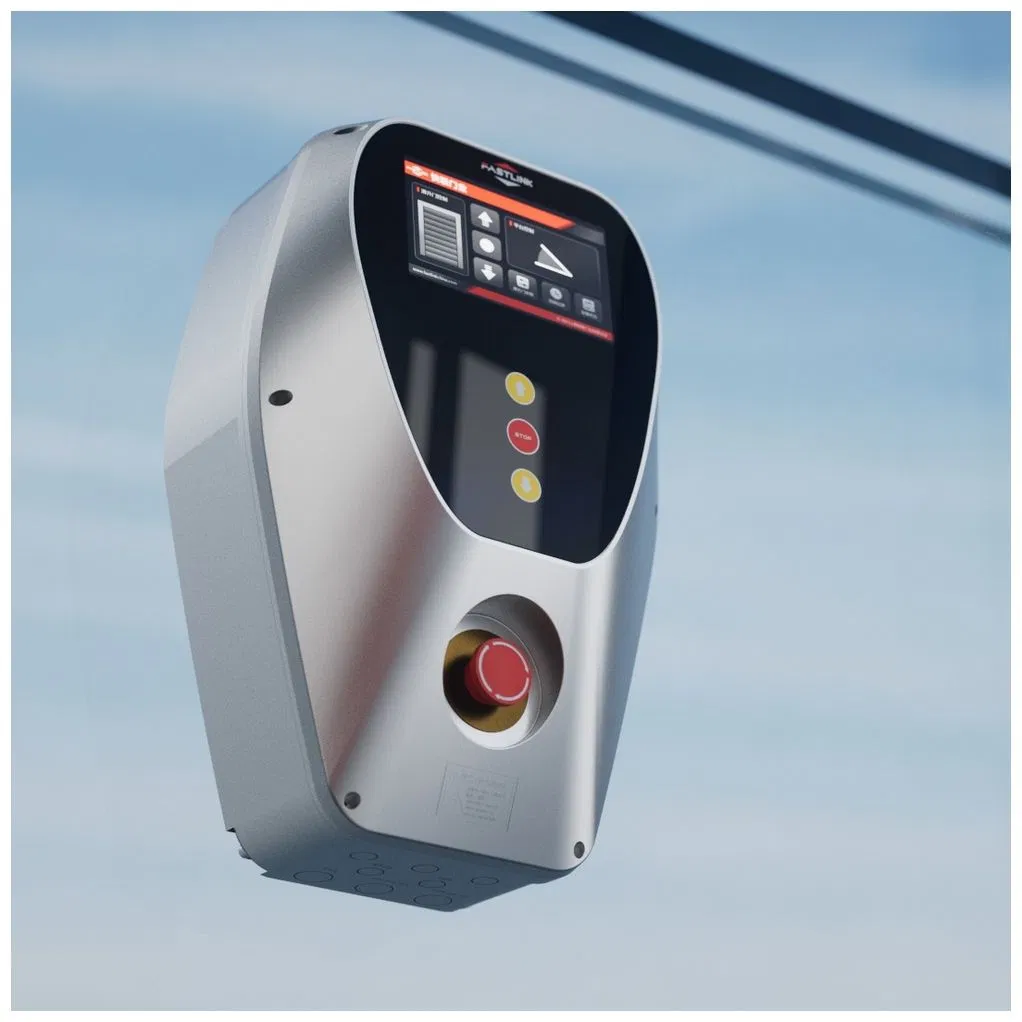

Control SystemIntelligent control system: fault code display, operation status display

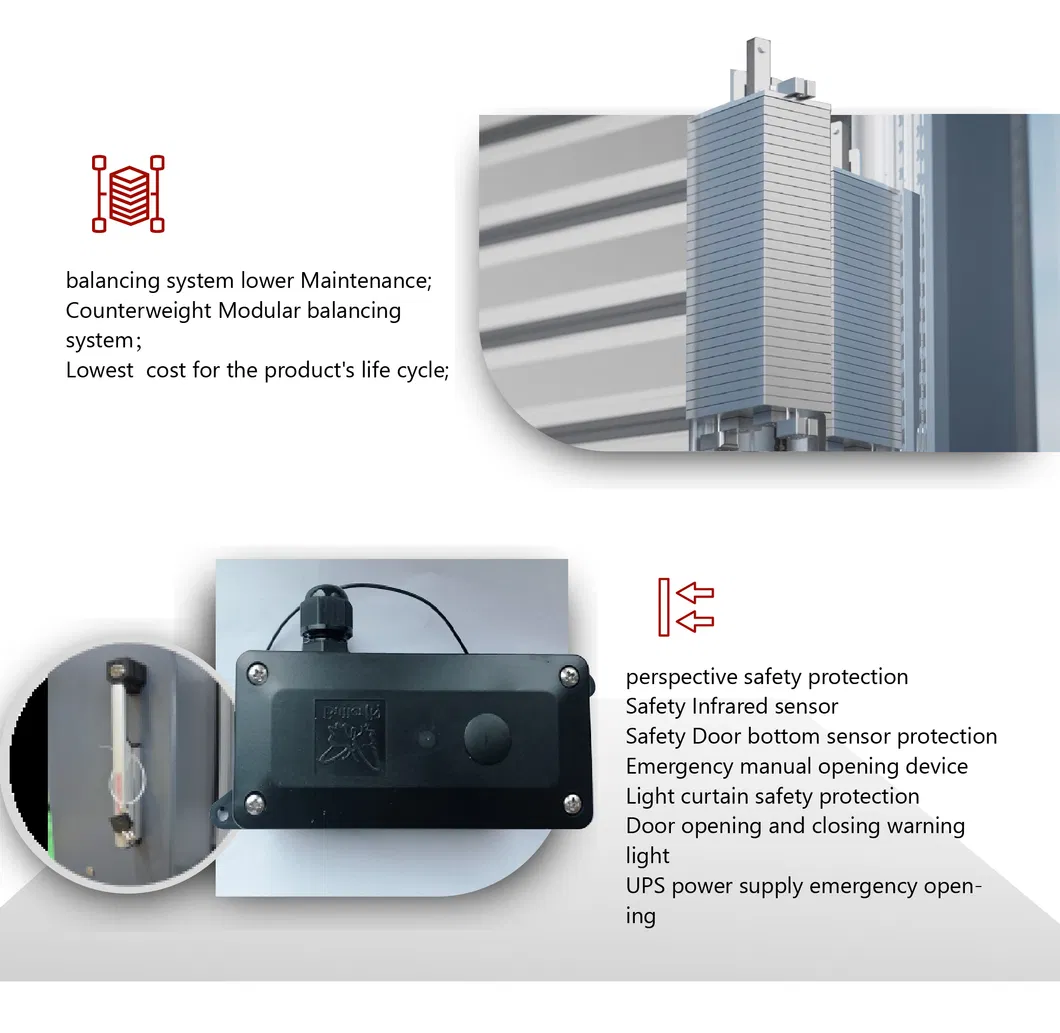

Security Configuration

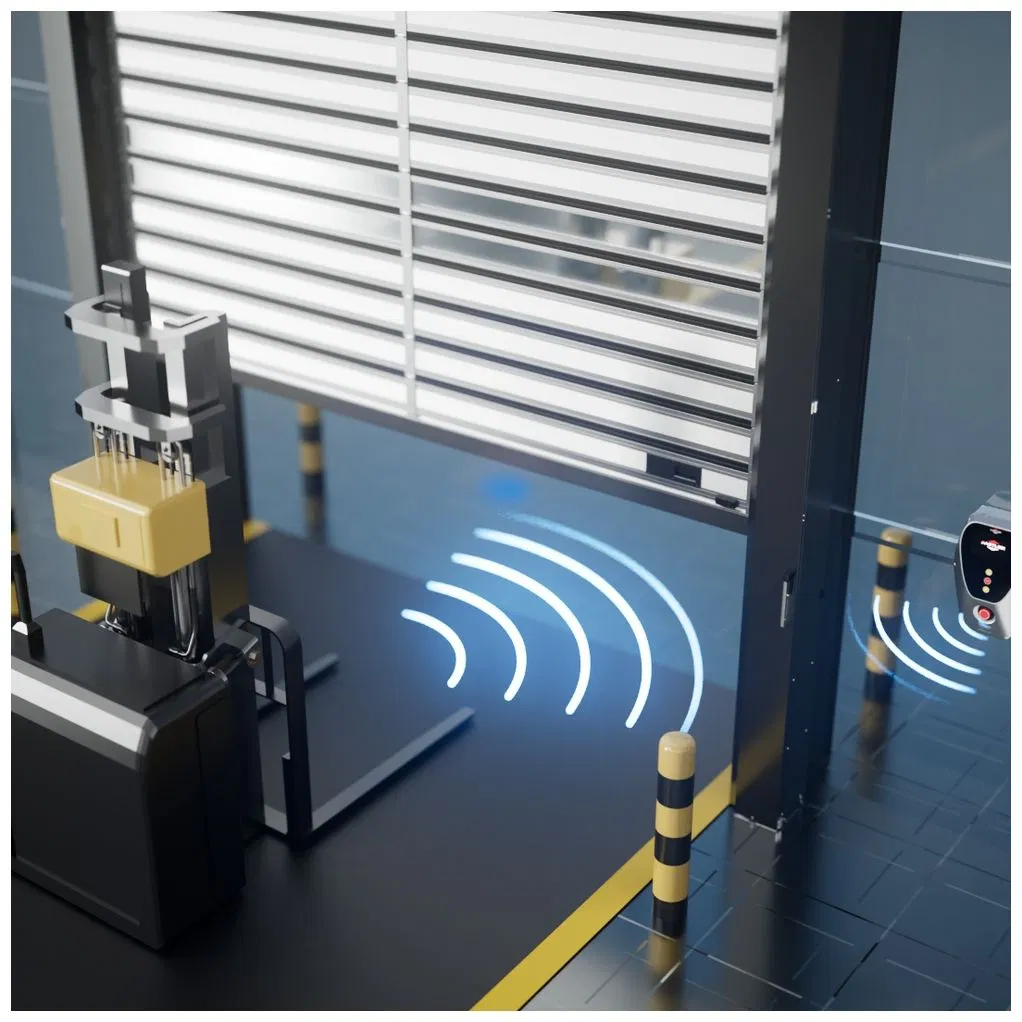

Obstacle ReboundSafety proximity sensor
Emergency DeviceEmergency manual opening device
Optional ExtrasSafety light curtain, Switch warning light, UPS power
Detail View 1

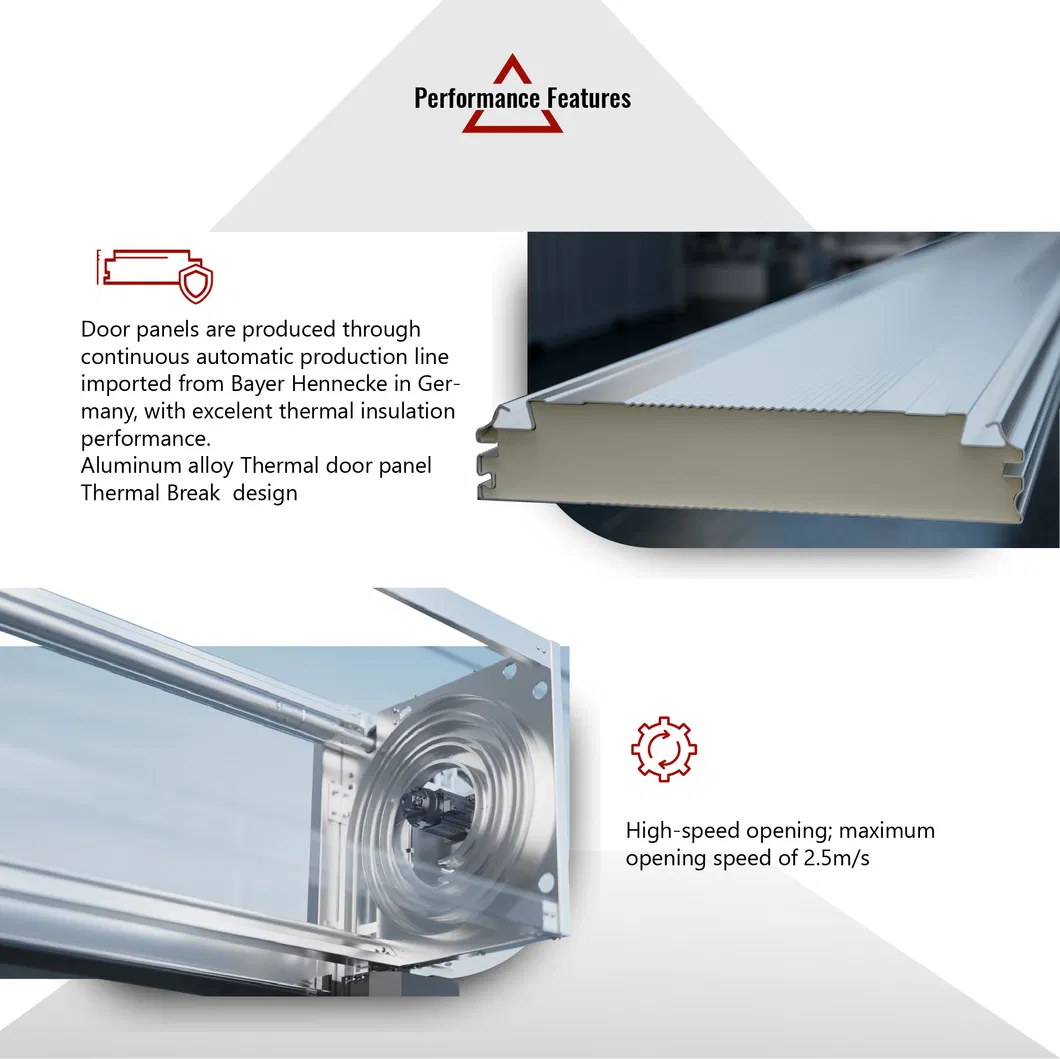

Detail View 2
Detail View 3

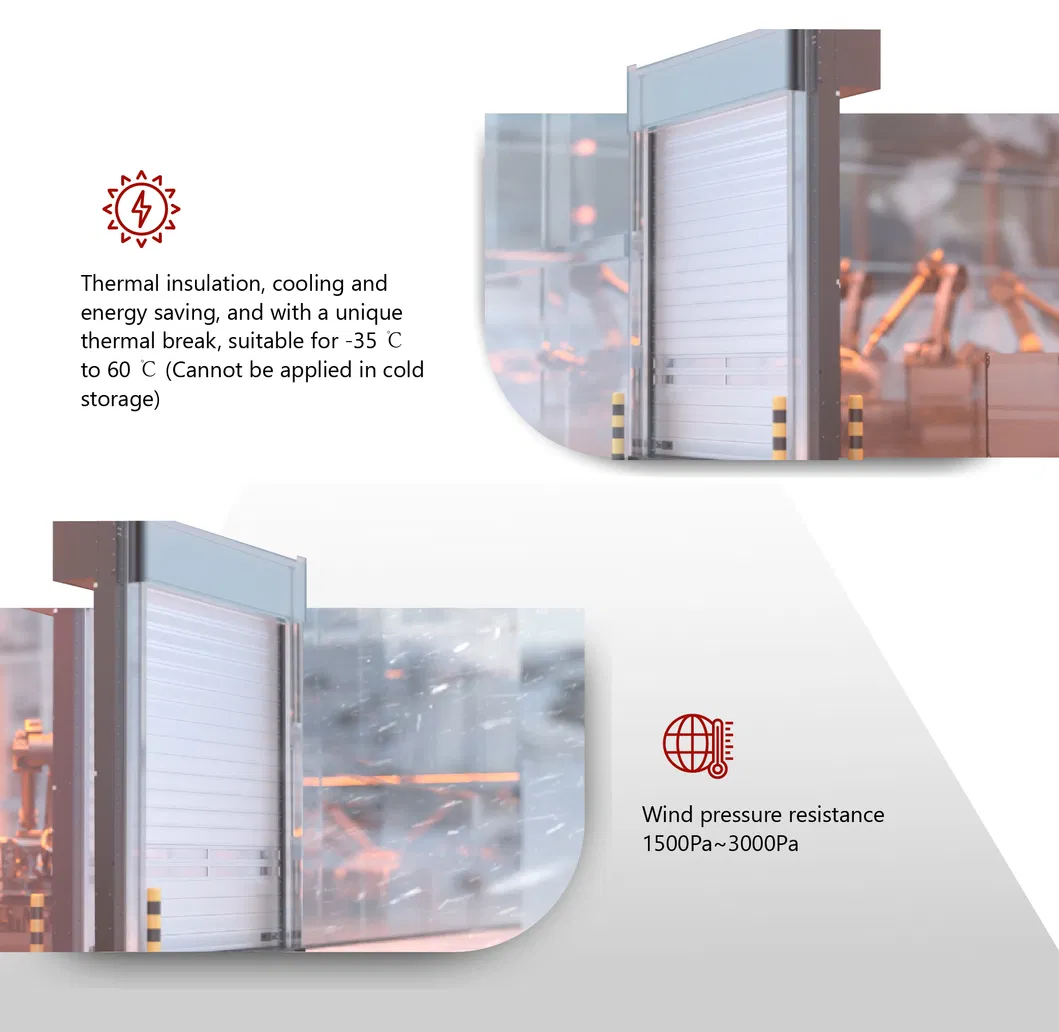

Application 1

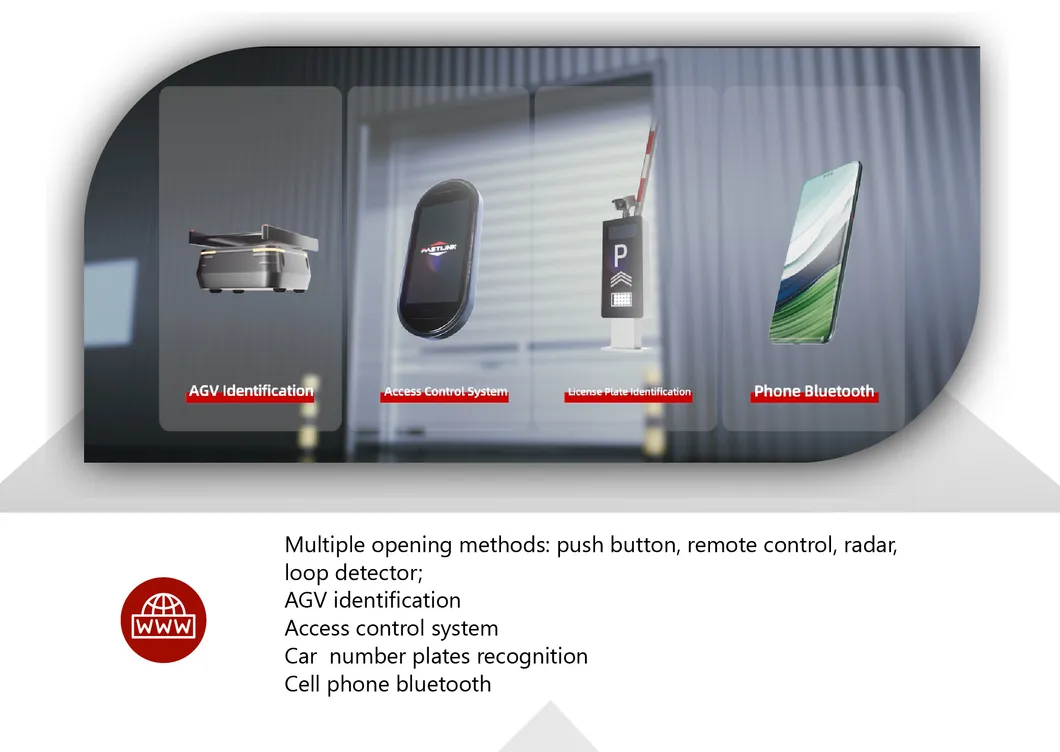

Application 2
Application 3

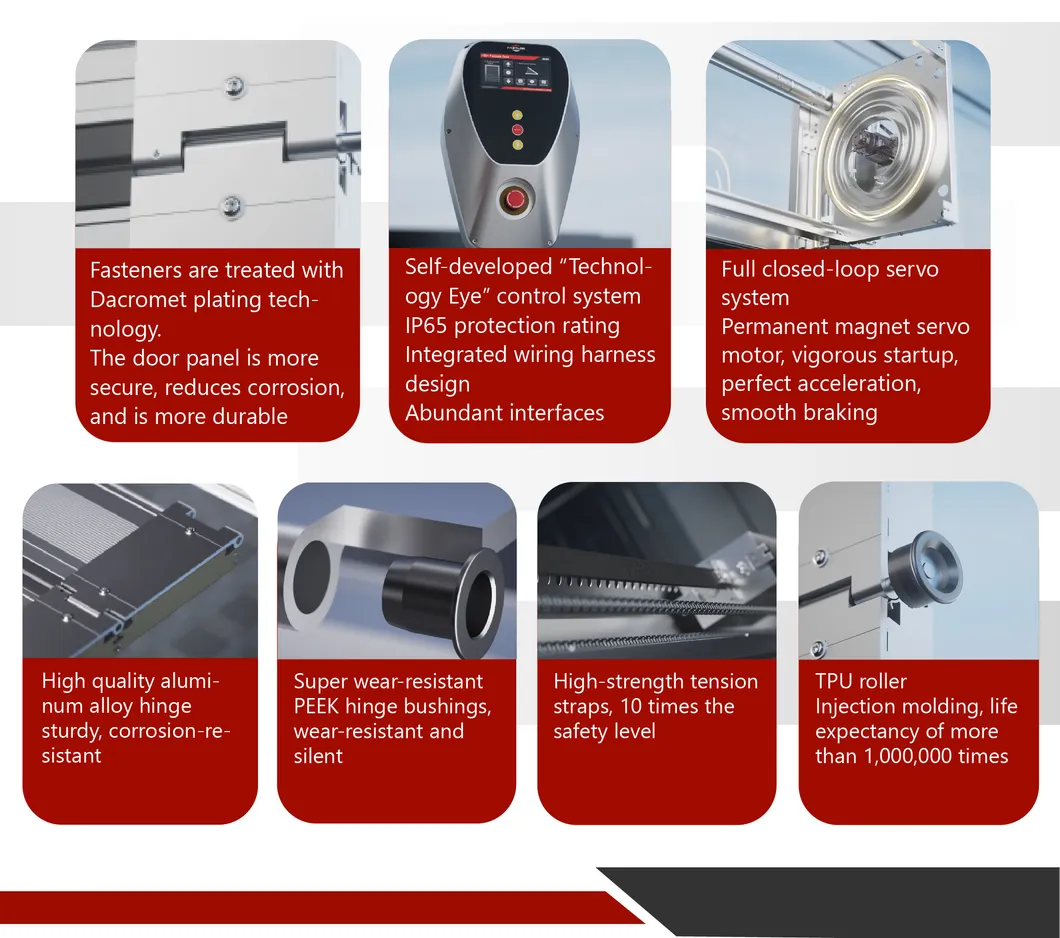

Structural View 1
Structural View 2
Structural View 3

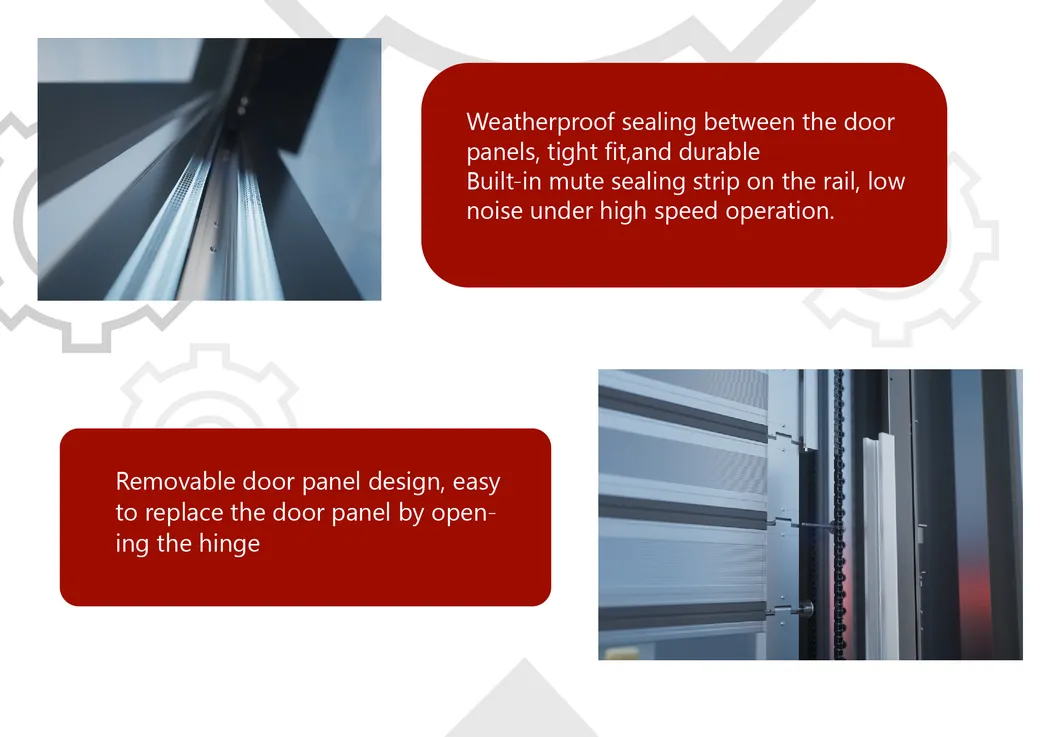

Component 1
Component 2
Component 3

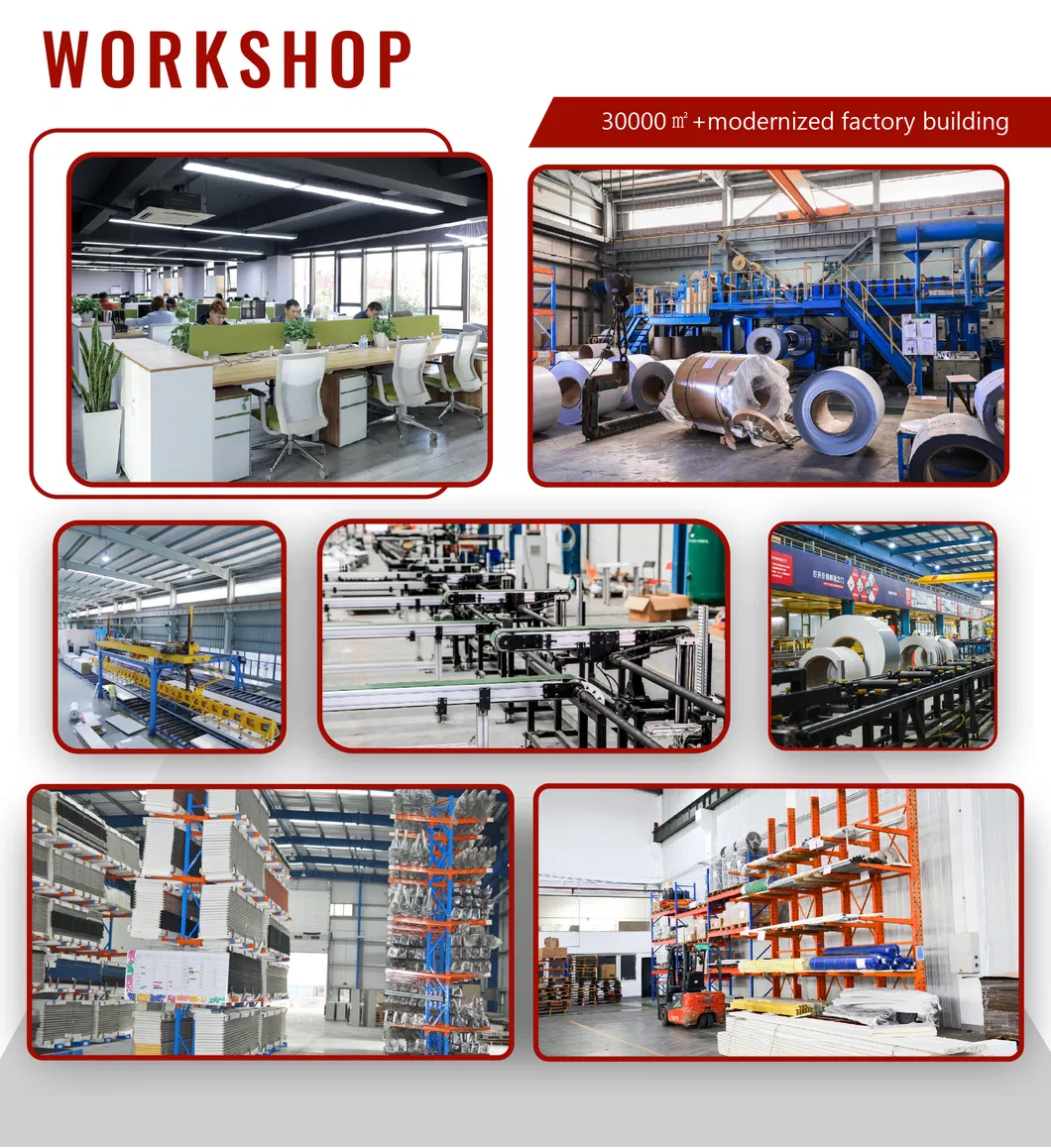

Manufacturing 1
Manufacturing 2

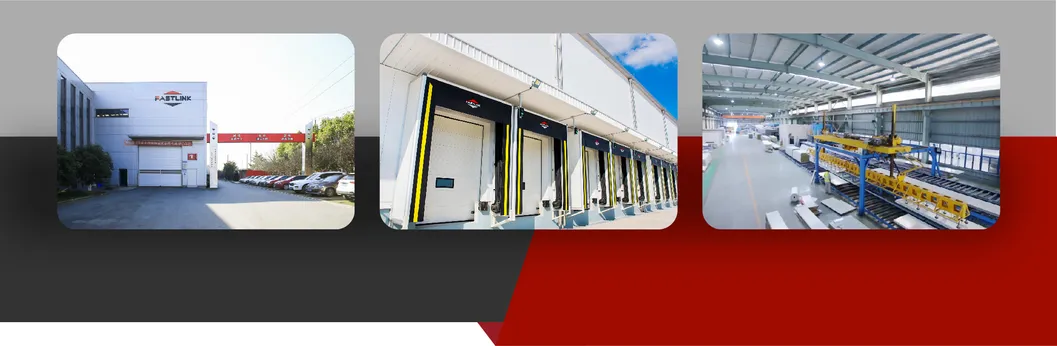

Manufacturing 3
Installation Overview

Frequently Asked Questions

How much installation space needs to be reserved above the doorway?
The minimum space required above the doorway for installation is 1000mm.
Can it withstand extreme wind conditions like a typhoon?
Yes. The spiral high-speed door features a unique door panel structure and hinge design. Frontal pressure of up to 700pa will not affect the door, and it is rated for wind resistance up to 3000pa.
Can this spiral high-speed door be used for a garage?
Yes, they are widely used in civil and commercial garages. They can be controlled via remote control or mobile phone APP, providing security, anti-theft, and wind resistance for vehicles.
Is the door easy to operate?
The door is designed with modular integrated circuits and a simple push-button control box (on/off/stop). It includes operating instructions and troubleshooting guides for easy manipulation.
How often does the door require maintenance?
The counterweight balancing system does not require maintenance for up to 1 million uses. However, a maintenance check once a year or every 200,000 cycles is recommended for optimal performance.
What is the thermal insulation performance?
The door provides excellent thermal insulation with a heat transfer coefficient of K=1.1W/(m². K).
