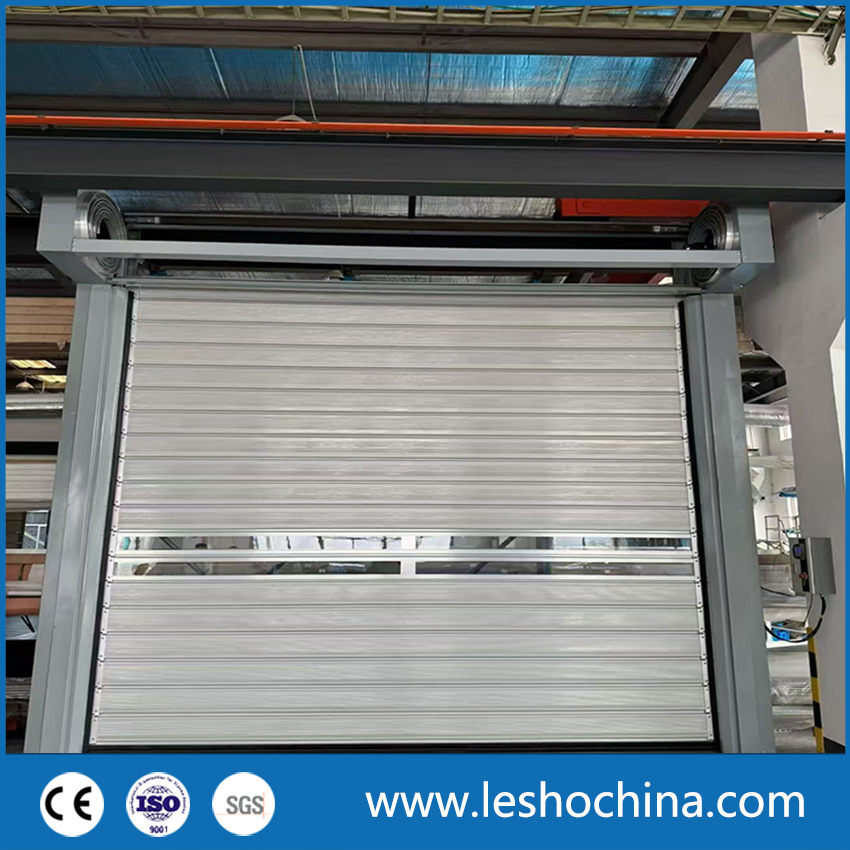

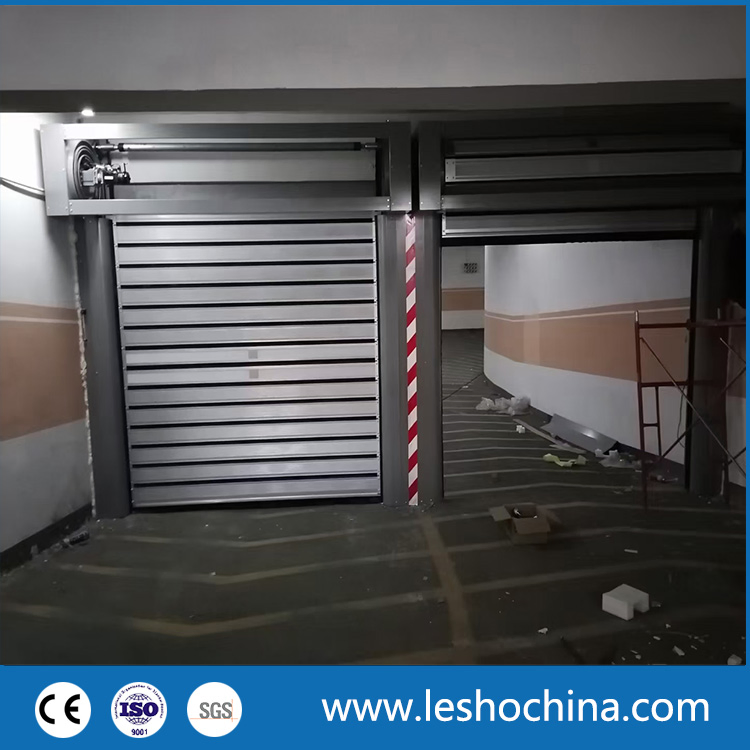

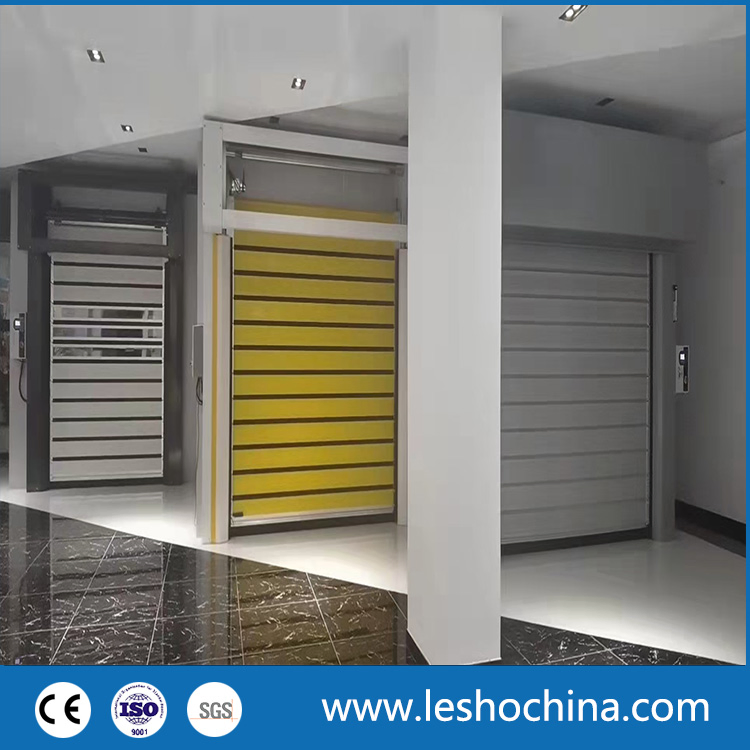

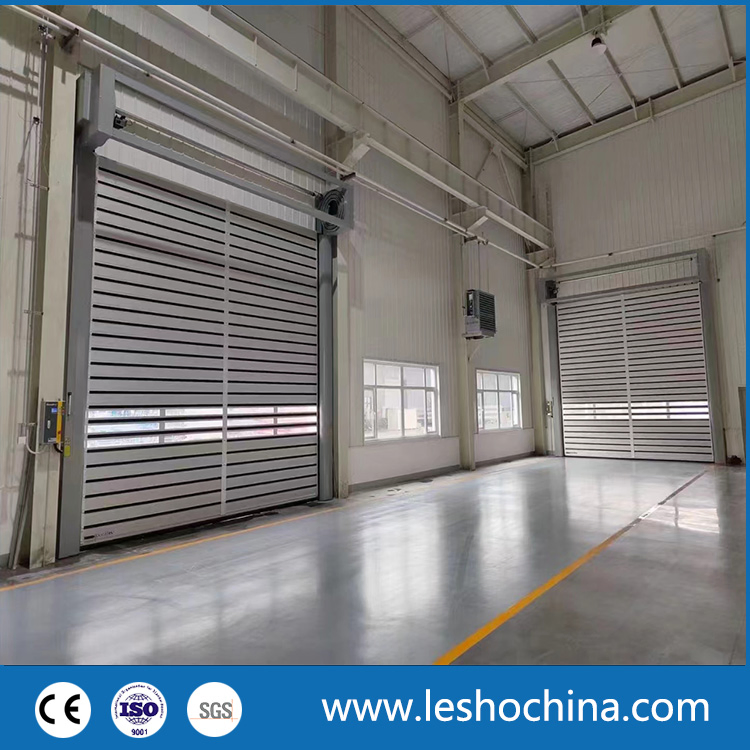

Aluminum Alloy Spiral High Speed Door
Application: A model of Rapid Doors with thermal insulated aluminum slats. Most advanced and high-oriented model. It is fit for areas with high demand of both security, high-strength, thermal insulation and high running speed.
| Max dimension | 8000mm wide*8000mm high |
| Power supply | 1-phase 220±10%V, 50/60HZ, or 3-phase 380V±10%V, 50/60HZ |
| Protection level | IP55 |
| Wind resistance | beaufort scale 12 (35m/s) |
| Max opening speed | 2.0m/s |
| Max closing speed | 1.0m/s |
| Sound insulation | R=25dB |
| Available colors | Grey, Blue, White, Aluminum, Golden |
| Design Service Life | 20 years |

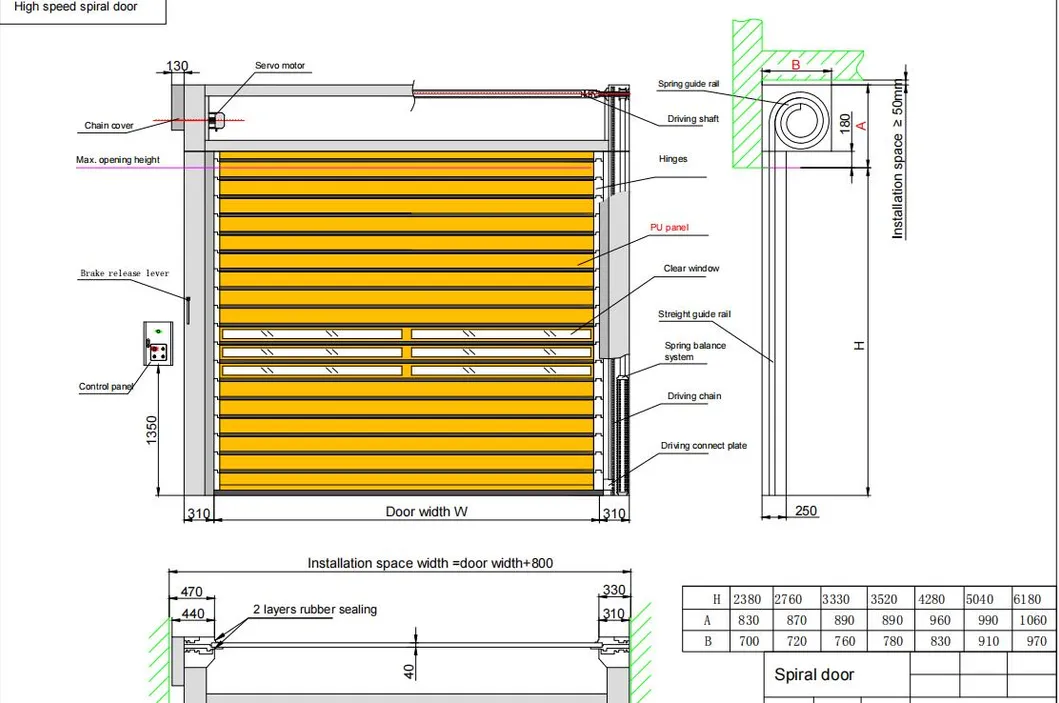

CAD Drawing: Accurate shop drawing to show the door dimension clearly, ensuring perfect installation fit.

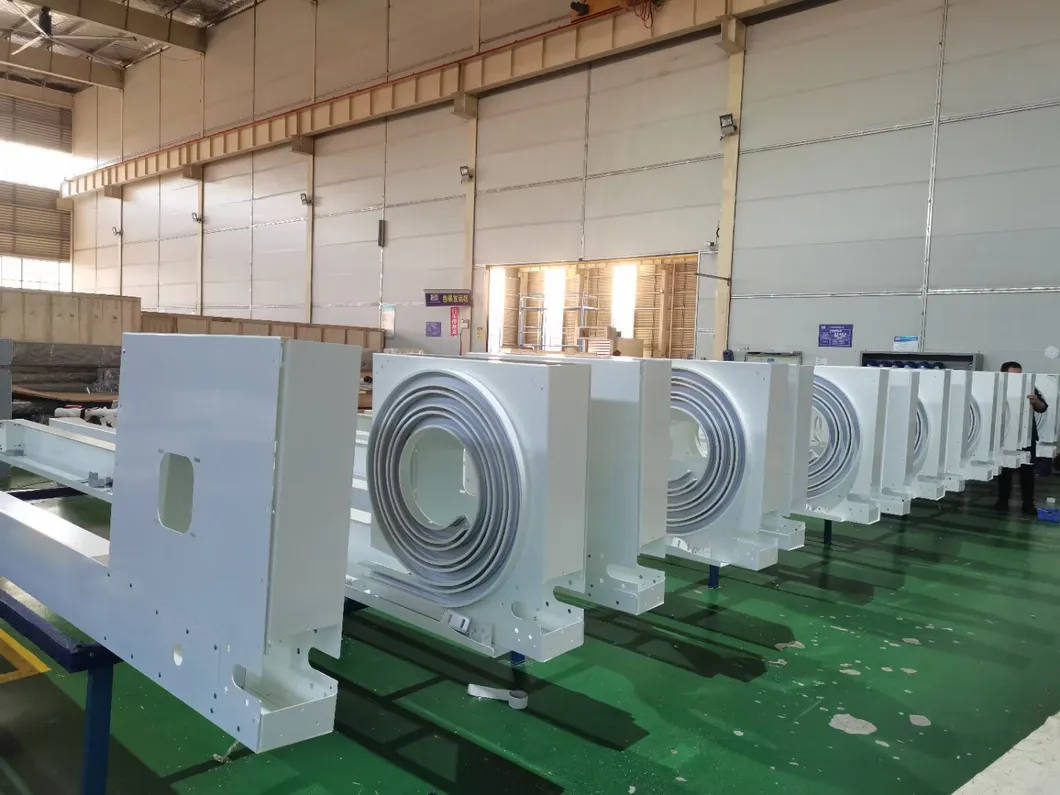

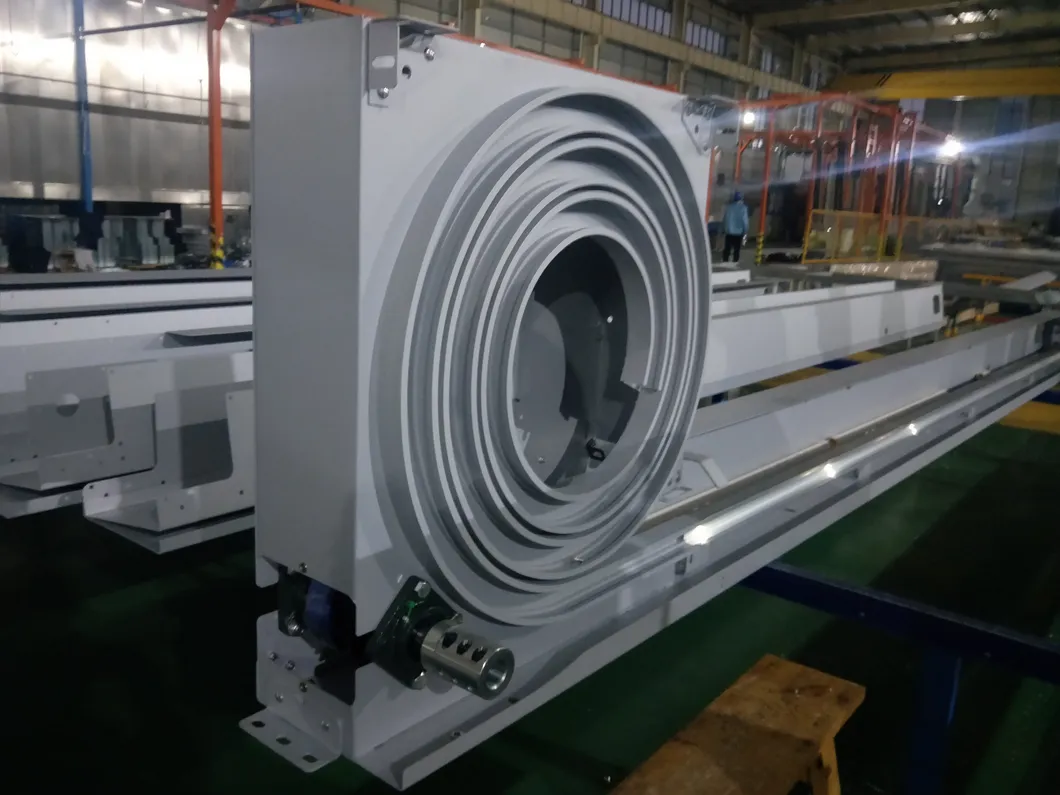

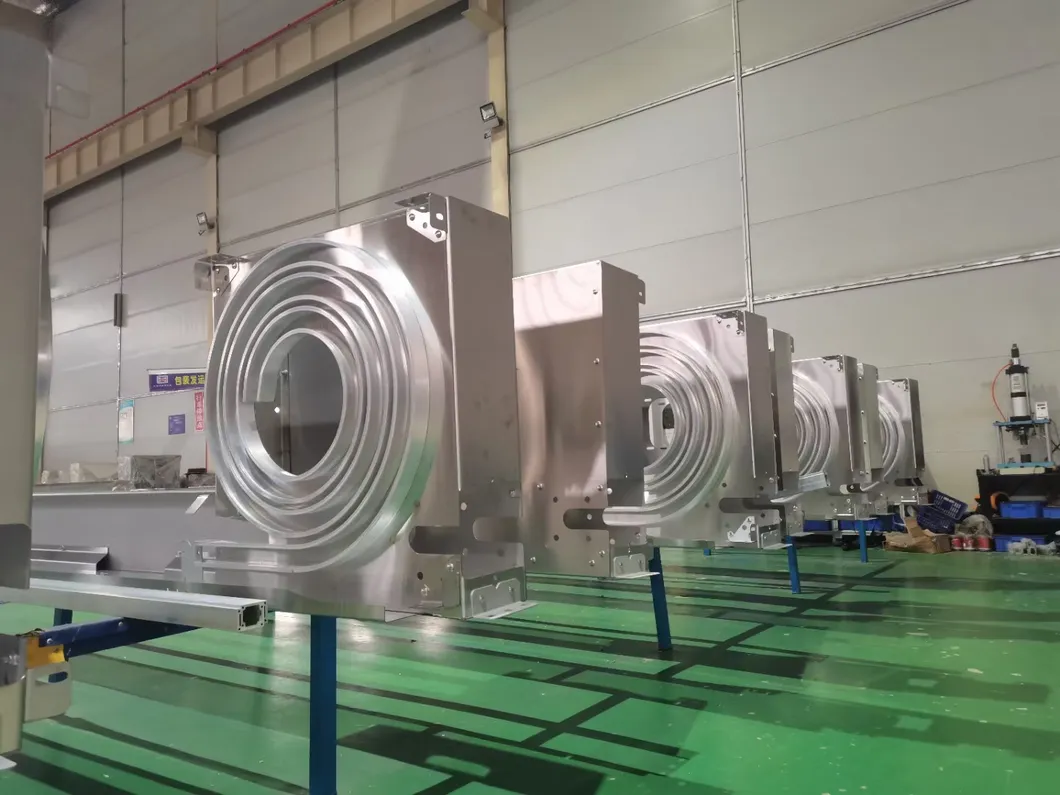

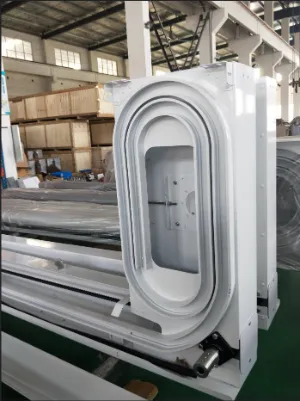

Special Spiral Guide Rail: Aluminum alloy profile rail with smooth anodized surface. The door panel runs in guide rail by separate wheel, avoiding friction. This design combines high speed with a long service life.

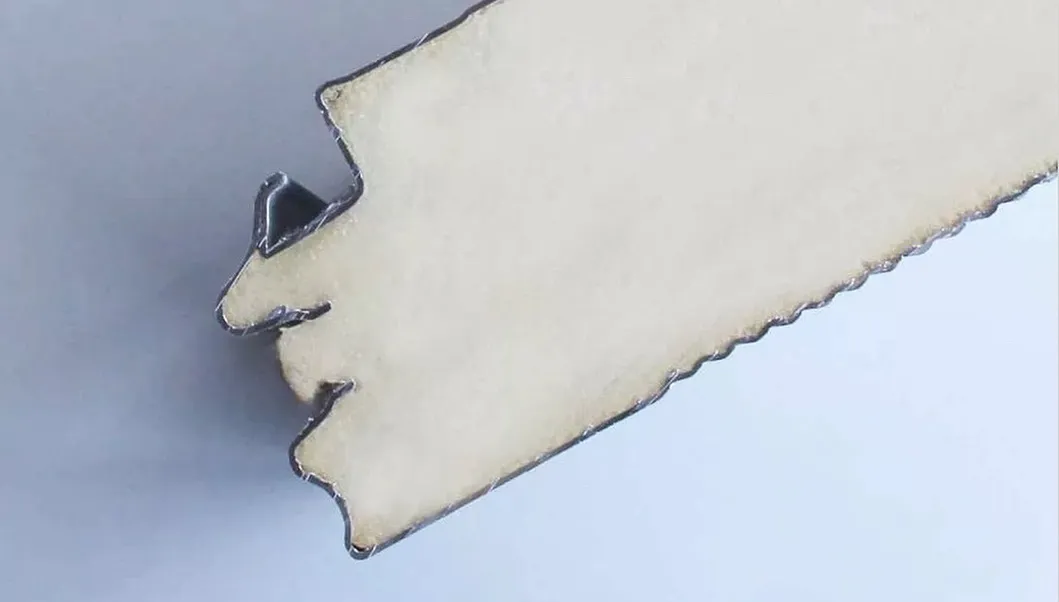

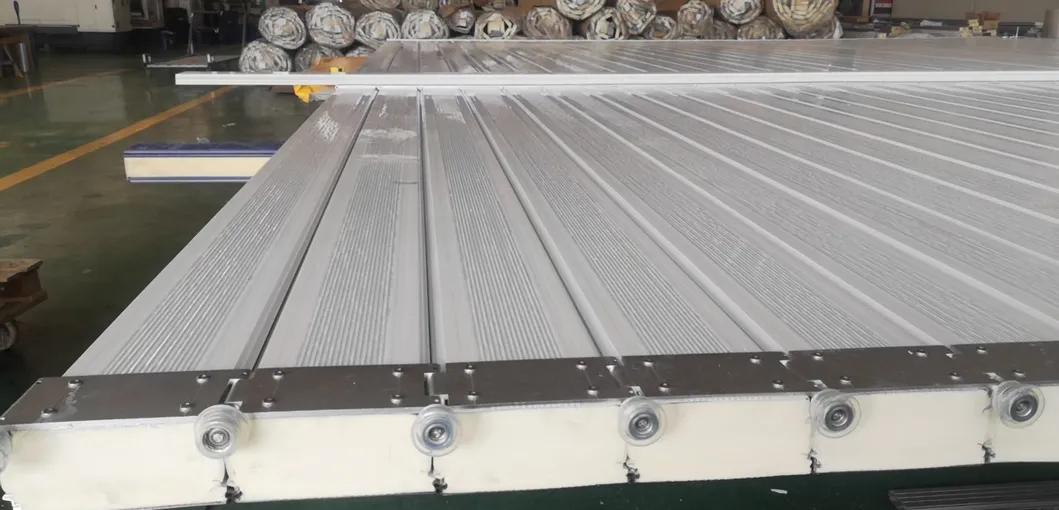

Thermal Insulation: Double layer aluminum panel filled with intermediate polyurethane foam. The broken bridge design prevents temperature loss and saves energy.

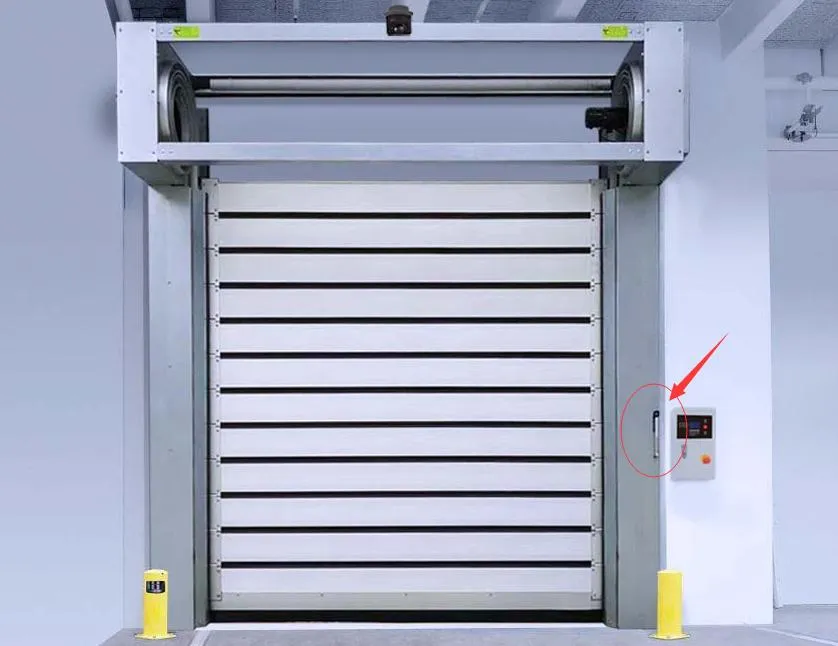

Emergency manual open device: Most of the door weight is balanced by the spring system, allowing easy manual operation during power failures.

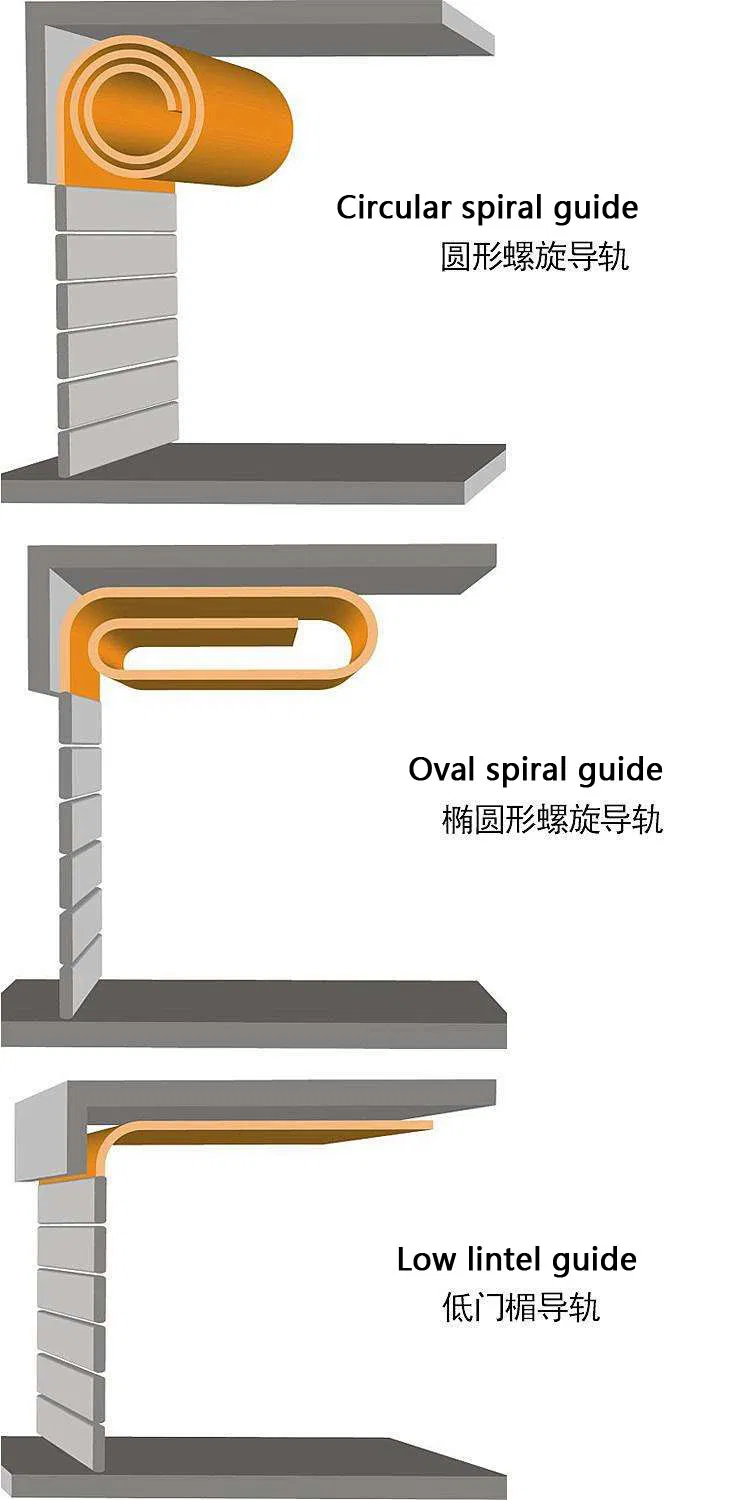

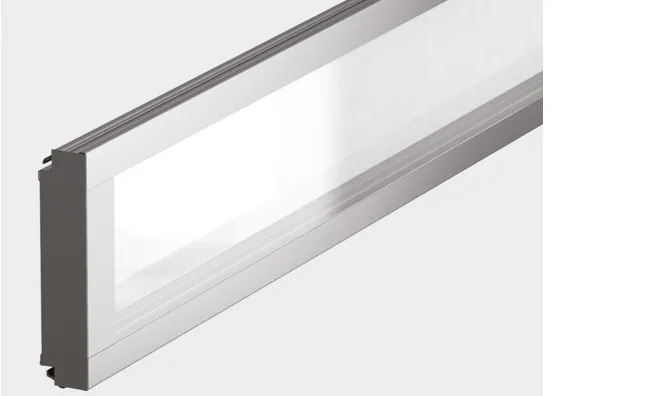

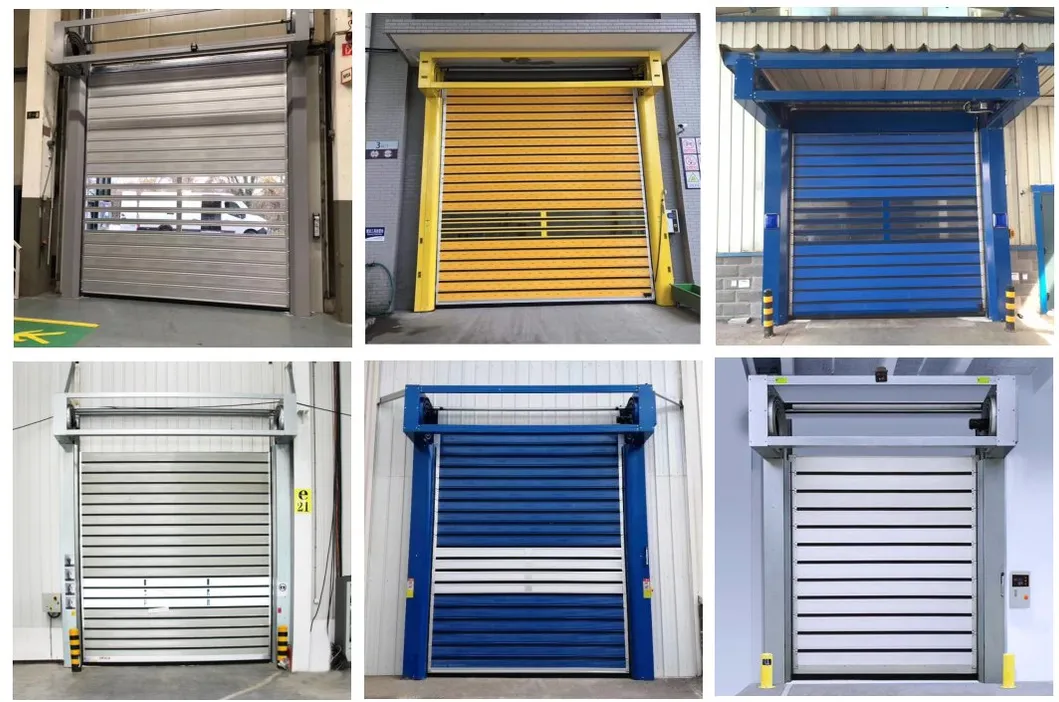

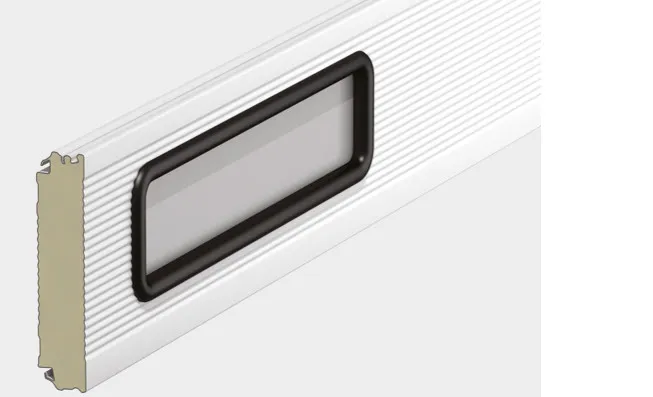

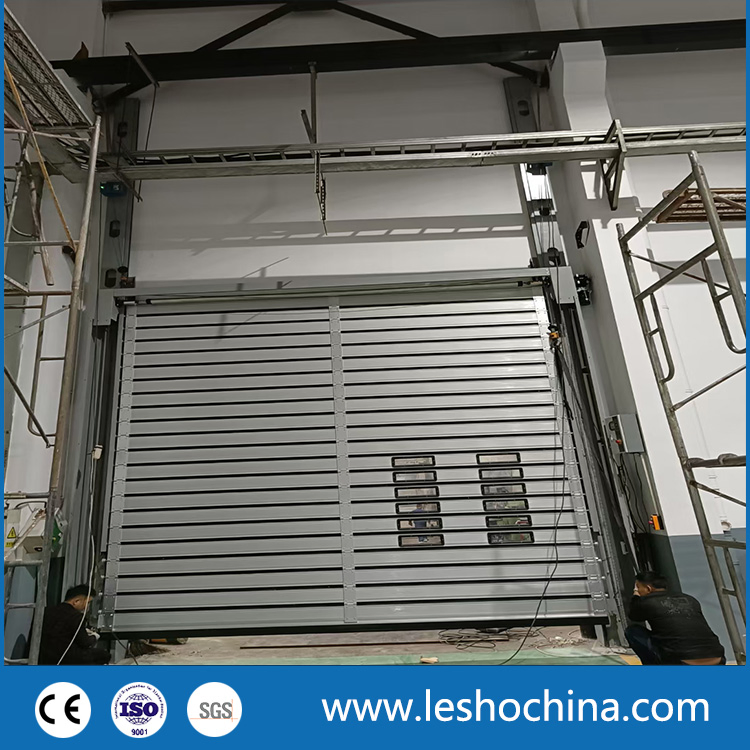

Space Saving & Windows: Variety guide rails meet different site situations. Vision windows provide better lighting and safety.

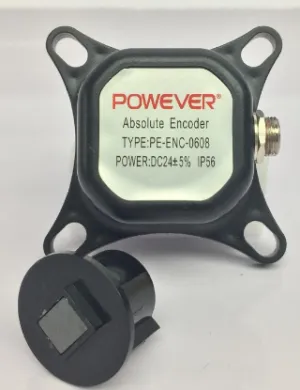

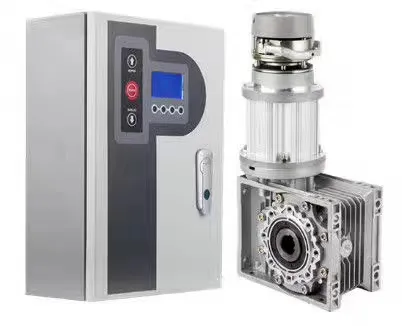

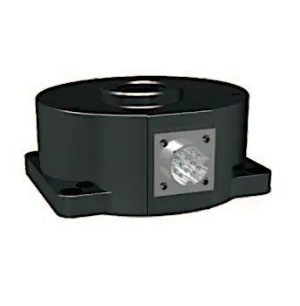

Equipped with advanced AC Servo control systems:
1. Improve Transport Efficiency
Reduces forklift and personnel waiting time significantly.
2. High Level Cleanness
Complies with GMP standards, perfect for food and pharmaceutical industries.
3. Energy Saving
Effective insulation and super seal keeps indoor air controlled.
4. Intelligent Automation
Connects with conveyor belts, VGA vehicles, and production lines.
