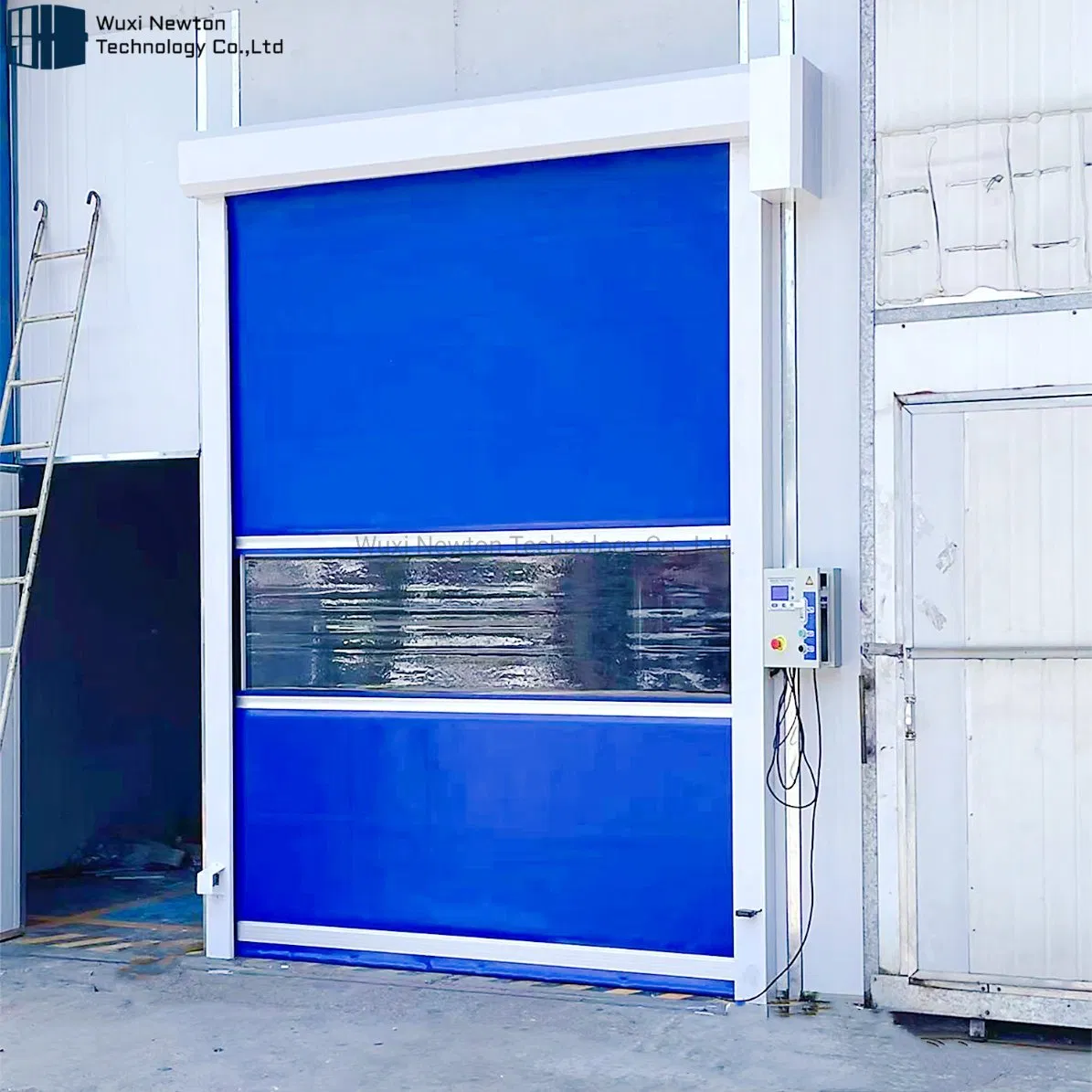

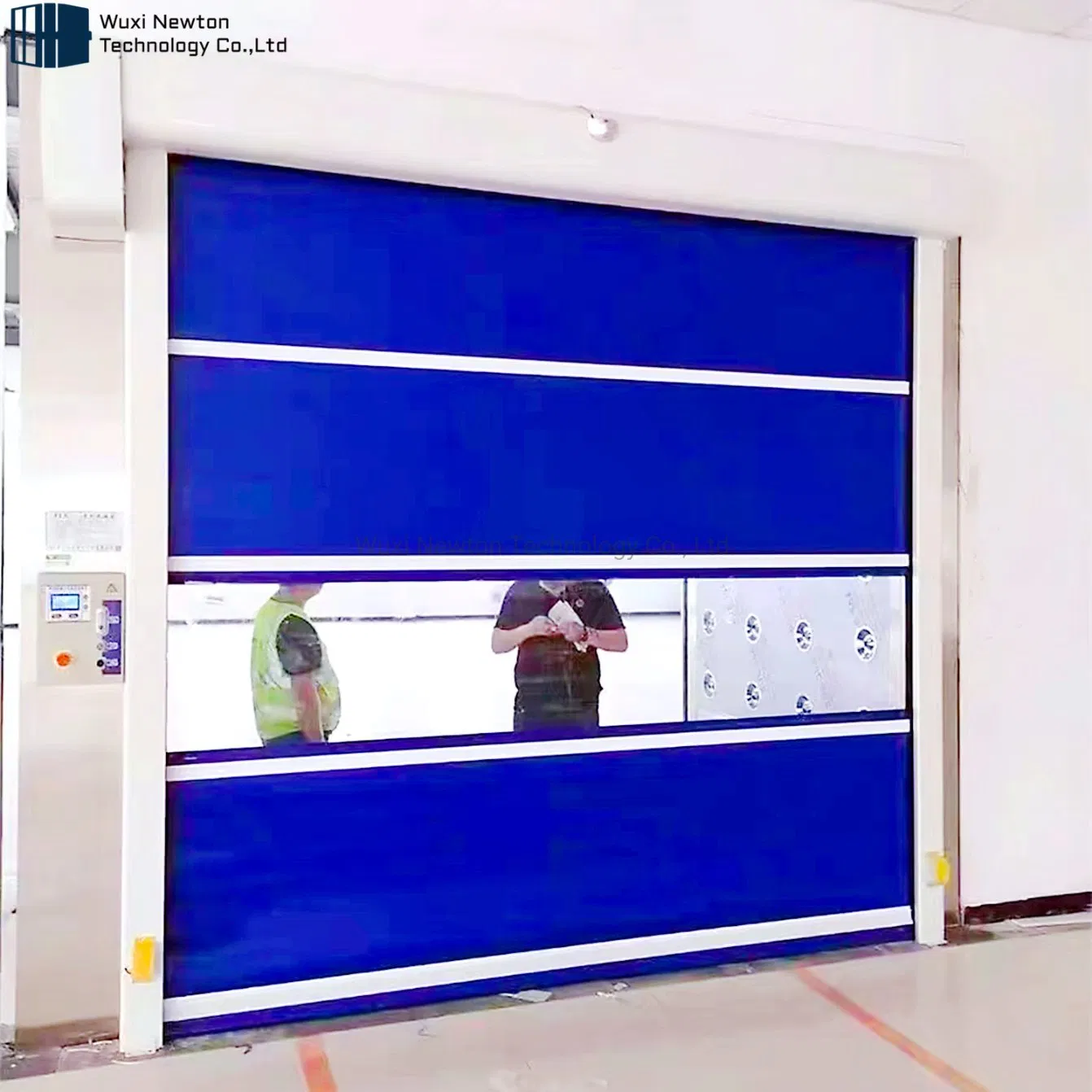

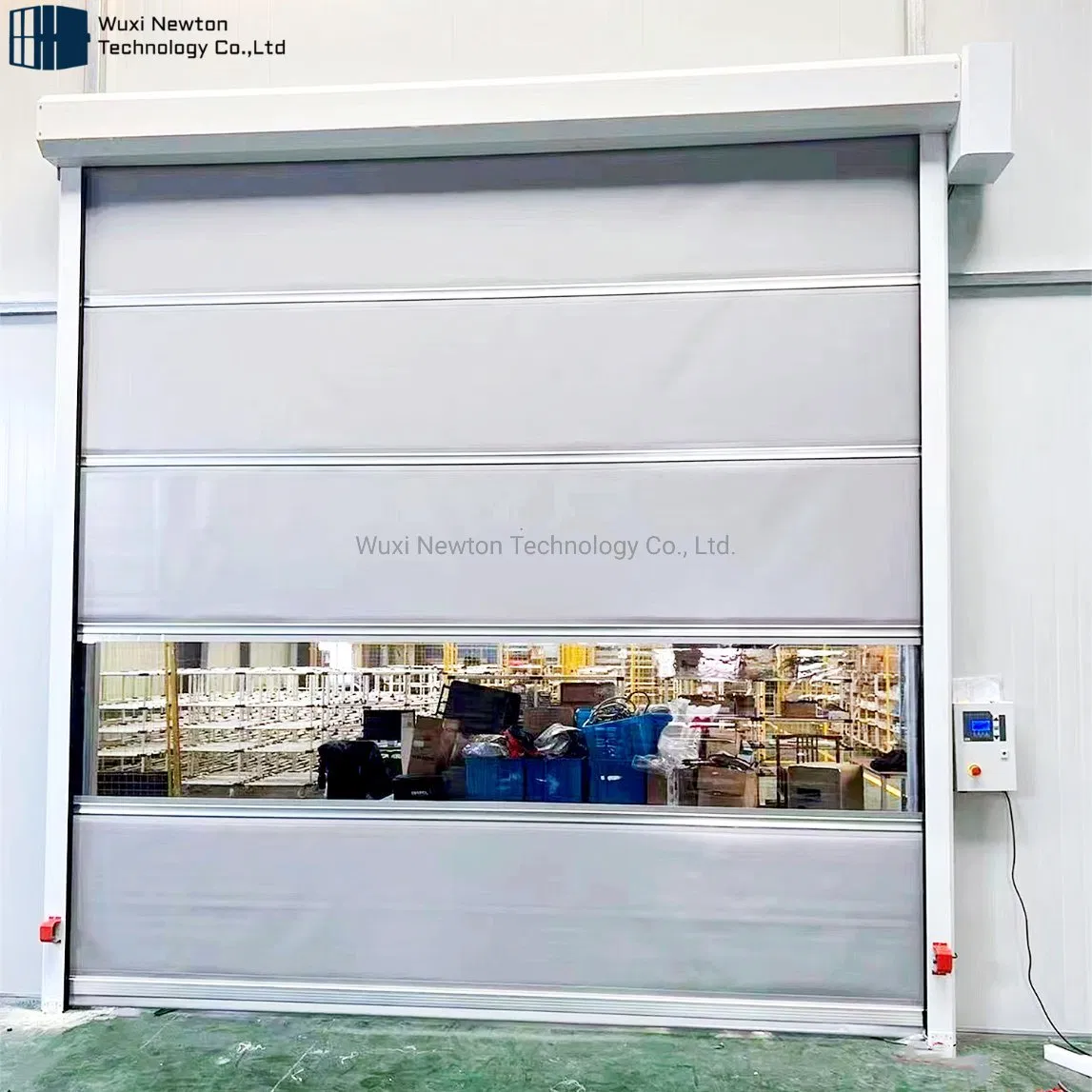

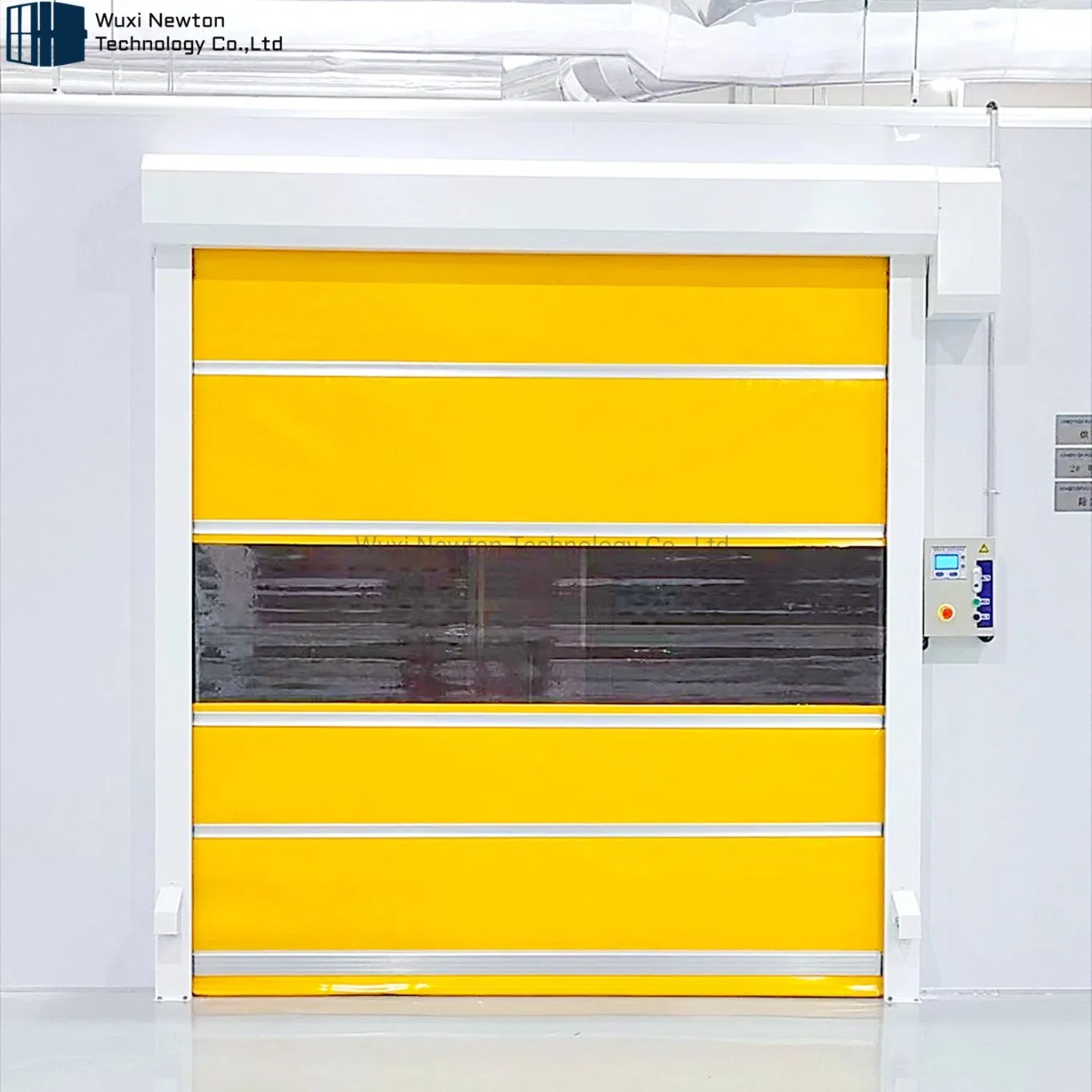

High Speed Roll PVC Windproof Anti-Dust Industrial Automatic High Speed Door

High Speed Roll Pvc Windproof Antidust Industrial Automatic Door

Product Overview

The PVC high speed roller shutters has a high speed partition function. The cold splicing process makes the curtain more smooth and beautiful. The segmented splicing reduces the maintenance cost, reliability, practicality, easy opeartion and low maintenanace costs. This door is the most economical selection for the facility entrance, widely used for the electrical, mechanical, food, pharmacy, chemical, textile, printing, supermarket and the logistics & warehousing.

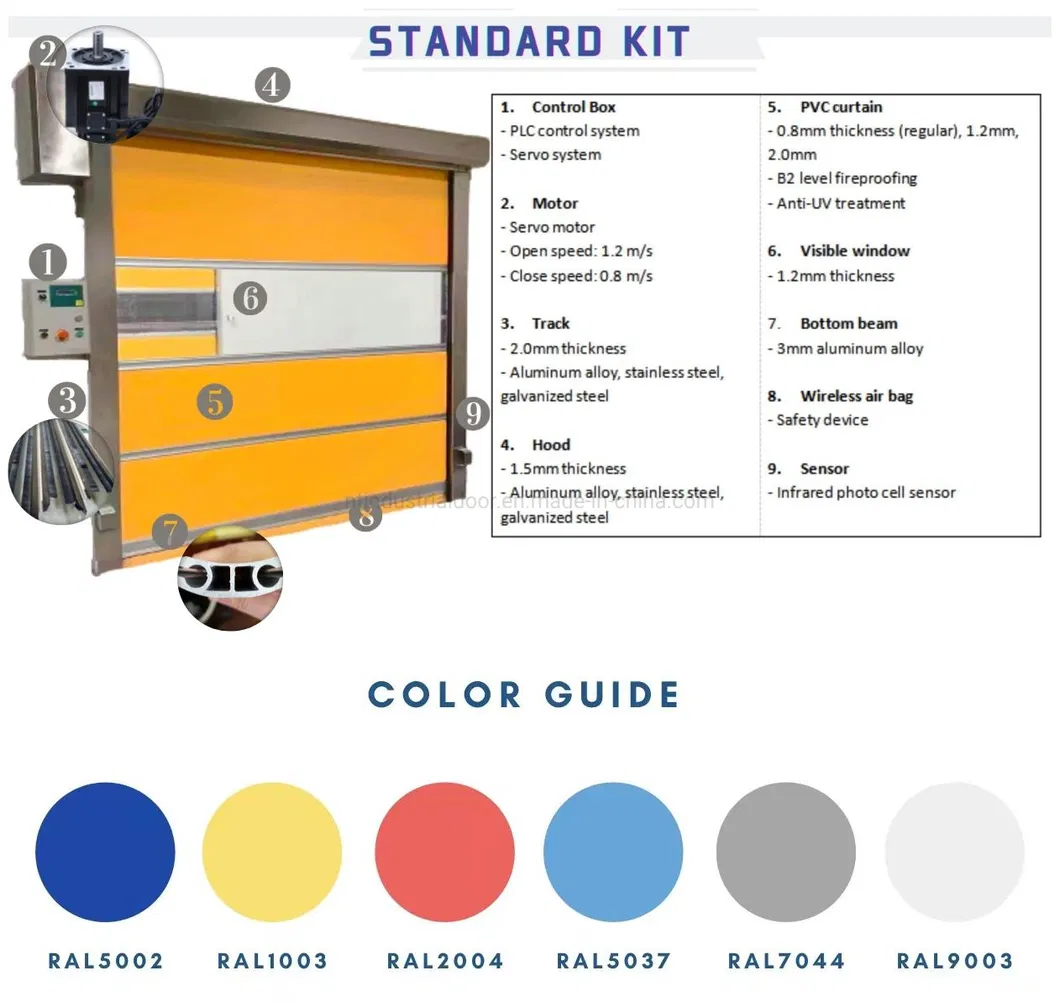

• Opening/Closing speed: 0.8m-1.5m/sec
• Control box: Digital tube, frequency conversion control system
• Limit switch: Multi-turn absolute encoder
• Test life circle: Tested service cycle reaches 800,000 times per year, 500 times per day
• Wind resistance rating: Maximum level 6
• Standard size: Maximum 5500 x 6500mm
• Sealing performance: U-shaped airbag cloth pocket; double-row brush seal structure
• Insulation protection: Ip54 waterproof and dustproof

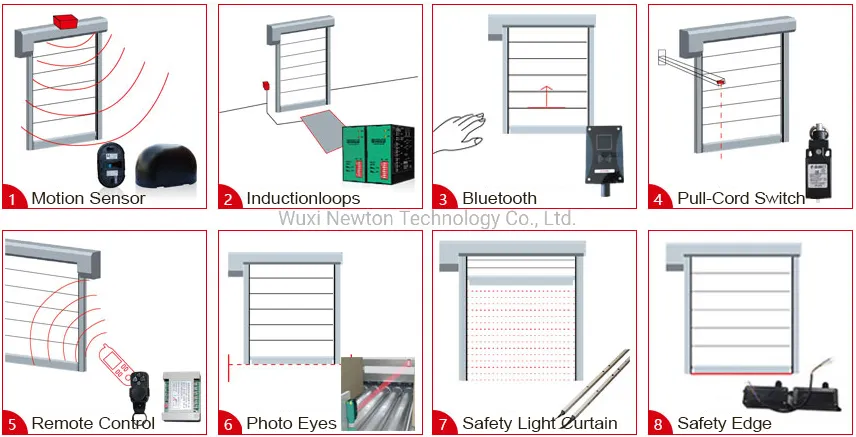

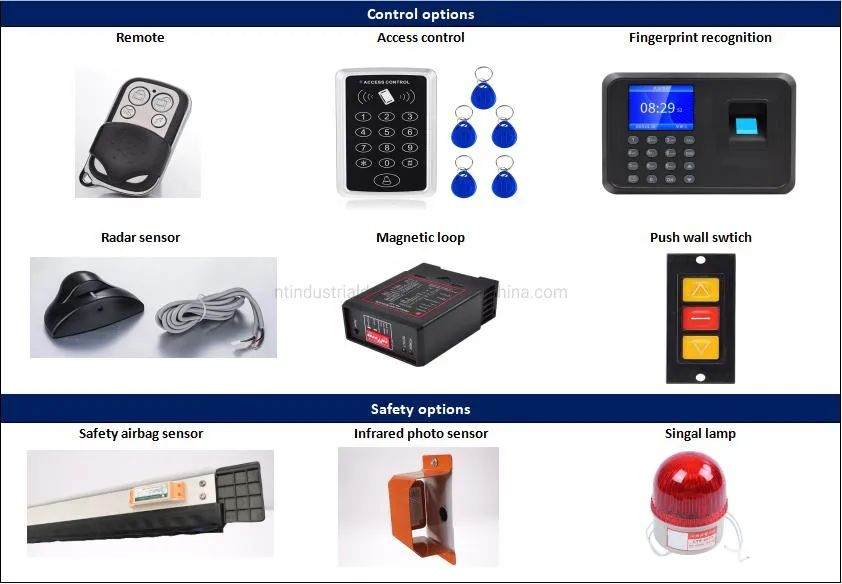

• Safety configuration: Standard infrared photoelectric protection, pressure airbag, warning light

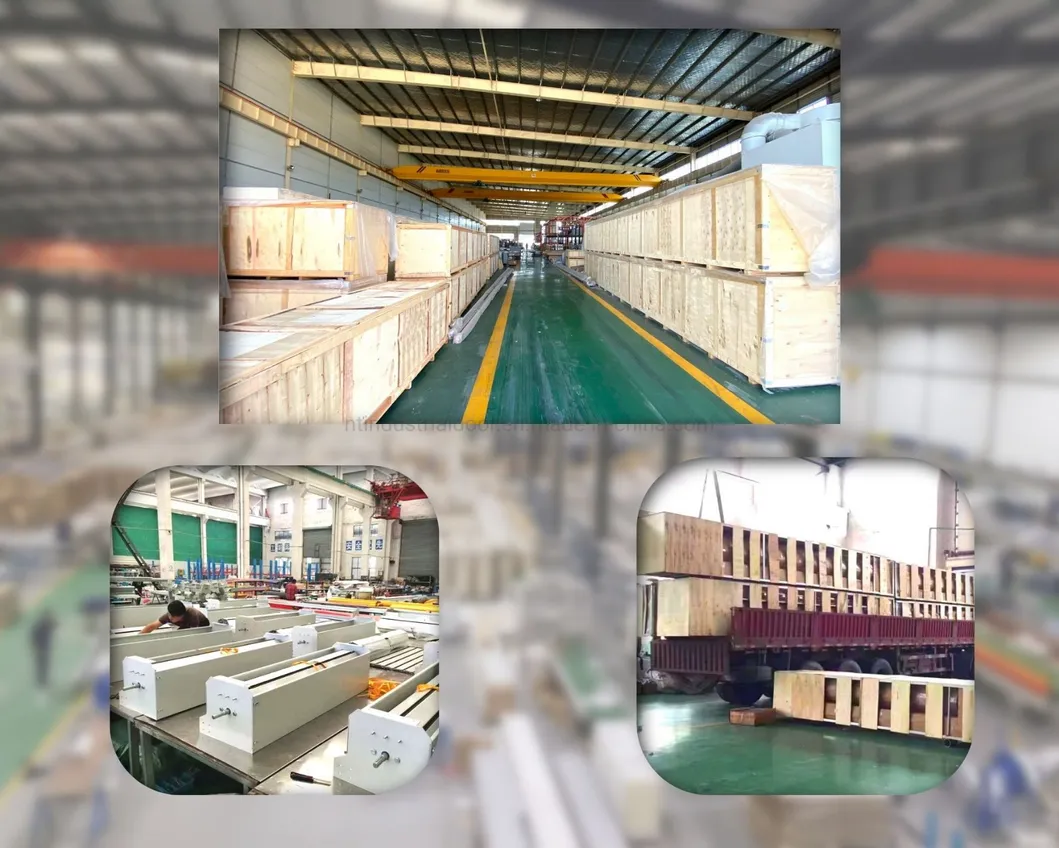

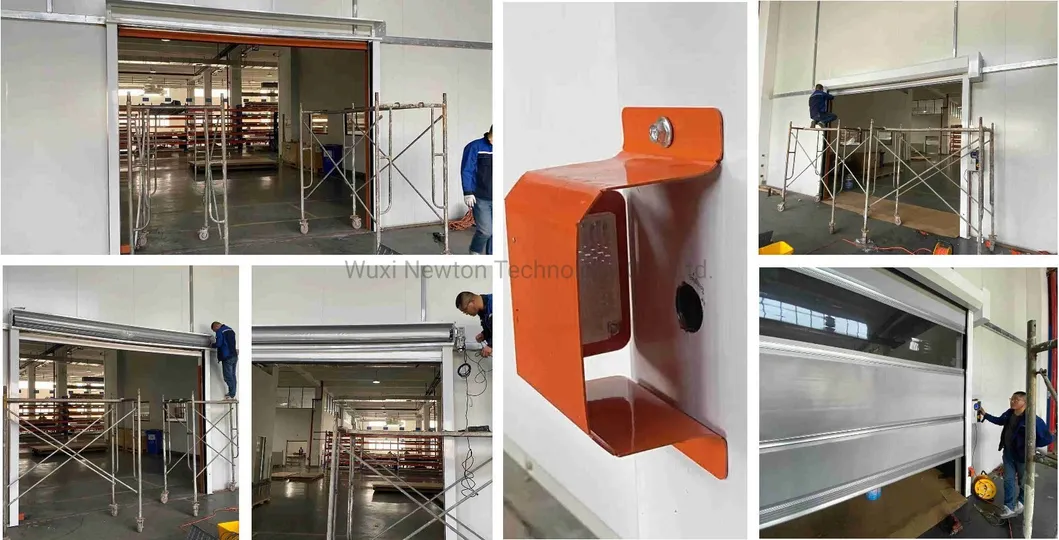

Our team provides all-sided supports from design, manufacture, and package to installation and commissioning. Our technicians design suitable doors based on practical demands to save costs and provide effective training for proper operation.

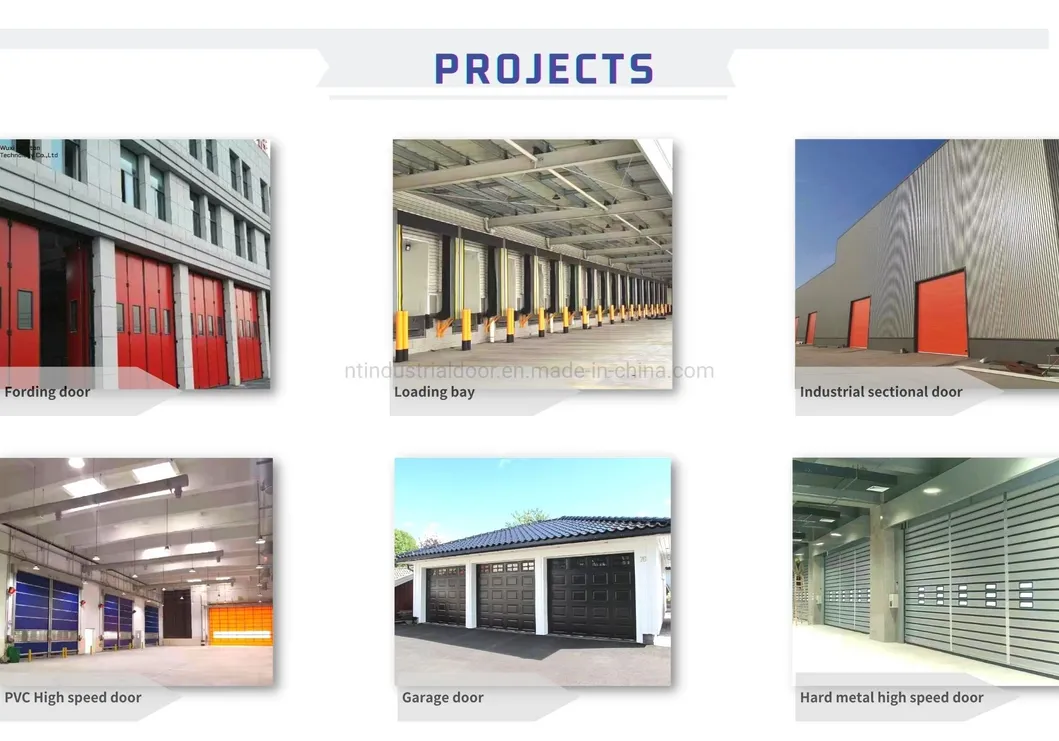

We are a leading manufacturer in the field of automatic doors, including folding doors, industrial sectional doors, and high-speed roll-up doors. Involved in the industry since 2000, we focus on optimal designs, affordable rates, and high-precision manufacturing.
