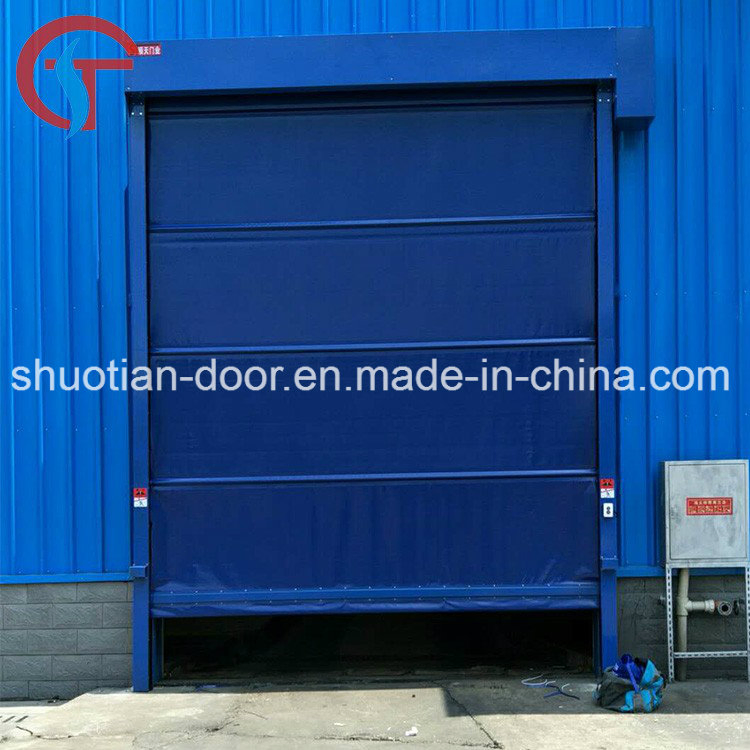

Industrial Electric PVC High Speed Door, High Speed Rolling Door, High Speed Roller Shutter Door (ST-001)
Industrial Electric PVC High Speed Door, High Speed Rolling Door, High Speed Roller Shutter Door (ST-001)
Industrial Electric PVC High Speed Door, High Speed Rolling Door, High Speed Roller Shutter Door (ST-001)
Industrial Electric PVC High Speed Door, High Speed Rolling Door, High Speed Roller Shutter Door (ST-001)
Industrial Electric PVC High Speed Door, High Speed Rolling Door, High Speed Roller Shutter Door (ST-001)
1 / 5
Industrial Electric PVC High Speed Door, High Speed Rolling Door, High Speed Roller Shutter Door (ST-001)
Industrial Electric PVC High Speed Door, High Speed Rolling Door, High Speed Roller Shutter Door (ST-001)
Industrial Electric PVC High Speed Door, High Speed Rolling Door, High Speed Roller Shutter Door (ST-001)
Industrial Electric PVC High Speed Door, High Speed Rolling Door, High Speed Roller Shutter Door (ST-001)
Industrial Electric PVC High Speed Door, High Speed Rolling Door, High Speed Roller Shutter Door (ST-001)

Industrial Electric PVC High Speed Door, High Speed Rolling Door, High Speed Roller Shutter Door (ST-001)

Customization: Available
Material: Plastic
Type: Rolling
Send Inquiry

Product Description

Automatic High Speed PVC Door
Basic Information
Model NO.
ST-001
Open Style
Rolling
Opening Type
With Remote Control
Special Function
High Speed
Color
Red
Certification
ISO9001, CE
Position
Industrial
Surface Finishing
Finished
Curtain Material
PVC Fabric
Safety Device
Photocell Sensor + Bottom Airbag
Warranty
1 Year
HS Code
73083000
Product Description

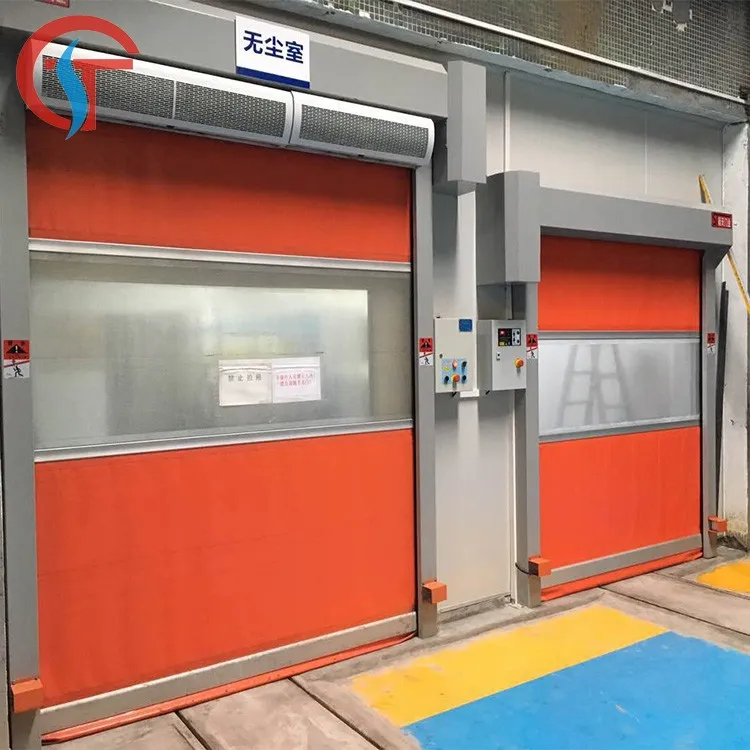

Automatic High Speed PVC Door

High speed doors are designed for fast open and close, allowing people and/or equipment to move quickly through the opening. This type of door is ideal for large size openings and designed for high performance daily use both internally and externally with minimal maintenance.

✔ Operating speed > 1m/s for maximum efficiency.
✔ Offers beneficial energy saving in both commercial and industrial applications.
✔ Reduces noise and dust from nearby working areas.
Specification Sheet
Control System Japan Mitsubishi Inverter, PLC and other components. (Optional: Servo/Holip)
Dynamical Systems Motor: SEW or Nord from Germany Factory. (Optional: SEJ/SERVO system). 220V~380V/50 -60HZ; Power: 0.75kw ~ 3.0kw.
Framework 2mm thickness cold-roll steel sheet or Stainless steel INOX201/304.
Rolling Drum 2mm thickness steel/Galvanized tube with high-speed bearing.
Command System Magnetic Loop, Radar Sensor, Rope switch, Remote Control, Fingerprint, Bluetooth, Key card, etc.
Safety System Photocell Sensor, Safety edge bottom (automatic rebound), and Emergency stop protection.
Max Size 10m width * 15m height
Operation Frequency 1000~1500 Cycles/Day

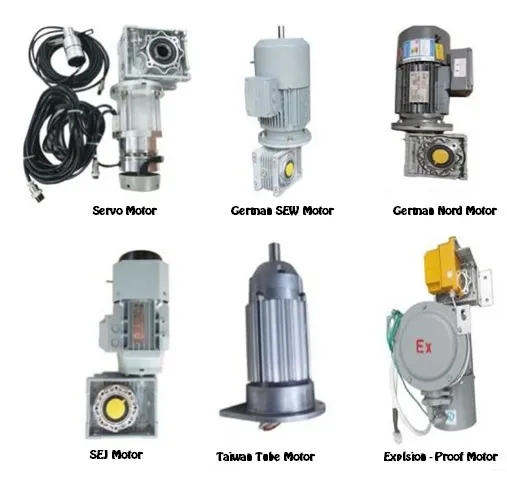

Motor and Control System

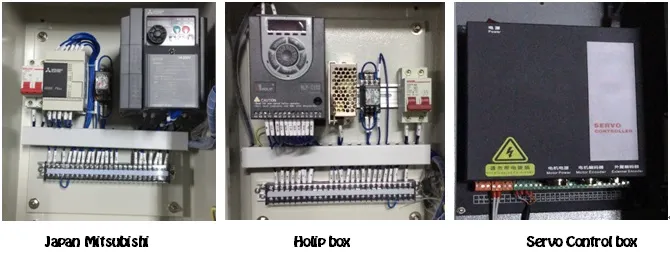

Motor and Control Box Detail Component View

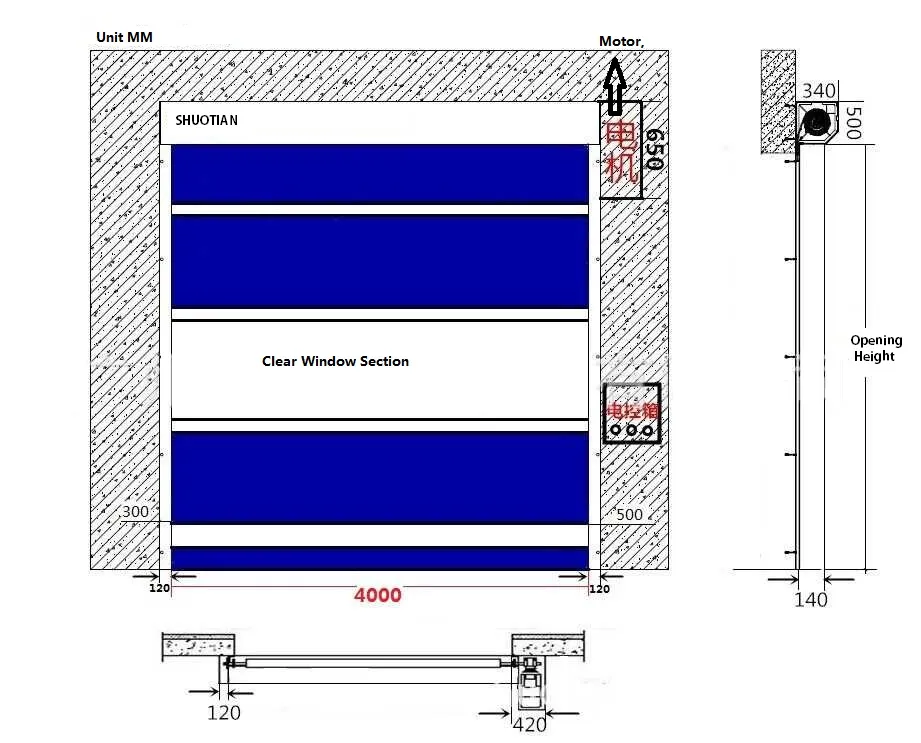

Curtain Colors and Technical Drawings

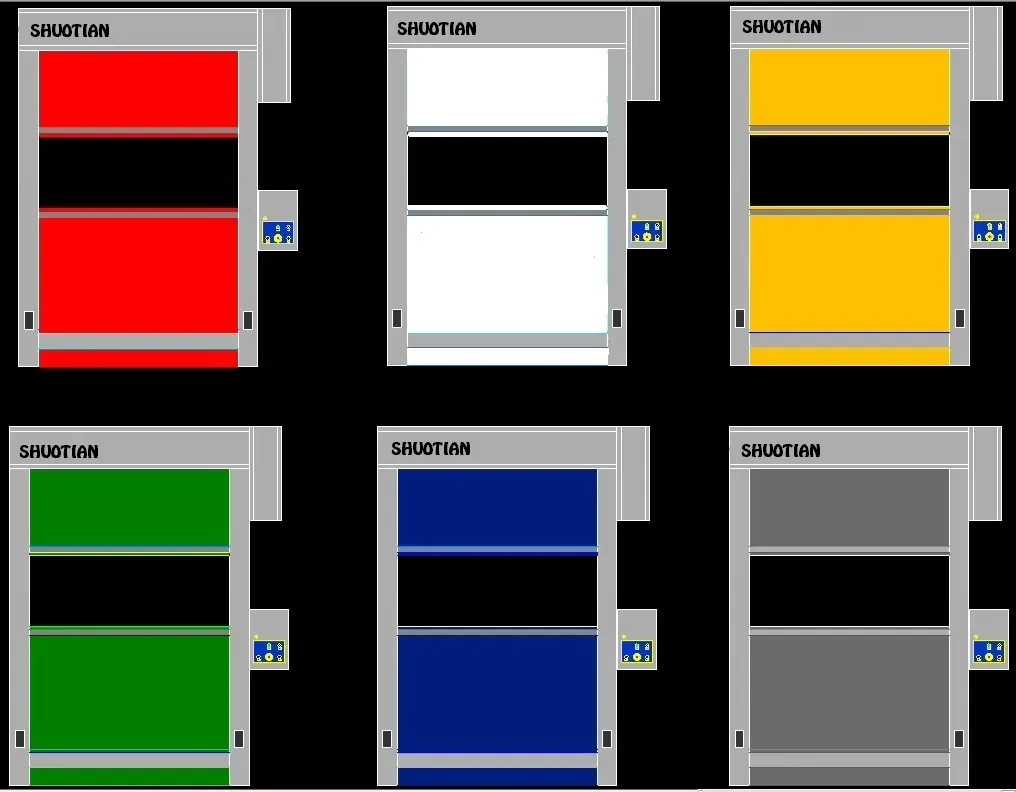

Curtain Color Options Detail Drawing 1 Detail Drawing 2
Frequently Asked Questions
What is the standard operating speed of these doors?
The doors operate at a high speed ranging from 0.7m/s to 1.5m/s, ensuring rapid access and improved energy efficiency.
What safety features are included for industrial use?
Every door is equipped with a photocell sensor and a safety airbag at the bottom edge. If an obstacle is detected, the door will automatically rebound.
Can the door withstand high wind loads?
Yes, our high-speed doors are designed to handle wind loads of up to 15m/s, making them suitable for various industrial environments.
What are the available control options for the door?
We offer multiple command systems including Radar Sensors, Magnetic Floor Loops, Remote Controls, Rope switches, and even Biometric systems like Fingerprint scanners.
What is the maximum size available for these PVC doors?
We can manufacture doors up to a maximum size of 10 meters in width and 15 meters in height.
What materials are used for the door framework?
The framework is typically constructed from 2mm thick cold-roll steel or premium Stainless Steel (INOX 201/304) upon request.
