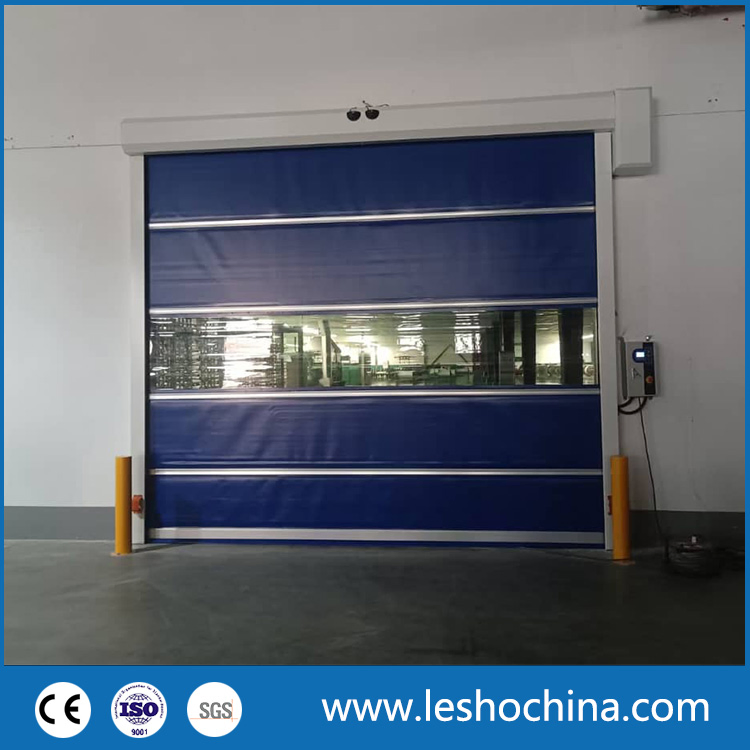

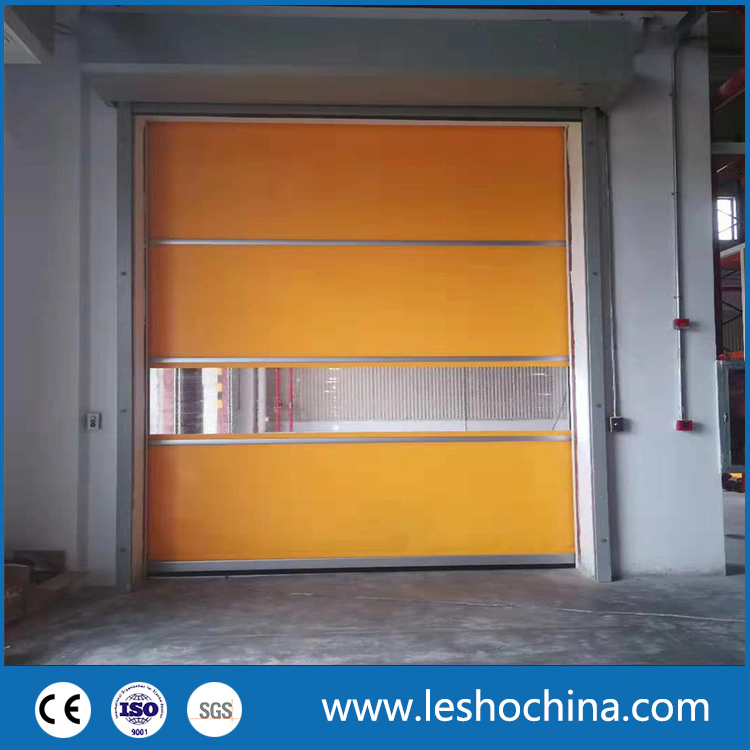

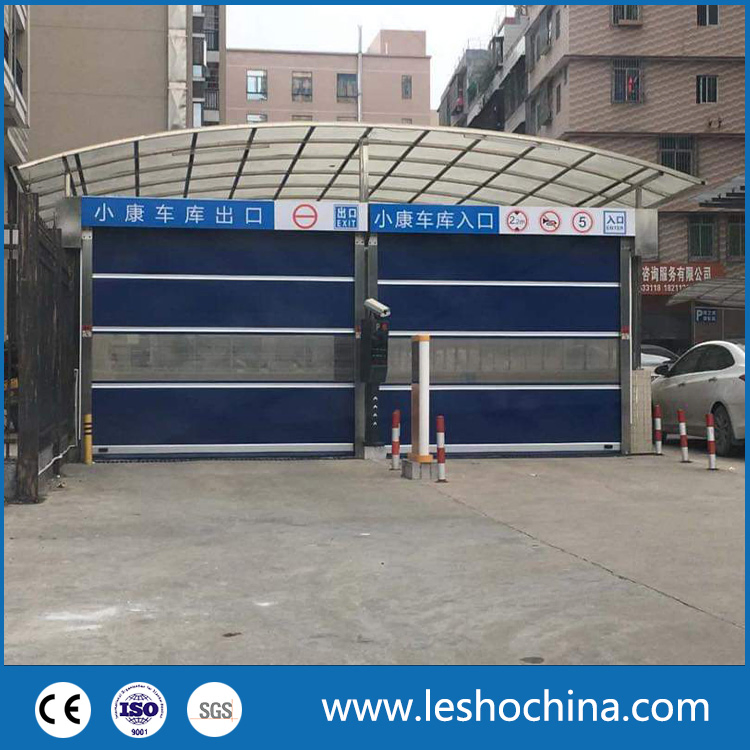

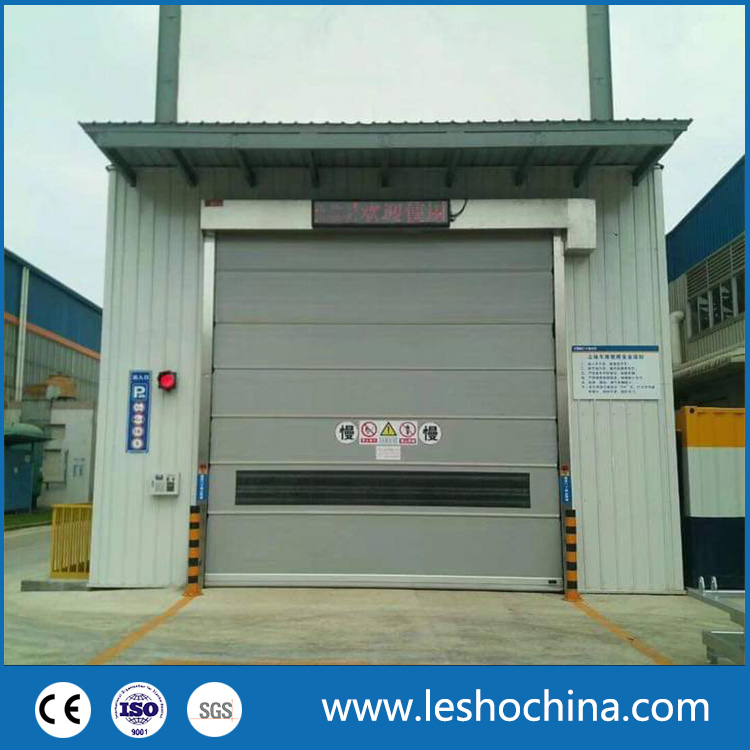

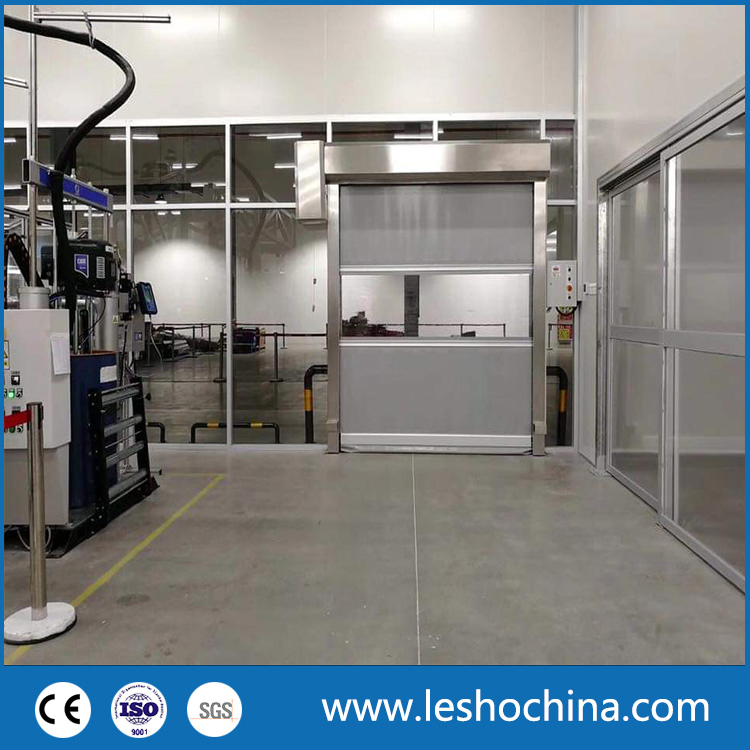

Industrial Electric PVC Fabric Soft High Speed Roll up for Vinyl Doors Food or Pharmaceutical Factory

1 / 5

Industrial Electric PVC Fabric Soft High Speed Roll up for Vinyl Doors Food or Pharmaceutical Factory

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Economy Type

Material

PVC Fabric

Type

Rolling

Special Function

High Speed Operation

Certification

ISO9001, CE

Max Size

W6000mm*H6000mm

Power Supply

1-Phase 220V or 3 Phase 380V

Working Temp

-35 to 65 Celsius Degree

Protection Class

IP55

HS Code

8530800000

Servo High Speed Door (Economy Type)

🚀

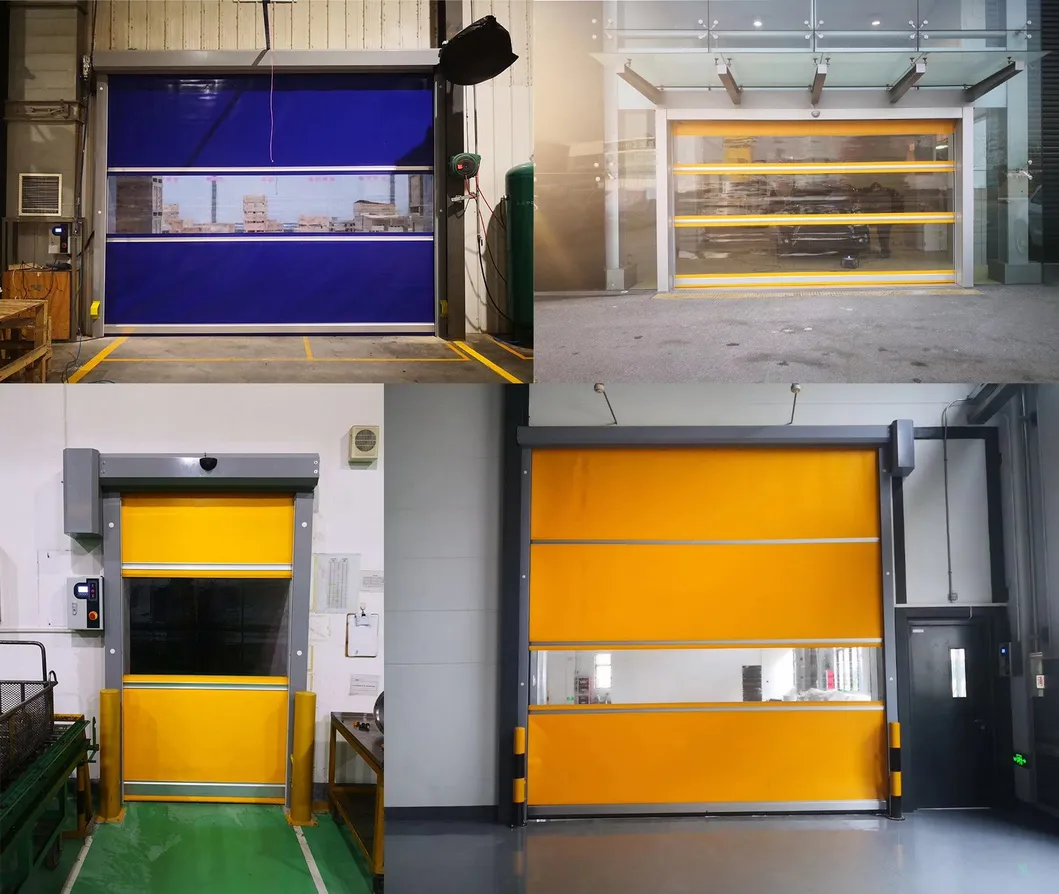

High Efficiency Intelligence & Safety: Widely used in food, chemical, textile, electronics, car wash shops, cold storage, logistics, and warehousing. Meets dust-free and high-frequency passage requirements.

Technical Data

Parameter	Specification
Door Size	W6000*H6000 mm Max
Curtain Thickness	0.8 mm / 1.0mm / 1.2mm
Material	PVC (Polyvinyl chloride)
Door Frame	304 Stainless Steel / Aluminum Alloy / Coated Steel
Operating Speed	0.8-1.2m/s (Up to 2.0m/s)
Closing Speed	0.6 - 1.0 M/S
Service Life	More than 15 million cycles
Motor Power	0.75-5.5KW

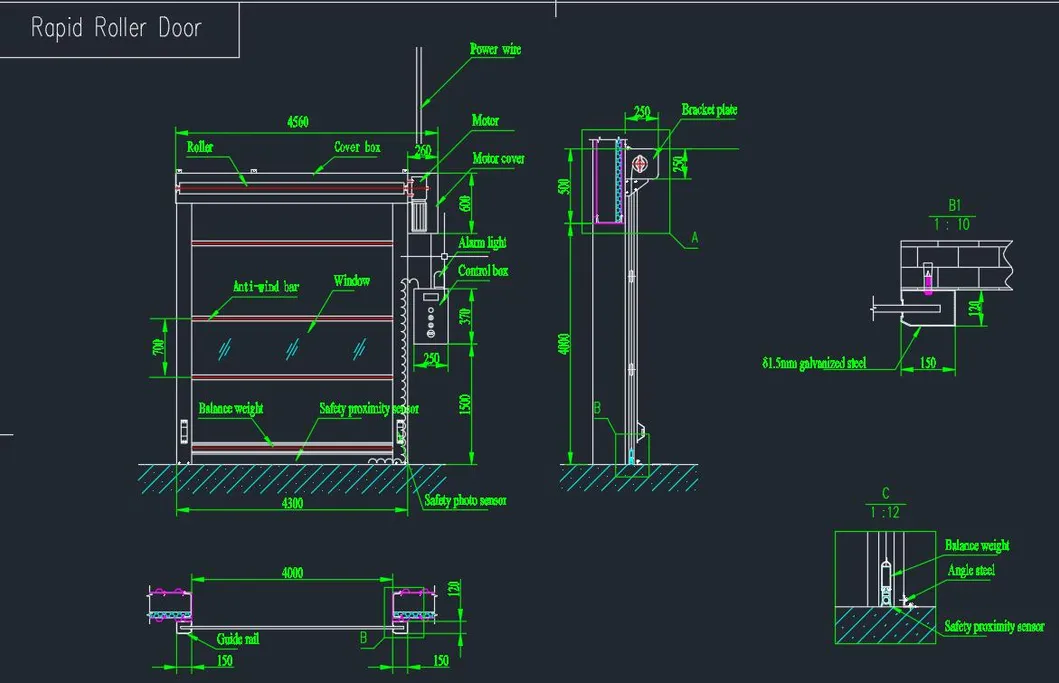

Dimensional Drawing & Operation

🎮

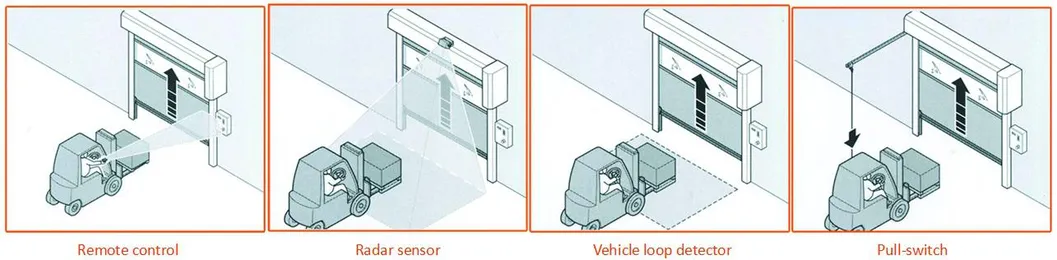

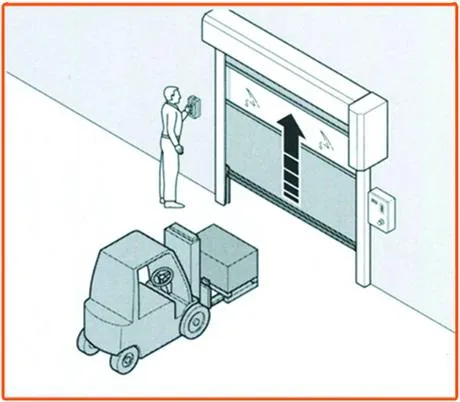

Operation Ways: Standard push button, Remote control, Radar Sensor, Vehicle loop detector, and Pull switch to improve factory pass-through efficiency.

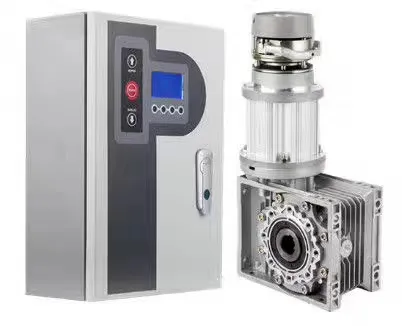

Advanced Control System

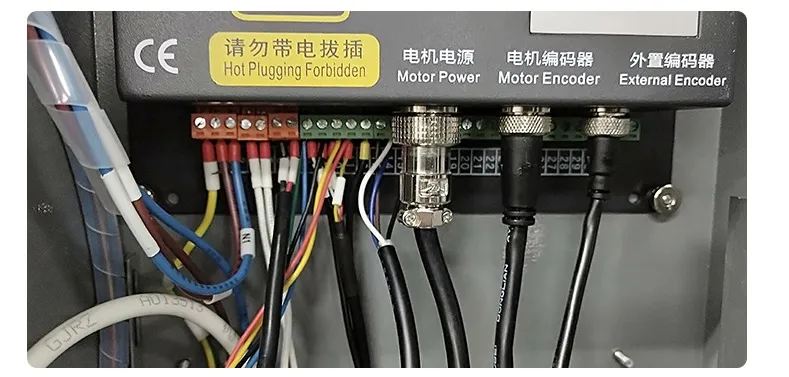

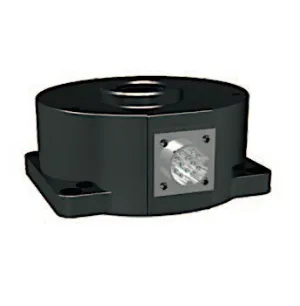

Equipped with an advanced AC Servo control system featuring:

High Speed Running: Motor speed up to 2500 rpm.

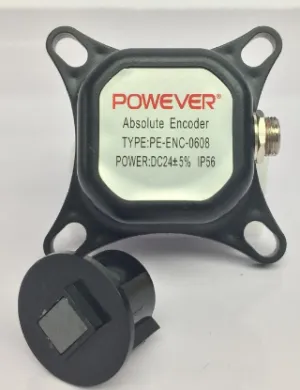

Precise Limit: Double encoder design avoids overshooting.
Soft Start/Stop: Torque servo system adjusts load automatically for smooth running.
High Frequency: Capable of running more than 2000 times/day.
Smart Design: LCD English screen with self-diagnosis and aviation connectors.

Key Benefits

Improve Efficiency: Reduces forklift waiting time significantly.

High Cleanness: GMP standard compliant, blocks dust and insects.

Energy Saving: Superior seal keeps indoor air conditioned.

Safety: Soft bottom safety edge and photo sensors standard.

Customization & Packing

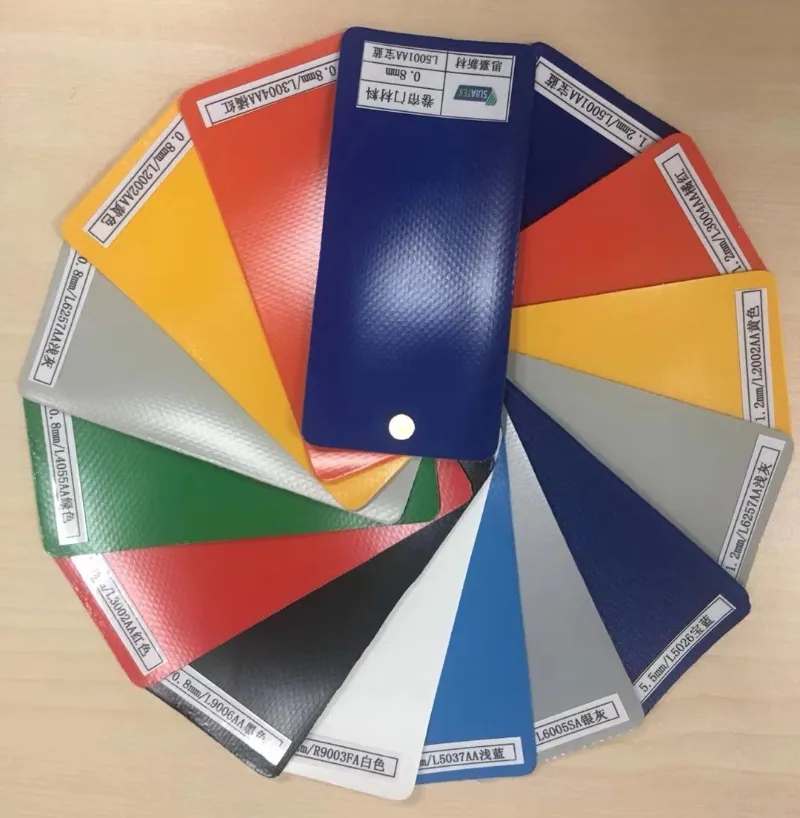

Available in various RAL colors and structural materials (304 Stainless Steel or Aluminum).

📦

Export Standard Packing: Multi-layer bubble film, carton boxes for small parts, and heavy-duty wooden crates for LCL or secure container loading for FCL.

Quality Assurance

Frequently Asked Questions

Why choose our high speed doors?

We offer the most cost-effective products with stable quality, backed by over 20 years of production experience and professional technical support.

How can we get started with a project?

We just need your basic background information and project site details. Providing drawings of your site plan is best so we can provide a complete solution.

What about the installation process?

We provide clear installation manuals, videos, and precaution documents. Even workers without experience can install the doors. For complex projects, engineering guidance is available.

Which payment methods are accepted?

We usually accept T/T in advance, L/C for large orders, and West Union. Other terms can be discussed upon request.

What is the standard lead time?

The typical production lead time is approximately 7-10 days.

How is the after-sales service handled?

Spare parts can be delivered within 24 hours via international couriers like DHL, UPS, or TNT to ensure minimal downtime.

Industrial Electric PVC Fabric Soft High Speed Roll up for Vinyl Doors Food or Pharmaceutical Factory

Product Description

Basic Specifications

Servo High Speed Door (Economy Type)

Technical Data

Dimensional Drawing & Operation

Advanced Control System

Key Benefits

Customization & Packing

Quality Assurance

Frequently Asked Questions

Related Products

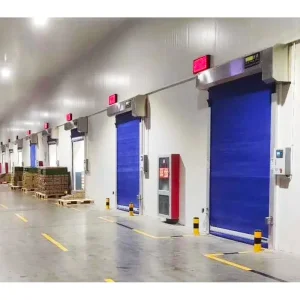

High Speed Overhead Rolling Self Repairing Airtight Clean Room Fast Roll up Vinyl PVC Zipper Overhead Garage Door for Pharmaceutical Industries

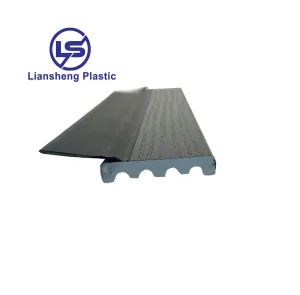

Waterproof Garage Door Stop Vinyl PVC Stop Weather Seals for Garage Door

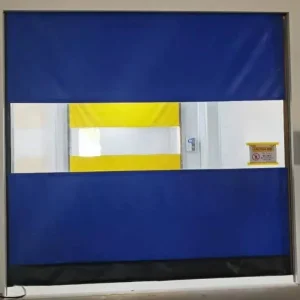

Roll up Canvas Garage Self-Recovery Vinyl Roll up Traffic Fast Rolling PVC Fabric High Speed Rapid Roller Shutter Zipper Door

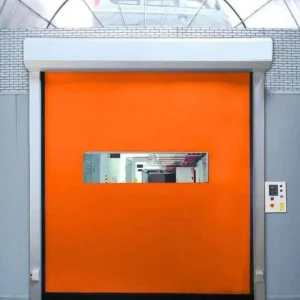

PVC Canvas Garage Industrial Logistics High Speed Zipper Fast Acting Plastic Vinyl Door for Pharmaceutical Drug Industry

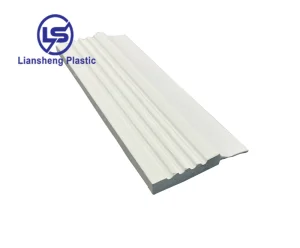

China Factory Vinyl Garage Door Stop Moulding Weatherstripping White PVC

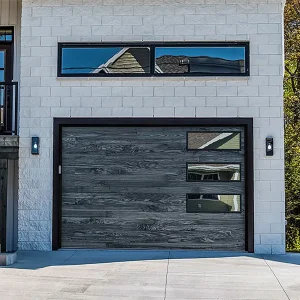

Foshan Factory Direct Aluminum Insulated Steel Garage Door with Flat Vinyl Hurricane-Resistant Design

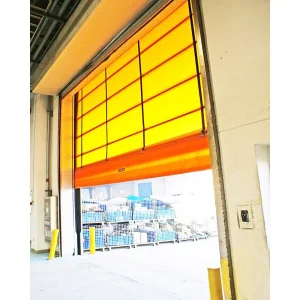

Automatic High Speed Wind Resist Belt Stacking Rolling Roll-up Overhead Coiling Fold-up Rubber Vinyl Warehouse Clean Room Folding Gate Garage Door

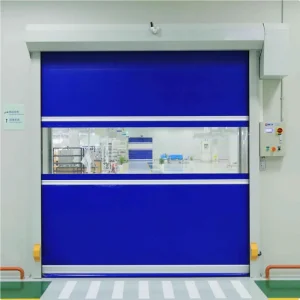

Commercial High Speed Rapid Roll up Vinyl Garage Doors with Remote Control

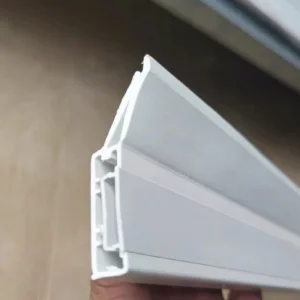

Weatherproofing Universal Sealing for Residential and Commercial Garage Doors

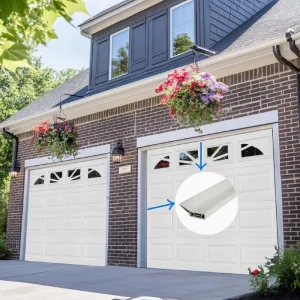

White Rubber Weather Stripping Soft and Hard Composite for Sectional Doors
