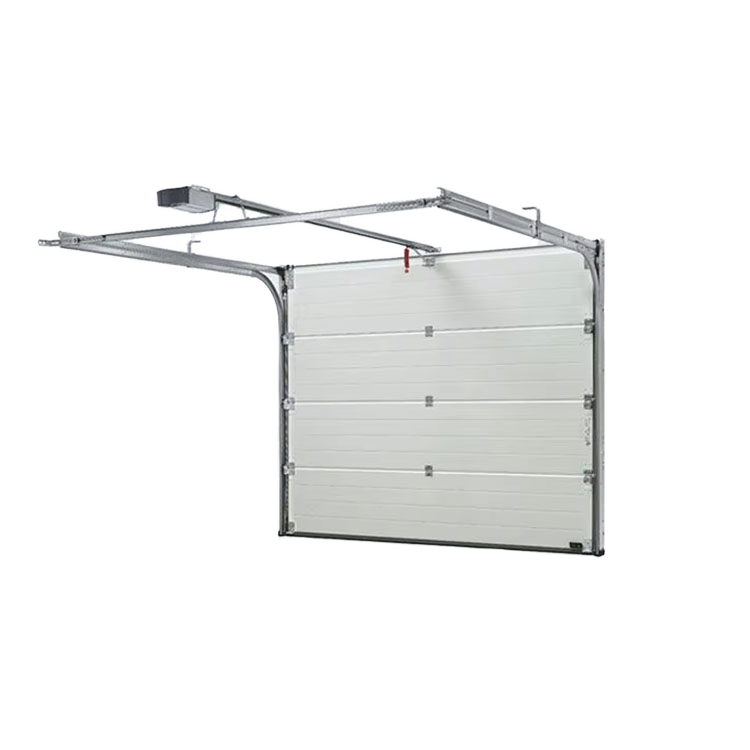

Industrial Commercial Horizontal Sectional Overhead Garage Door Office Sliding Export

After-sales Service: Online Technical Support
Material: Steel
Thickness: 40mm

Product Description

Basic Info

Model NO.
ABXTSM
Opening Style
Rolling
Opening Type
Hand Operated / Electric
Main Material
Aluminum Alloy
Door Panel
PU Sandwich Panel, 42mm
Feature
Windproof, Insulated
Surface Finishing
Finished
Application
Workshop / Logistics

Product Description

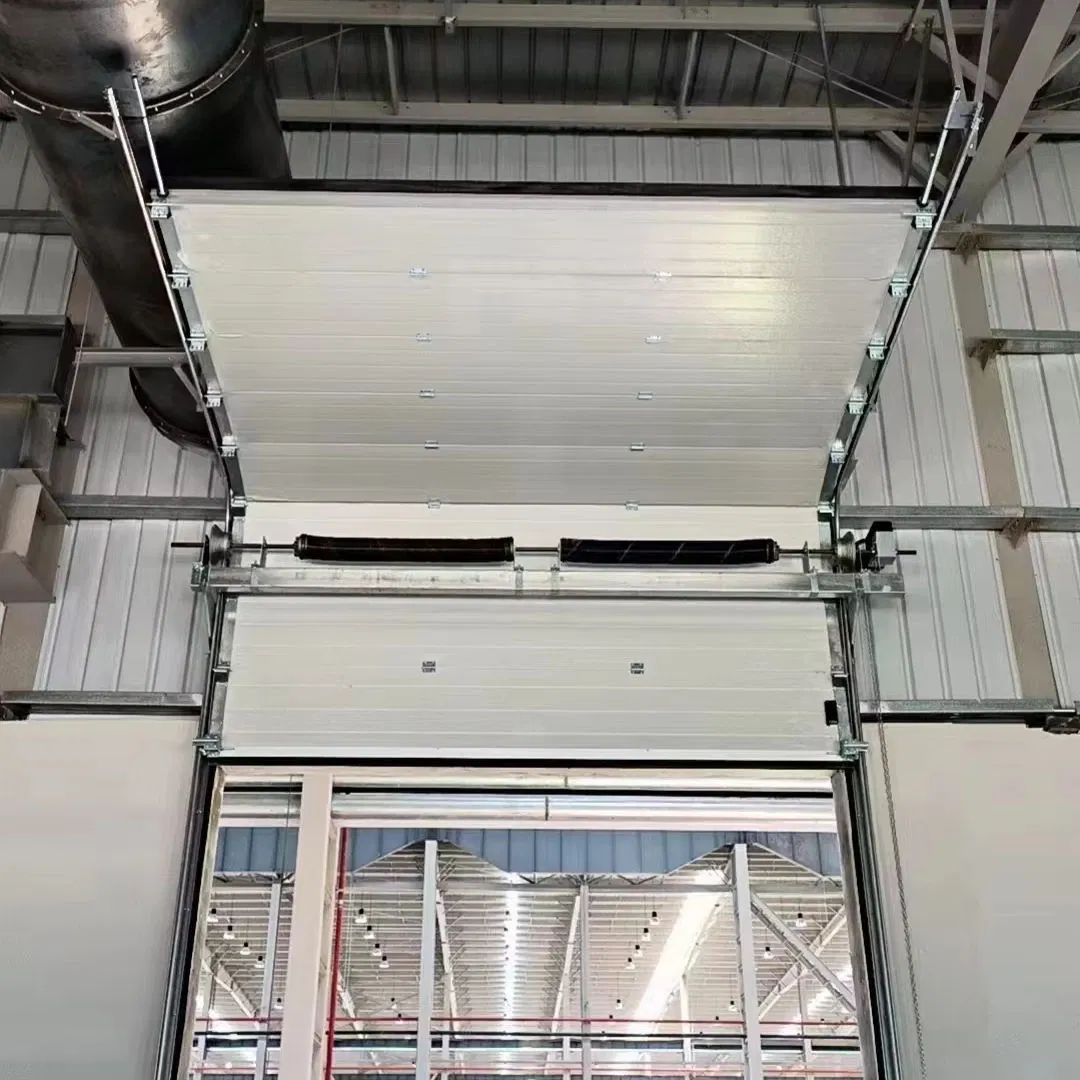

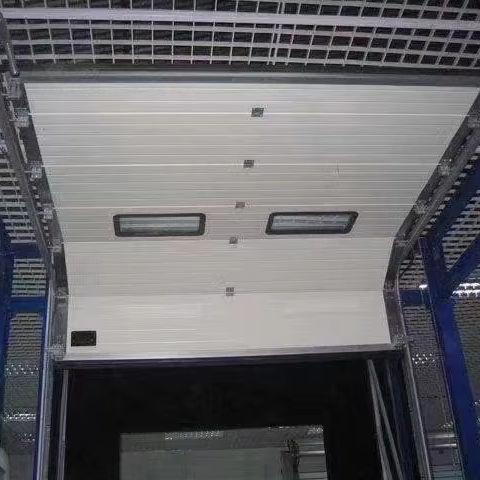

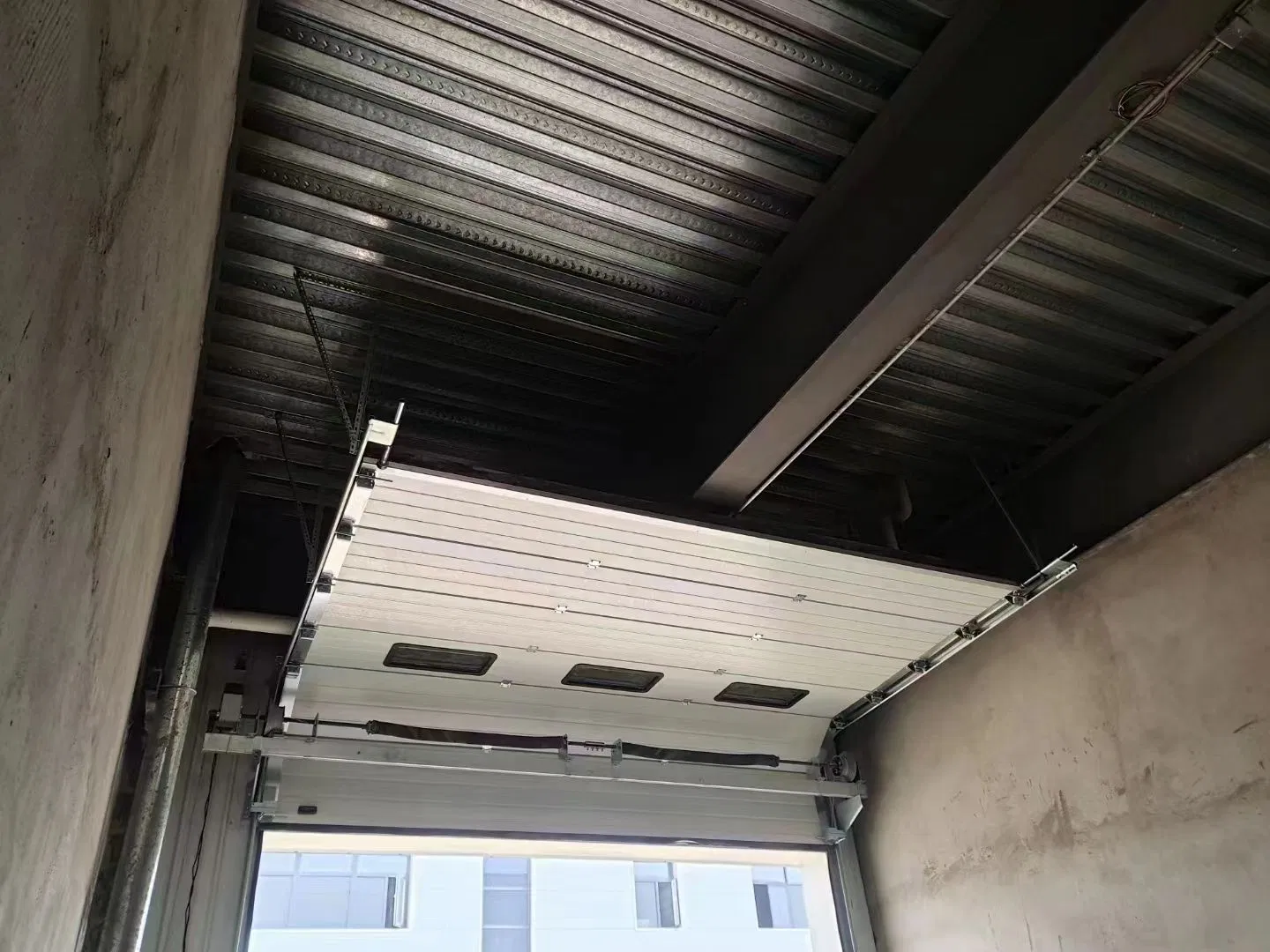

This insulated sectional door is a commonly used logistics entrance and exit door in industrial buildings, especially in buildings with temperature requirements. It features heat insulation, wind protection, anti-theft, sealing, safety, and intelligent control.

The door panel is composed of multiple layers. It adopts a segmented cold-bridge design and is filled with imported Huntsman high-density polyurethane material (100% fluorine-free). Corrosion-resistant hardware accessories and a dynamic balance system are used. The rollers on both sides of the door run up and down along the guide rails as a whole, which improves the efficiency and safety of entering and exiting the site.

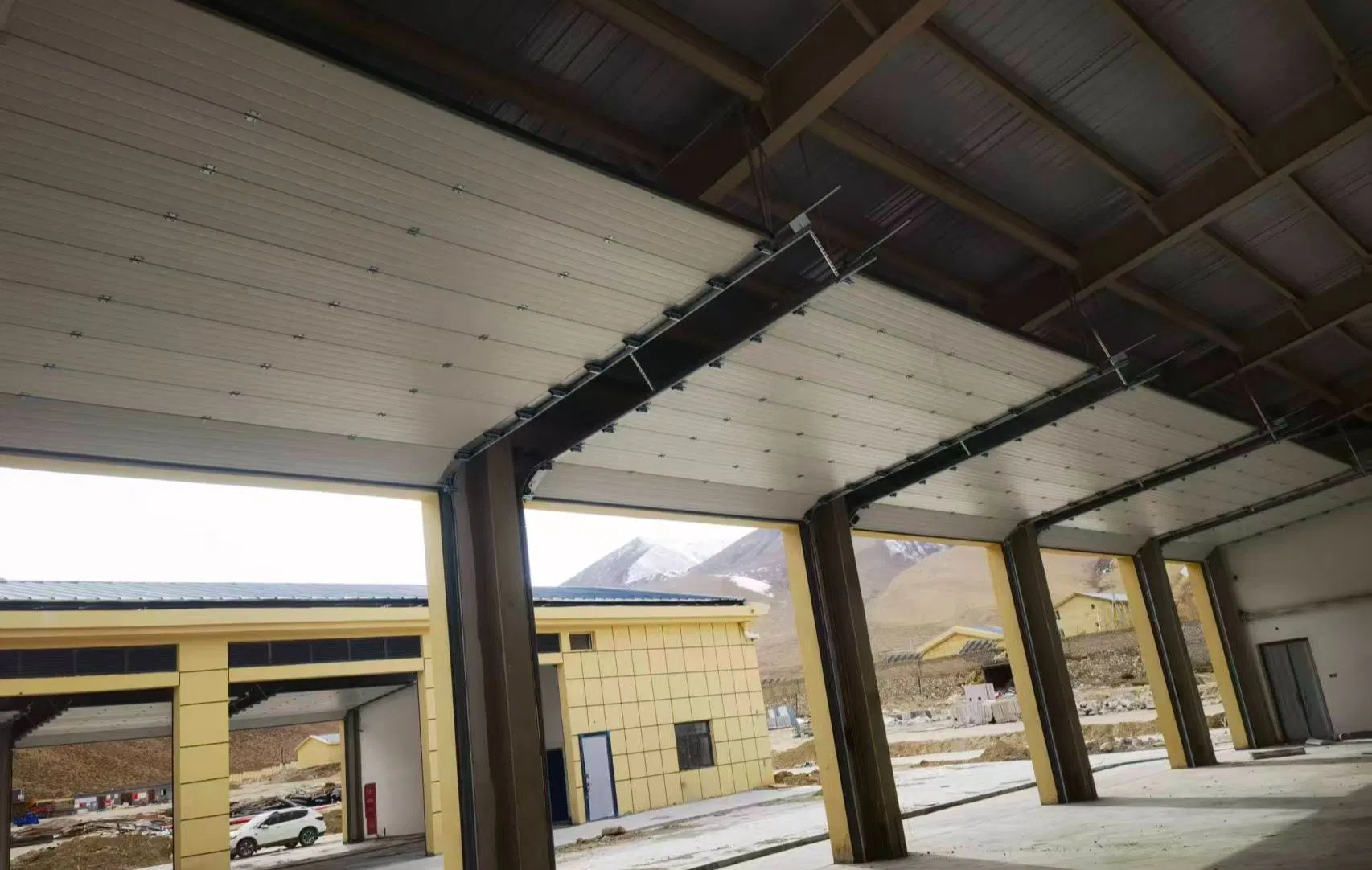

Industrial Sectional Door Overview

Technical Specification

ProductInsulated Sectional Door
MaterialSteel / Aluminum Alloy
FeaturesInsulation, wind resistance, anti-theft, sealing, security
Opening ModeElectric / Manual
Max SizeW6000mm * H6000mm
Panel Thickness42mm PU Sandwich Panel
Polyurethane Density48kg/m³ (Huntsman brand)
Wind Resistance700pa (GB/T 7106-2008)
Thermal InsulationK=0.7W/(m².K)
Water TightnessGrade 1
Air TightnessGrade 7
Color OptionsRAL9002 / RAL9006 / RAL7040 / RAL7045

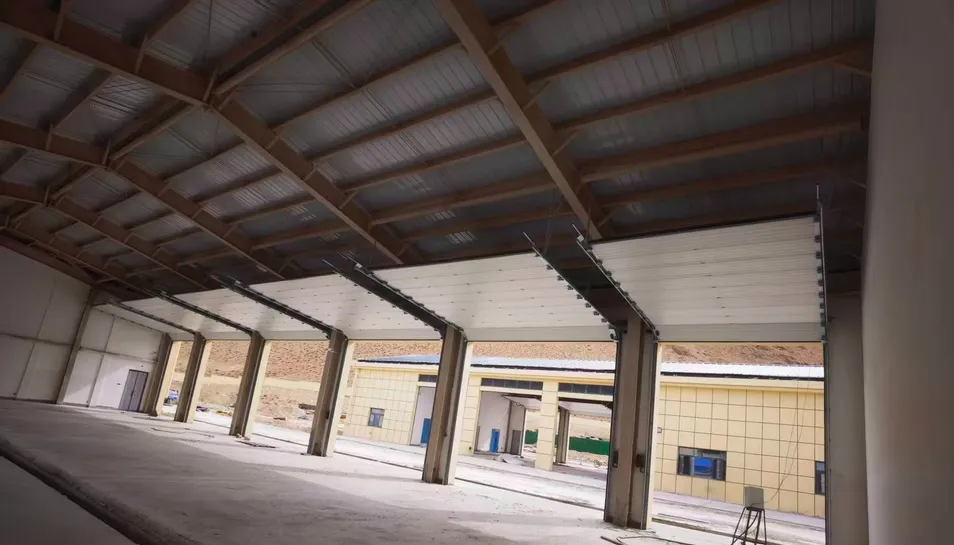

Detail Image 1

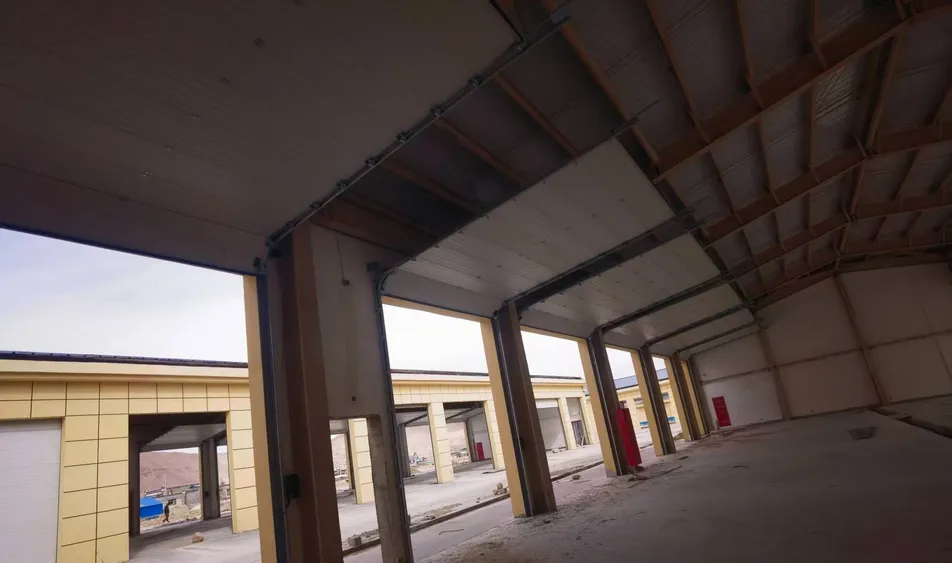

Detail Image 2

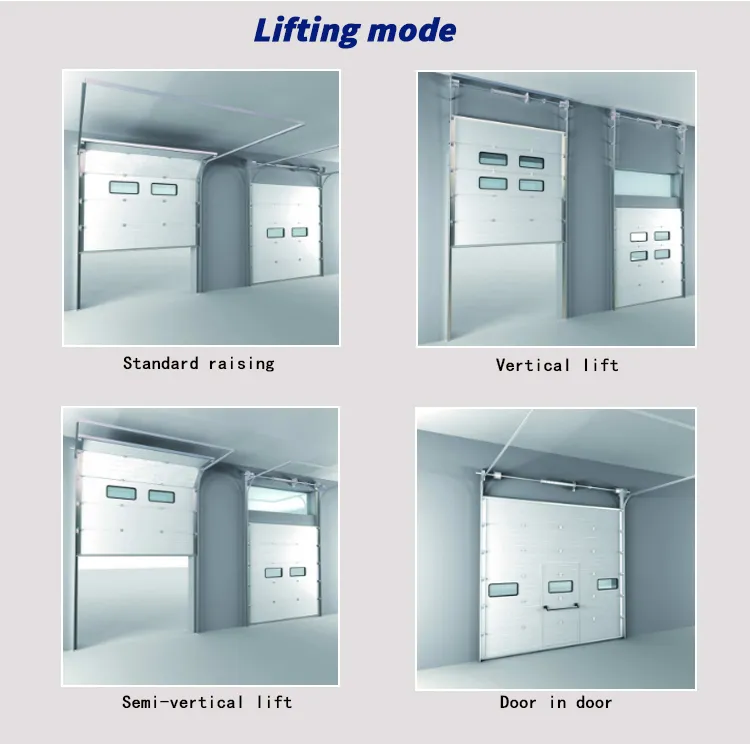

Structure Detail
Installation Detail
Product Video Cover
Quality Control
Packing
Production Line

Packing & Delivery

Package Size
600.00cm * 500.00cm * 500.00cm
Gross Weight
1000.000kg
Package Type
Customized Export Packaging

Frequently Asked Questions

What are the main features of this insulated sectional door?
The door offers excellent thermal insulation, wind resistance (up to 700pa), anti-theft protection, high-grade sealing, and supports intelligent control systems.

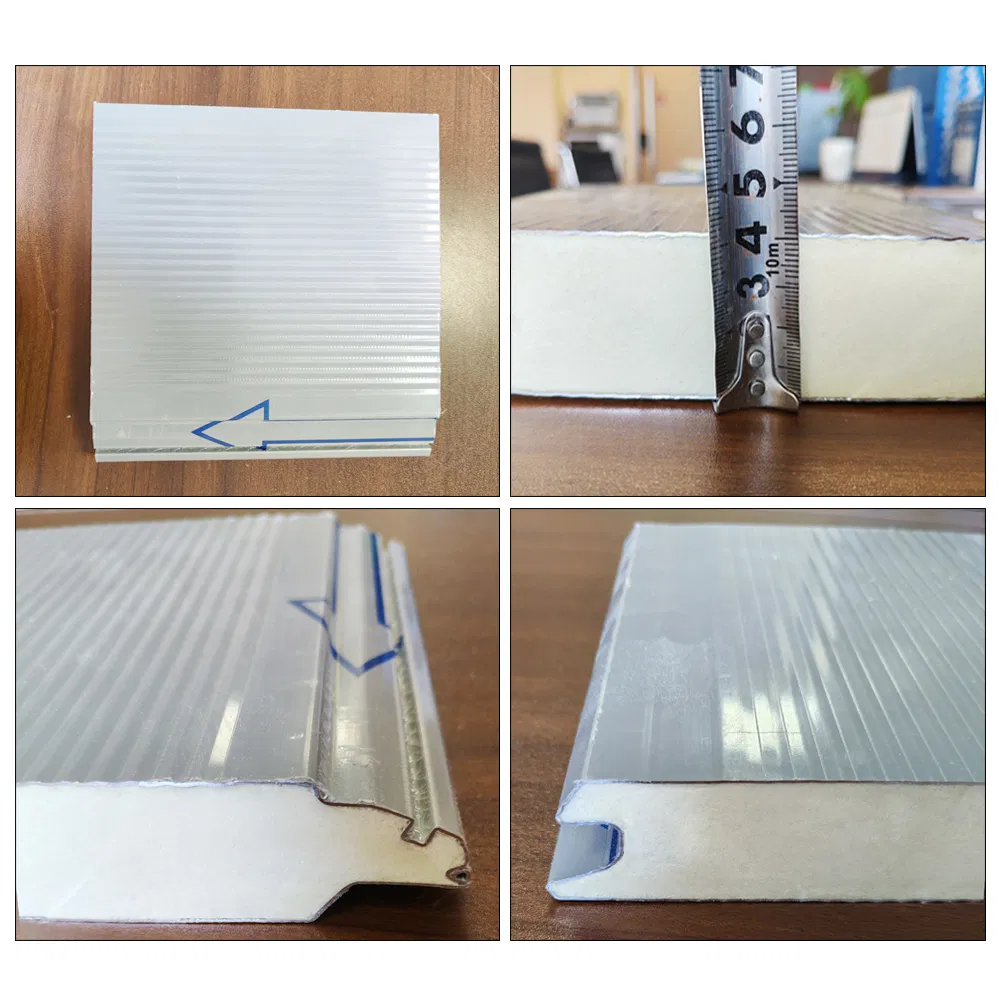

What is the thickness and material of the door panels?
The panels are 42mm thick PU sandwich panels, filled with high-density polyurethane (48kg/m³) and constructed from steel or aluminum alloy.
Does the door support manual operation in case of power failure?
Yes, the door is designed with an electric/manual dual opening mode to ensure accessibility at all times.
What are the available color options?
Standard RAL colors include RAL9002, RAL9006, RAL7040, and RAL7045. Custom colors may be available upon request.
What is the maximum size available for this model?
The standard maximum dimensions are W6000mm * H6000mm (approximately 19'8"W * 19'8"H).

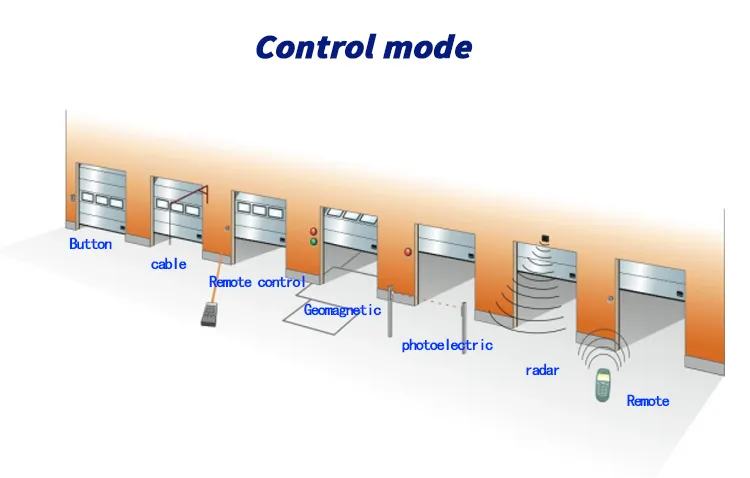

What kind of control system does the door use?
It uses an intelligent control system featuring fault code display, operation status display, fire linkage, and self-safety protection functions.
