📍 Basic Info.
Material
PVC Fiber+Stainless Steel/Aluminum
Special Function
Dustproof
Color
Red/Blue/Yellow/Green/Gray/Ornage/Transparent
Certification
TUV, CCC, ISO9001, CE, SGS
Surface Finishing
Finished
Door Type
High Speed Automatic Door
Curtain
France High Density Fabric
Curtain Thickness
0.8/1.2/1.5mm
Opening Frequency
1000-1500times/Days
Control System
Holip and Mitsubishi Control Box
Capacity
299 Sets Per Month
⚙️ Product Description

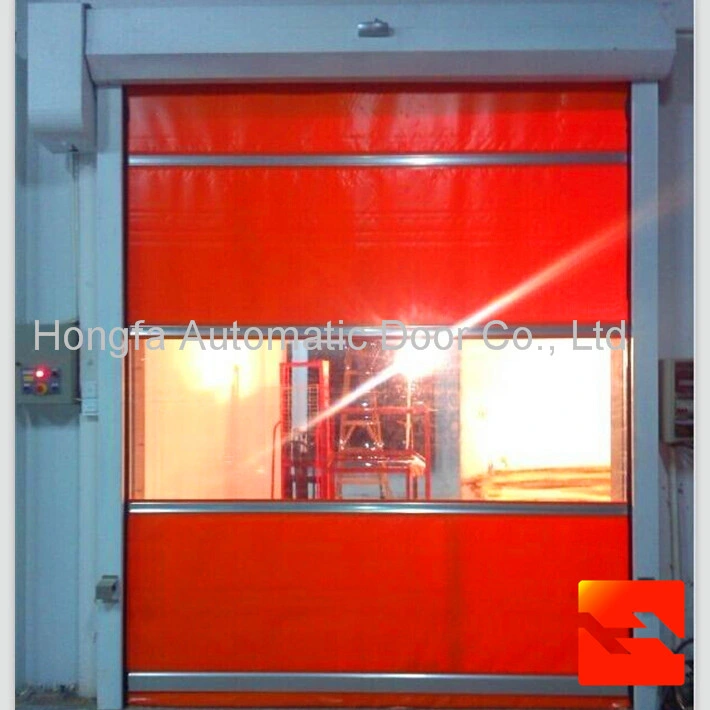

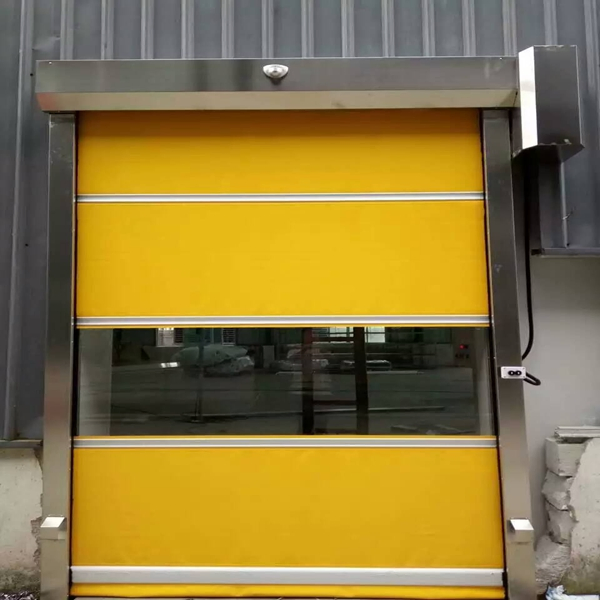

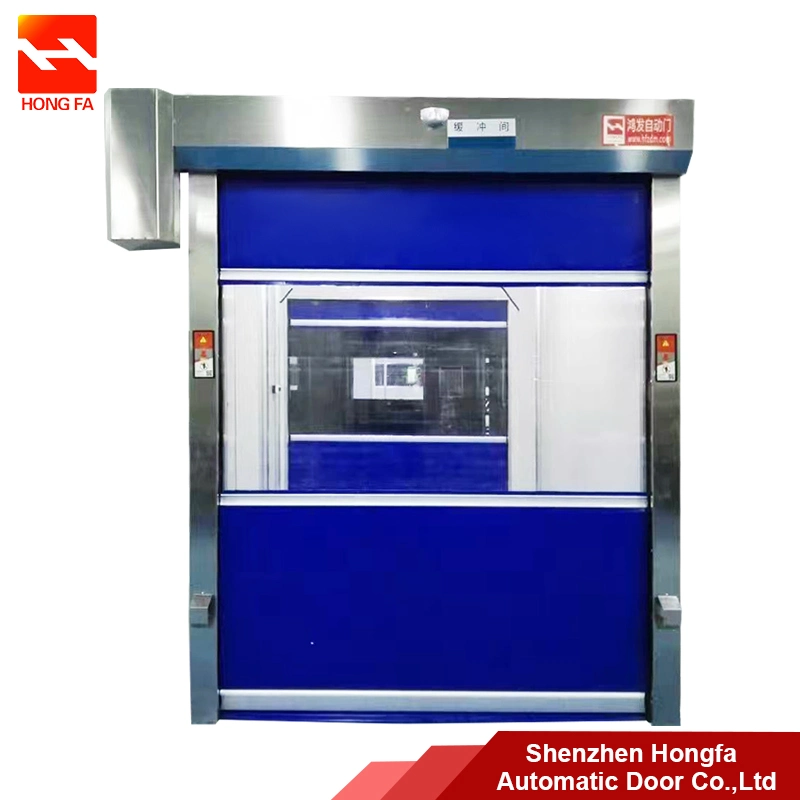

Industrial Electrical PVC High Speed Roller Shutter Fast Quick Door (HF-1088)
Professional Automatic doors Manufacturer

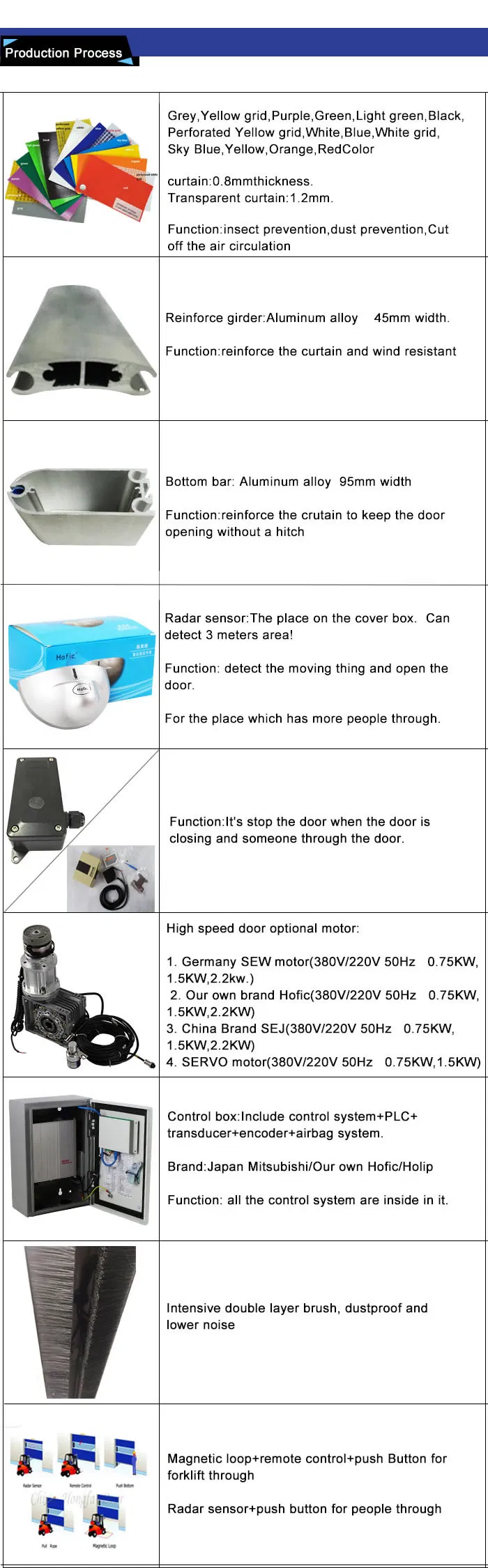

Frame: 2MM thicknesses cold-roll Stainless steel or aluminium alloy.
Motor: Germany brake motor.
Control system: Imported Japan Mitsubishi converter and PLC.
Speed: 0.6-1.5m/s (adjustable opening & closing).
Safety Device: Korea Photocell Sensor, emergency stopping reaction.
Curtain: France high-density polyester fiber (0.8-1.5MM).
Wind resistant: Aluminium alloy Reinforce Girder.
Maintenance: Easy curtain replacement with sectional design.
Transparent window: 1.2MM thickness transparent PVC window.
Seal: Seal brushes installed inside guides.
Controlling: Push button + radar sensor.
Recovery: Fault recovery function after power cut.
📊 Product Parameters
| Curtain Color | Blue, Orange, Yellow, Red, Grey, White, Green |
| Viewing Window | Full transparent 1.5mm PVC window |
| Power supply | AC 220V - 240V, Single- 3 Phrase, 50HZ |
| Temperature Range | -37 to 65 Celsius degree |
| Installation Base | Concrete, Panel, Brick, Steel Structure |
| Installation Space | ≥600mm above; ≥600mm motor side; ≥200mm non-motor side |

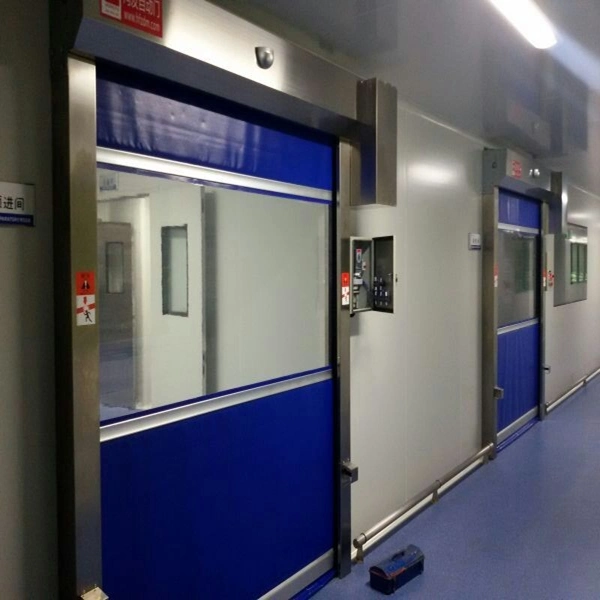

| Using Area | Production Line, Electronics, Food factory, Cold storage, Cleanroom |
🛠️ Services Available
OEM & ODM services for global clients.
Global shipment arrangement.
CE / ISO-9001 / SGS Certification support.
Installation videos and technical instructions.
Professional language support (Email/Phone).
12 Months warranty for all doors and accessories.
❓ F A Q
1. What's the payment details?
Deposit is required before production, and the balance is settled before shipment.
2. What's the delivery time?
For common orders, the production and delivery lead time is approximately 7 days.
3. What about the warranty for the doors?
We provide a comprehensive 12-month warranty for all door units and related accessories.
4. Do you provide OEM Service?
Yes, we fully support both OEM and ODM services to meet specific requirements.
5. What's the MOQ?
We accept 1 set as a sample order for quality testing and evaluation.
6. How about the package?
Products are packed in plywood cases or cardboard, suitable for safe sea or air freight.
