Basic Info.
Special Function
Fast Running
Surface Finishing
Finished
Power Supply
1-Phase 220V or 3 Phase 380V, 50/60Hz
Installation Area
Exterior or Interior
Transport Package
Wood Box Package
Production Capacity
2000 PCS/Year
Packaging & Delivery
Package Size
300.00cm * 40.00cm * 40.00cm
Package Gross Weight
150.000kg
Product Description

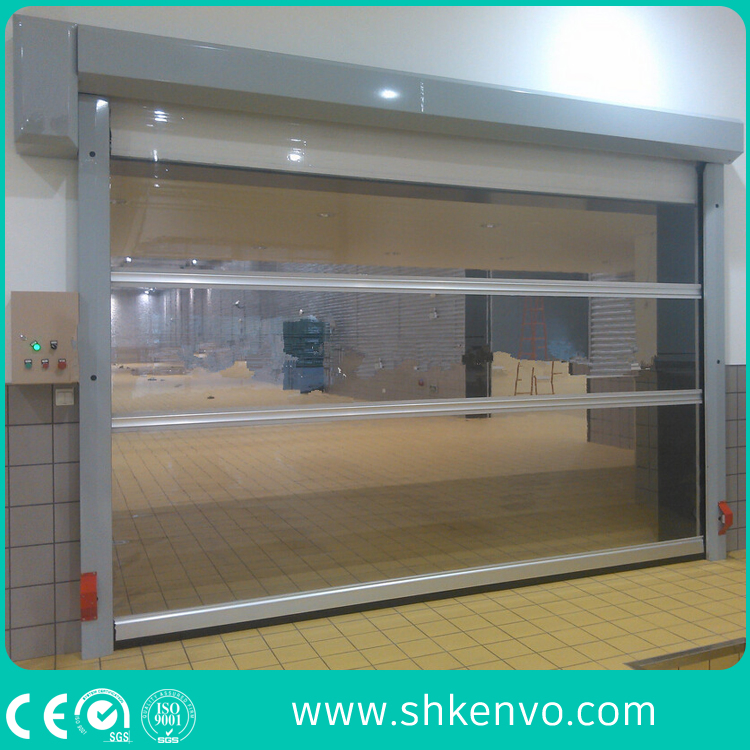

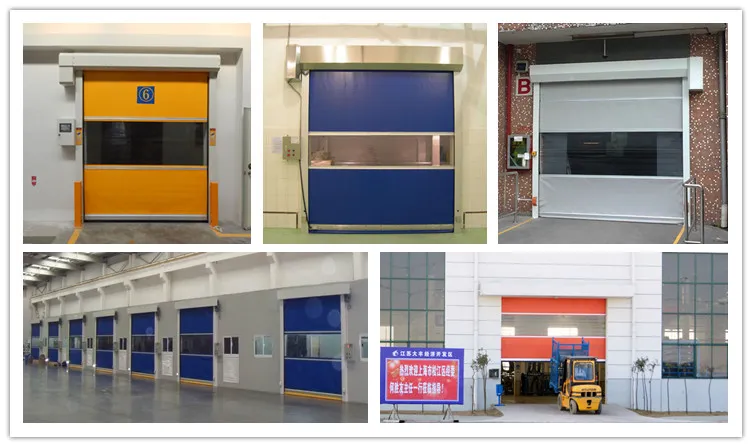

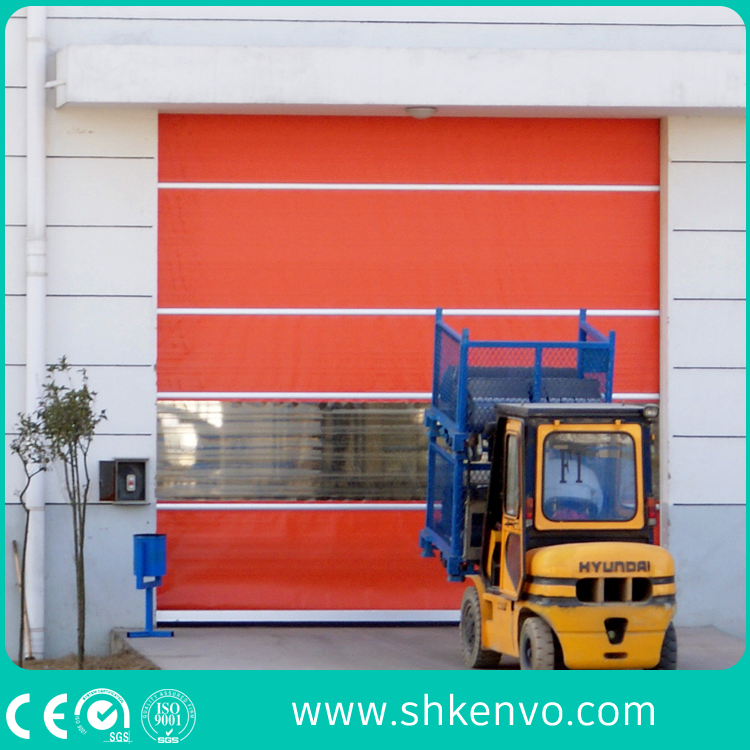

PVC Fabric High Speed Rolling Doors or Rapid Doors:
Standard type, mostly used in all different industries. With aluminum bar to improve its wind resistance, fit for both outside and inside use.

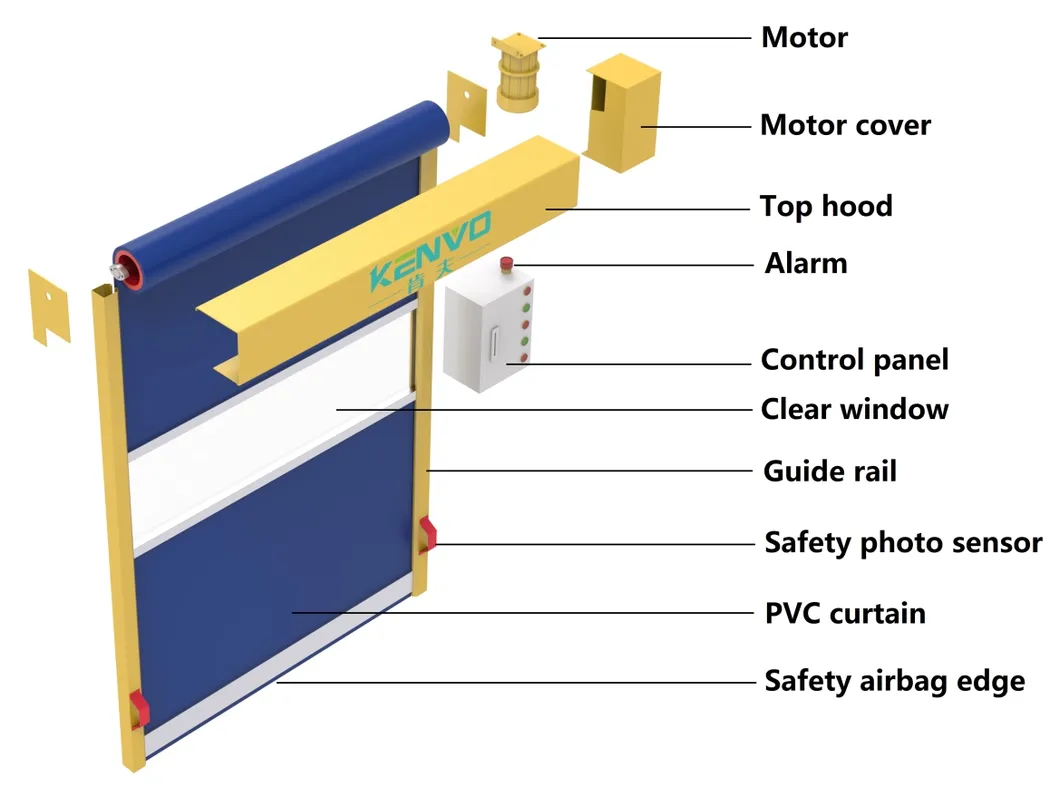

3-D Structure Drawing of High Speed Door/Rapid Door:

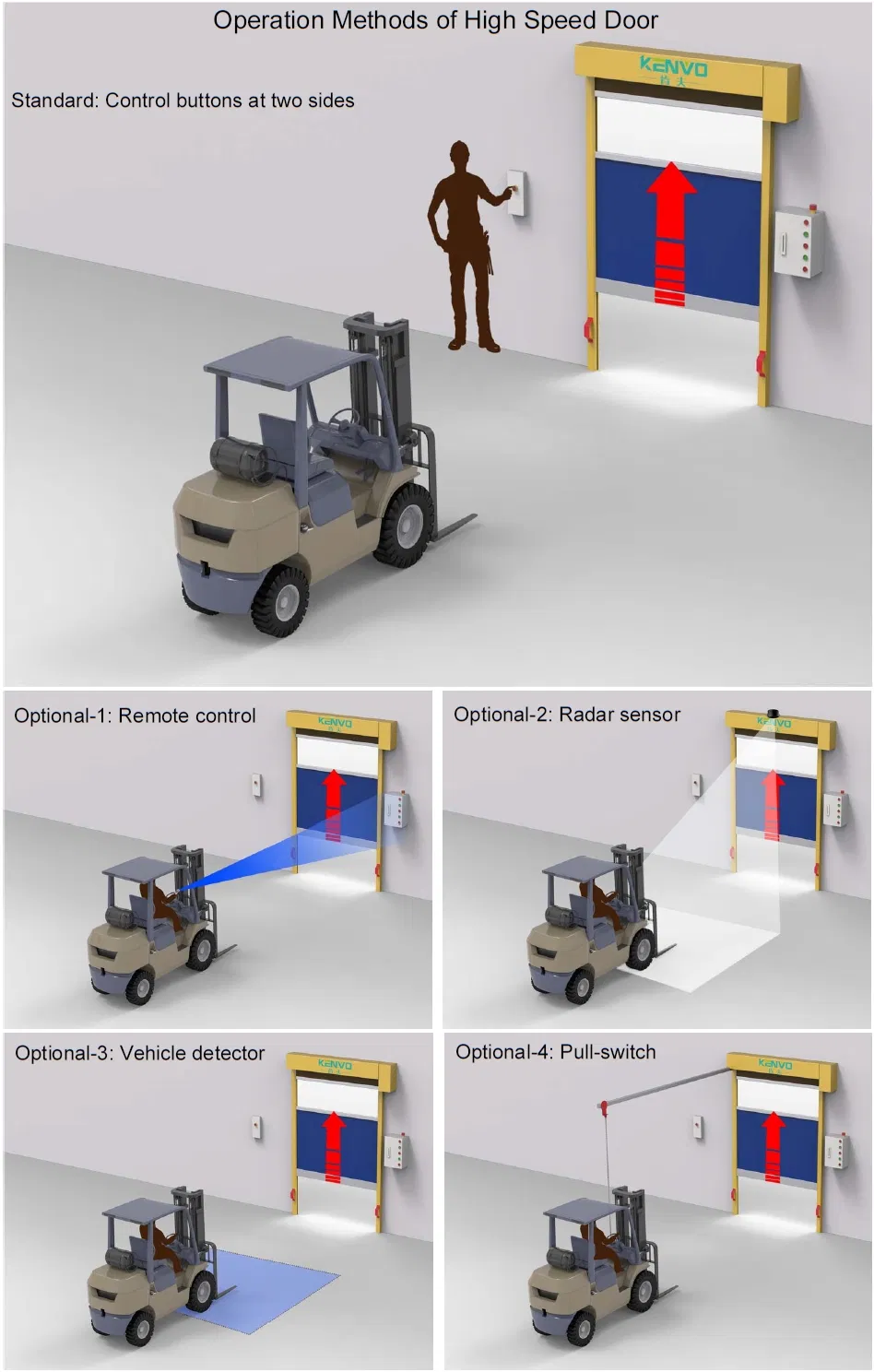

How To Operate High Speed Door/Rapid Door:

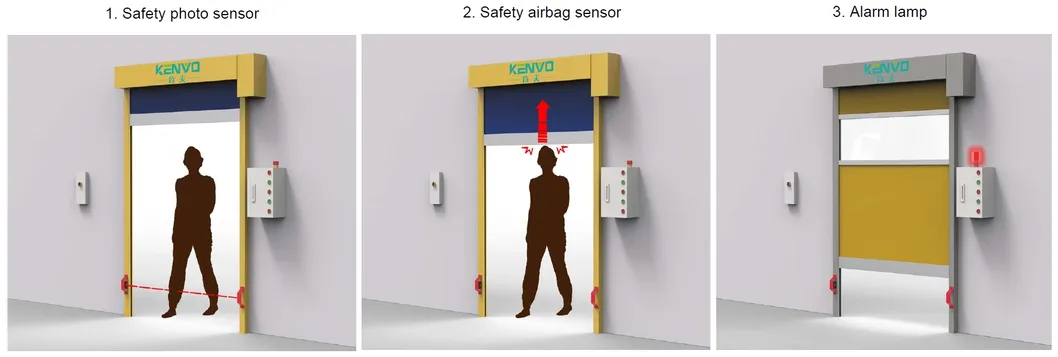

Safety Device of High Speed Door/Rapid Door:
Every high speed door has below three safety devices.
Description:
High Speed Door is widely used in modern factories and warehouses. It can run in very high speed (up to 2.5m/s) and frequency (up to 2000 times/day), very fit for areas with heavy traffic. Air flow through the door is reduced obviously, to protect indoor environment. Automatic running is realized with programmed control system and sensors.
Features:
High speed opening and closing: The running speed can reach 2m/s, 10 times as traditional roller shutter door.
High frequency operation: The operation frequency can reach more than 1000 times per day without any faults.
High-level automation: Automatic radar or other devices can be equipped for auto control.
Excellent safety performance: Every door is equipped with safety photo sensor and proximity sensor.
Effective insulation: Reduces air flow and prevents dust from entering, saving energy.
Complying with Food-grade and GMP norm: Special design seal structure, dust-proof PVC fabric.
Multiple safety protection: Stops and reverses automatically if an object is detected.
Convenient daily operation: Standard operation buttons for both outside and inside.
Applications:
Food factory, Pharmaceutical factory, Warehouses, Packaging industry, Chemical industry, Machinery industry, Loading bays, Robot welding rooms, Clean rooms, Laboratory, Conveyor.
Optional Parts:
| NO. |
ITEM |
CHOICE |
| 1 | Color | Yellow, Blue, Orange, Grey, White, Clear |
| 2 | Window | Yes/No |
| 3 | Operation | Radar sensor, Remote control, Vehicle loop detector, Pull switch |
| 4 | Frame material | Powder coated galvanized steel/304 stainless steel |
| 5 | Motor position | Right/Left |
Frequently Asked Questions
What is the maximum operating speed of the door?
The door can reach a maximum running speed of up to 2.5m/s, which is significantly faster than traditional roller shutters.
Is this high speed door suitable for high-traffic areas?
Yes, it is designed for heavy traffic with an operation frequency capacity of up to 2000 times per day.
What safety features are included as standard?
Every door comes equipped with a safety photo sensor and a proximity sensor to prevent collisions with people or vehicles.
Can the door withstand outdoor wind conditions?
The door is built with aluminum bars for wind resistance and can withstand wind speeds up to 28m/s, making it suitable for both interior and exterior use.
Is the PVC material compliant with hygiene standards?
Yes, the PVC fabric is dust-proof, easy to clean, and the design complies with Food-grade and GMP norms for pharmaceutical and food industries.
What control options are available for operation?
Optional operation methods include radar sensors, remote controls, vehicle loop detectors, and pull switches, in addition to standard push buttons.
