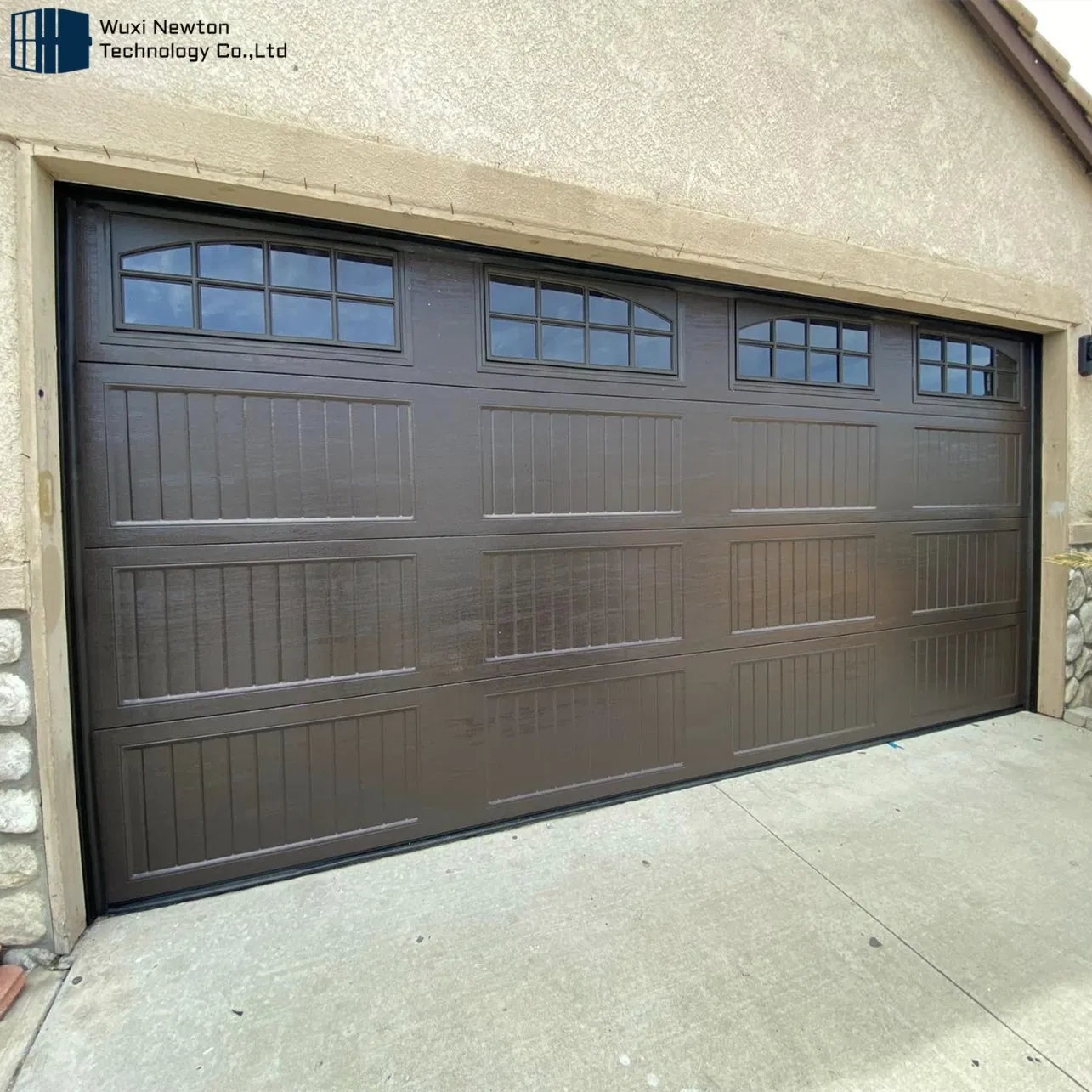

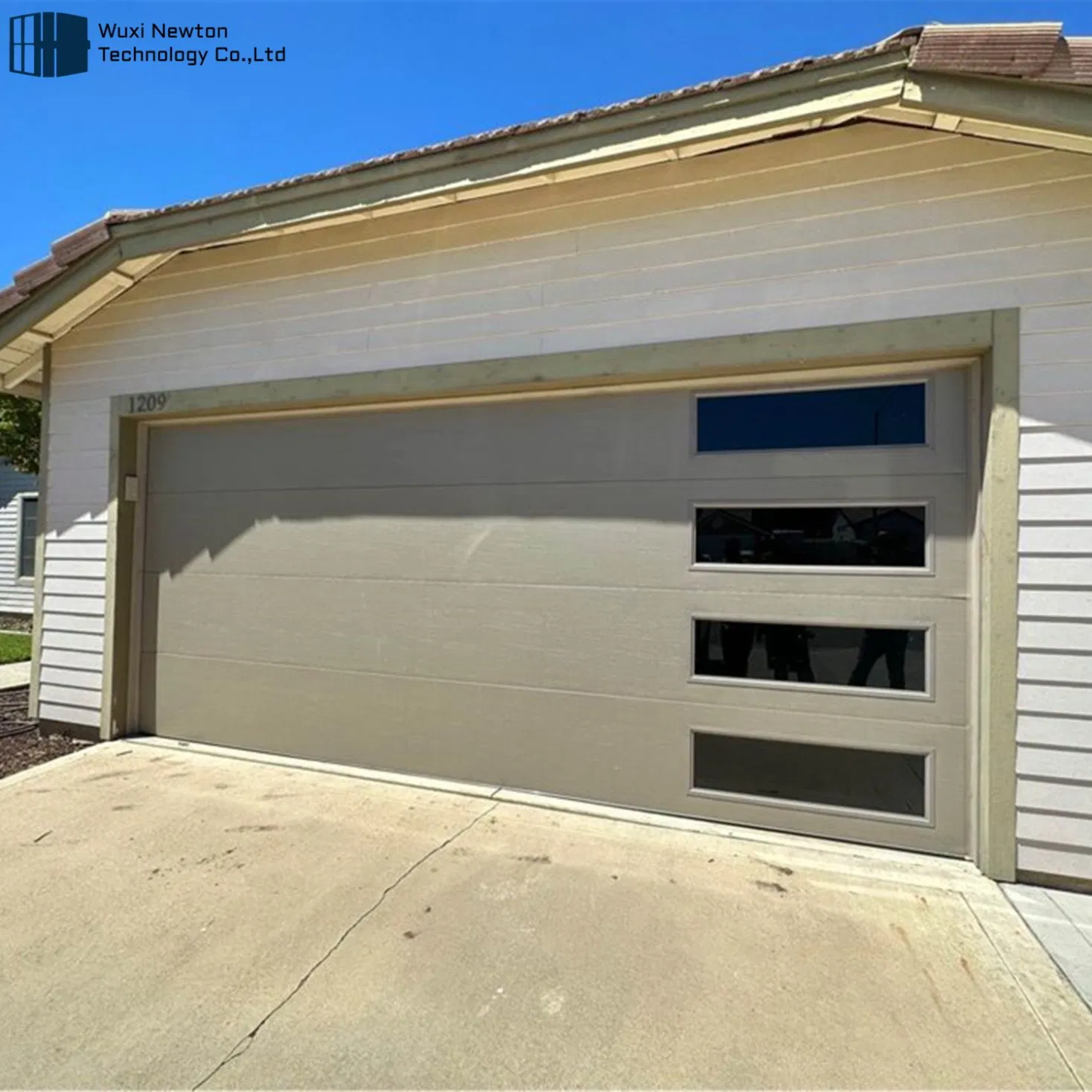

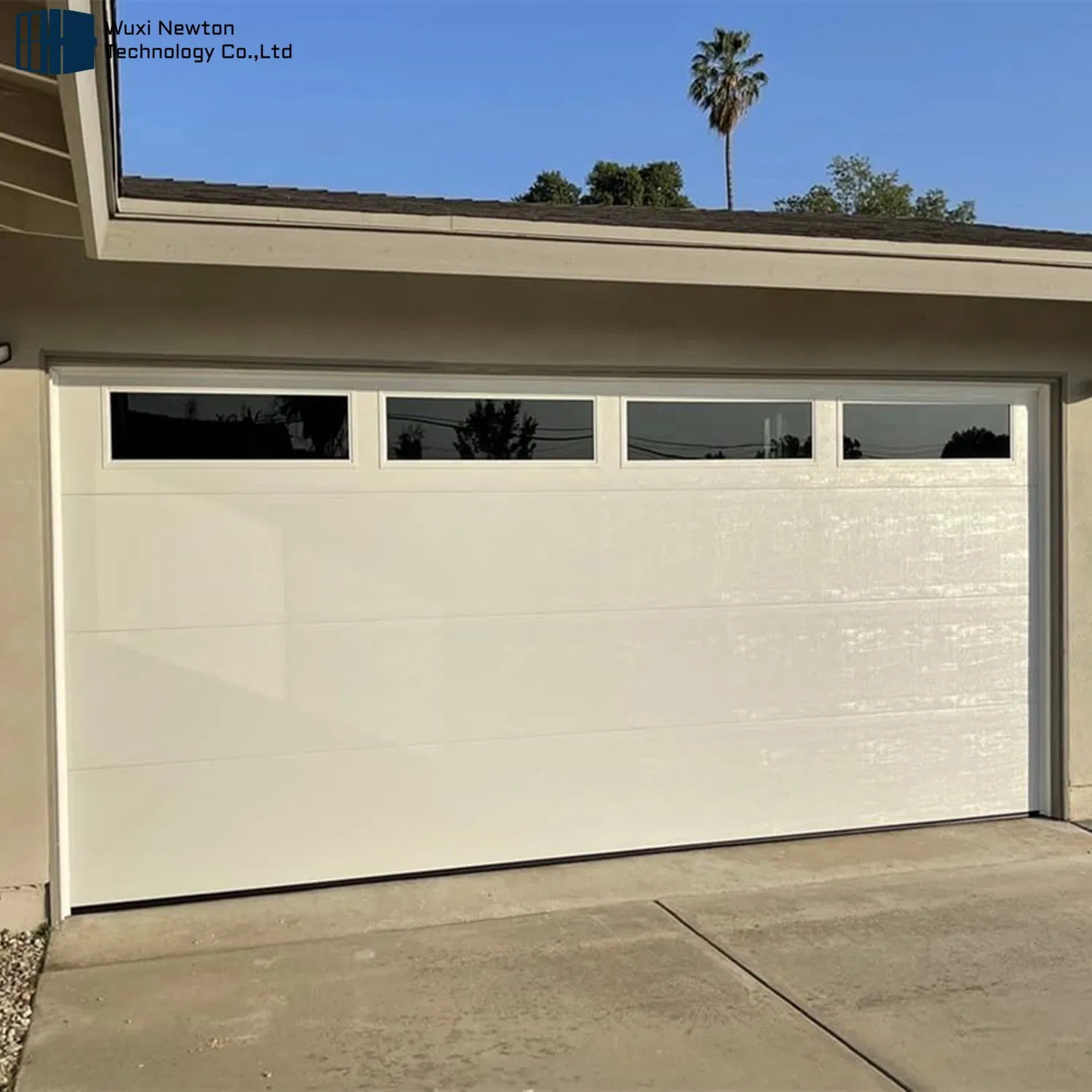

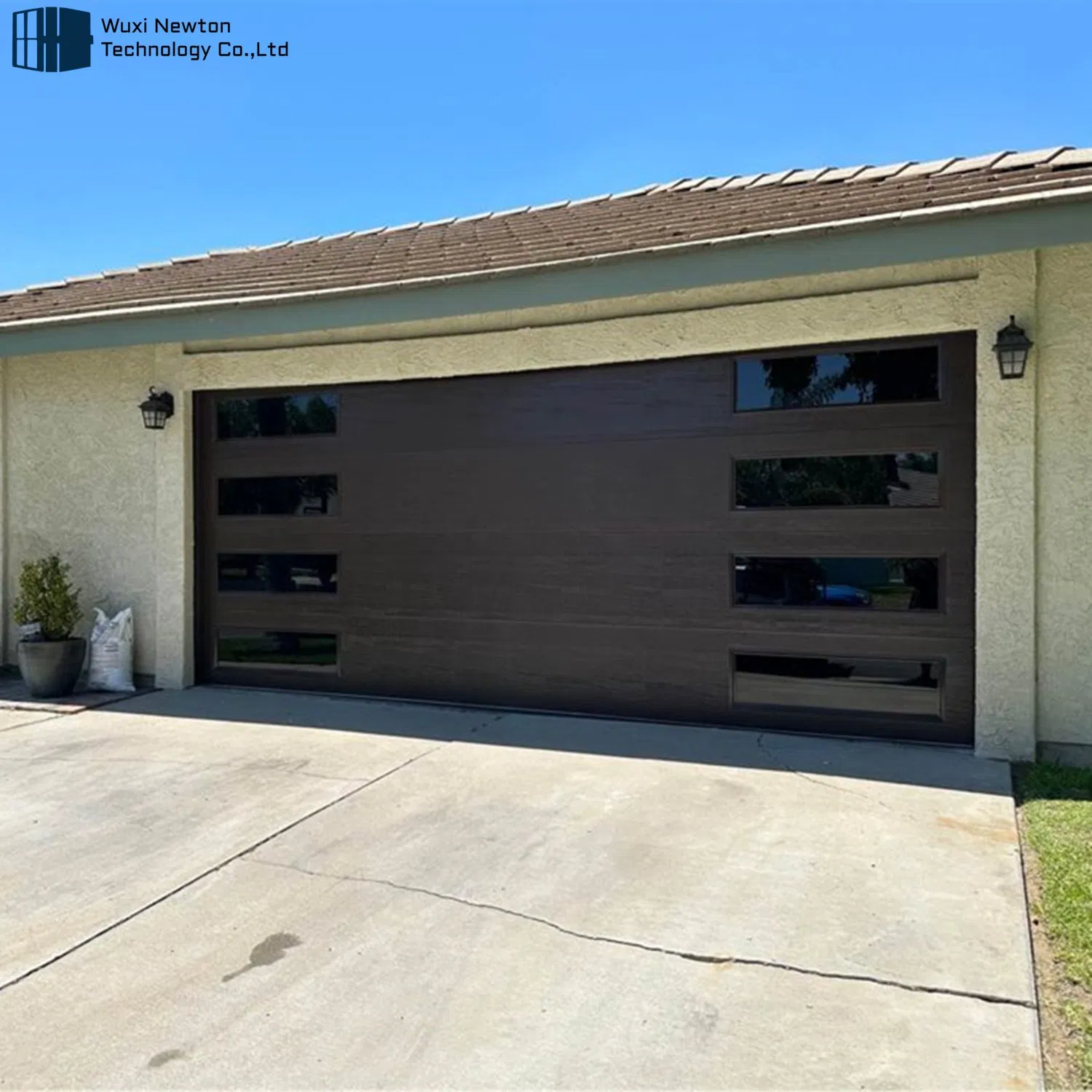

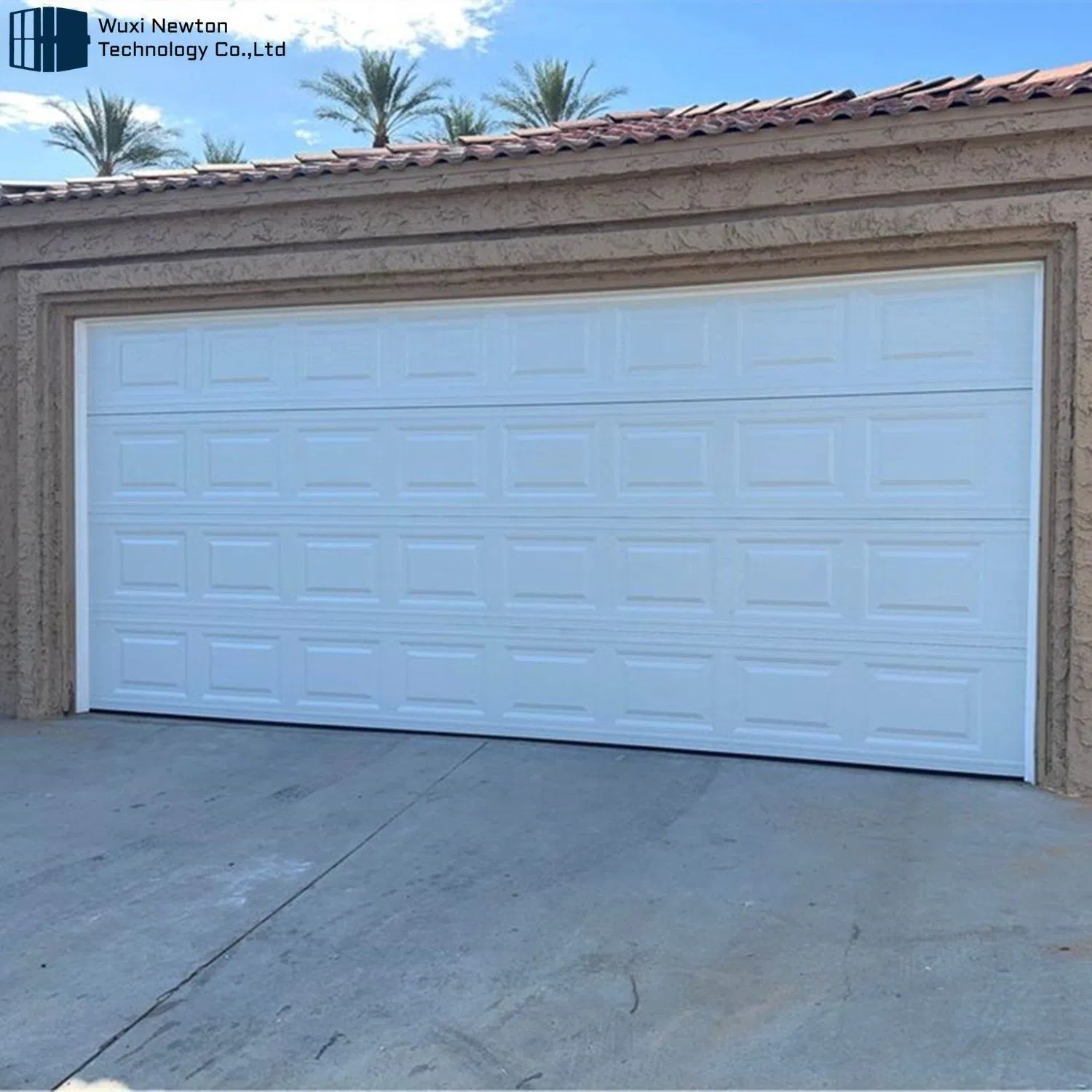

Modern Design Garage Equipment: Sectional Folding Overhead Doors with Windows
| STRUCTURE | FINGER SAFE | NON FINGER SAFE |
|---|---|---|
| Section's height | 450mm, 500mm, 550mm | 500mm, 550mm |
| Section's thickness | 40mm | 43mm, 50mm, 75mm |
| Material (Outer/Inner) | PPGL hot-dipped galvanized steel | |
| Insulation | Polyurethane foam | |

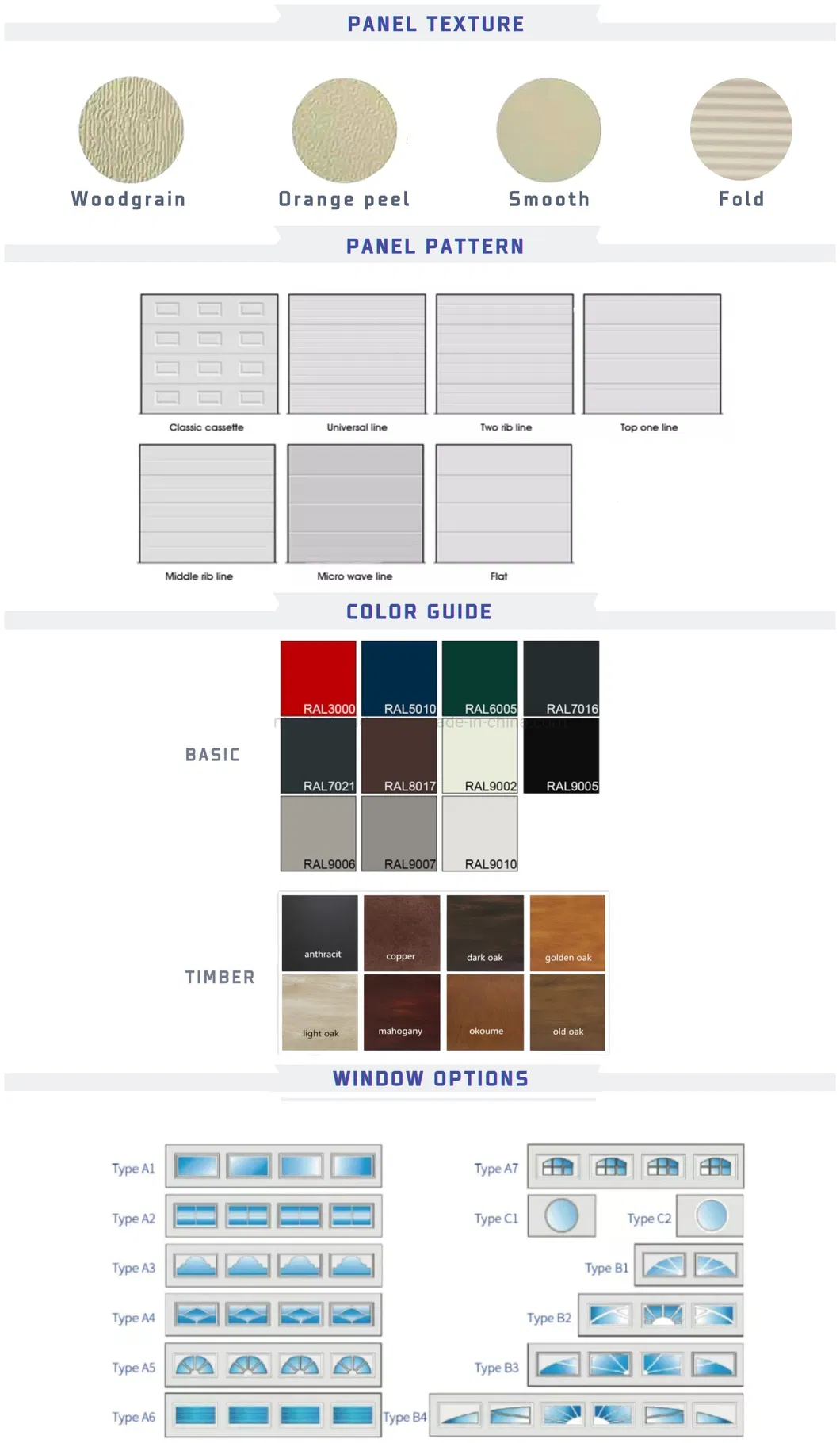

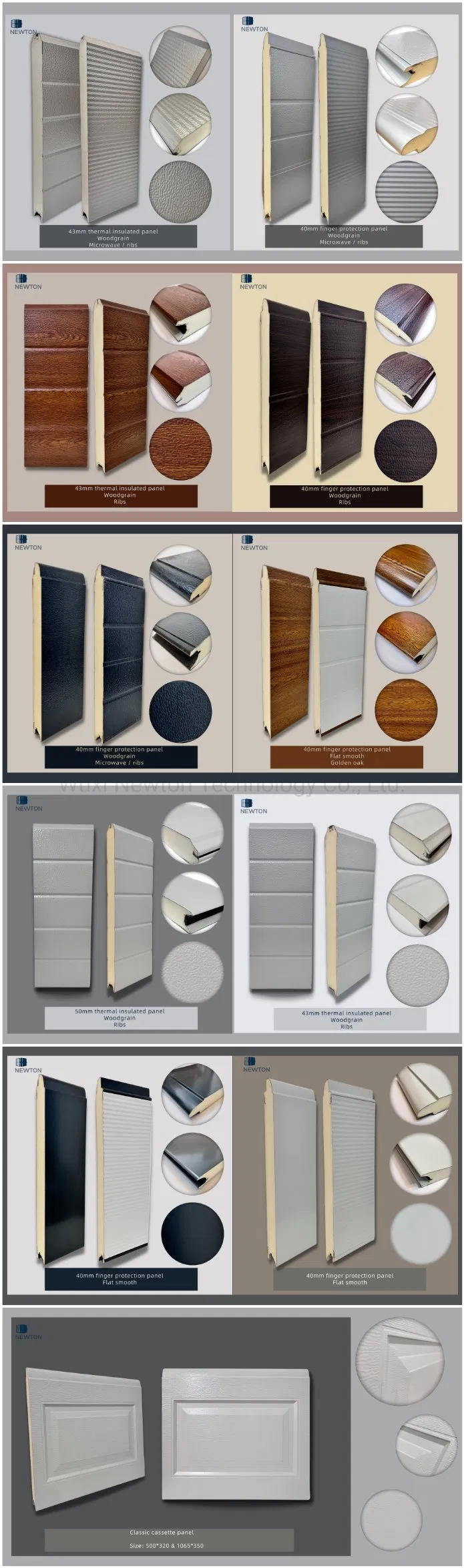

| External Surface | Wood grain, Micro-wave, Flat-smooth | |
The durability, stability and safety of the garage door are our primary concerns. We supply high-quality hardware meeting the latest EN13241-1 standards. Tracks, hinges, and rackets are made of hot-dipped galvanized steel for long-term rust resistance.

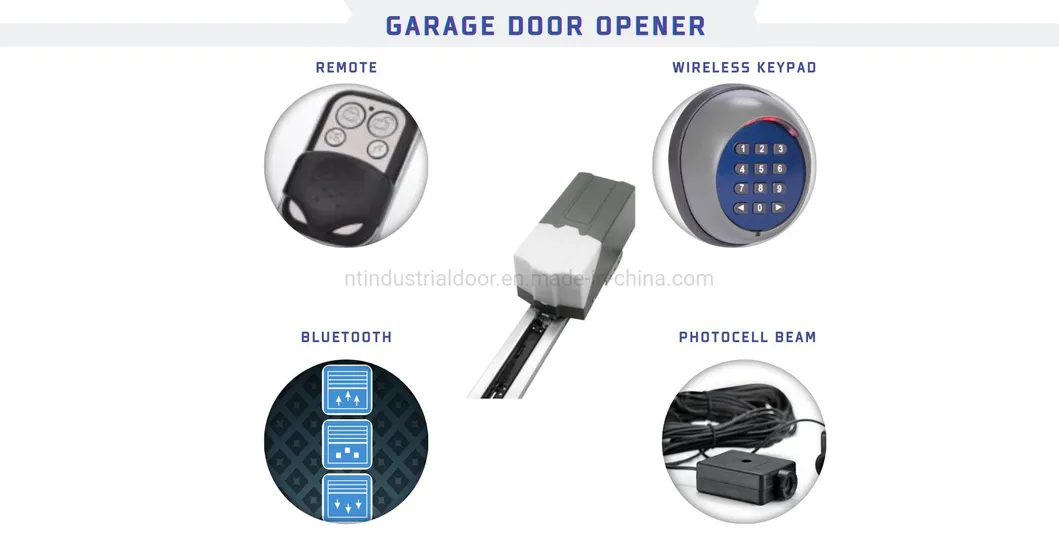

| MODEL | 600N | 800N | 1000N | 1200N |
|---|---|---|---|---|
| Rated Power | 200W | 235W | 245W | 260W |
| Lifting Force | 600N | 800N | 1000N | 1200N |
| Opening Speed | 180mm/s | |||
| Door Area | 10 m² | 12 m² | 14 m² | 16 m² |

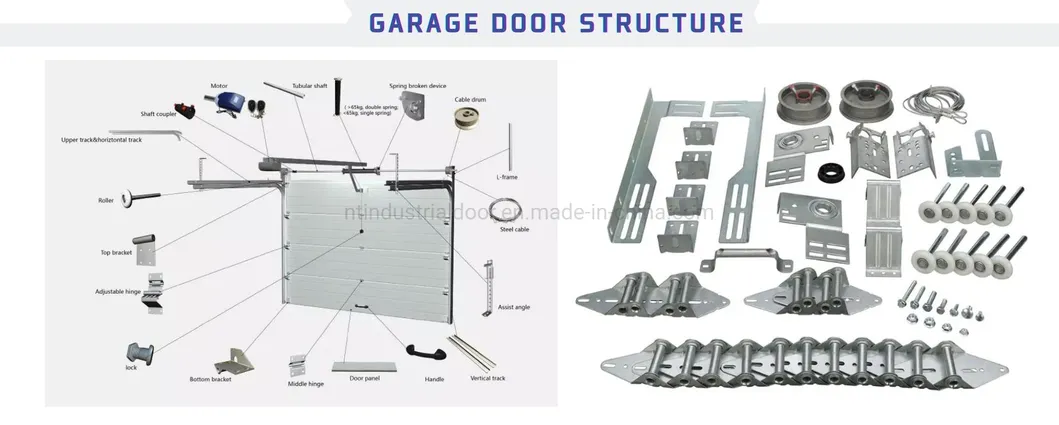

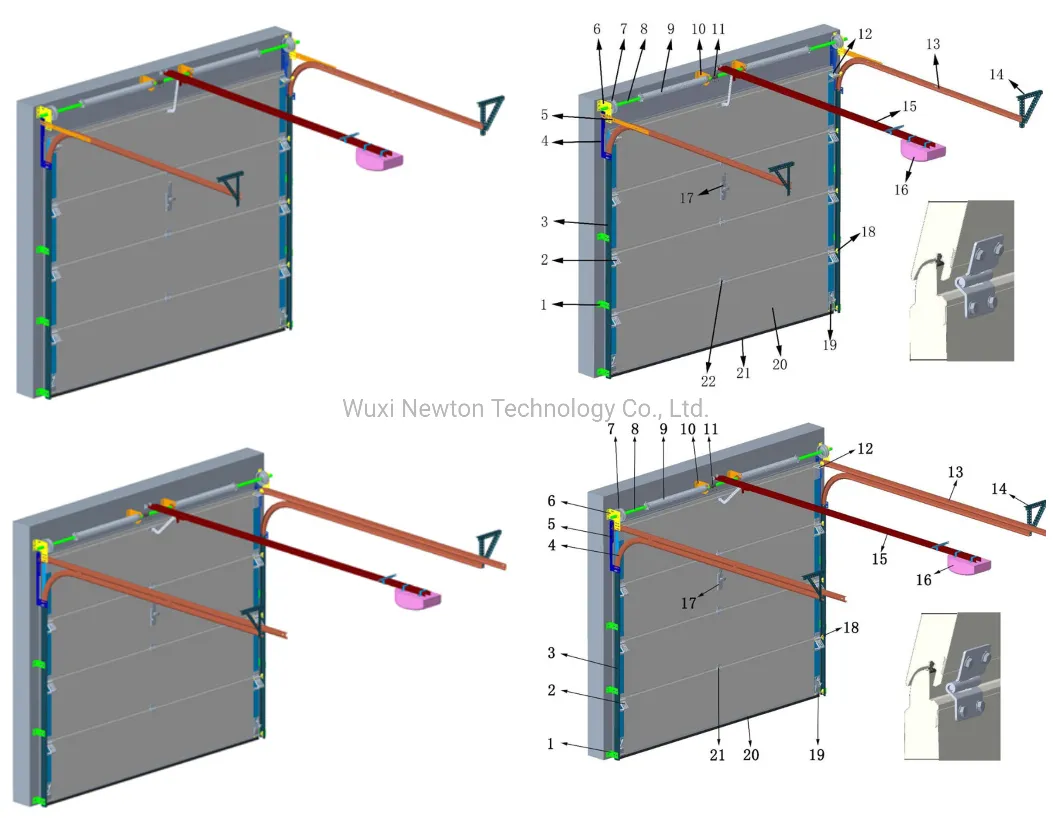

| Single Track Parts | Double Track Parts |
|---|---|
| 1. Track bracket | 1. Track bracket |

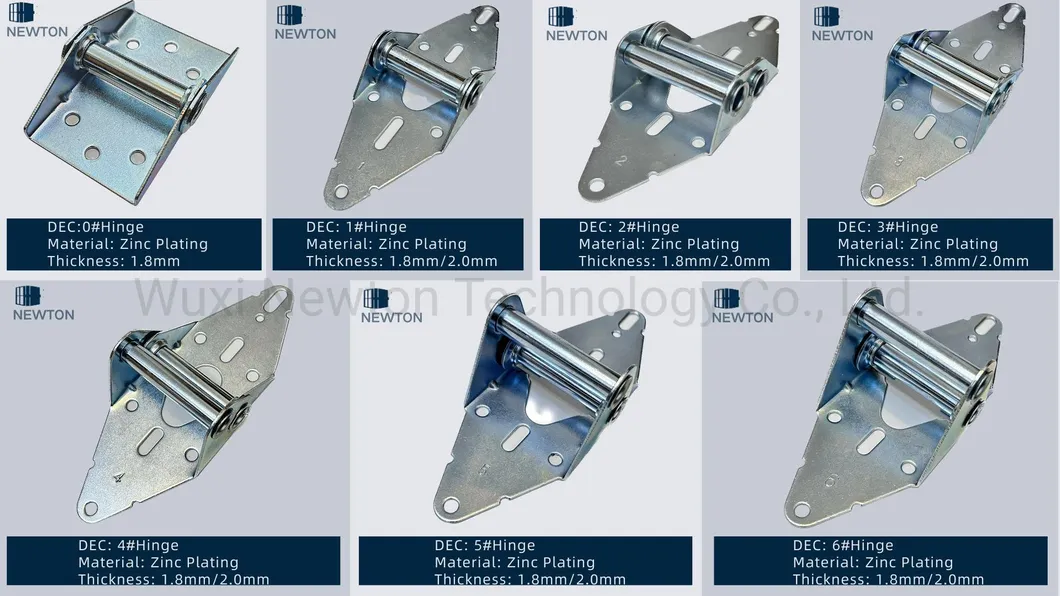

| 2. Adjustable side hinge | 2. Adjustable side hinge |
| 3. Vertical track | 3. Vertical track |
| 4. Flag bracket | 4. Horizontal track |
| 5. Torsion spring | 5. Torsion spring |
| 6. Motor & Track | 6. Motor & Track |
| 7. Bottom seal | 7. Bottom seal |

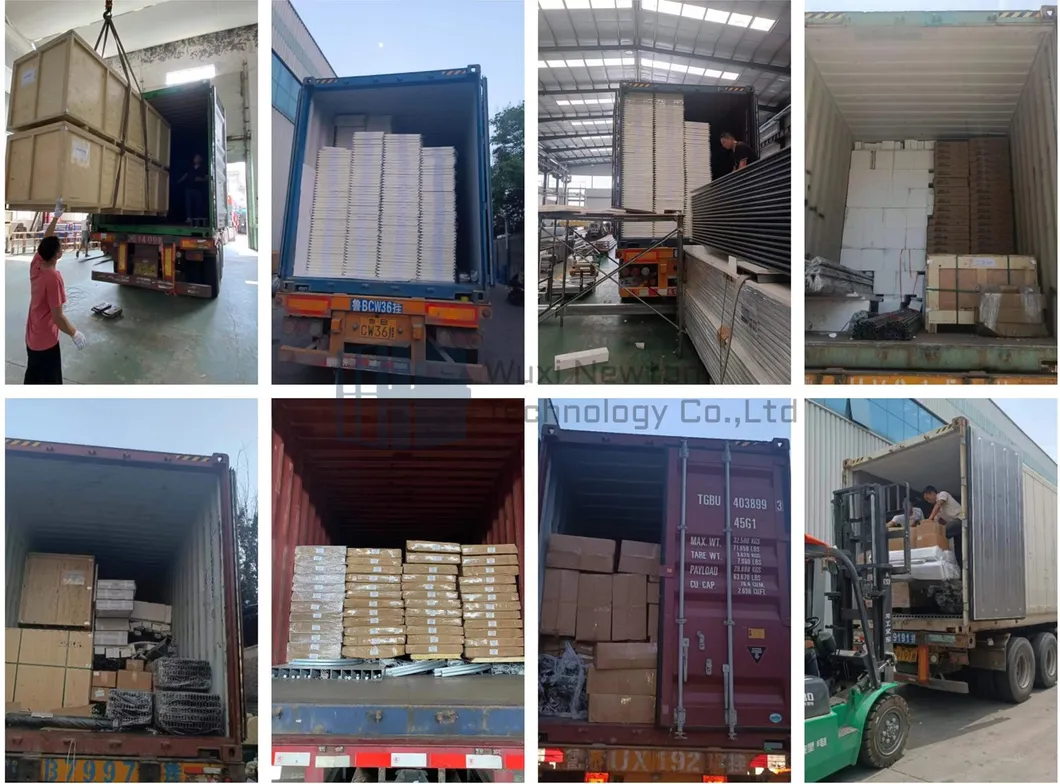

Package: Qualified plywood for LCL; Qualified carton or pallet for FCL. Custom packaging is available upon request.
