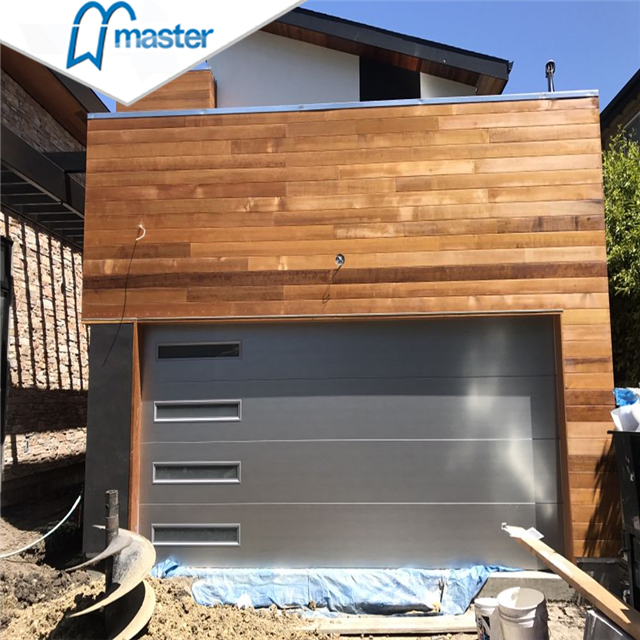

Motor Drive Carriage House Insu'lated Wooden Sectional Garage Doors

1 / 5

Motor Drive Carriage House Insu'lated Wooden Sectional Garage Doors

Customization:	Available
Material:	Galvanized Steel with PU Foaming
Thickness:	40mm/50mm

Send Inquiry

Product Description

Basic Specifications

Model NO.	SF40S / SF40 / SN35/SN40/SN50
Opening Style	Automatic, Overhead
Opening Type	With Remote Control
Power / Torque	80-180W / 800-1800n

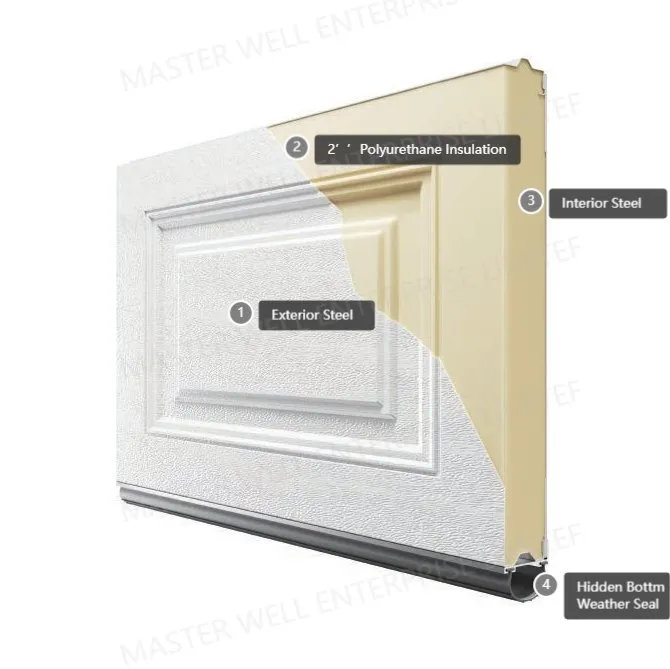

Construction	Steel - Foam - Steel Sandwich Construction

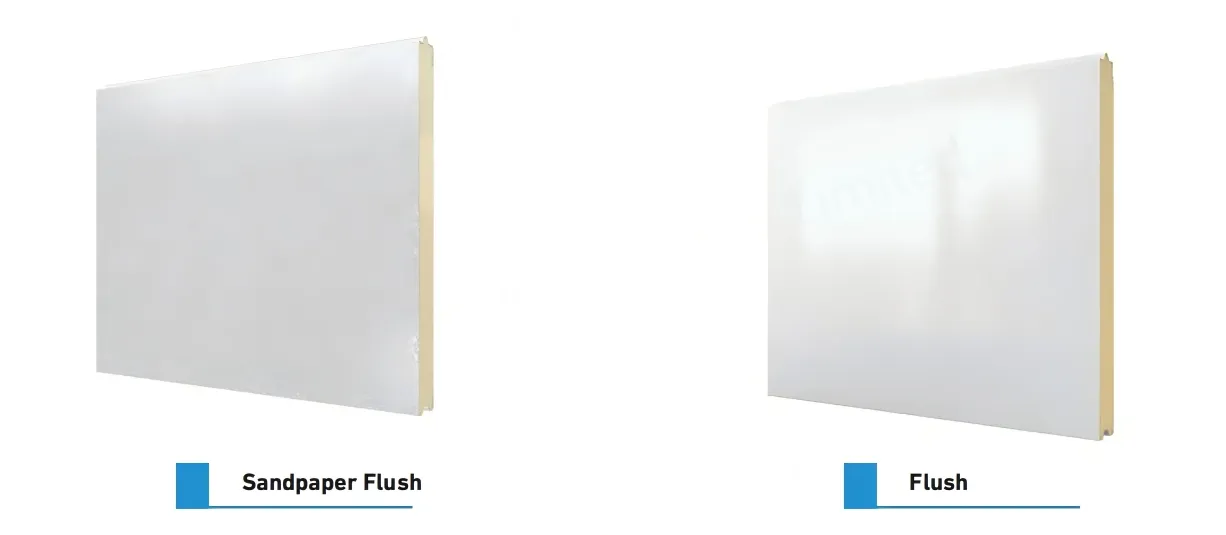

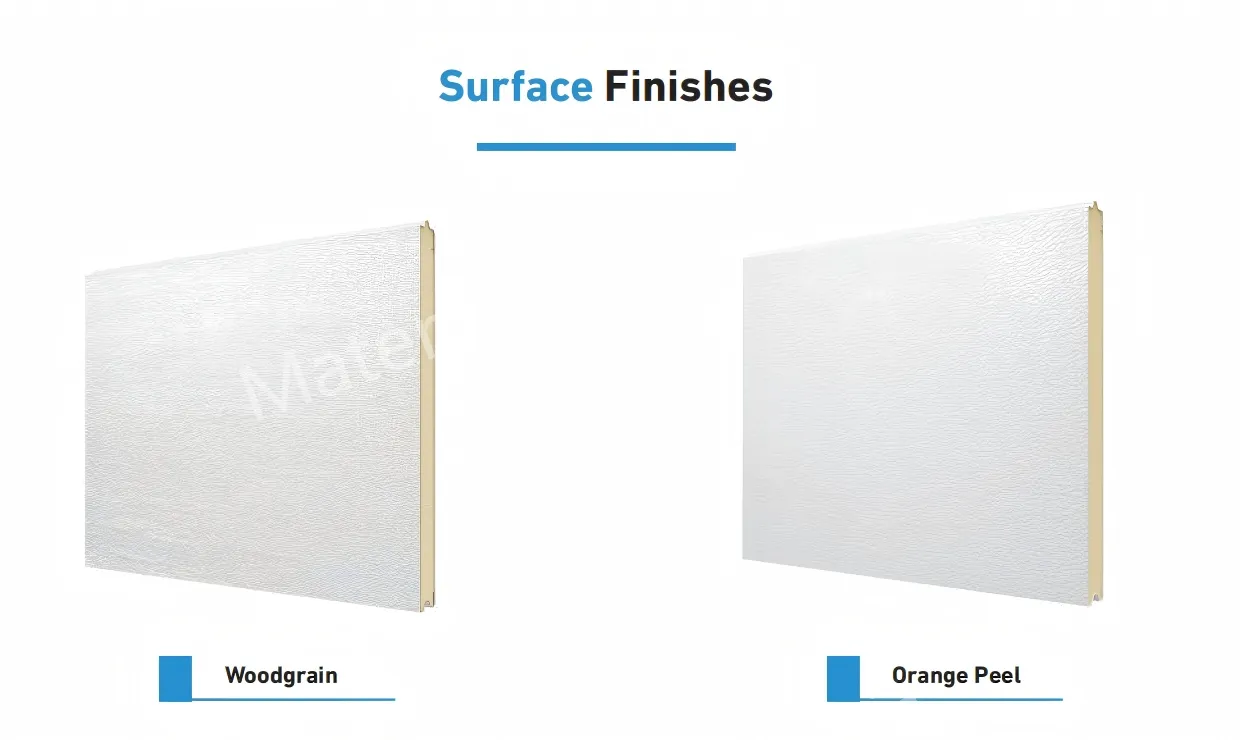

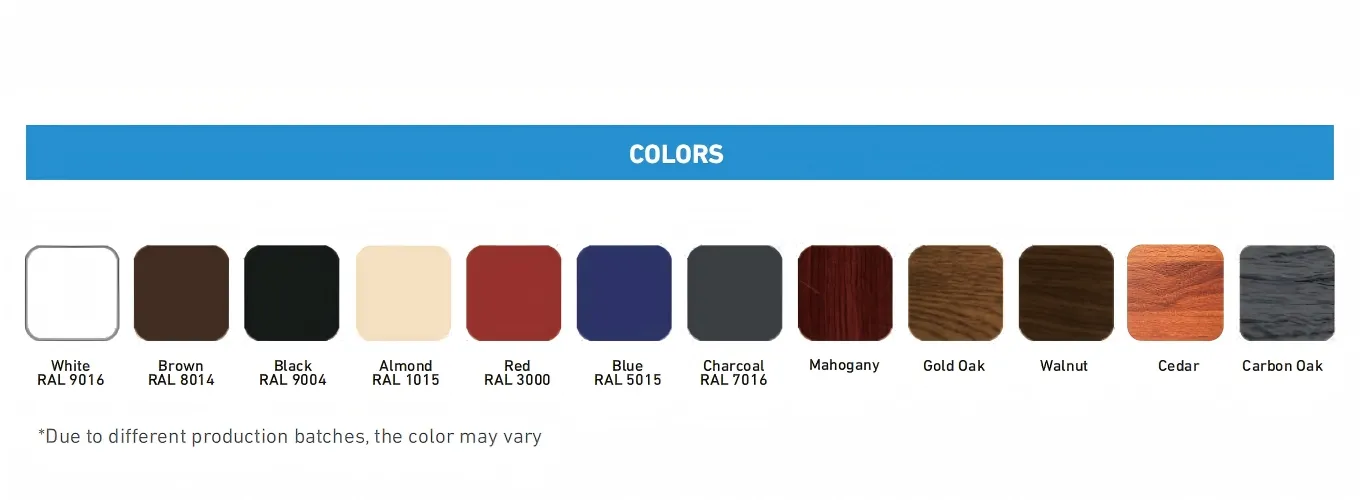

Panel Pattern	Woodgrain, Orange Peel, Fold, Flush
Panel Width	440-550mm, Adjust
Steel Thickness	0.35mm / 0.45mm / 0.50mm
Insulation Density	43-45kg/M³
Noise Level	22dB
Wind/Water Tightness	Class 3
Service Life	10 Years

★

Product Details

Panel Type	Non-finger protectional panel
Structure	Tight tongue and groove Joint
Material	Galvanized steel with PU foaming
Section Thickness	1 3/8’’(35mm) / 1 3/5’’(40mm) / 2’’(50mm)
R-Value	R14-R19
Warranty	10 years for all mechanical parts

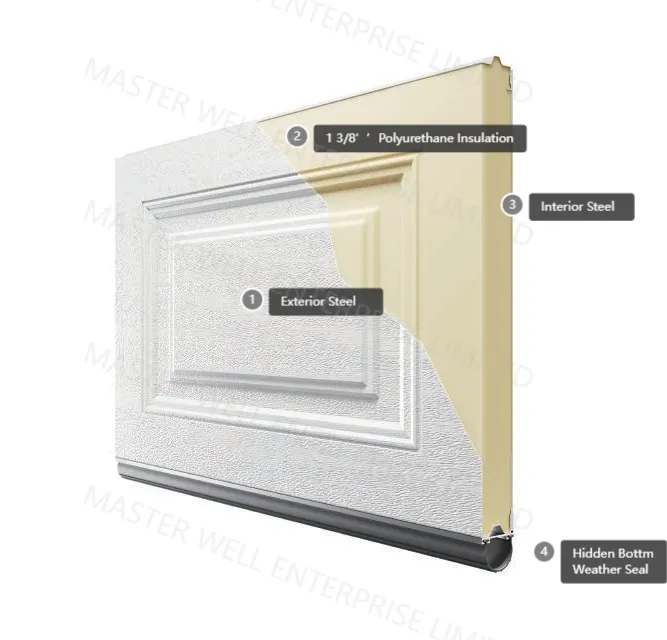

SN35 (1 3/8'') Design

Rust-resistant coating
Noise-reducing performance
Economical and practical
Low maintenance cost
Full length backing horizontal stile

SN50 (2'') Design

Efficient buffering protection
Strong regional adaptability
High thermal insulation
Energy saving and comfortable
Excellent sealing performance

⚙

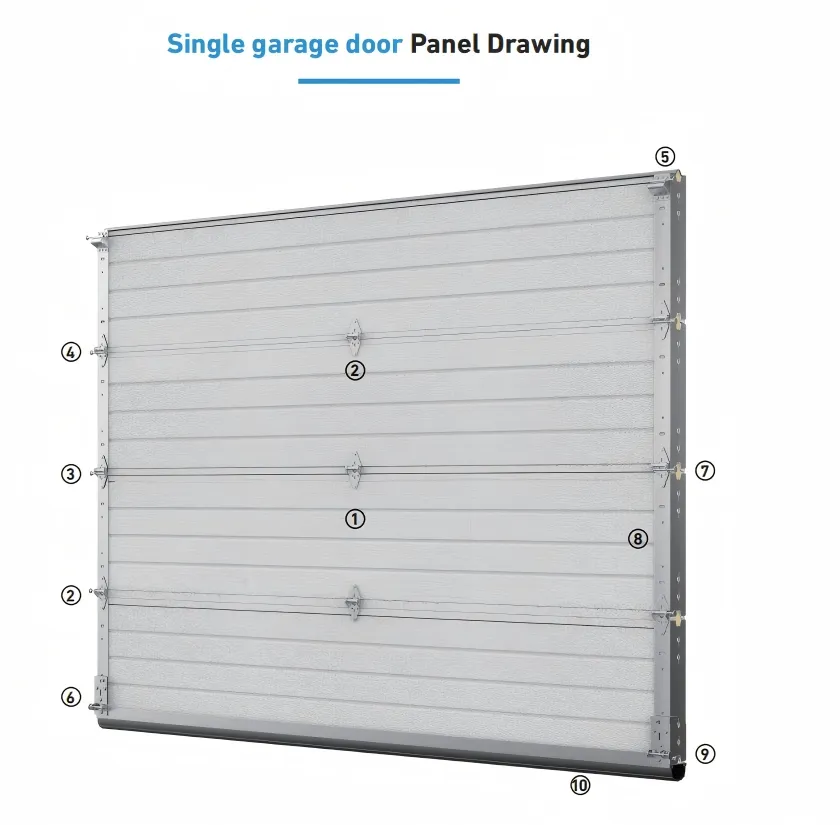

Door Components

1. Door Panel	6. Bottom Roller Bracket
2. #1 Hinge	7. Nylon Roller
3. #2 Hinge	8. Side Cap
4. #3 Hinge	9. Aluminum Bottom Seal
5. Top Roller Bracket	10. Bottom Rubber Seal

📦

Packing & Delivery

Package Size	320.00cm * 72.00cm * 72.00cm
Gross Weight	150.000kg
Packing Type	Carton Box / Wooden Cases

🏭

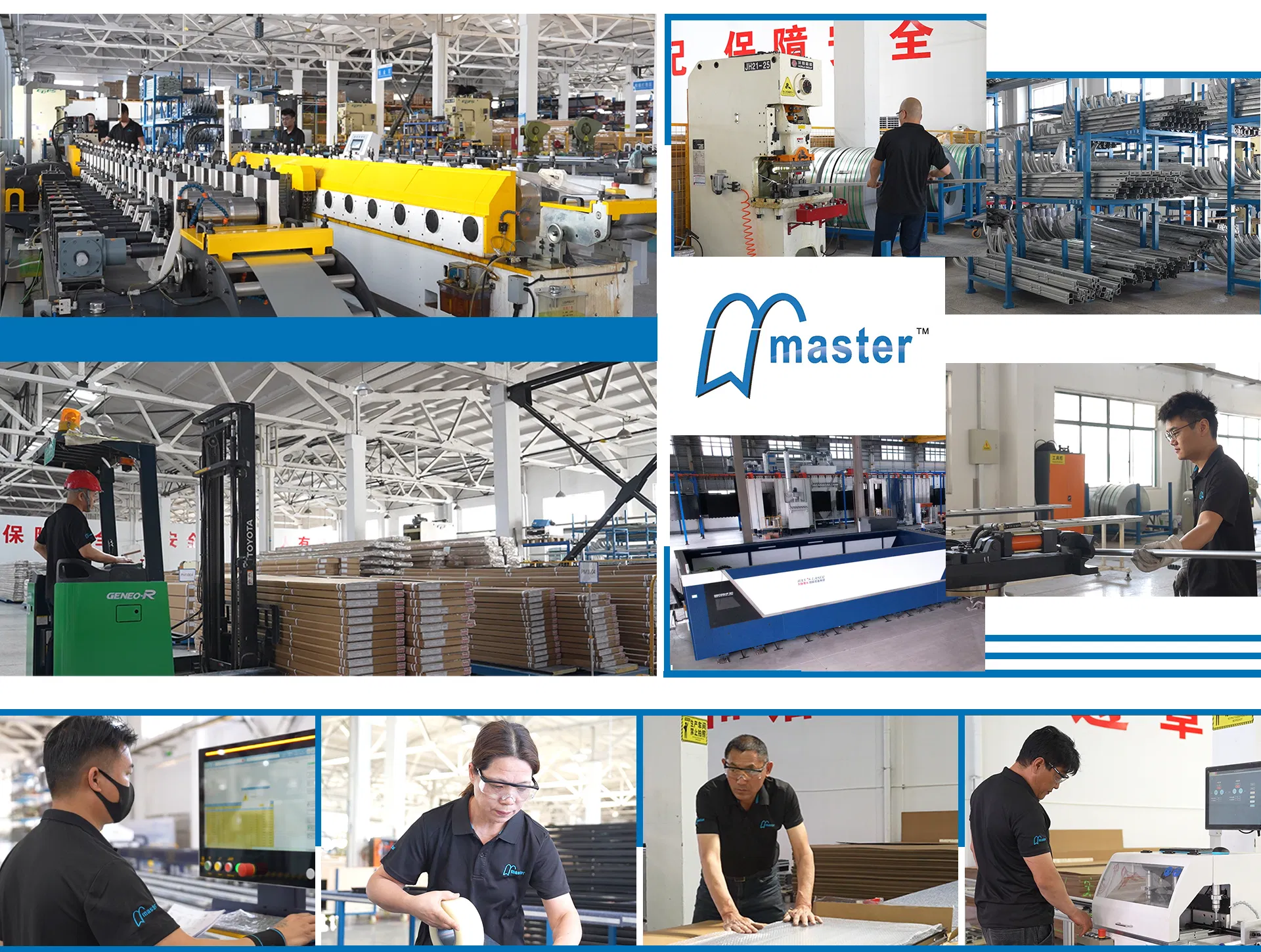

Production & Quality

Frequently Asked Questions

Q1: What is the minimum order quantity (MOQ)? A: There is no minimum order for the garage door panel. We suggest wooden case packaging for protection during shipment.

Q2: What is the maximum available size of the panels? A: The maximum length of panels can be 12M. The maximum width is 550mm, which is adjustable.

Q3: Can you provide a full set of products based on project drawings? A: Yes, our engineers will check your engineering drawings to ensure the accuracy of each accessory and quantity.

Q4: Is it difficult to install the product? A: It is easy to install using screws, with no welding required. Installation videos and guides are available upon request.

Q5: What other products do you offer? A: We also produce glass aluminum sectional doors, industrial doors, high-speed doors, rolling shutters, and motor/gate openers.

Q6: How can I get a price quote for my garage door? A: Please provide the exact size and quantity required. We will provide a detailed quotation based on your specific requirements.

➔
