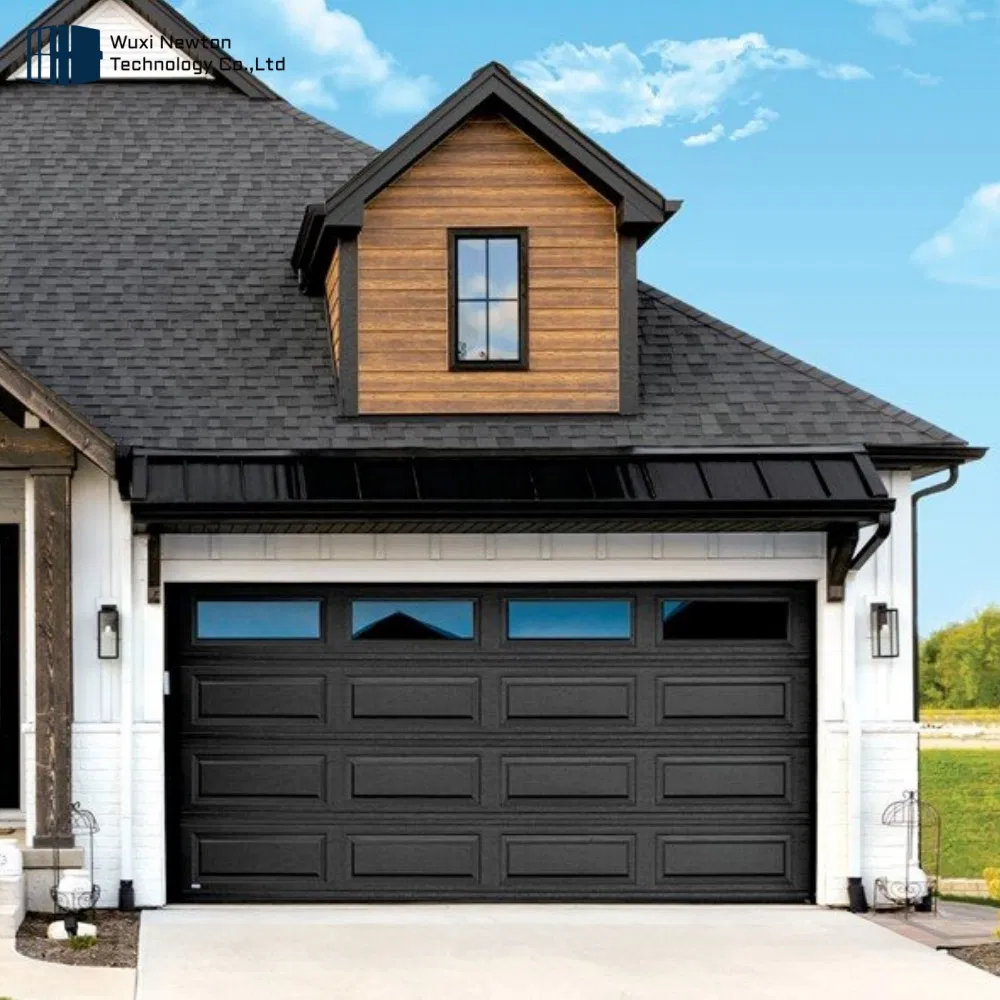

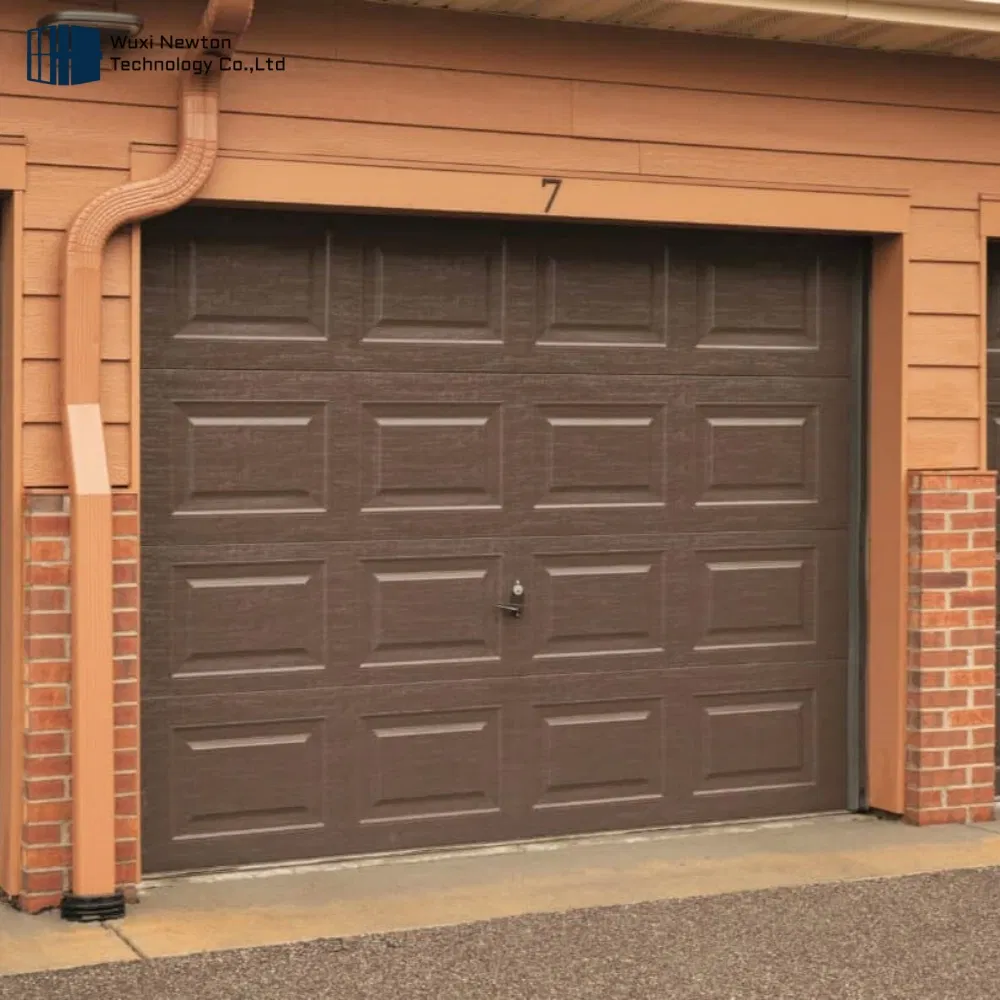

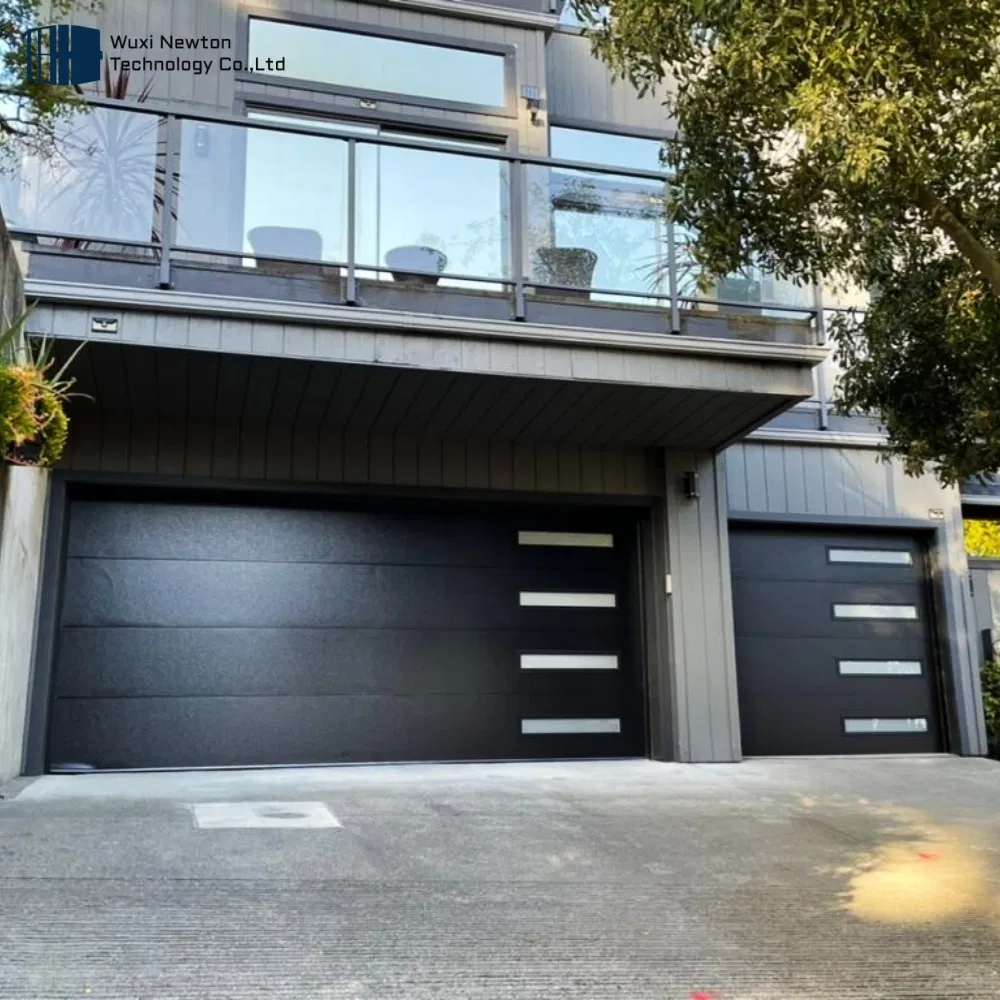

Newton Customized Modern Galvanized Steel Remote Aluminum Garage Door Panels Garage Doors

Basic Specifications

Model NO.

NTGD

Material

Steel

Thickness

40mm, 43mm, 50mm, 75mm Polyurethane Foam

Opening Style

Overhead

Opening Type

Remote Control / Wall Switch / Manual

Power

200W, 235W, 245W, 260W

Output Torque

600n/ 800n/ 1000n/ 1200n

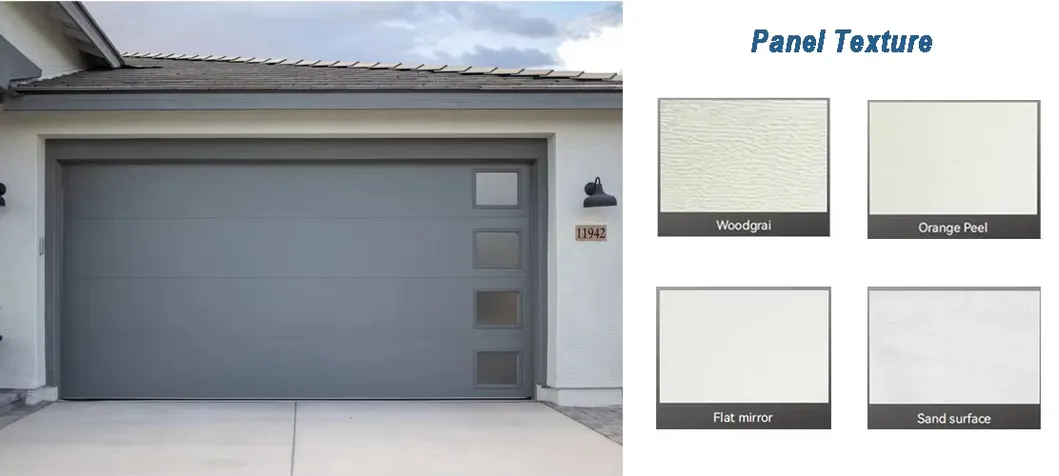

Color

White, Silver Grey, Golden Oak, Black Walnut etc

Applicable Temp

-60 ~ +100 Degree

Door Panel Type

Classic, One-Line, Three-Line, Flat-Smooth

Feature

Quiet Operation, Quick Installation, Low Maintain

Production Capacity

50000 Square Meters Per Month

Product Description

Automatic Overhead Sectional Garage Door

Feature	Specifications
Panel Material	1. Aluminum material door panel with polyethene foam filled 2. Galvanized steel plate with polyethene foam filled, with any ral color

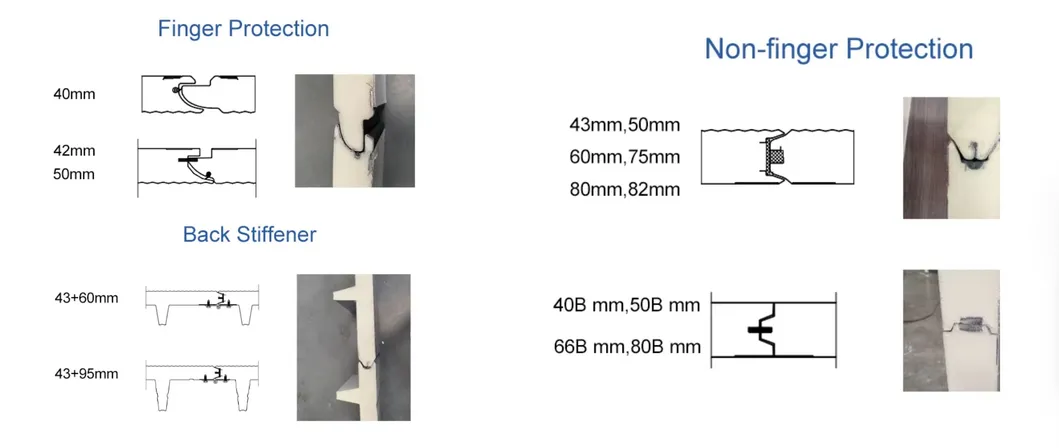

Panel Thickness	Anti-pinch finger: 40mm Ordinary board: 43/50/75mm
Track System	Single track: lintel > 35cm Double track: lintel smaller than 35cm

Key Selling Points

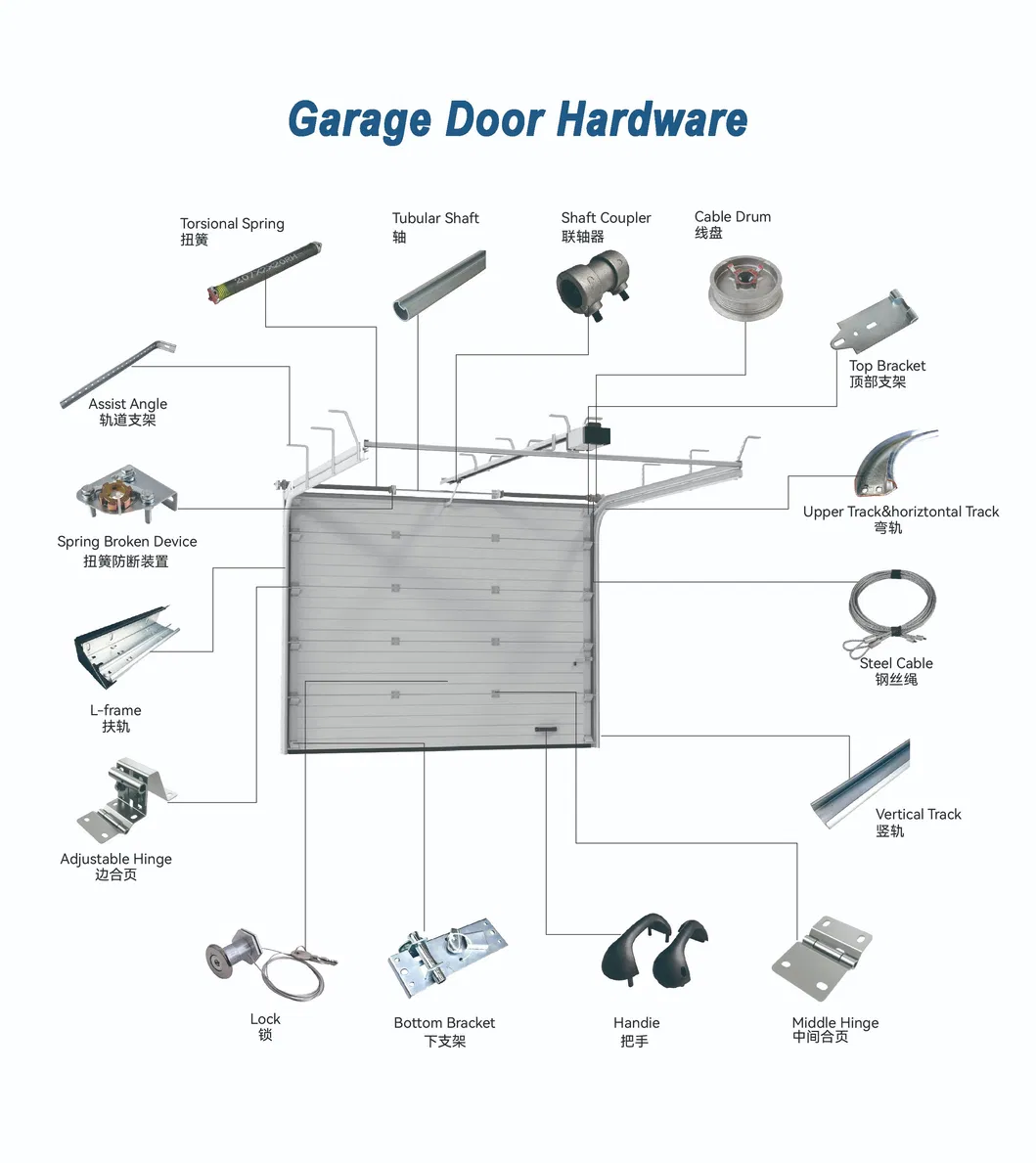

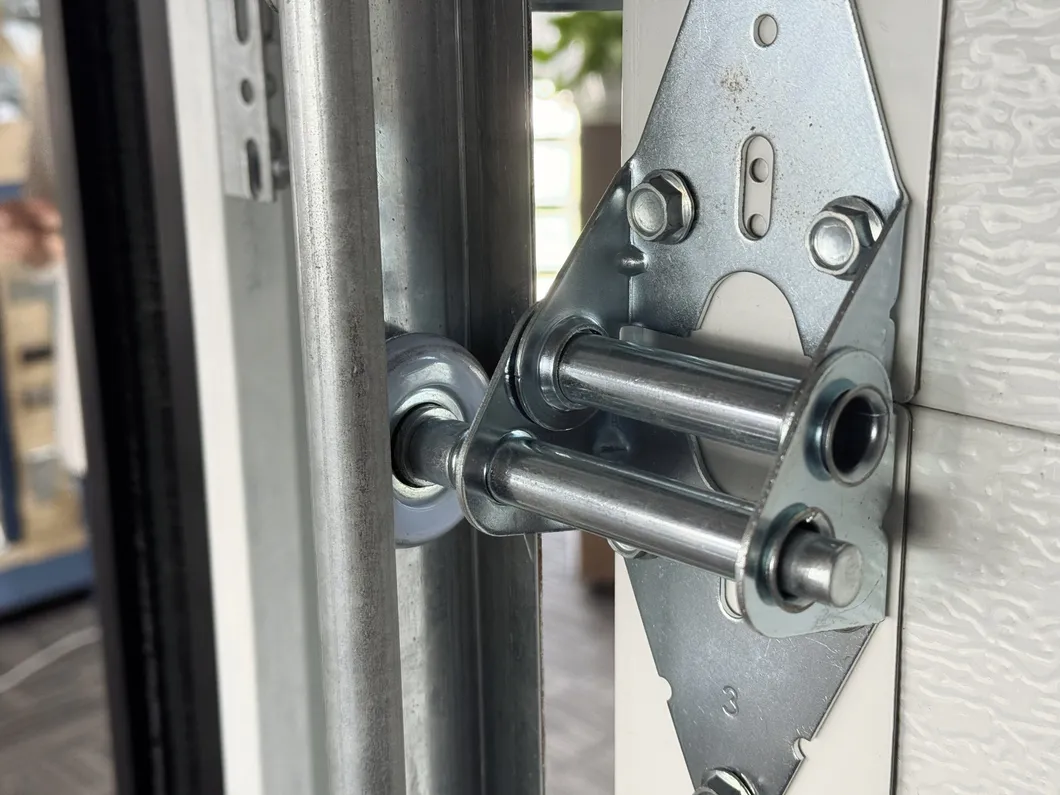

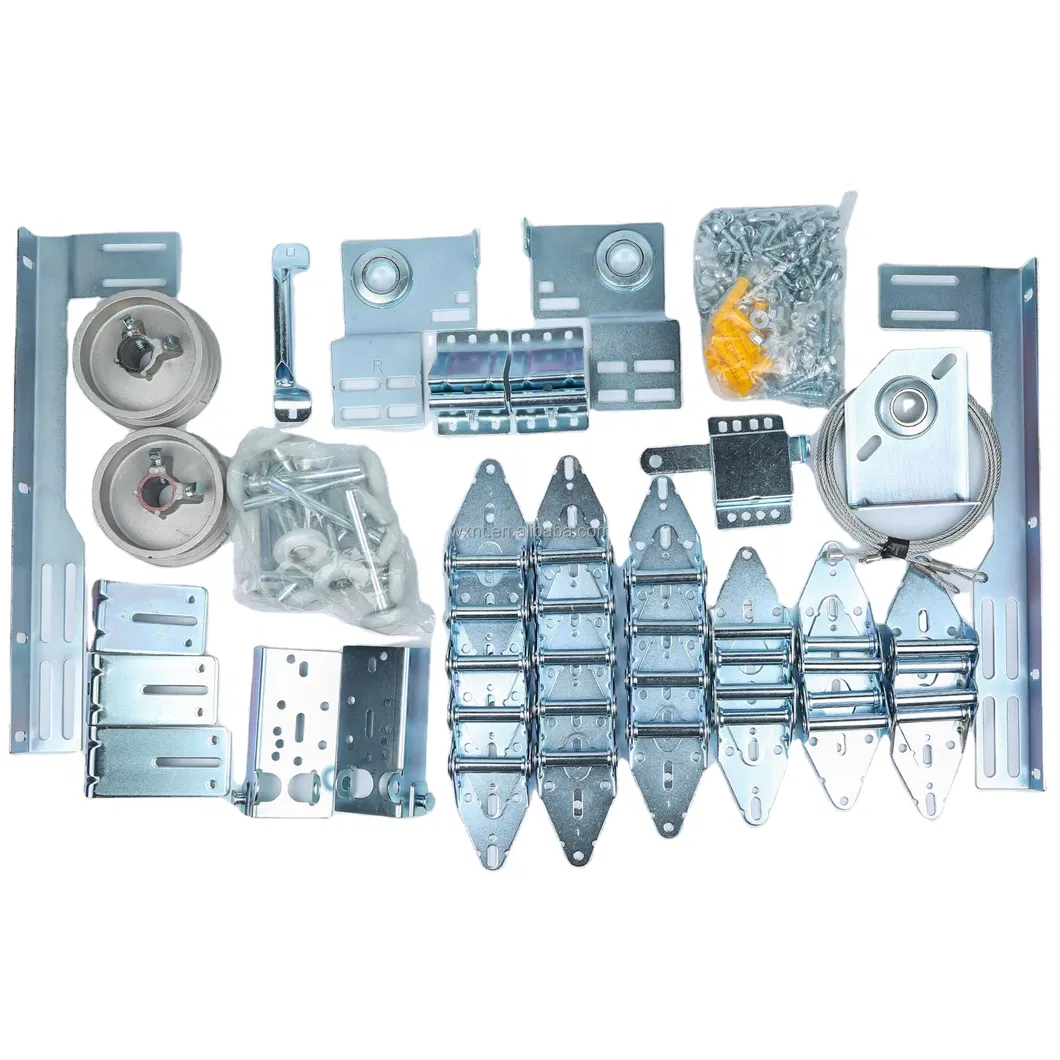

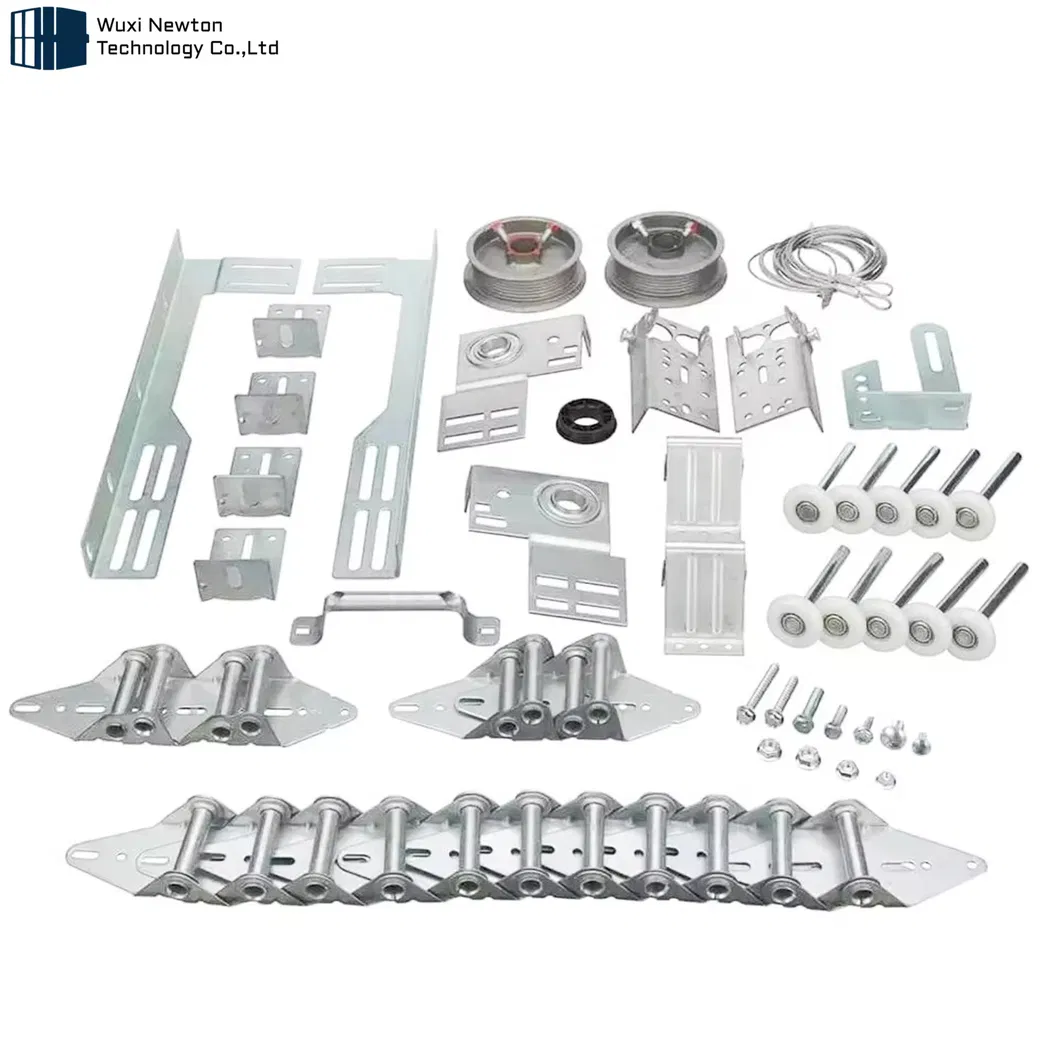

Scroll Wheel and Tracks

High load smooth bearings, silent nylon wheels, high quality solid metal rods for durable operation.

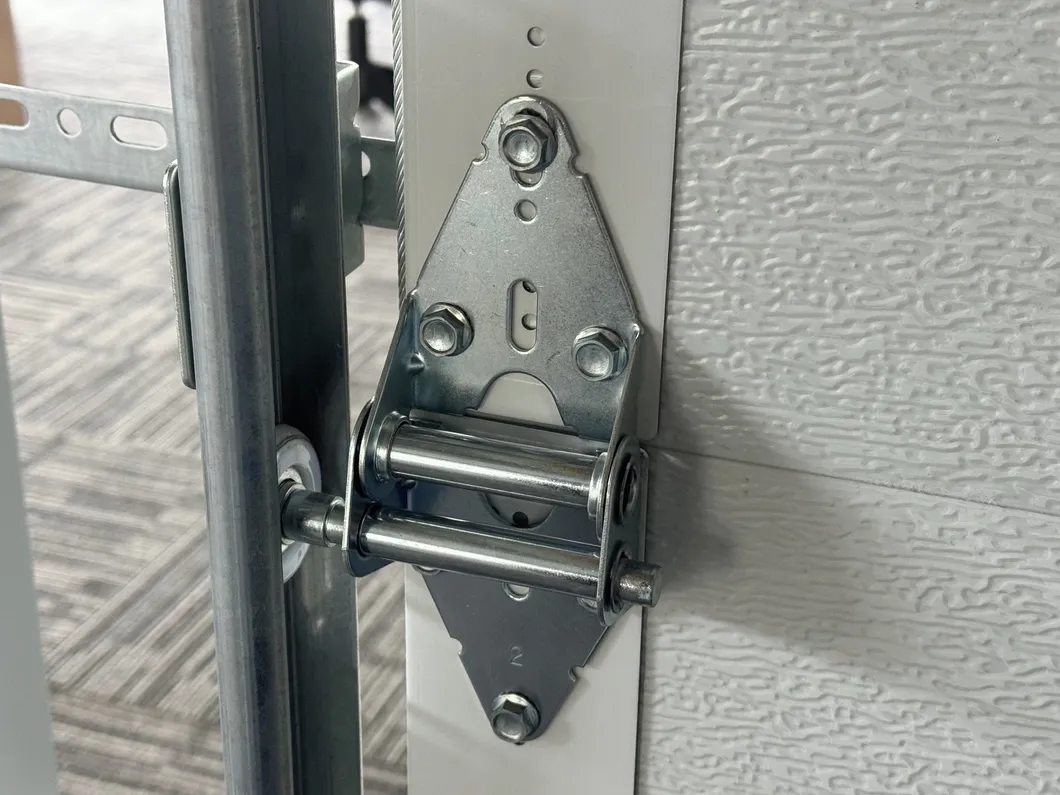

Garage Door Hinges

High-quality stainless steel garage door hinges, flexible rotation, strong load-bearing and built to last.

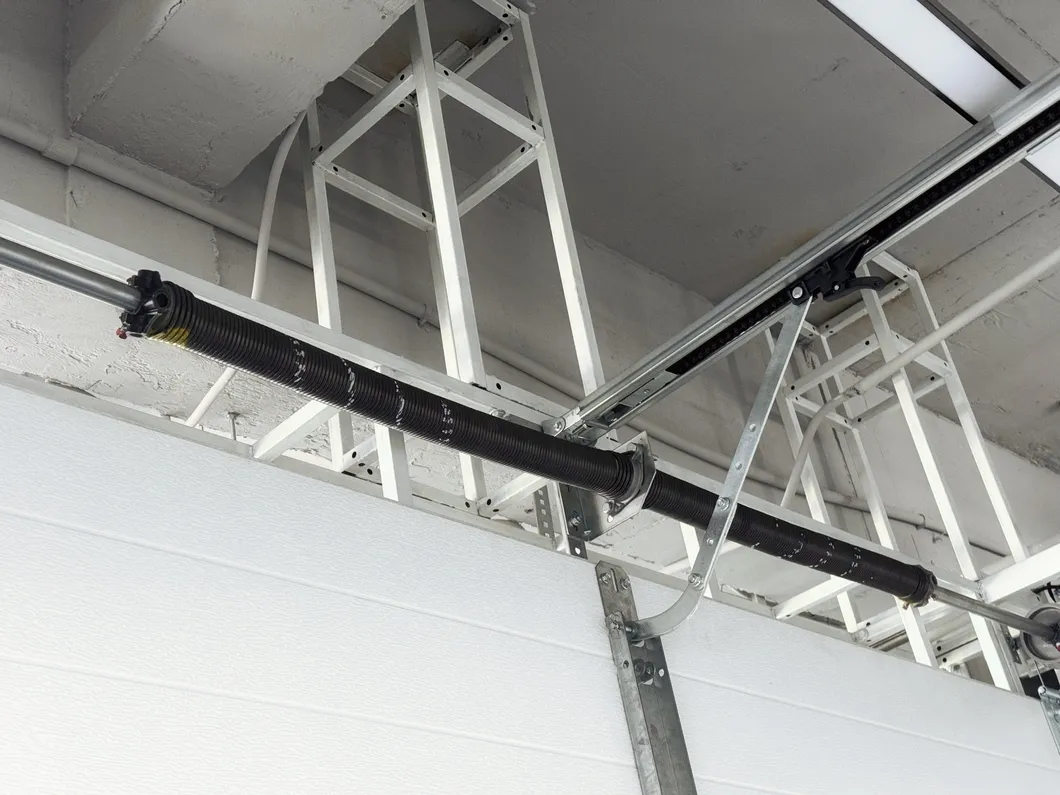

Torsional Spring

High-strength balanced weight torsion spring designed to significantly extend the service life of the motor.

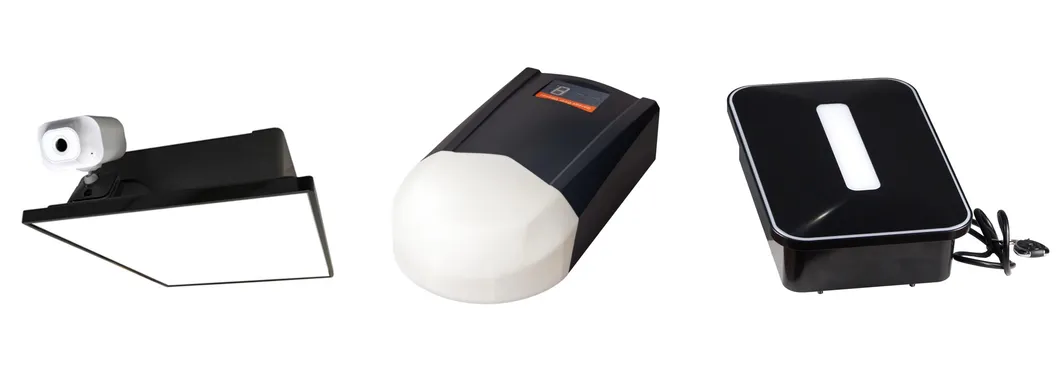

Garage Door Motor

Model	NT600	NT800	NT1000	NT1200
Input Voltage	230-240VAC	230-240VAC	230-240VAC	230-240VAC
Power Input	200W	235W	245W	260W
Max Pulling Force	600N	800N	1000N	1200N
Opening Speed	160mm/s	160mm/s	160mm/s	160mm/s
Door Area	10m²	12m²	14m²	16m²

Measurement Drawing

We accept customization, please provide measurements according to the prompts below:

1. Opening Width The distance between each side of the opening. 2. Opening Height The distance between the floor and the top of the opening. 3. Sideroom Width The area on either side of the garage door opening, from the opening to the corner of the wall. 4. Headroom Height The space above your garage door, from the top of the opening to where the wall meets the ceiling. 5. Ceiling Depth How far back your ceiling goes, from the top of the opening to the back of the garage.

Frequently Asked Questions

● Are you a manufacturer?

Yes, we are a manufacturer in this industry with over 20 years of experience, serving customers globally with high-quality door solutions.

● What are your main products?

Our range includes sectional garage doors, industrial sectional doors, high-speed PVC doors, folding doors, full-view aluminum doors, and hydraulic dock levelers.

● Is customization available for specific sizes?

Yes, we provide full customization services to meet your specific requirements in terms of dimensions, colors, and materials.

● Can I request samples?

Yes, we can provide free samples. Please note that shipping costs are generally covered by the customer.

● What is the standard lead time for orders?

Typically, our lead time is between 15-20 days following the receipt of the deposit, depending on the order volume.

● What are the accepted payment terms?

We generally accept TT (Telegraphic Transfer), with a 30% deposit and the remaining 70% balance paid against the Bill of Lading.
