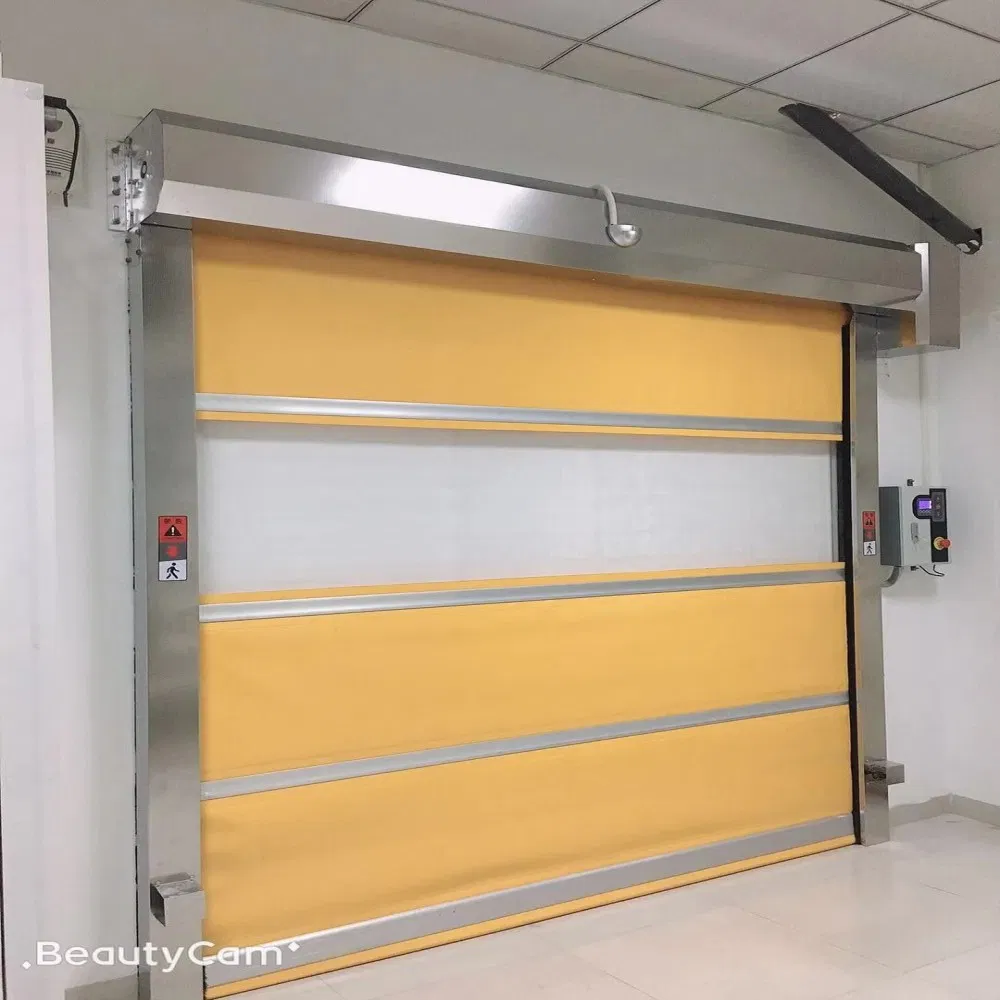

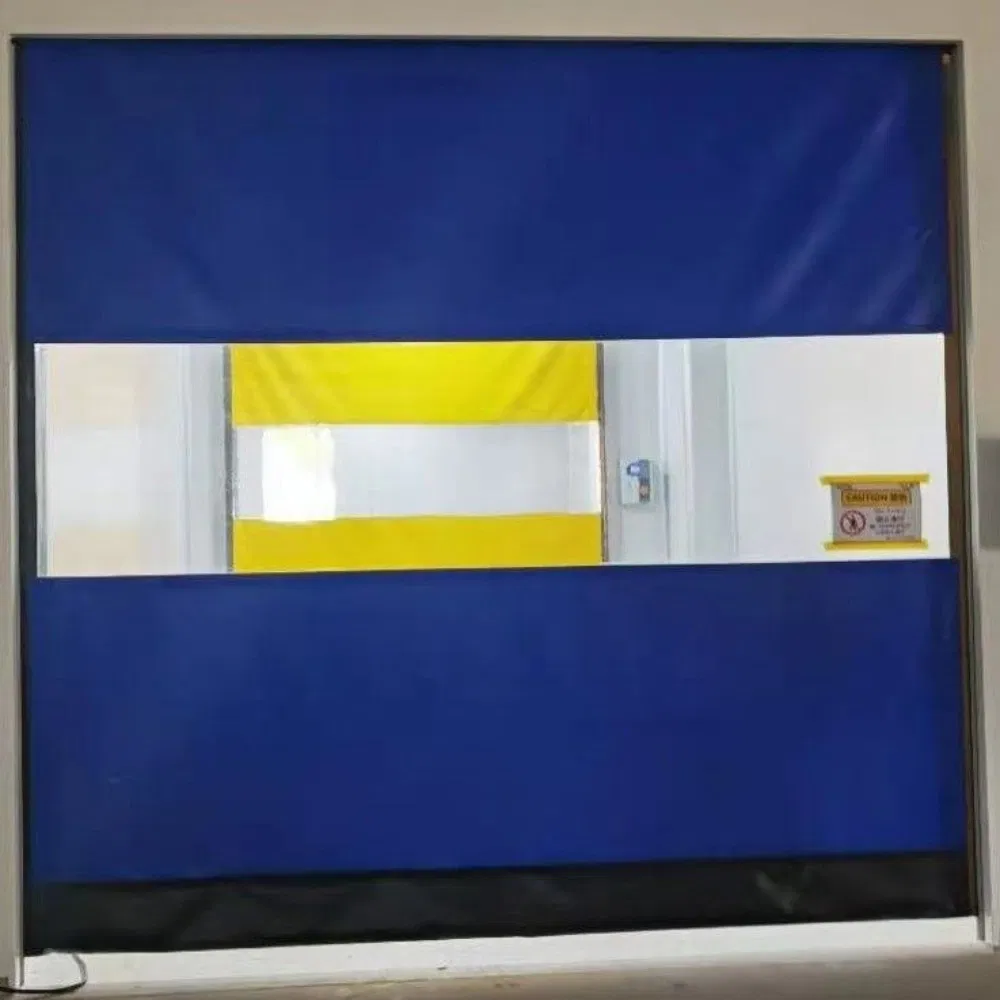

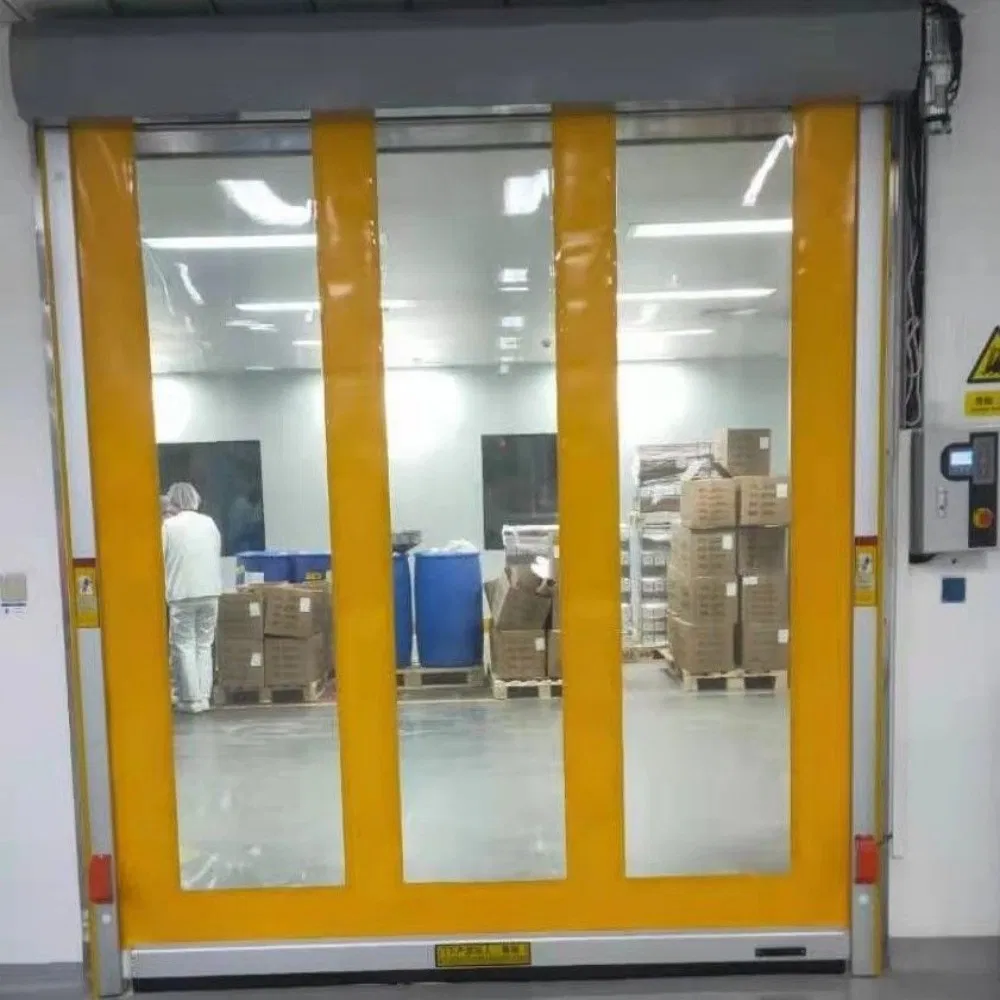

Roll up Canvas Garage Self-Recovery Vinyl Roll up Traffic Fast Rolling PVC Fabric High Speed Rapid Roller Shutter Zipper Door
Roll up Canvas Garage Self-Recovery Vinyl Roll up Traffic Fast Rolling PVC Fabric High Speed Rapid Roller Shutter Zipper Door
Roll up Canvas Garage Self-Recovery Vinyl Roll up Traffic Fast Rolling PVC Fabric High Speed Rapid Roller Shutter Zipper Door
Roll up Canvas Garage Self-Recovery Vinyl Roll up Traffic Fast Rolling PVC Fabric High Speed Rapid Roller Shutter Zipper Door
Roll up Canvas Garage Self-Recovery Vinyl Roll up Traffic Fast Rolling PVC Fabric High Speed Rapid Roller Shutter Zipper Door
1 / 5
Roll up Canvas Garage Self-Recovery Vinyl Roll up Traffic Fast Rolling PVC Fabric High Speed Rapid Roller Shutter Zipper Door
Roll up Canvas Garage Self-Recovery Vinyl Roll up Traffic Fast Rolling PVC Fabric High Speed Rapid Roller Shutter Zipper Door
Roll up Canvas Garage Self-Recovery Vinyl Roll up Traffic Fast Rolling PVC Fabric High Speed Rapid Roller Shutter Zipper Door
Roll up Canvas Garage Self-Recovery Vinyl Roll up Traffic Fast Rolling PVC Fabric High Speed Rapid Roller Shutter Zipper Door
Roll up Canvas Garage Self-Recovery Vinyl Roll up Traffic Fast Rolling PVC Fabric High Speed Rapid Roller Shutter Zipper Door

Roll up Canvas Garage Self-Recovery Vinyl Roll up Traffic Fast Rolling PVC Fabric High Speed Rapid Roller Shutter Zipper Door

Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

Basic Specifications

Model NO.
XF-H-2000
Material
PVC + Steel
Open Style
Rolling / Power Driven
Speed
0.6 ~ 2.0m/S
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 ~ 2.2kw
Certification
ISO9001, CE
Surface
Finished / Electrostatic painting

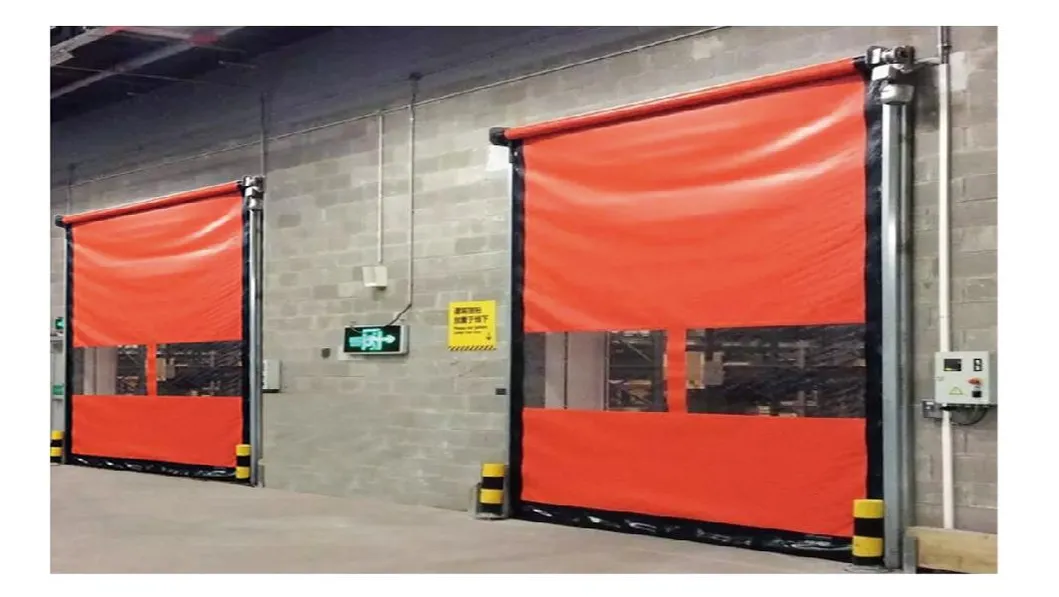

High Speed Rolling PVC Door

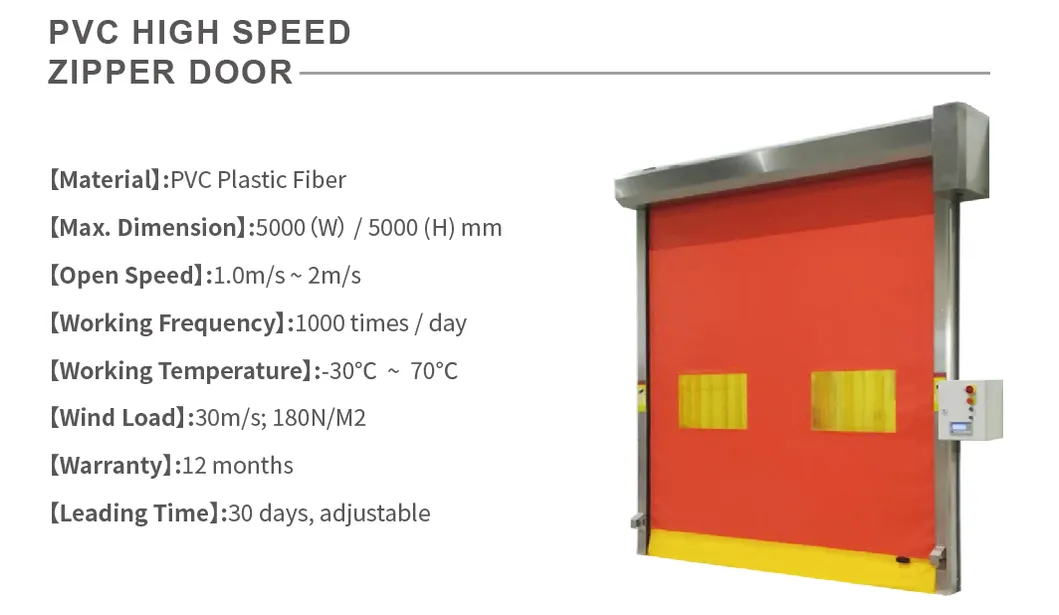

PVC Door Detail

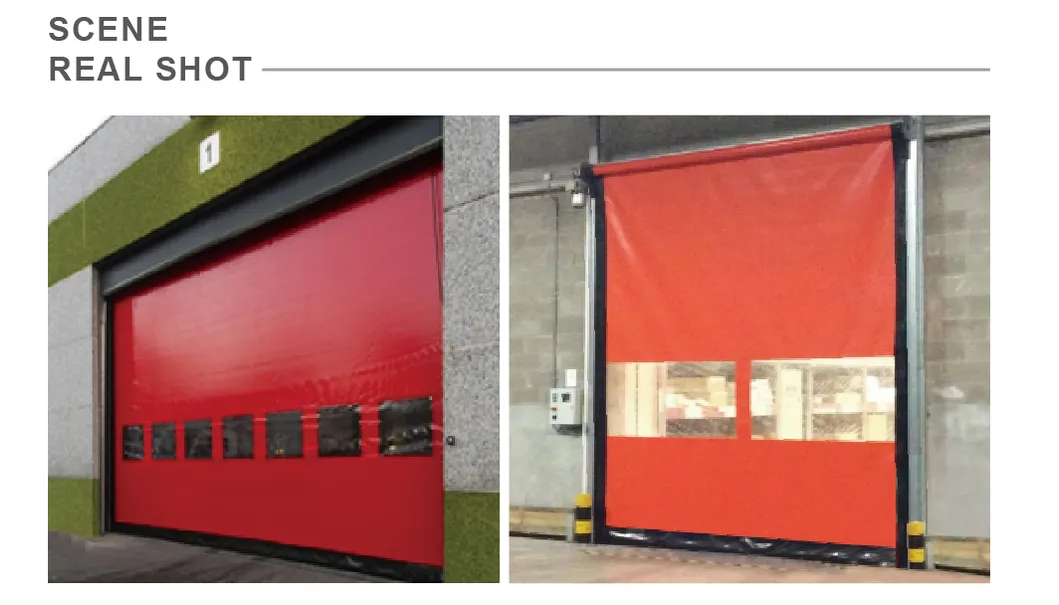

High Speed Door Operation

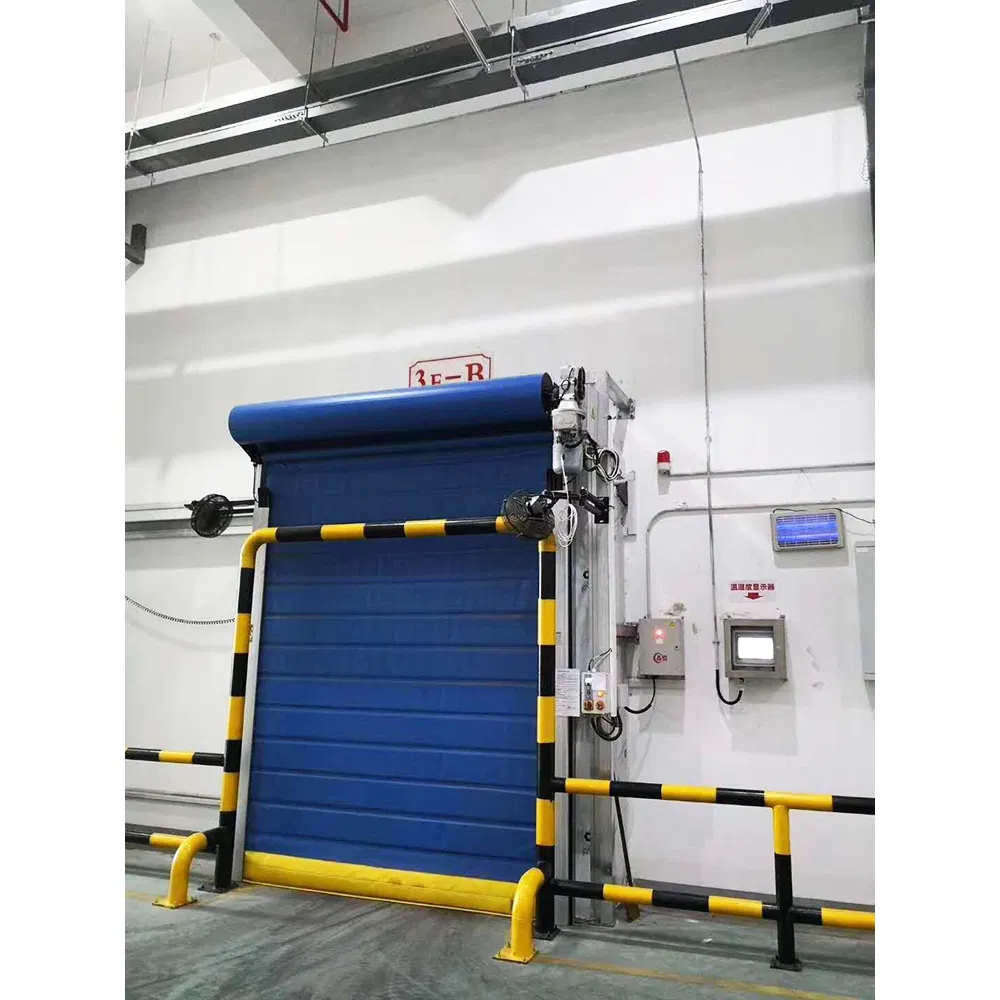

Rapid Roller Shutter

More Technical Parameters

Component Detailed Description
Door Curtaina. PVC curtain thickness: 0.8/1.0 mm/1.2mm/1.5mm/2.0mm
b. Transparent Strip thickness: 1.2-1.5mm
c. Inflaming retarding :B1
Guide RailStainless steel / Aluminum alloy (Optional), T:2.0mm
Zipper FunctionAutomatic repair function, good sealing performance
Motora. Brand: ABB / Servo motor
b. Protection: IP55
Control Systema. Frequency converter + PLC
b. Servo control system
Working Frequency1000 Times/day
Safety Featuresa. Photoelectric protection system or Optical grating(optional)
b. Air chamber at the bottom(optional)
SealingEPDM Rubber: Heat resistance, weather resistance and aging resistance
Emergency OperationManual Swing Bar

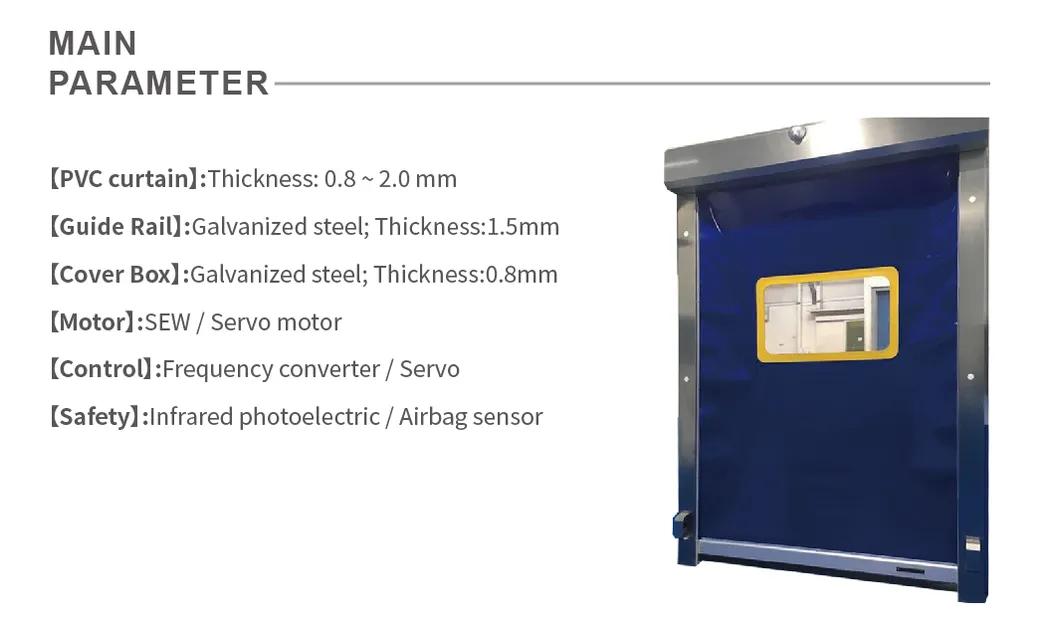

Zipper Door Mechanism

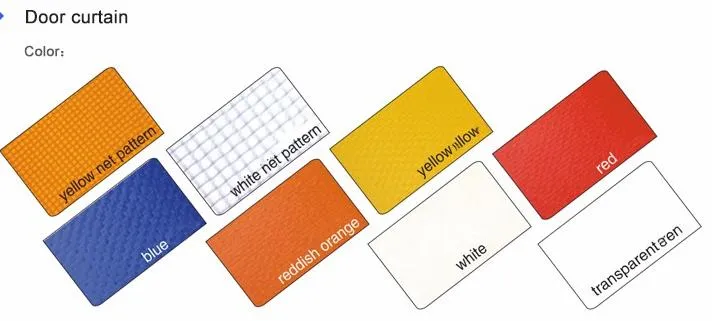

PVC Fabric Structure

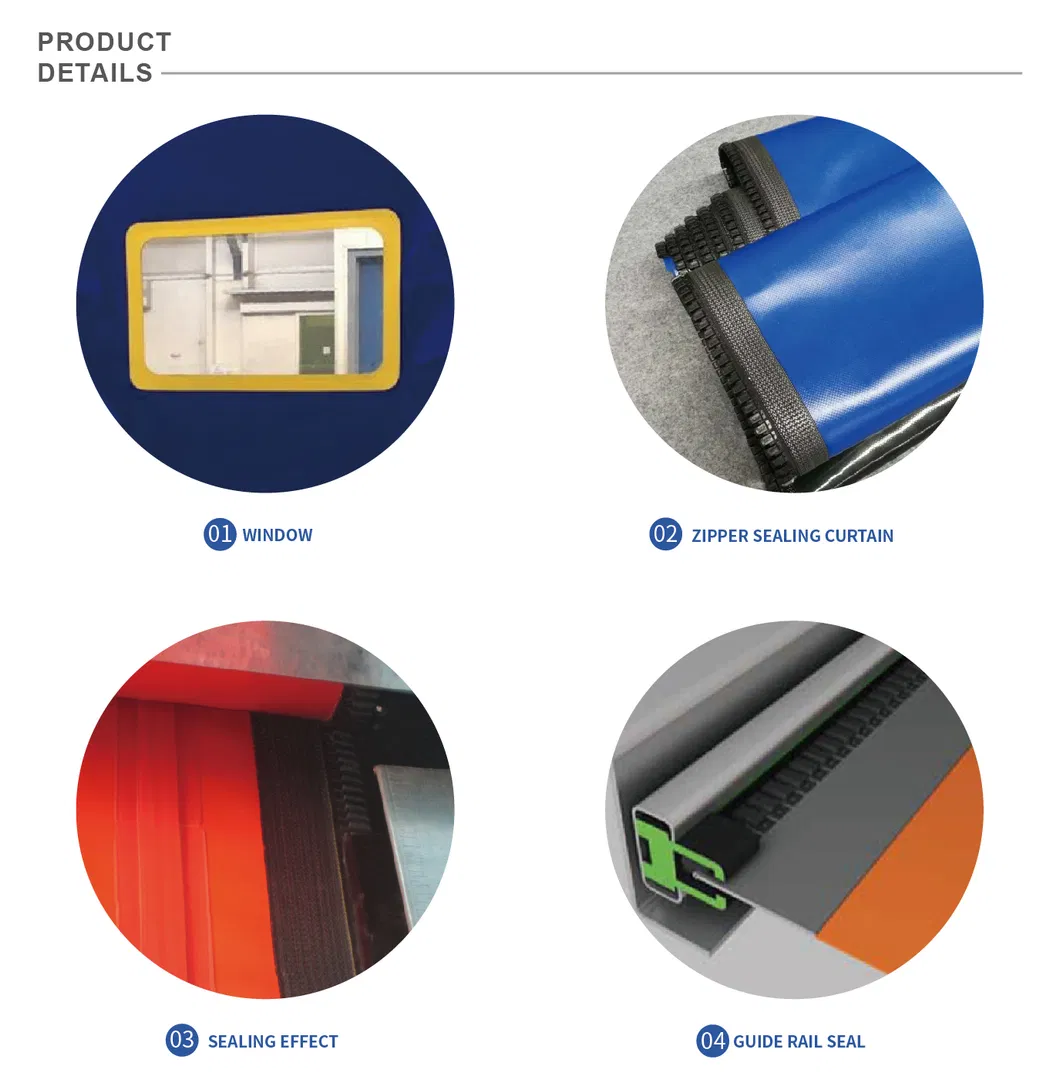

Control System Box
Industrial Installation
Safety Sensors

Packaging & Logistics

Package Size
220.00cm * 100.00cm * 60.00cm
Gross Weight
100.000kg
Transport Package
Wooden Case
Production Capacity
8000 Units/Year

Frequently Asked Questions

What is the maximum opening speed of the door?
The opening speed ranges from 0.6 to 2.0 meters per second, providing high-speed access for industrial environments.
Can the curtain thickness be customized?
Yes, we offer PVC curtain thicknesses in 0.8mm, 1.0mm, 1.2mm, 1.5mm, and 2.0mm to suit different durability requirements.
What is the "Zipper Function"?
The zipper function provides an automatic repair feature; if the door is dislodged by an impact, it can re-align itself during the next cycle, ensuring excellent sealing.
How many times per day can the door operate?
The high-speed door is designed for high-frequency use, with a working frequency of up to 1000 times per day.
What happens if there is a power failure?
The door system includes a Manual Swing Bar for emergency operation, allowing the door to be opened or closed manually.
What safety features are included?
The doors come standard with a photoelectric protection system. Optional upgrades like optical gratings and bottom air chambers are also available for enhanced safety.
