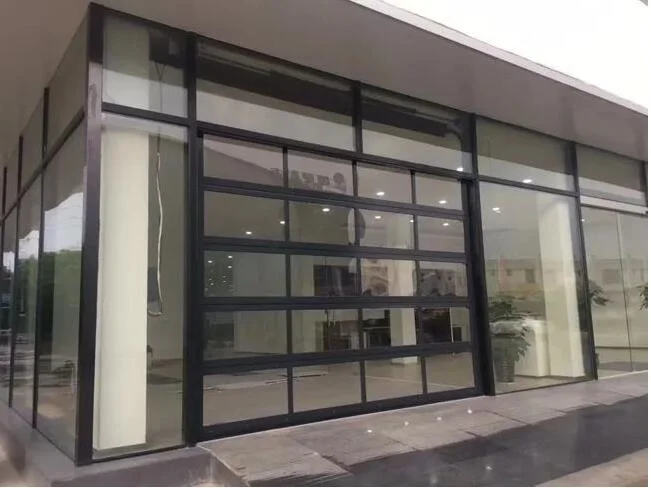

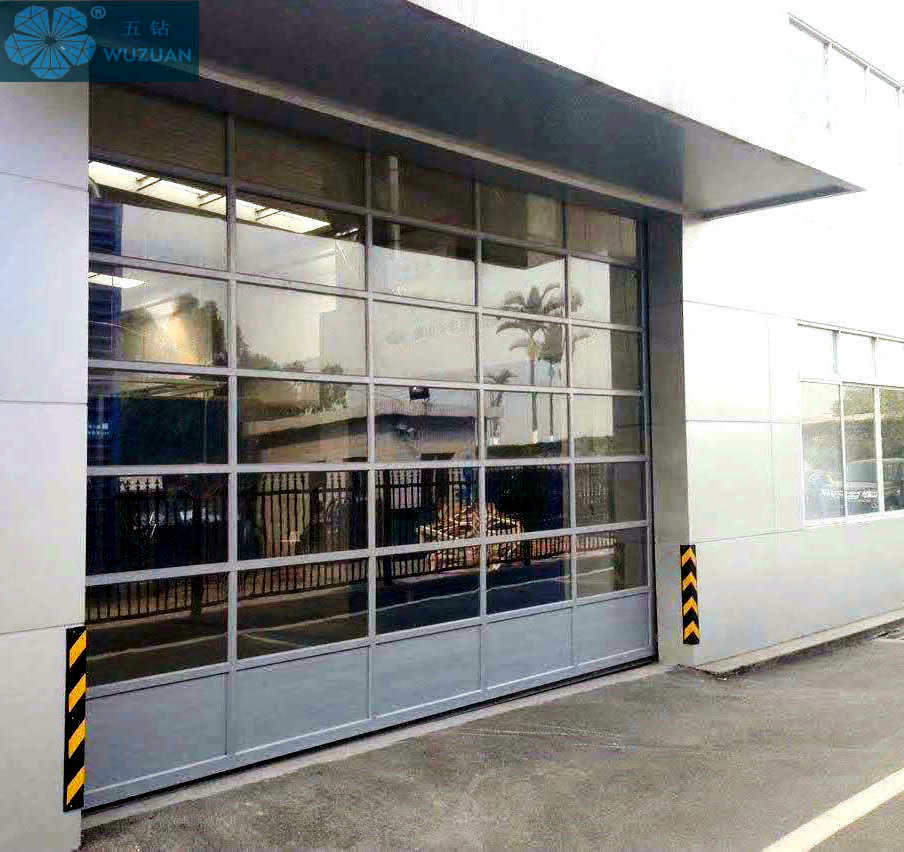

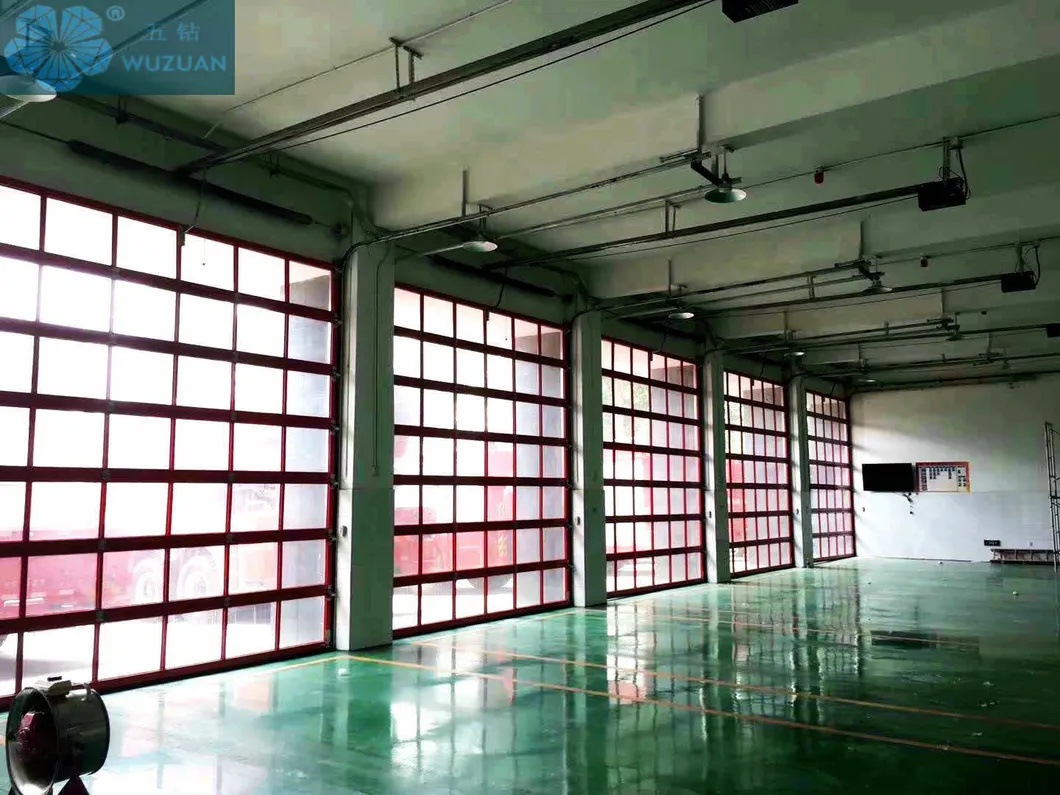

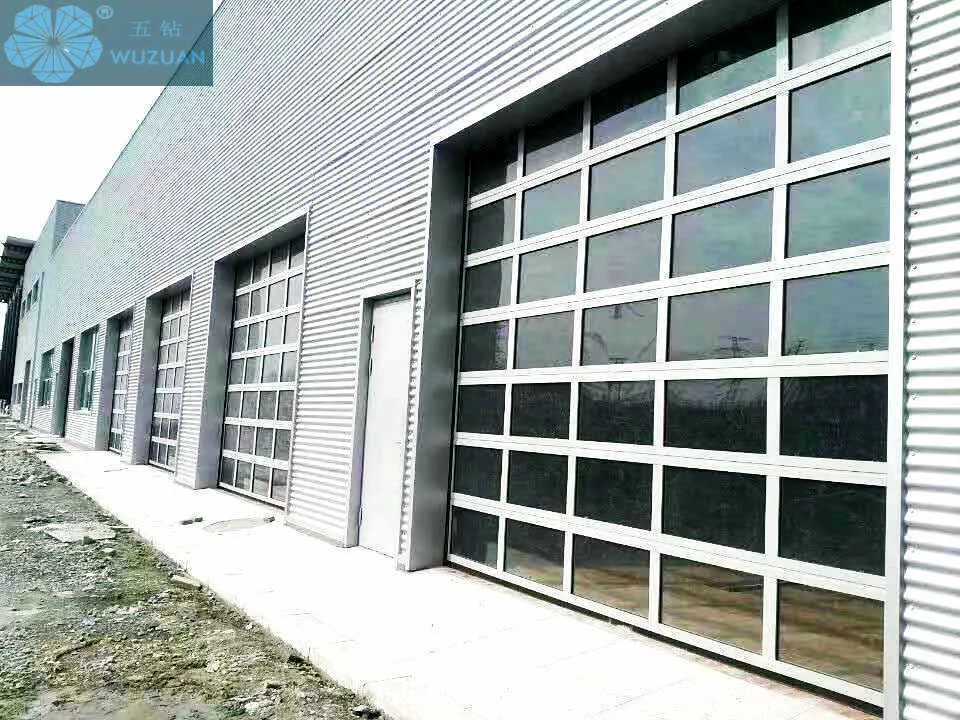

Scope of application:

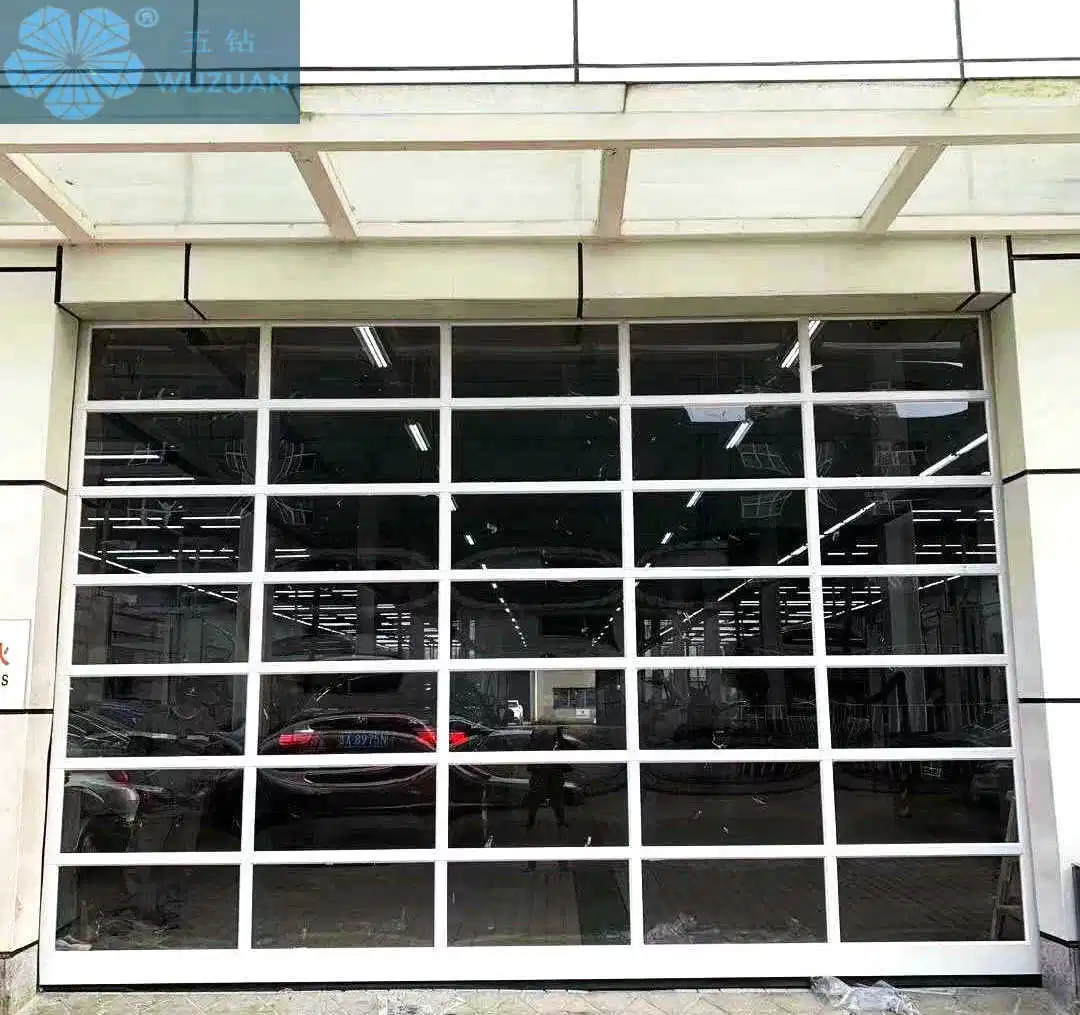

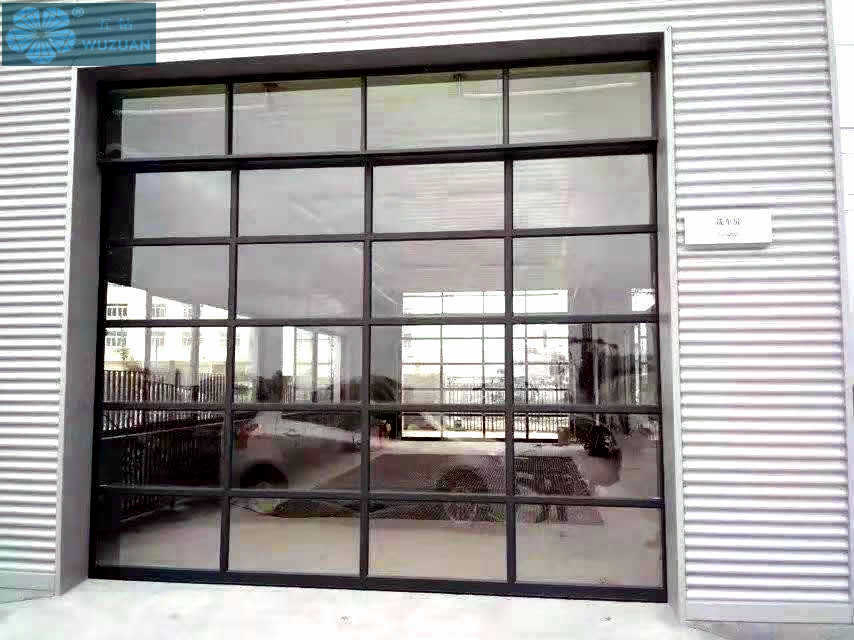

The perspective sliding doors are widely used in various modern industrial factory, auto 4S shops and other places, with beautiful appearance, smooth opening, safe and reliable, low noise, high density, good sealing and thermal insulation performance, saving installation space and improve the production efficiency. It provides a bright and pleasant environment with the largest viewing area and modern appearance.
It is made of double layer high quality hot dip galvanized steel sheet and imported polyurethane energy saving material. Part of the door combines a new type of aluminum alloy with high quality polycarbonate PC board, adapting perfectly to various types of high roof lift.
| Feature | Description |
|---|---|
| Color of Frame | Standard transparent, customizable in various colors |
| Balance system | External torsion spring system (>30,000 cycles) |
| Sealing | U-shaped rubber sealing strip, dust-proof and waterproof |
| Observation window | Optional rectangle or oval with double layer organic glass |
| Technical Data | |
|---|---|
| Max dimension | W12000mm, H8000mm |
| Opening speed | 20cm-40cm/s |
| Power supply | 220V/380V ±10%, 50/60HZ |
| Panel thickness | 40mm/50mm |
| Wind resistance | Beaufort scale 11 grade (28m/s) |
| Sound insulation | ≤60dB |
