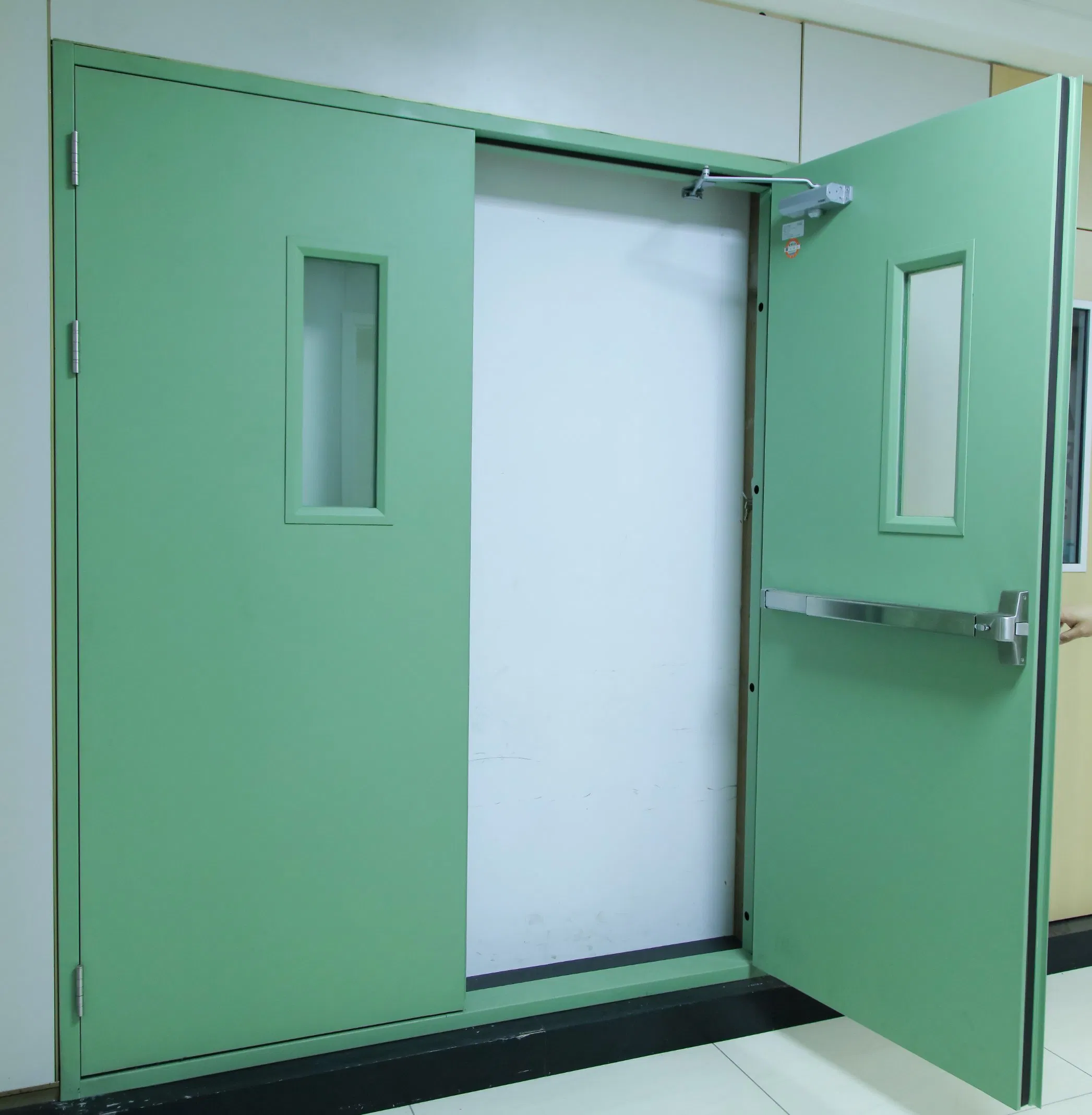

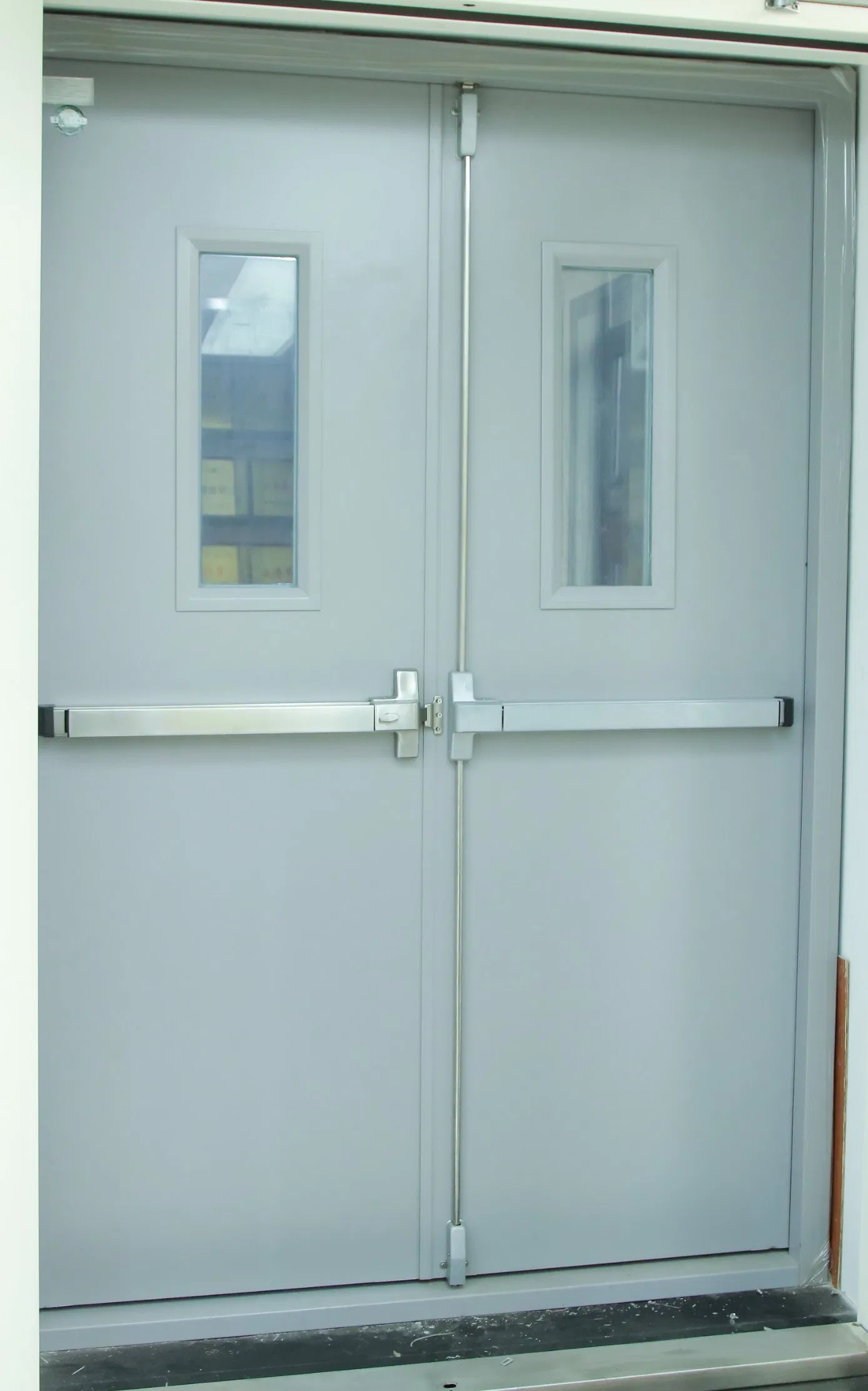

UL 120 Minutes Emergency Exit Fire Rated Steel Door with Push Bar

1 / 5

UL 120 Minutes Emergency Exit Fire Rated Steel Door with Push Bar

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	2 Years

Send Inquiry

Product Description

📊 Basic Information

Model NO.	FD-2023036	Material	Steel
Style	Classic	Open Style	Swing
Sound Insulation	30 dB	Screen Netting	Fiberglass
Veneer Wood	Powder Coated	Position	Commercial
Security Rating	C	Surface Finishing	Finished
Function	Security, UL 2 Hours Fire Rated	Fire Rated Time	120 Minutes
Special Door Type	Fire Doors	Certificated	UL
HS Code	7308300000	Production Capacity	30,000 / Month

📝 Product Description

✔ Our UL Listed Fire Rated Steel Doors provide the highest level of safety for commercial, industrial, and institutional buildings.

✔ UL Listed and Fire Rated: Rigorously tested to meet specific fire resistance standards (20, 45, 60, 90, and 180-minute ratings available).

✔ Robust Construction: Made from heavy-duty galvanized steel with a fire-resistant core for thermal protection.

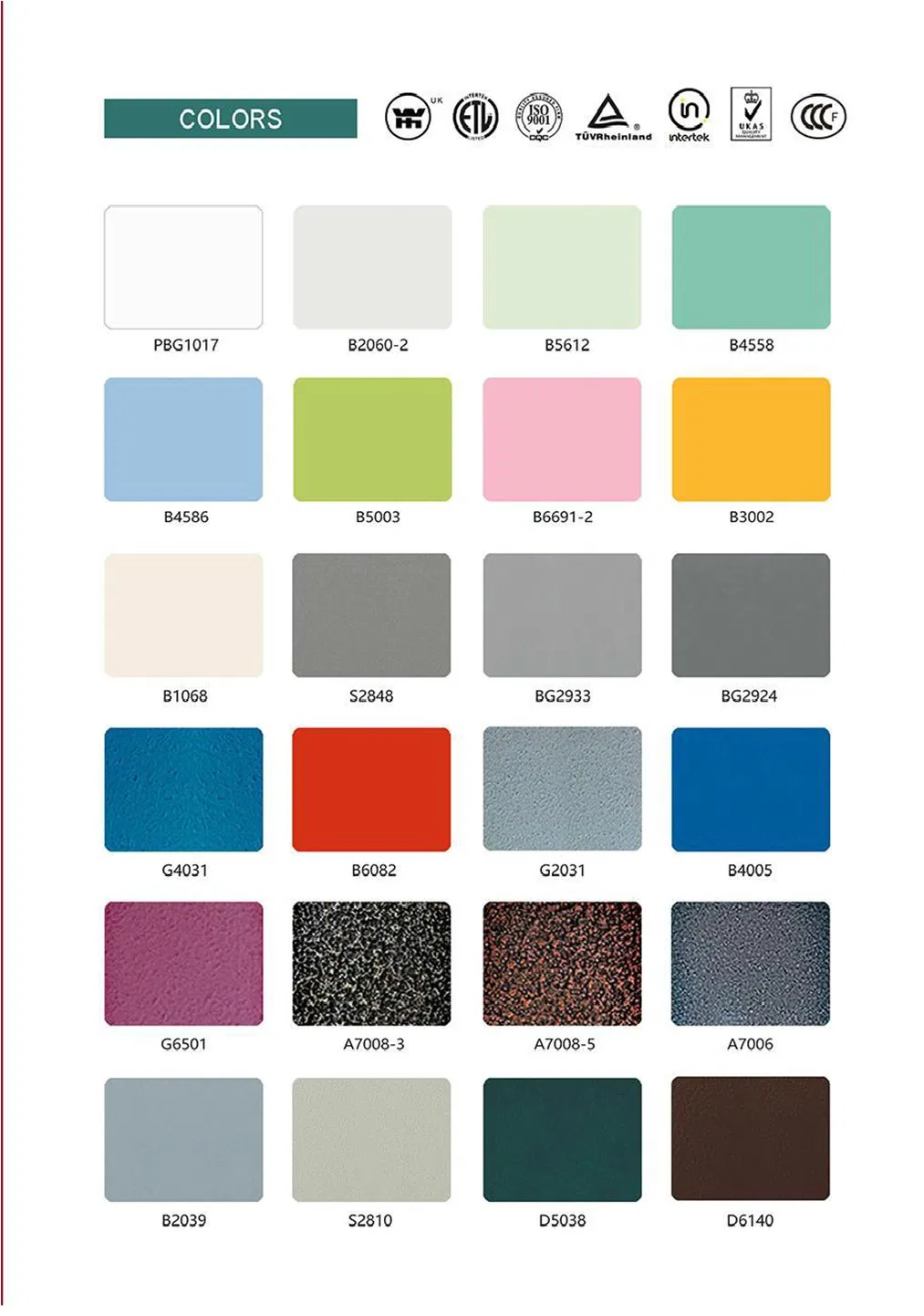

✔ High-Quality Finish: Factory-applied powder-coated paint resistant to scratches, corrosion, and fading.

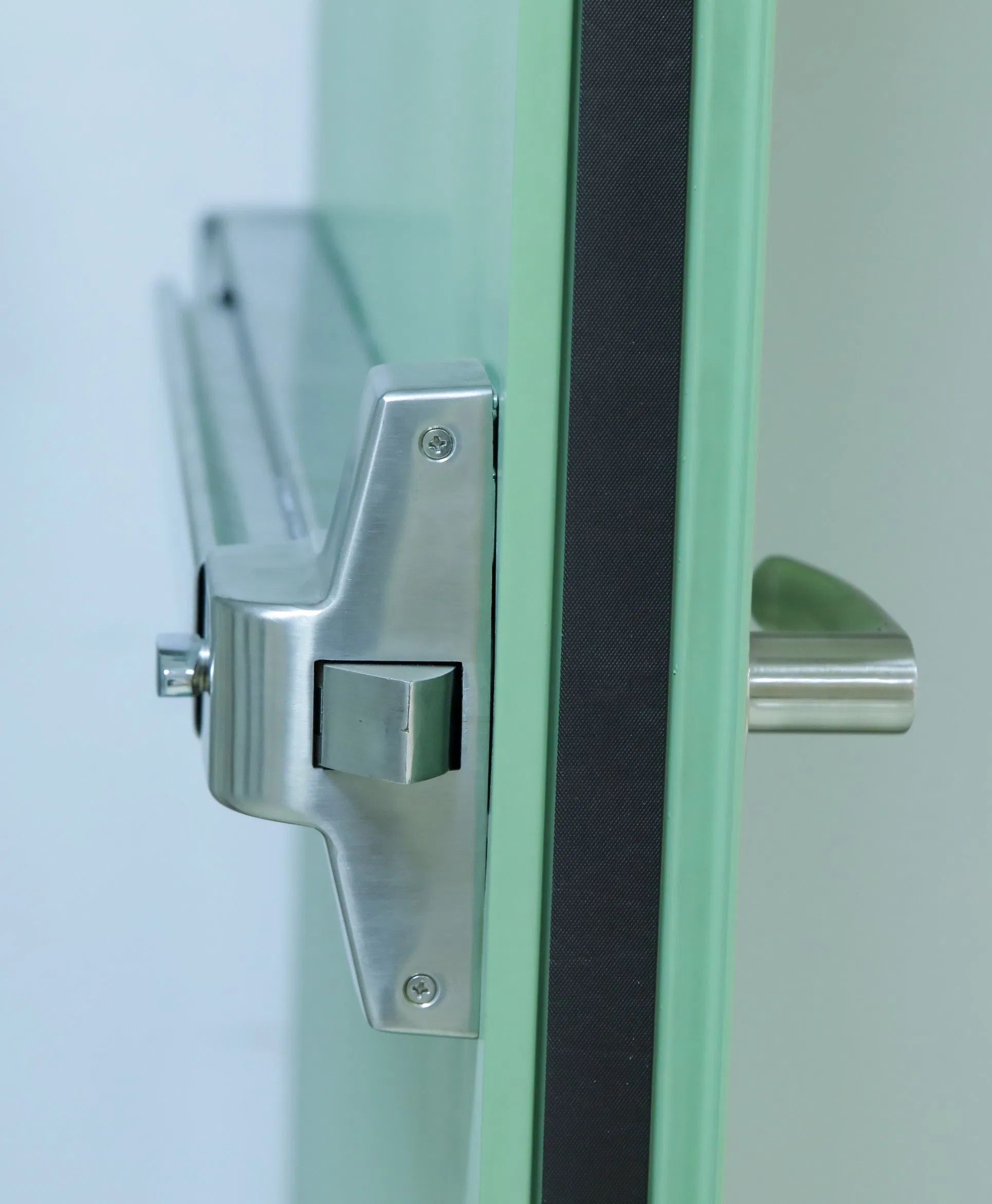

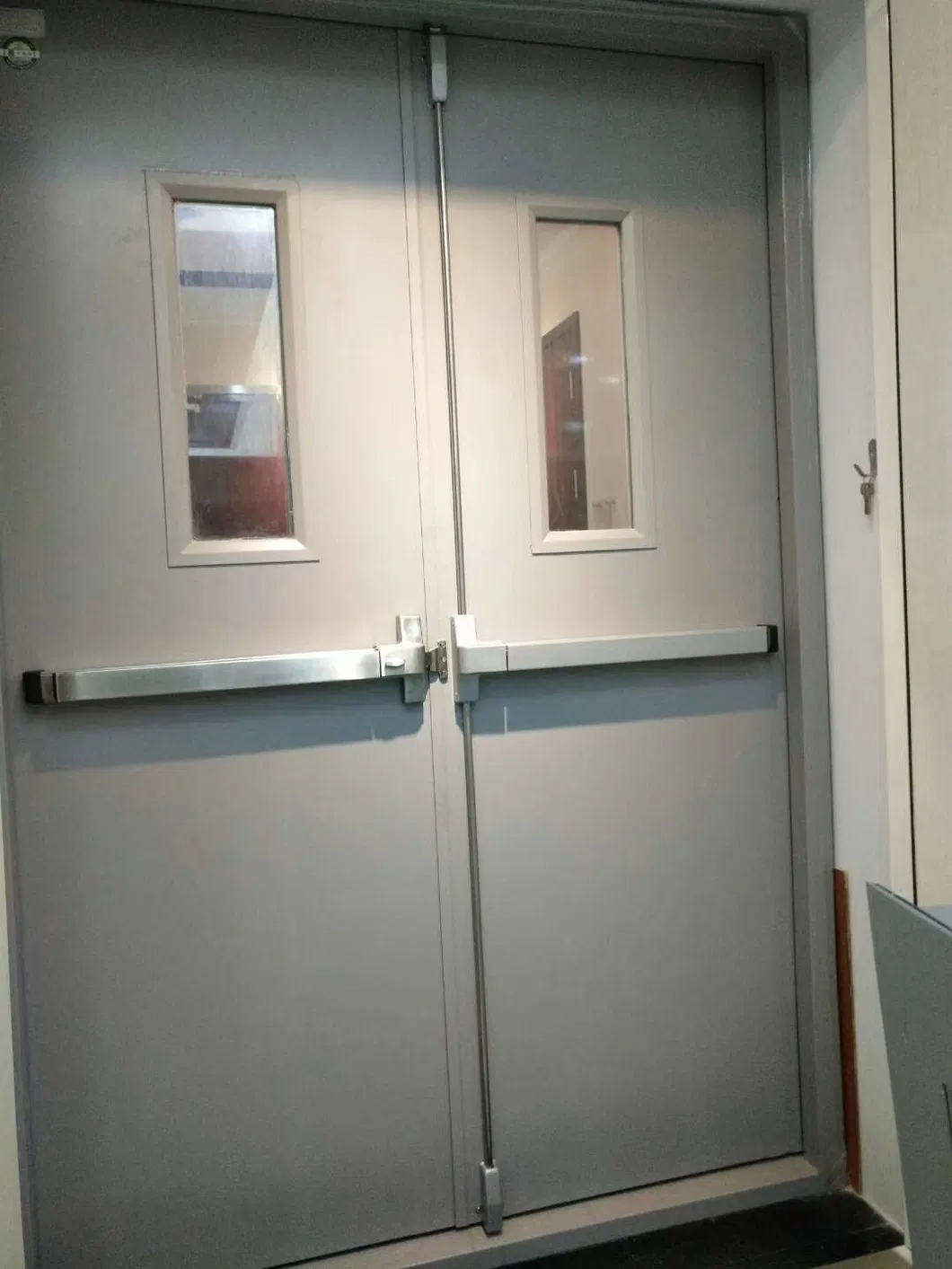

✔ Emergency Ready: Equipped with panic bars and trim for quick egress during emergencies.

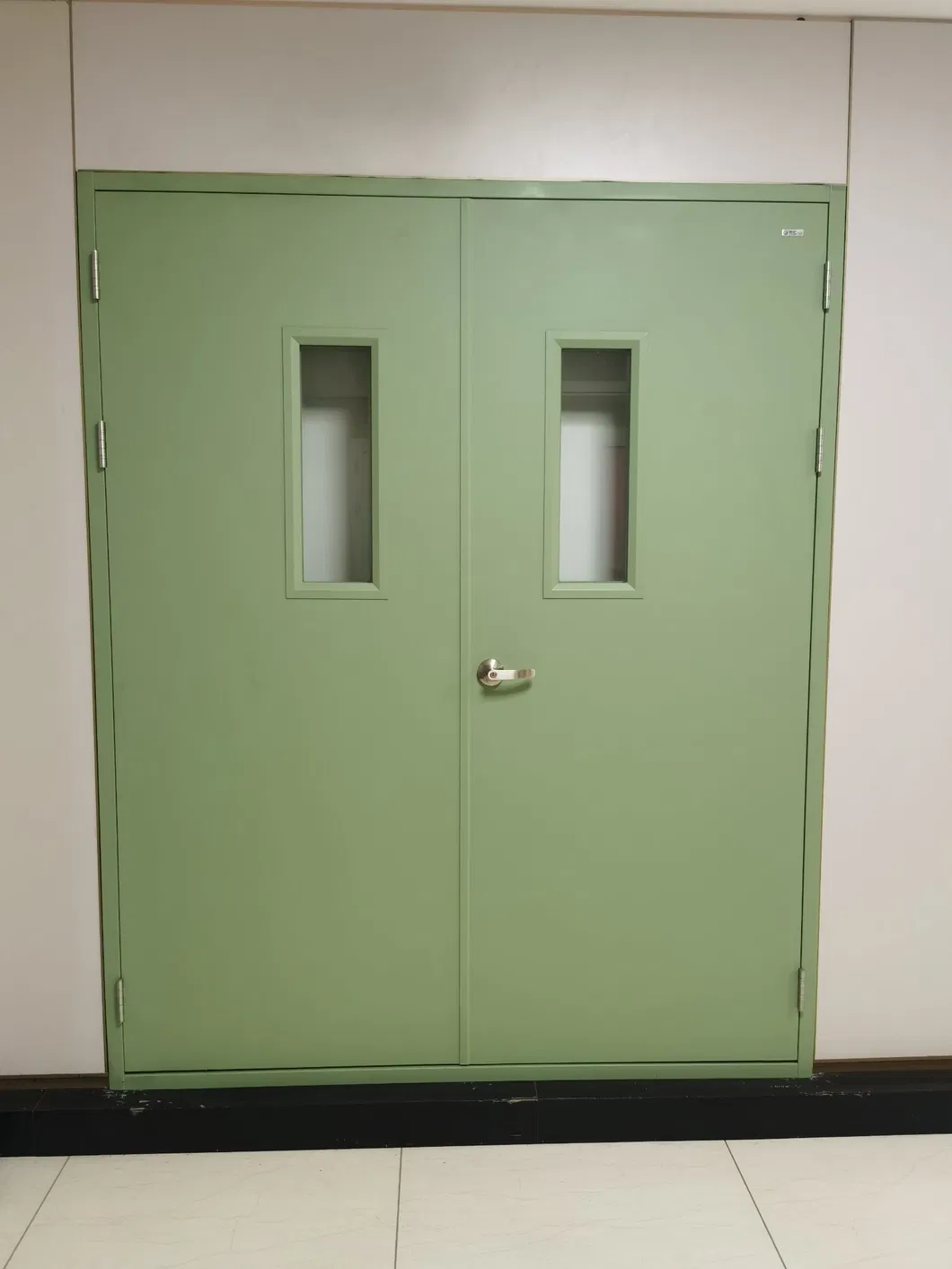

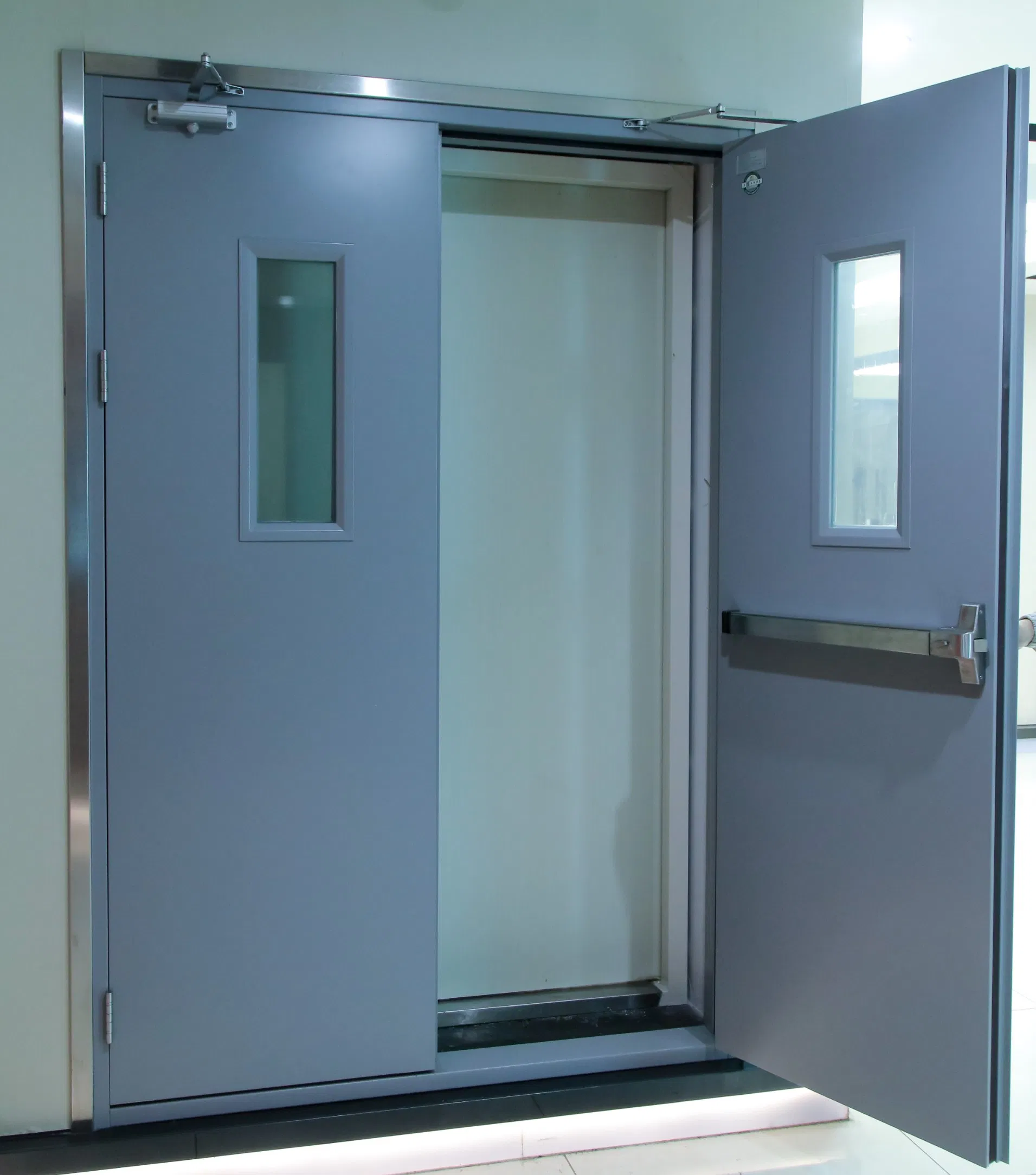

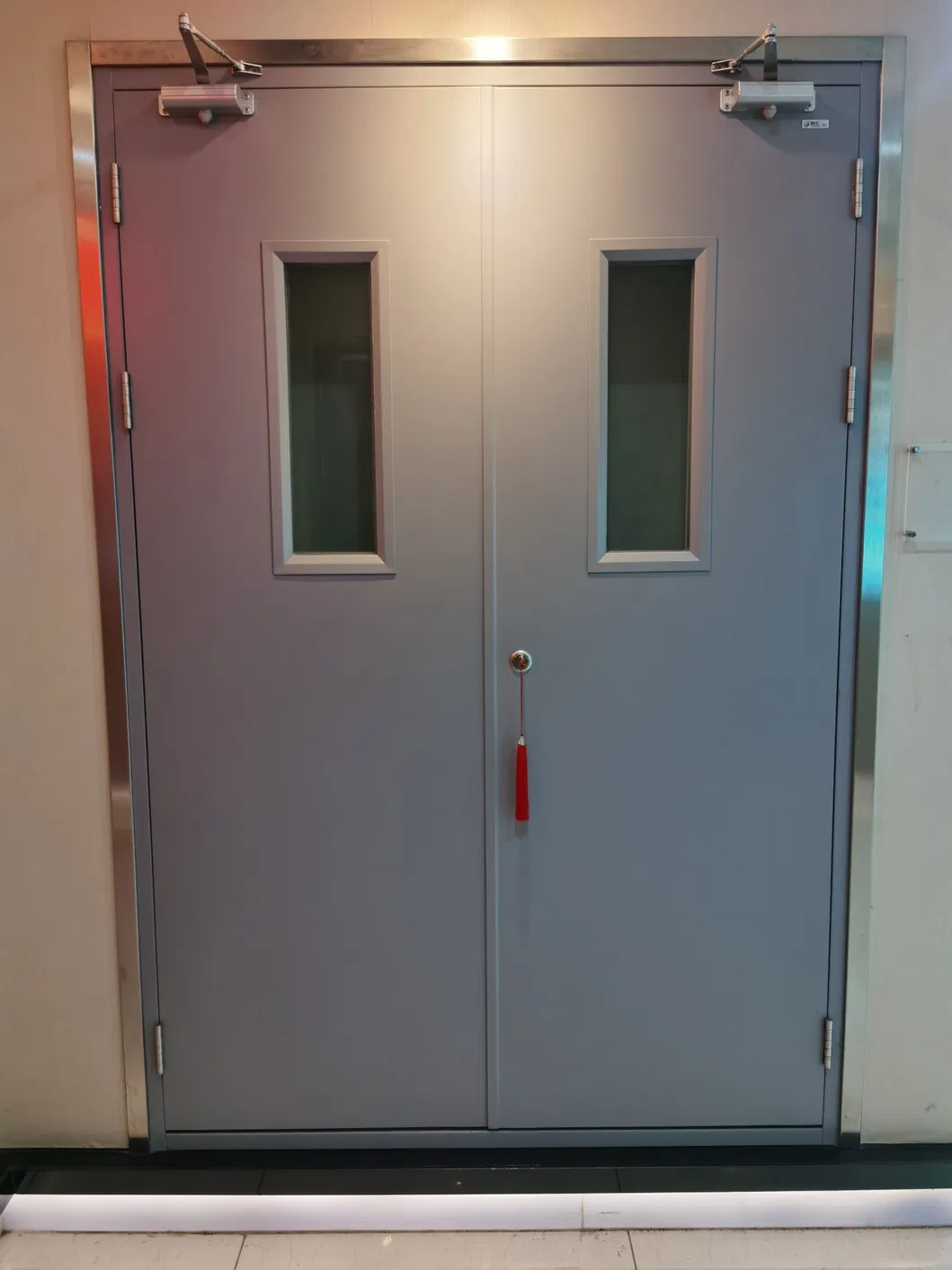

📷 Detailed Photos

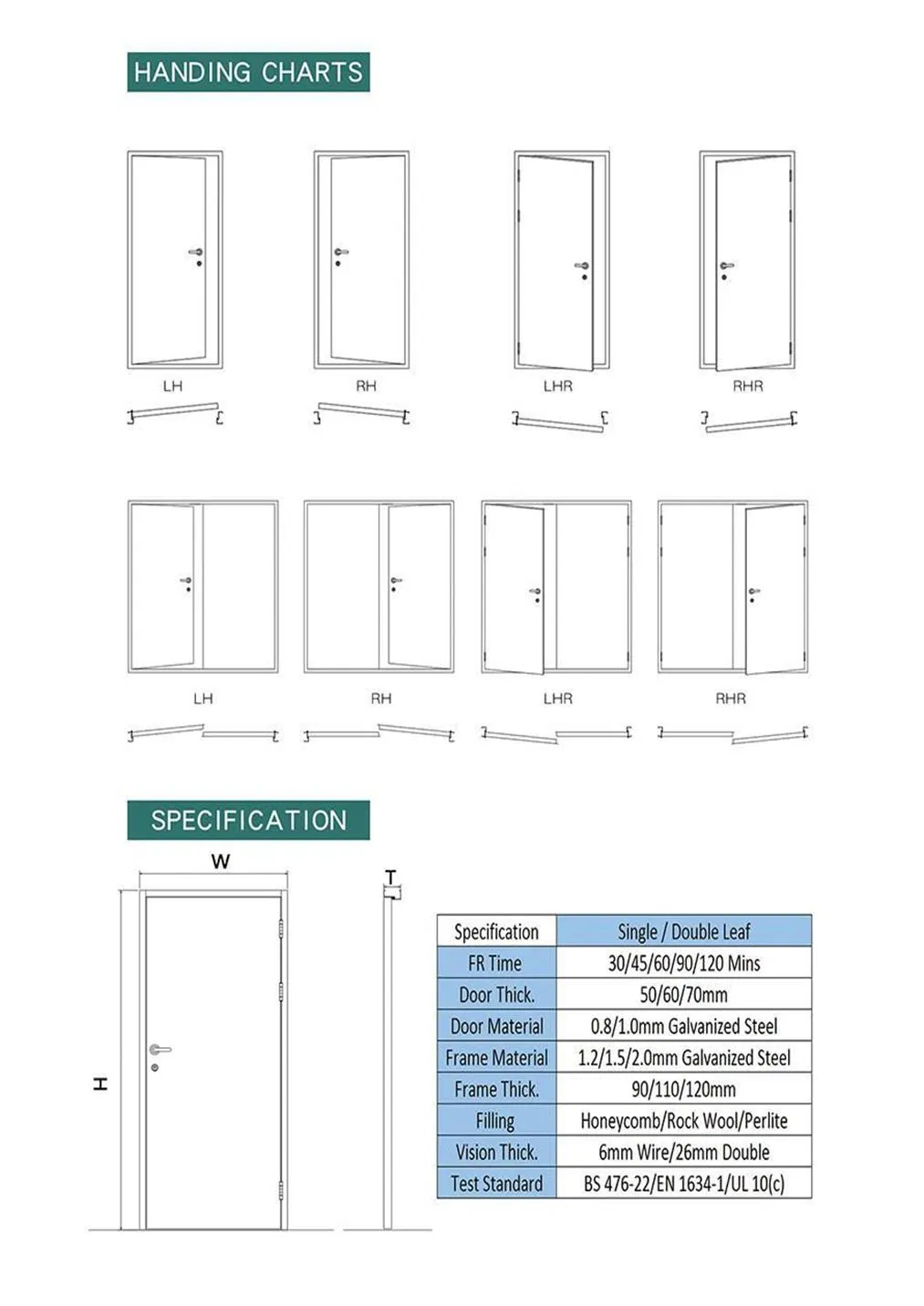

📐 Product Parameters

Door Material	Galvanized Steel
Door Panel Thickness	50mm (2")

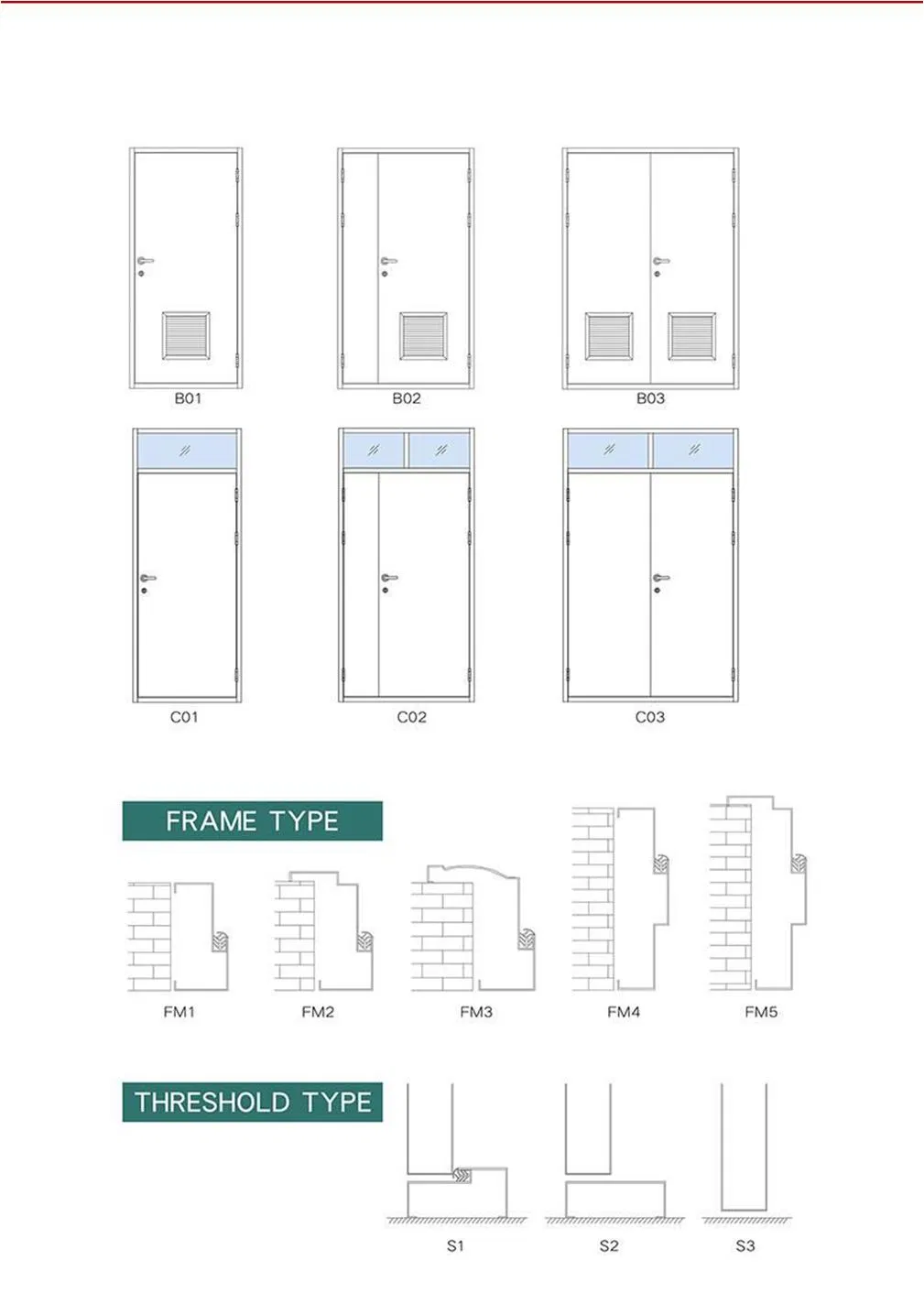

Frame Depth	Standard 110mm (4 1/4") or customized
Door Leaf Sheet	22 Ga.-18 Ga. (1.0/1.2 mm)
Door Frame Sheet	16 Ga.-14 Ga. (1.5mm-2.0mm)

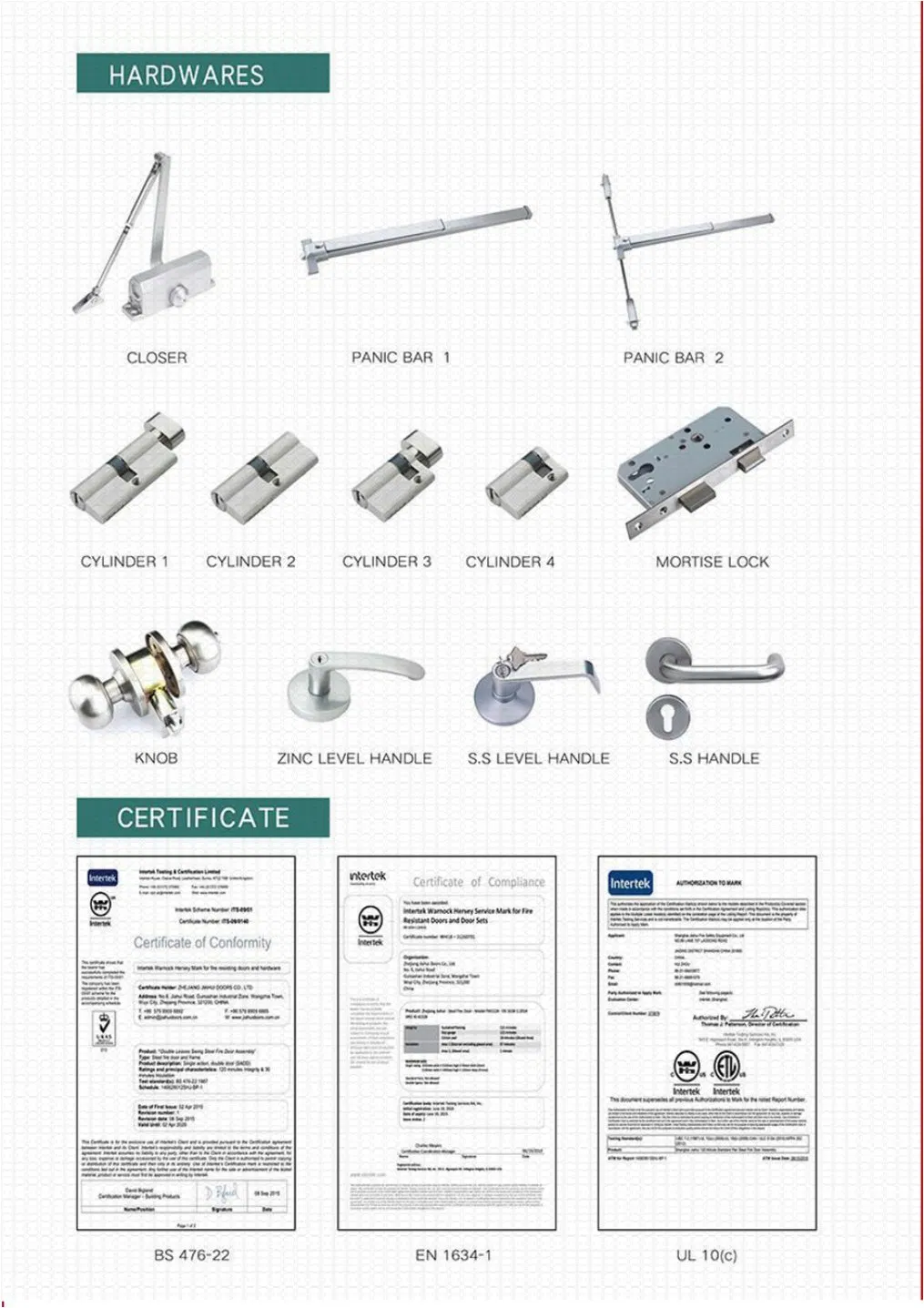

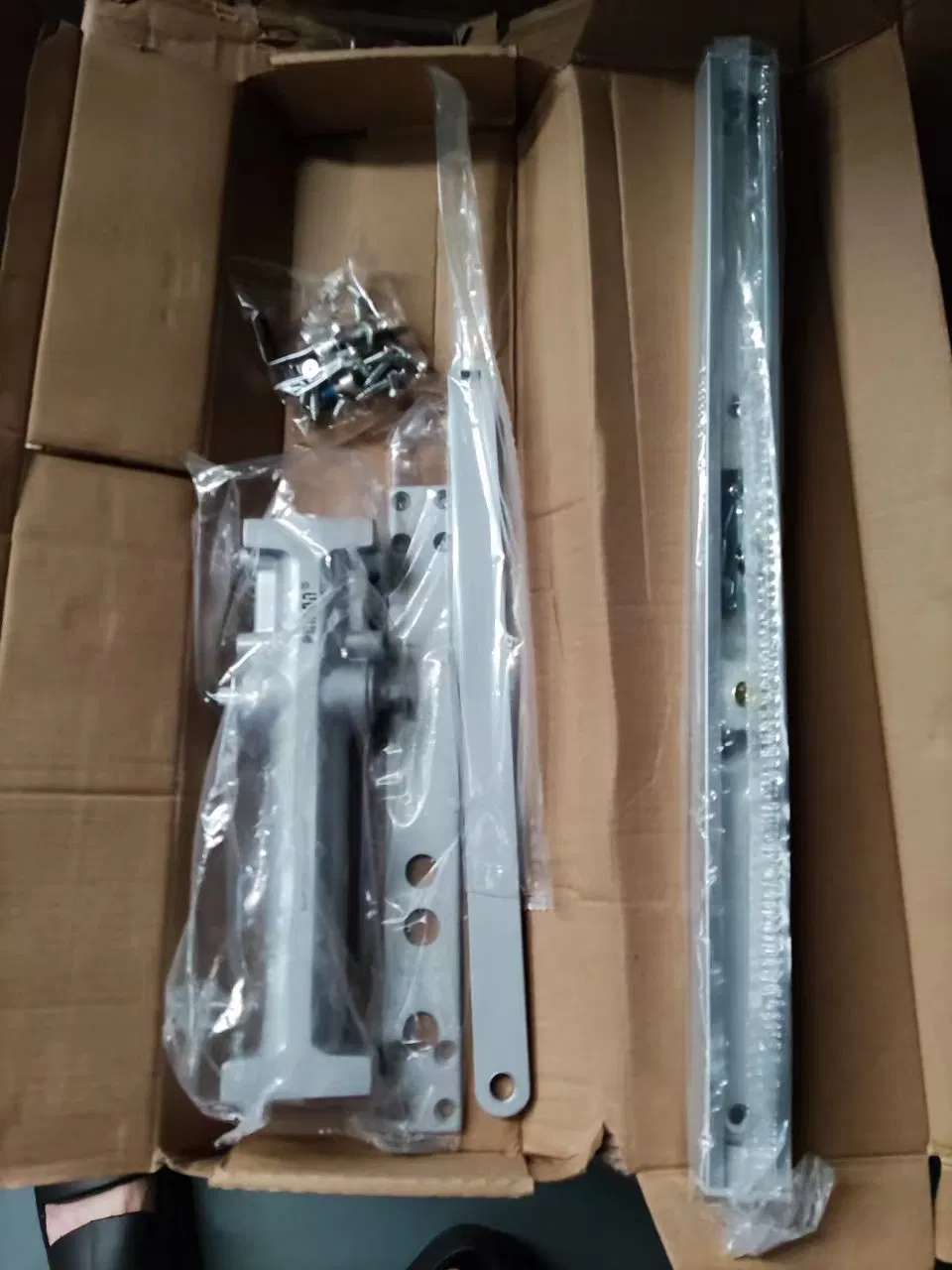

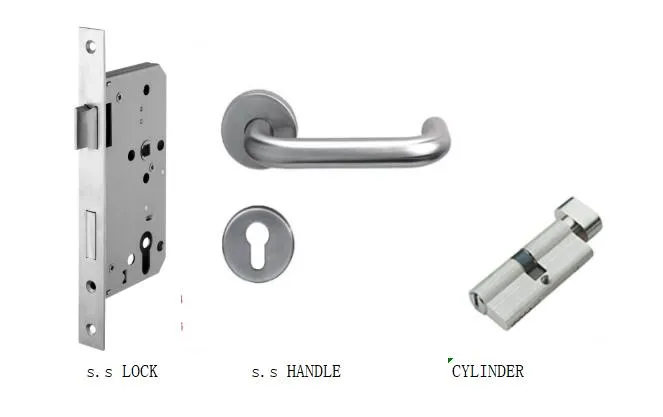

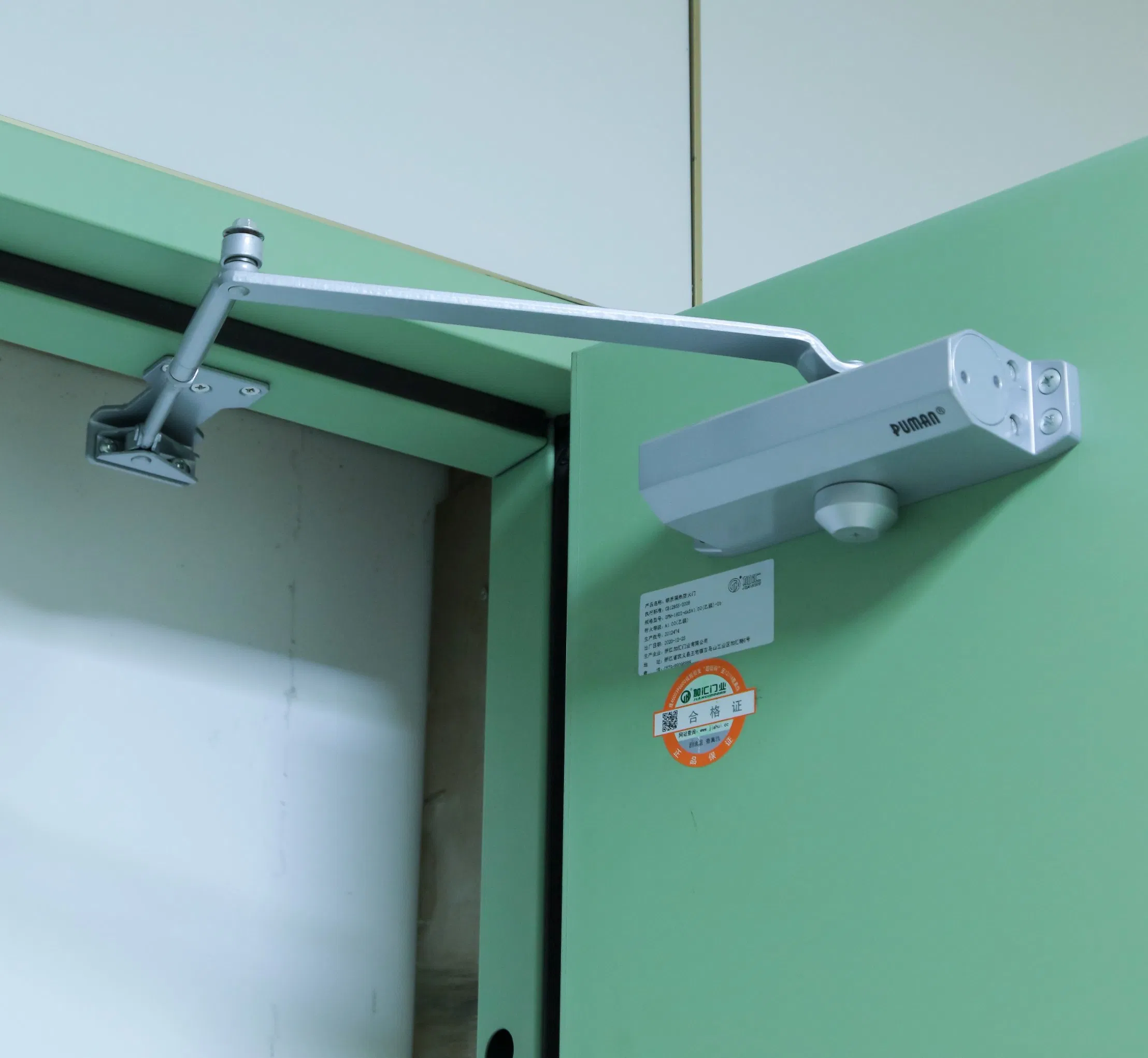

Accessories	Lock, handle, hinges, door closer, panic bar, etc.

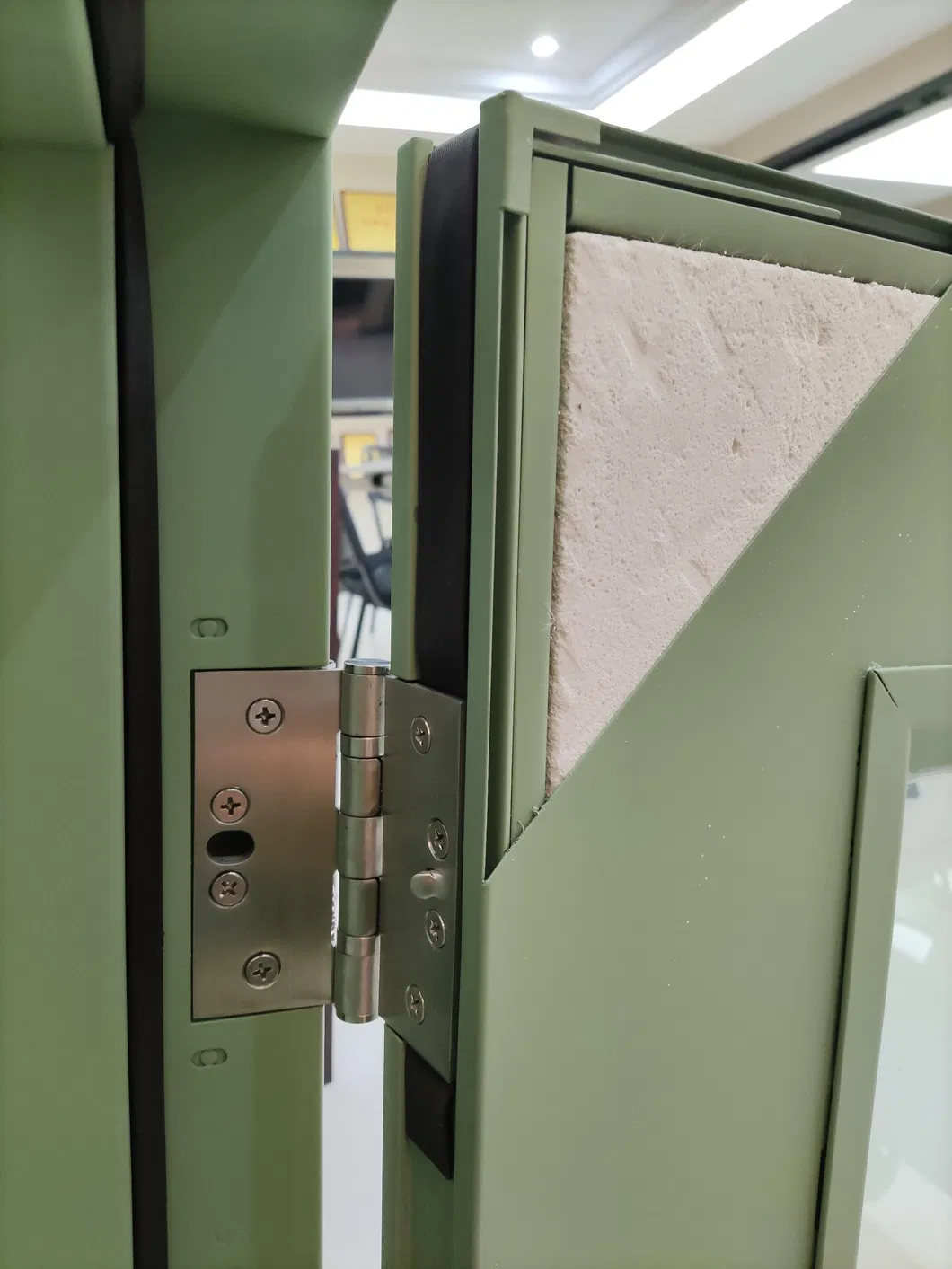

Inner Filling	Perlite or Insulated rockwool
Certificates	UBC 7-2; UL 10C; UL 10B; CAN/ULC S104; NFPA 252

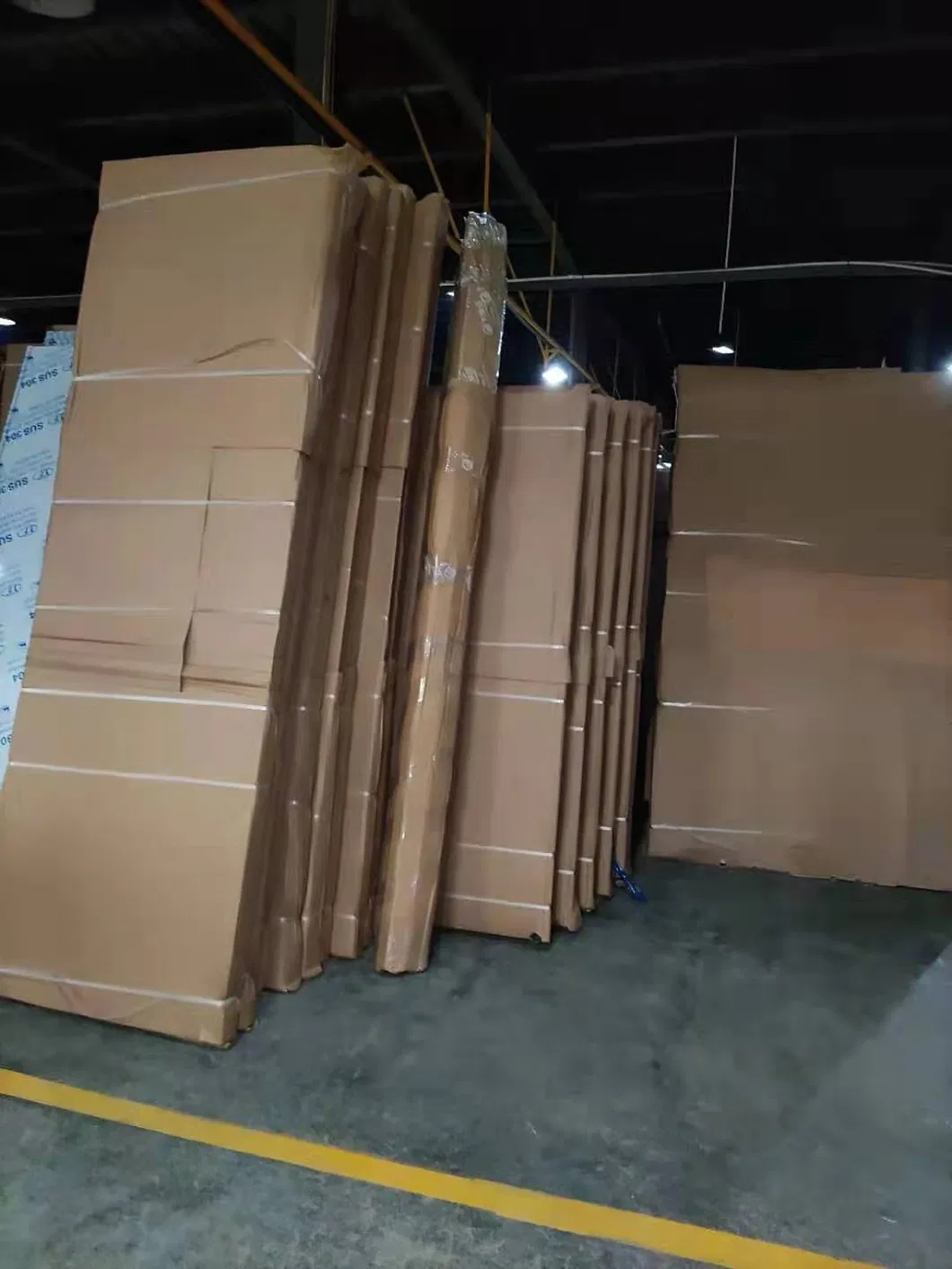

📦 Packaging & Shipping

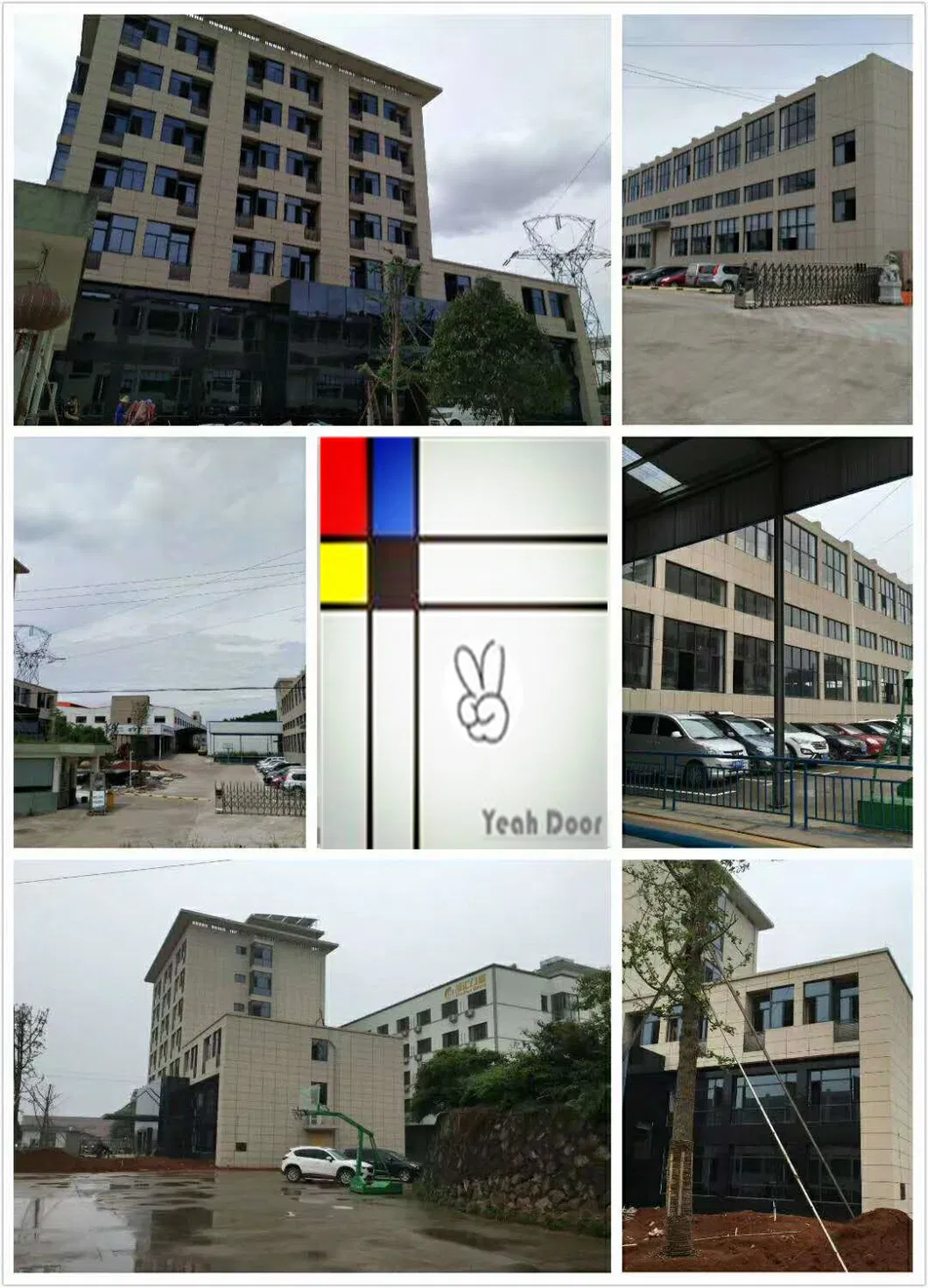

🏢 Manufacturer Profile

We are a leading supplier of various doors, including steel doors, wooden doors, and hospital doors. With over 10 years of experience in exporting high-quality doors to customers worldwide, we take pride in using advanced manufacturing techniques and the finest materials.

Our commitment to excellence ensures that each door meets strict standards for performance, durability, and safety. Before production begins, we provide CAD drawings to ensure every detail matches your specifications.

❓ Frequently Asked Questions

Q: What is the fire rating of these steel doors? A: These doors are UL listed and offer various fire ratings, including 20, 45, 60, 90, and up to 180 minutes (2-3 hours) to comply with different building codes.

Q: What materials are used for the door core? A: The door core is typically filled with fire-resistant insulation materials such as perlite or insulated rockwool to provide excellent thermal protection.

Q: Can the door size be customized? A: Yes, we provide custom sizes based on your architectural drawings and project requirements. CAD drawings are available before manufacturing.

Q: What kind of finish is applied to the doors? A: The doors feature a high-quality, factory-applied powder-coated finish or heat transfer printing for a rich wooden appearance.

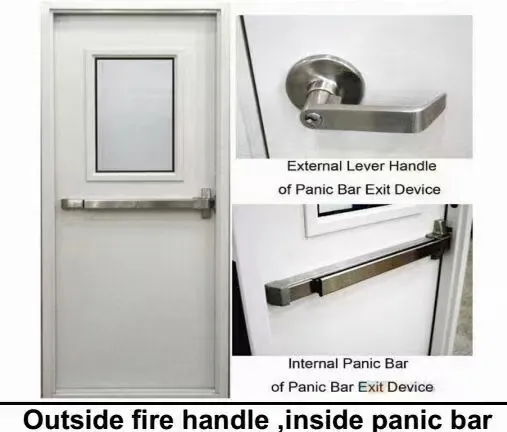

Q: Are the panic bars and hardware included? A: Yes, we can supply the doors fully equipped with panic bars, handles, hinges, and door closers as requested for emergency exit functionality.

Q: What international standards do these doors comply with? A: Our fire-rated doors are tested to comply with UL 10C, UL 10B, NFPA 252, and CAN/ULC S104 standards.
