Customization: Available
After-sales Service: 2year
Warranty: 1 Yearg
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
SSD-CAV
Material
Aluminum
Type
Sliding
Open Style
Sliding
Special Function
Fire Proofing
Certification
TUV, RoHS, CE
Position
Industrial
Rail
Patented Wind-Resistant Track Design
Door Panel
PU Sandwich Panel, 42mm
Feature
Windproof
Opening Mode
Electric/Manual
Application
Workshop
✔

Product Description

Cold Storage Insulated Sectional Doors
Important Attributes
Industry attributesIndustrial Door
Product65mm Cold Storage Insulated Sectional Door
FeaturesInsulation, wind resistance, anti-theft, sealing, security, intelligent control
ApplicationIndustrial plants, logistics warehousing, and access areas
Technical Details
Size RangeW1800mm*H2000mm to W6000mm*H6000mm
PolyurethaneFreon-free, density: 48kg/m³, closed-cell rate > 95%
Speed0.25m/s
Wind Resistance700pa (GB/T 7106-2008)
Thermal InsulationK=0.7W/(m².K)
Security DevicesWire rope anti-breaking, spring anti-breakage, anti-pinch design
★

Visual Display

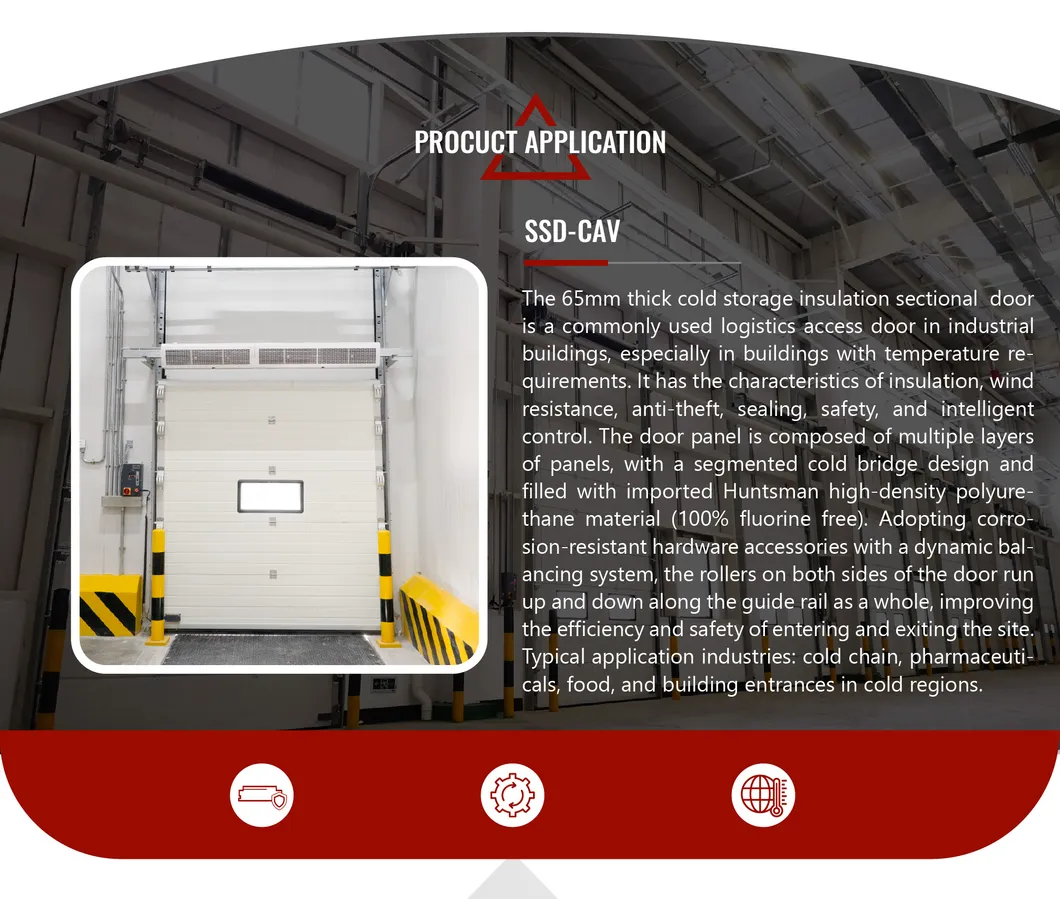

Insulated Sectional Doors Detail 1

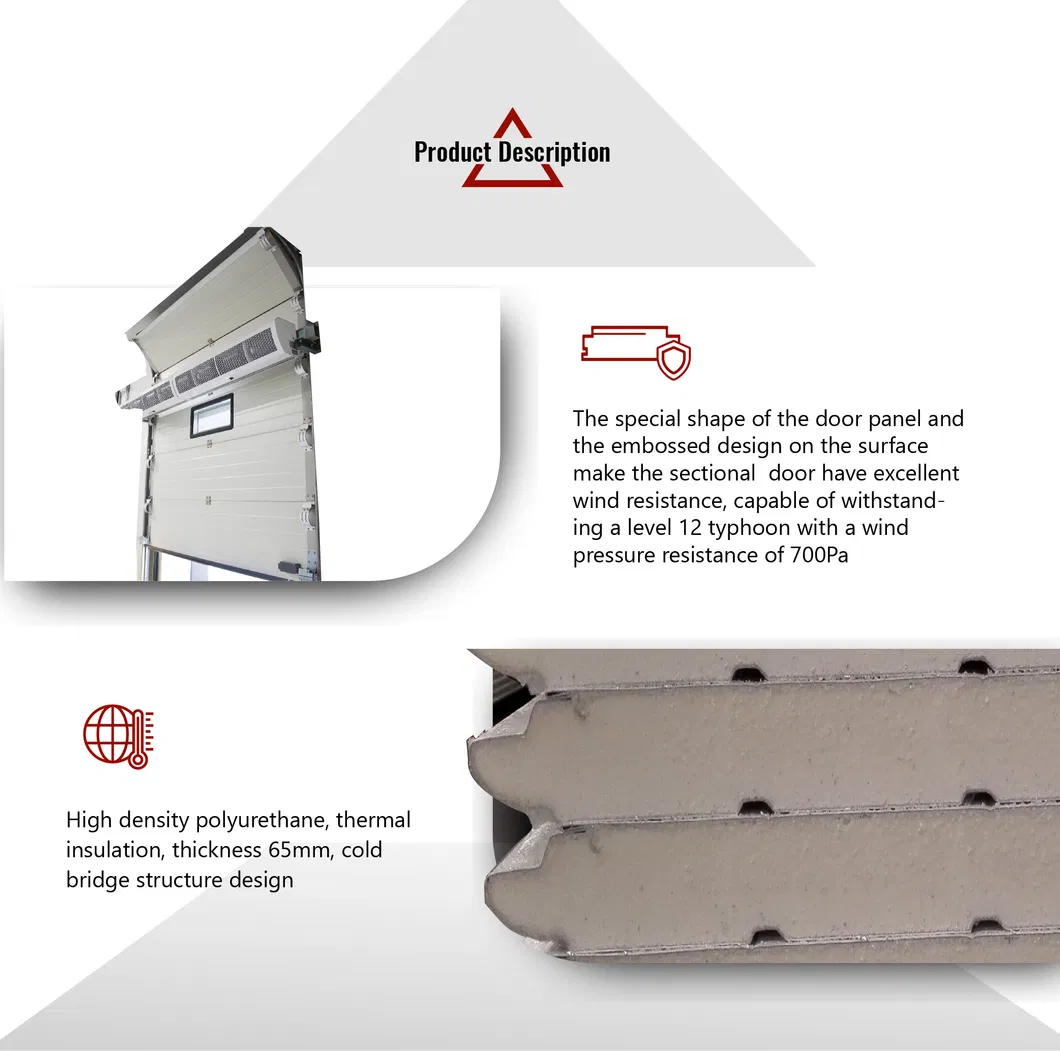

Insulated Sectional Doors Detail 2

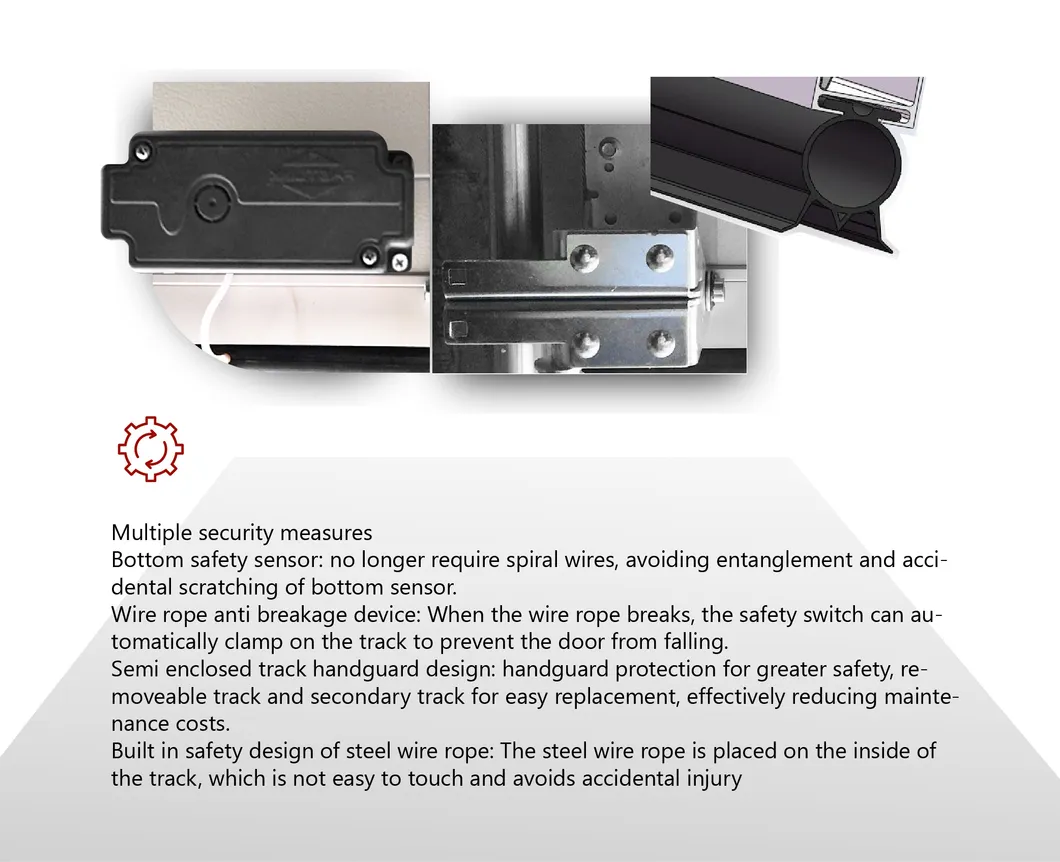

Insulated Sectional Doors Detail 3

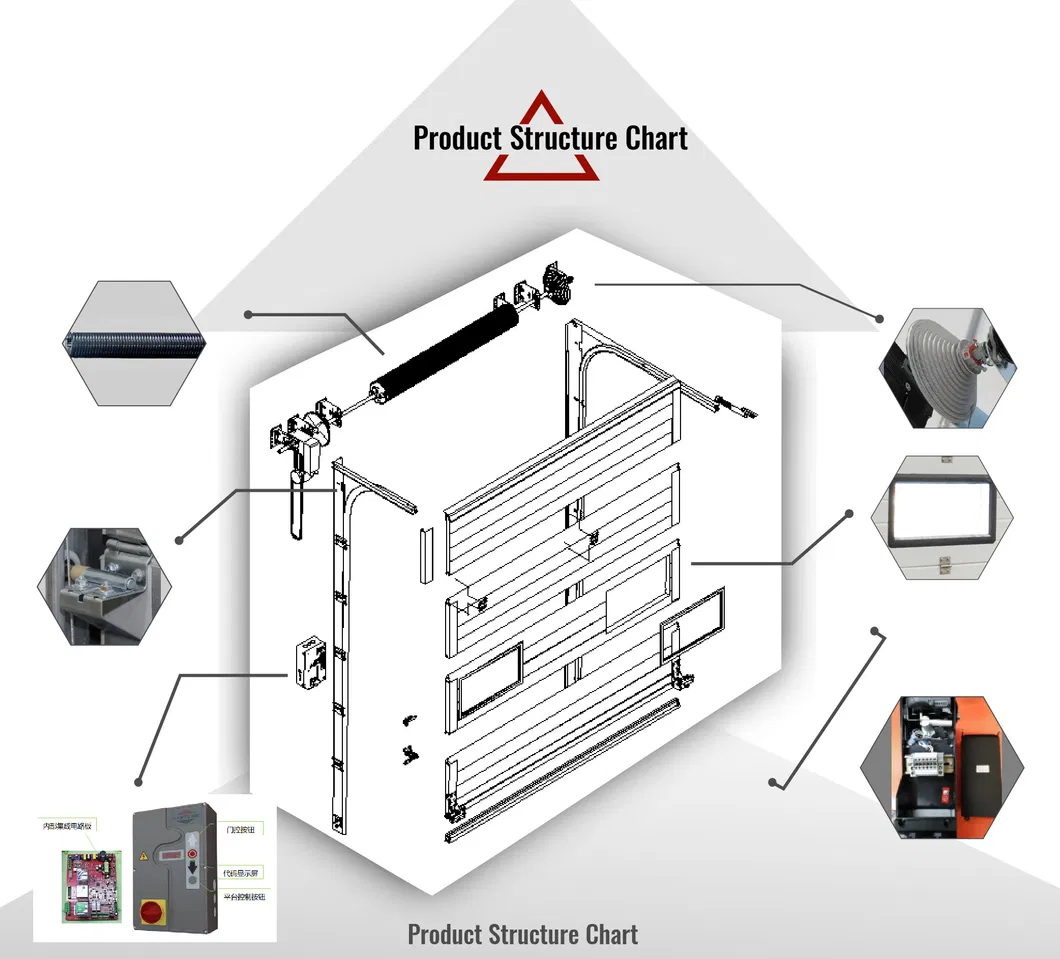

Insulated Sectional Doors Detail 4

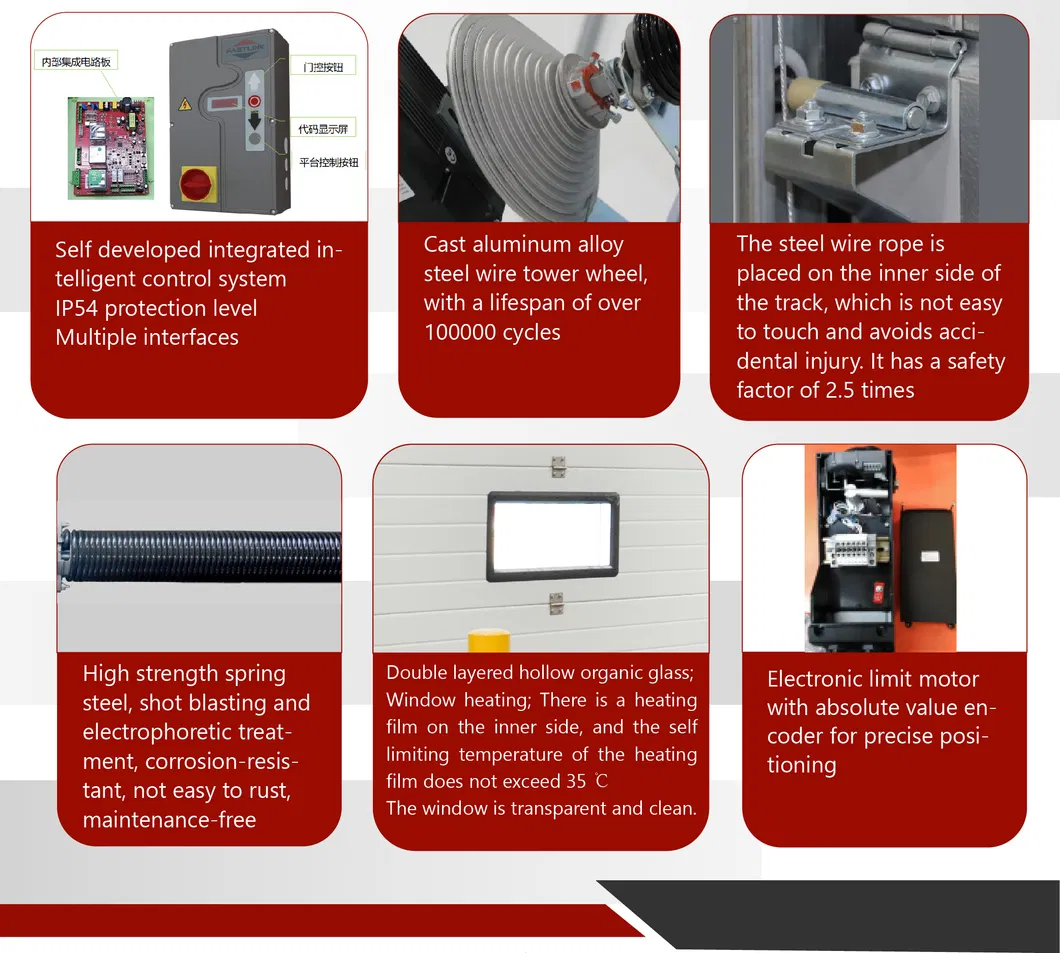

Insulated Sectional Doors Detail 5

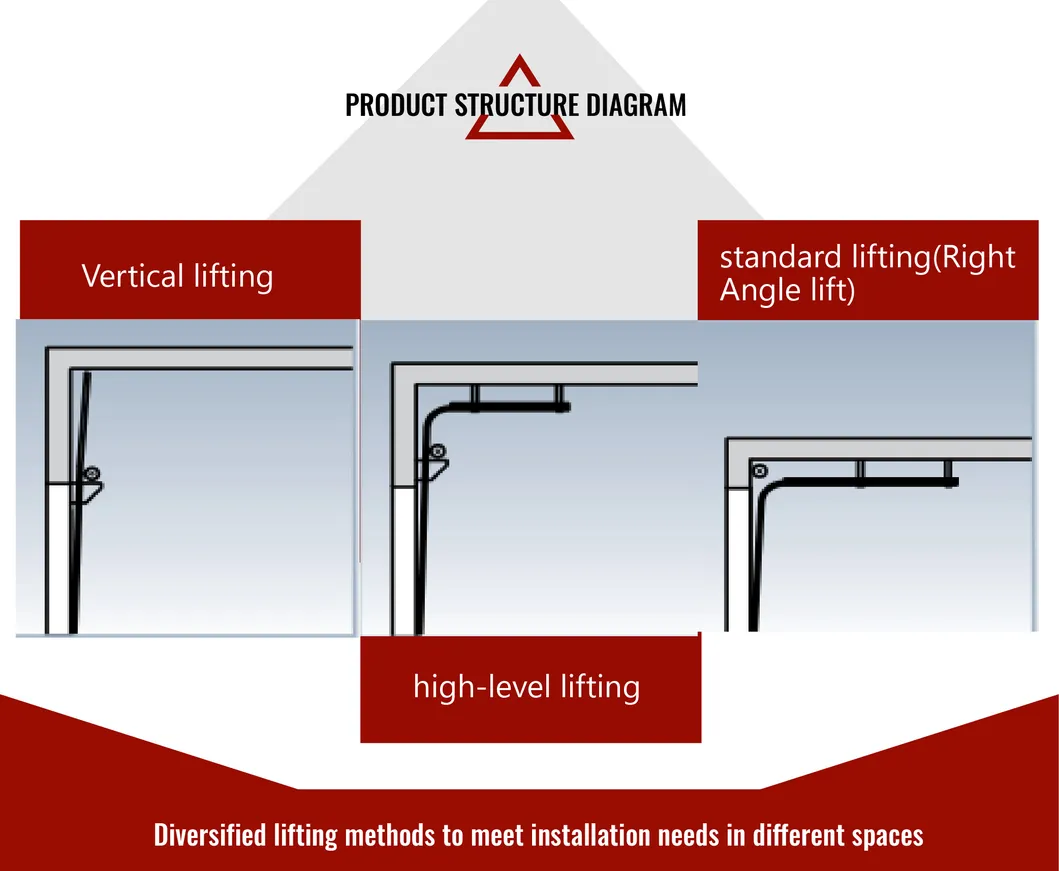

Insulated Sectional Doors Detail 6

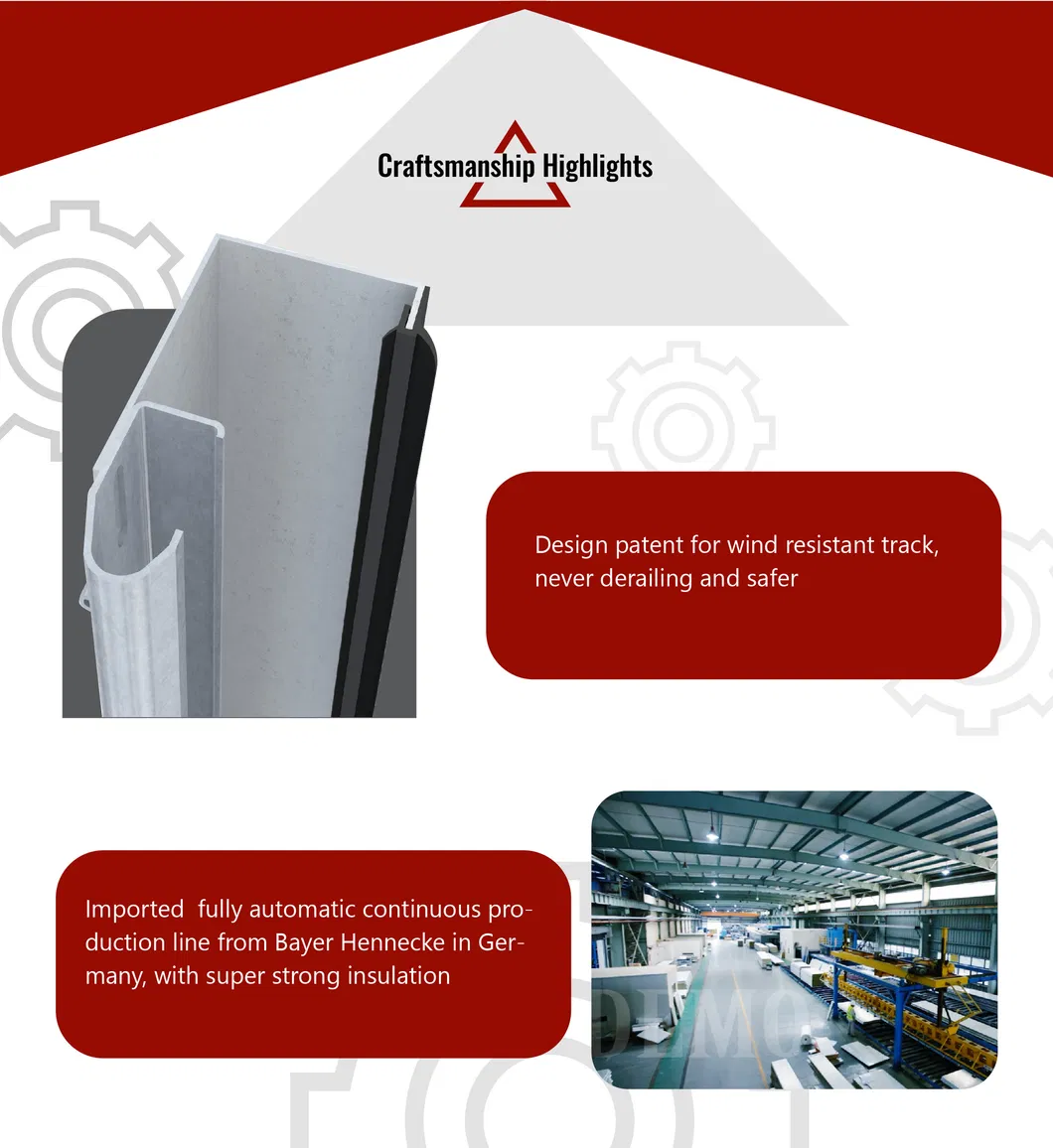

Insulated Sectional Doors Detail 7

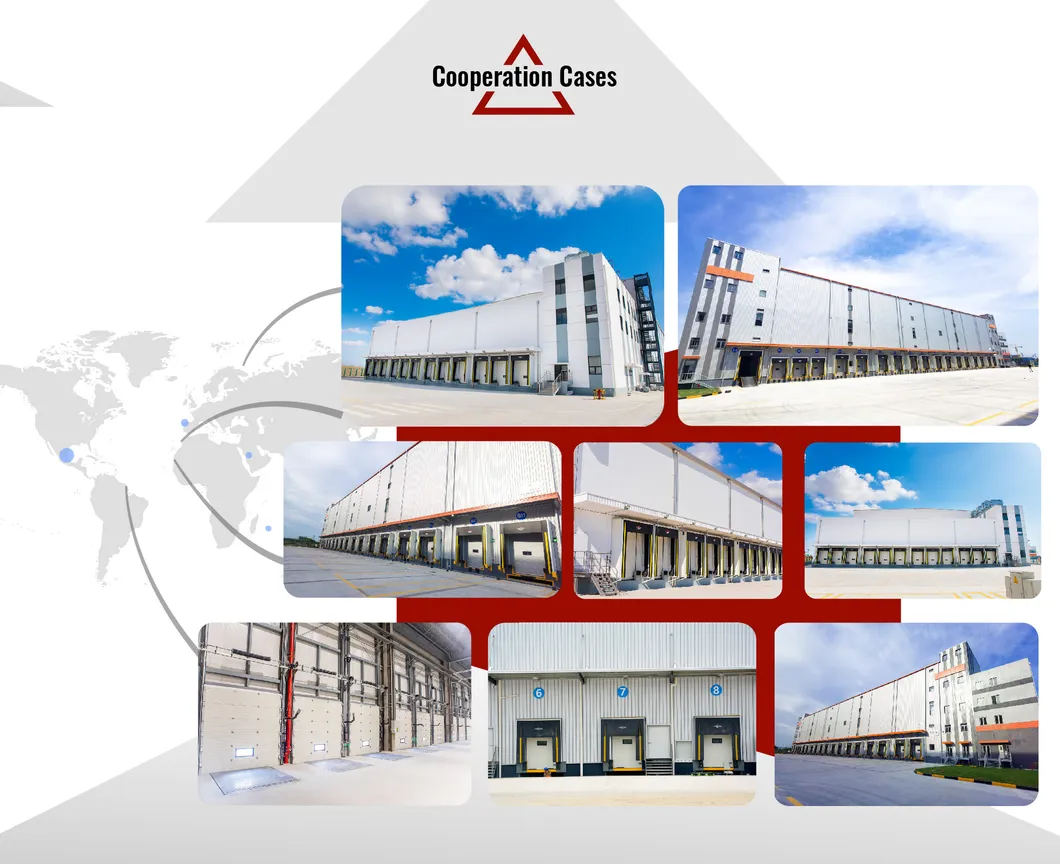

Insulated Sectional Doors Detail 8
?

Frequently Asked Questions

What environments can these doors be used in?
The unique door panel cold breaking structure and sealing design can be used in cold storage environments above 0°C, as well as in cold natural environments (minimum -30°C), providing excellent insulation.
Is the Insulated Sectional Door safe to use?
Yes, these doors pass CE certification and include safety features like bottom panel rebounding, anti-breakage protection for steel wire ropes and springs, and anti-pinch designs for the panels.
Sectional Door vs. Rolling Shutter Door: Which is better?
In high-wind or typhoon-prone areas, sectional doors are far superior. While rolling shutters often have weak wind resistance (around 250Pa), sectional doors remain intact under adverse conditions, making them more suitable for industrial buildings.
How much installation space is needed above the door opening?
A minimum headroom space of 500mm is required for standard installation.
Can sectional doors be used in residential garages?
As long as the installation space is sufficient, they can be perfectly utilized as vehicle access doors for garages.
What is the expected service life?
With normal maintenance, these doors can be used for more than 10 years. Proper usage and regular servicing help significantly extend their service life.
